HDS-2
Throat Microphone

For the Midland 75-822 and

the Cobra HH-38WXST




This professional grade throat mic is specifically designed for demanding tasks in many settings.

Compared with the normal grade items, this throat mic is made of stronger materials and wires to sustain heavy-duty demands. This throat mic is extendable for adaptation to neck sizes between 14 - 18 inches. Made of stronger and more elastic material, the throat mic stays on your neck in snug.

Since the microphone transmits directly from your throat, it is not sensitive to the background noise. This is exceptionally ideal for usage in high ambient environment such as driving, riding motorcycles.

With the best-quality transparent acoustic tube that could hardly be detected by people around you, this is also ideal for surveillance purposes and security at airports, casinos, crowd control at conventions and concerts, and other working environment requiring discreet communications. The throat mic could be easily hidden under the collars too.

The throat mic is VOX ready. It can work in VOX mode with radios that come with built-in VOX function. None of the CB Radios we sell have VOX function.  For radios without built-in VOX, it can still work in PTT mode.

Features
  • Excellent Sound Quality: This throat mic is a dual-mic design. There is a mic on both the left and the right side to transmit your voice in the clearest quality. You may found cheaper throat mics (come with 1 mic on one of the sides) in the market, but sound quality will tell the difference.
  • Snug Fit Transparent Earbud: The mushroom shaped acoustic tube earpiece is the best choice for long-hour operation.
    Fine Transparent Acoustic Tube: You may hide the throat mic under the collar and the transparent tube earphone is not easily detected by the others. This is ideal for discreet comfortable communications.

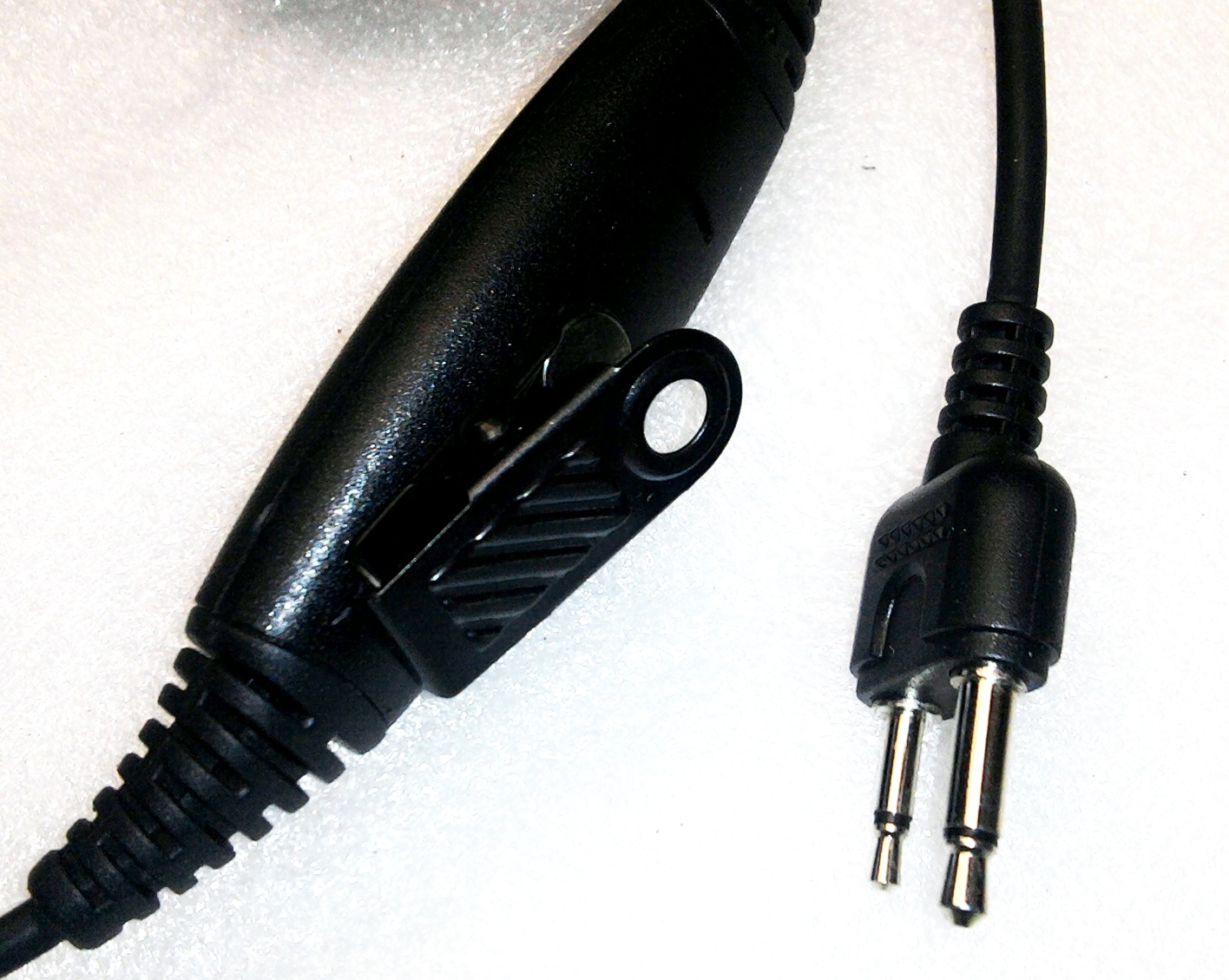

  • Big PTT switch: big and strong enough for demanding outdoor operation;
  • Extendable: adjustable to suits neck size between 14" and 18".
  • Length of wires:
    • 60 cm / 2 ft from throat mic to PTT switch;
    • 120 cm / 4 ft (fully extended) from PTT switch to plug;
    • transparent tube extendable to 30 cm / 1 ft from the throat mic.
  • Weight: 90 g.
  • With 3.5mm EXT 3.5mm phone jack ( for 3.5mm MONO earpiece" Not included")
    If you use stereo ear buds, only one side has audio.
  • suit for:

    ICOM (2-pins, straight plug)
    IC-F3, IC-F3S, IC-F4, IC-F4S, IC-F4SR, IC-F4TR, IC-F10, IC-F20
    IC-H2, IC-H6, IC-H16, IC-J12, IC-M5, IC-M10, IC-U12, IC-U16, IC-U68
    IC-Q7A, IC-W21, IC-W31, IC-W31A, IC-W32, IC-W32A,
    IC-V8, IC-V21, IC-V21AT, IC-V68, IC-X21, IC-Z1A,
    IC-2SAT, IC-3SAT, IC-4SAT, IC-24AT
    IC-T2, IC-T2A, IC-T2E, IC-T2H, IC-T3H, IC-T7, IC-T7A, IC-T7H, IC-T8, IC-T81, IC-T21, IC-T22, IC-T22A, IC-T22E, IC-T41, IC-T42, IC-T42A, IC-T42E, IC-T90,
    IC-O2AT, IC-03AT, IC-04AT, IC-2GAT, IC-2GXA/T, IC-4GXA/T
    IC-4008, IC-4088A, IC-4088SR

    Motorola (Standard 2-pins)
    Talkabout Basic, Talkabout Plus, Talkabout 200, Talkabout 250
    Talkabout Distance, Talkabout Distance DPS

    Maxon (2-pins, straight plug)
    SL25, SL55, SP100, SP120, SP130, SP140, 0500 series, SP5000 series

    Ritron (2-pins)
    JMX-102, JMX-141, JMX-144, JMX-146, JMX-152, JMX-441, JMX-444, JMX-446, JMX-452
    Patriot SST Plus, Patriot RTX plus, Patriot SST-144, Patriot SST-446, Patriot SST-444
    RTX-050, RTX-150, RTX-450 Patriot Series RTX, SST, Jobcom JMX, MBX

    vertex (Standard 2-pin Straight plug)
    VX-200, VX-310, VX-500, VX-510, VX-510V, VX-510L, VX-520UD
    Yaesu FT-10, FT-11, FT-23, FT-26, FT-33, FT-40, FT-41, FT-50
    FT-203, FT-411, FT-415, FT-416, FT-41, FT-470, FT-51, FT-530, FT-703, FT-73, FT-76, FT-811, FT-815, FT-816, FT-911
    FTH-2005, FTH-2006, FTH-2008, FTH-2009, FTH-2010, FTH-7005, FTH-7008, FTH-7009, FTH-7010



...Throat microphone..

$59.50

Earphone speaker

Transducer: moving coil dynamic
speaker Impedance: 32Ω +/- 15% @ 1kHZ
Sensitivity: 120 +/- 3dB @ 1kHZ
Resonance freq (FO) 400HZ +/- 20%
Rated input power: 200mW
Maximum input power: 500mW


Microphone

Sensitivity: -38+/-2dB @ 1kHZ
                  2.2KΩ 3V 0dB=1v/pa
Impedance: Max. 2.2kΩ @1kHZ
Directivity: Omni-directional
Frequency: 100Hz - 16000Hz
Max operation voltage: 10V
Standard operation voltage: 3V;
Current consumption: Max. 0.5mA;
S/N ratio: Min. -58dB @1kHZ














































The item most overlooked when ordering a custom radio is the microphone.  Your new tuned radio will NOT
sound great  with a stock mic on it  If your CB is more than a tool for work, you NEED to upgrade your microphone.
My personal favorites are the Astatic 636L and RD104E.
