Type:
Amplified base station with flexible gooseneck microphone.

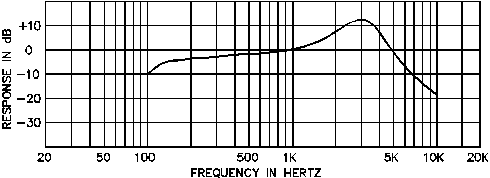

Frequency Response:
Echo:
PCM Digital, microprocessor controlled. Echo and Slapback Echo effects. Delay time variable from 7 milliseconds to 920 milliseconds.
Controls:
Mic Gain, Master Gain, Digital Delay, Effects Gain, ETS On/Off, ETS Single/Multi Tone, Headphone Volume.
Meter:
Analog VU.
Output Level:
Open Circuit, -10 dB (0dB = 1 V/uBar).
PTT Switches:
Push-to-Talk, Lock, with separate switches.
Battery:
9 volt. Alkaline recommended, low battery indicator. Can also be powered with optional 9 VDC plug in wall transformer.
Current Drain:
8 mA. without headphones.
Impedance:
5k ohm. Matches all modern radios.
Cable:
Heavy duty 5 conductor coil cord. Extends to 6 feet. Quick disconnect modular connector at microphone.
Housing:
Steel

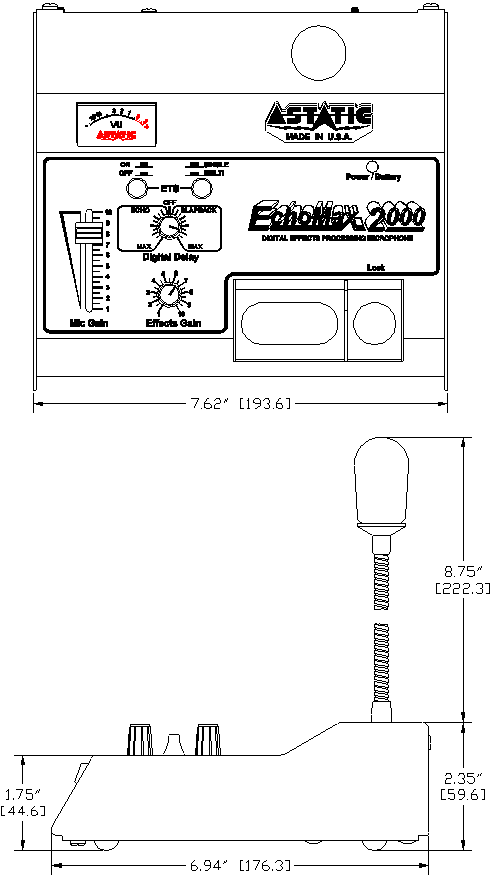

Dimensions:
