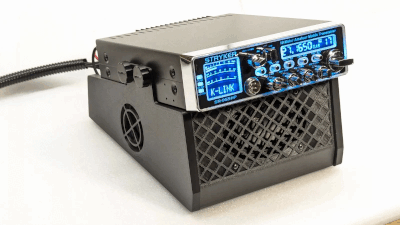

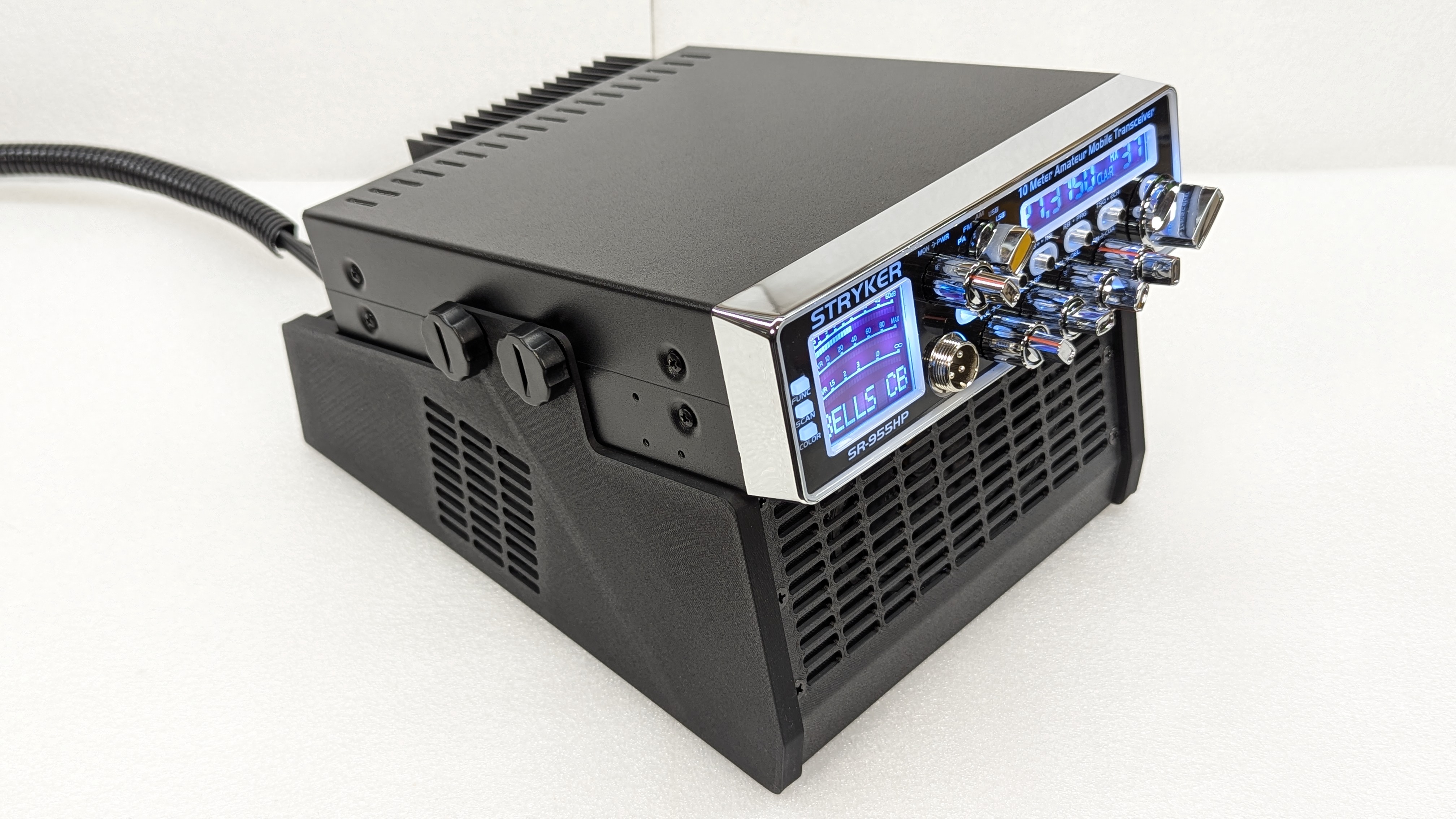

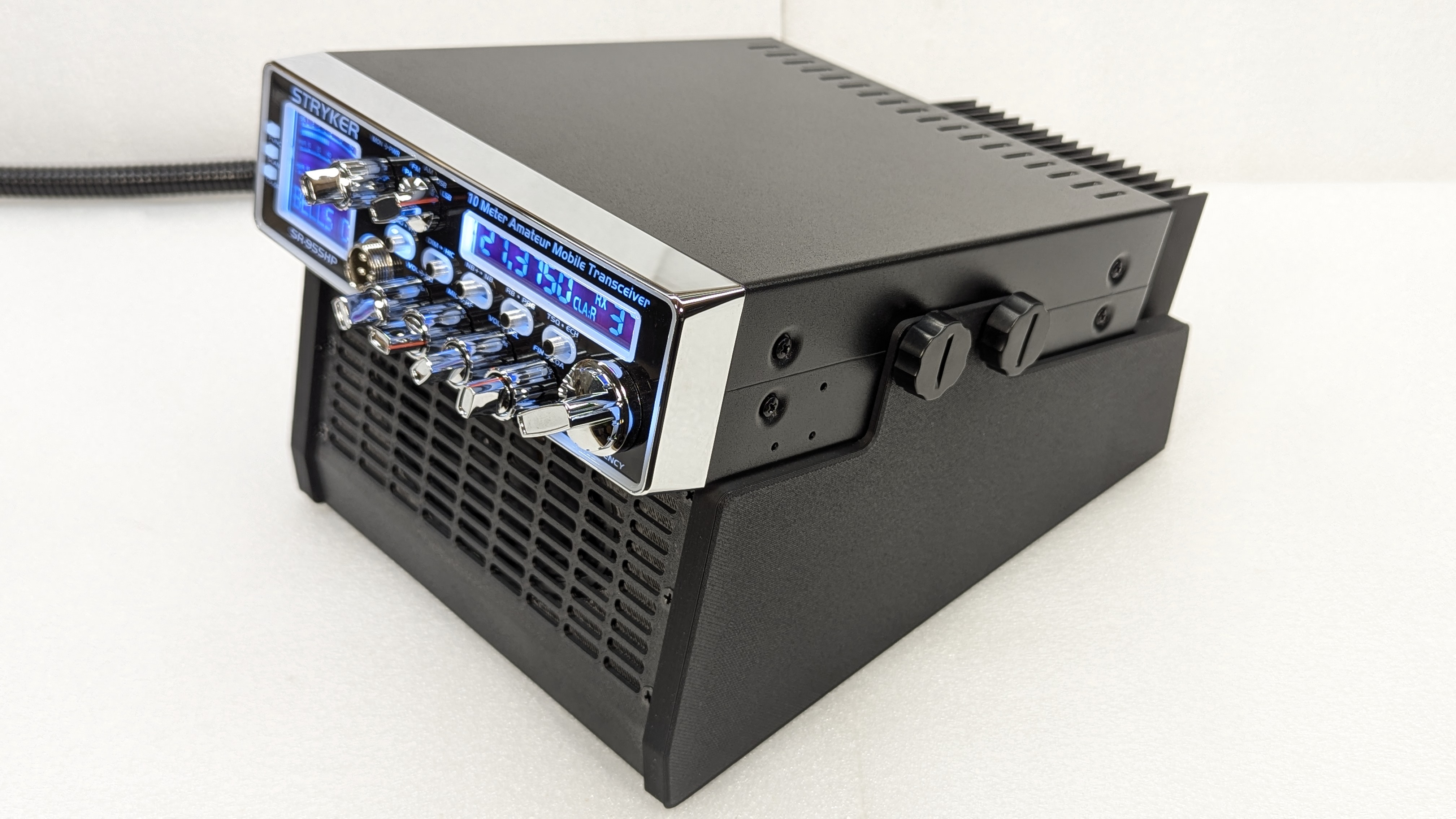

K-LINK K-621 Base for Stryker SR-955HP

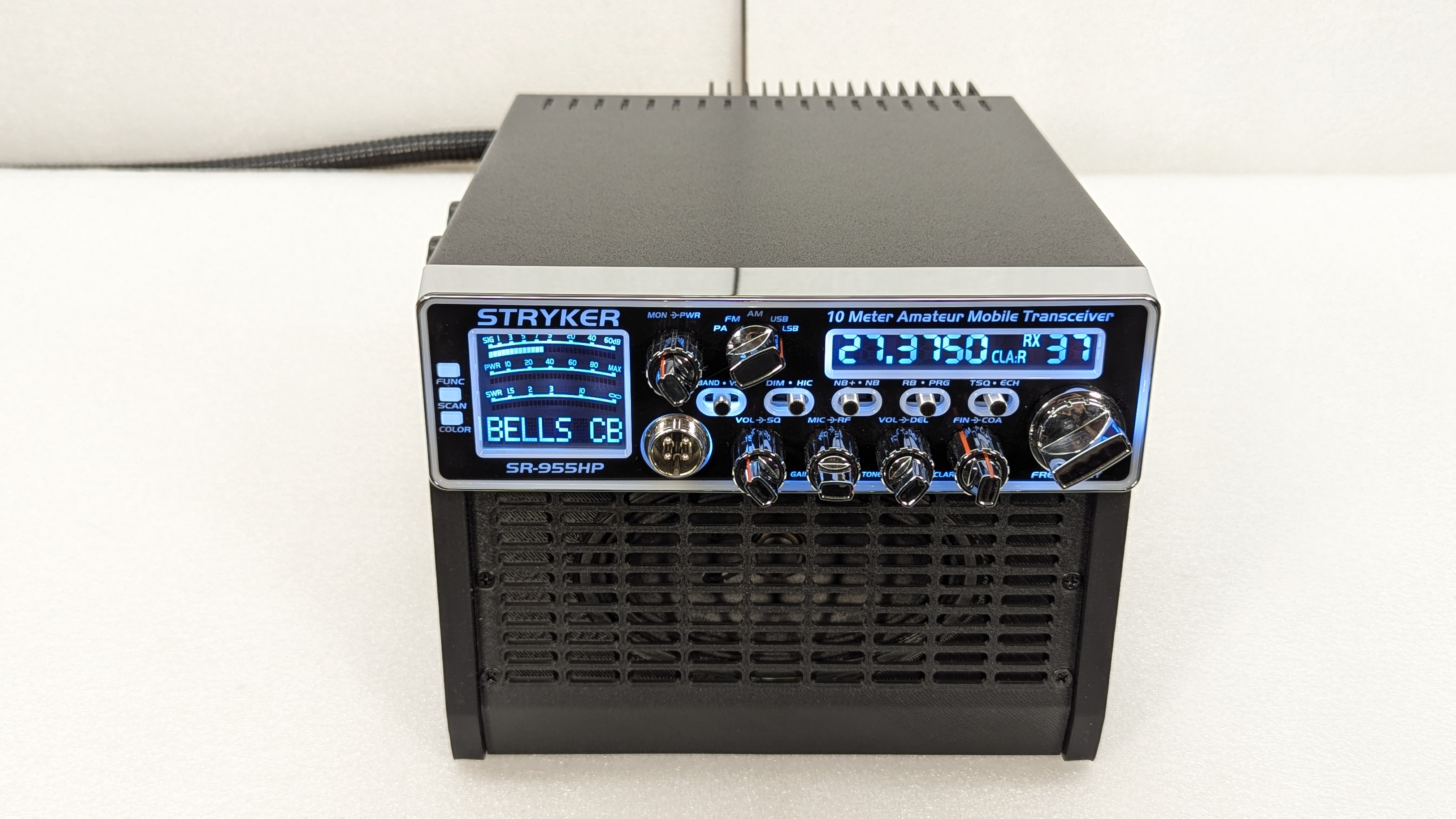

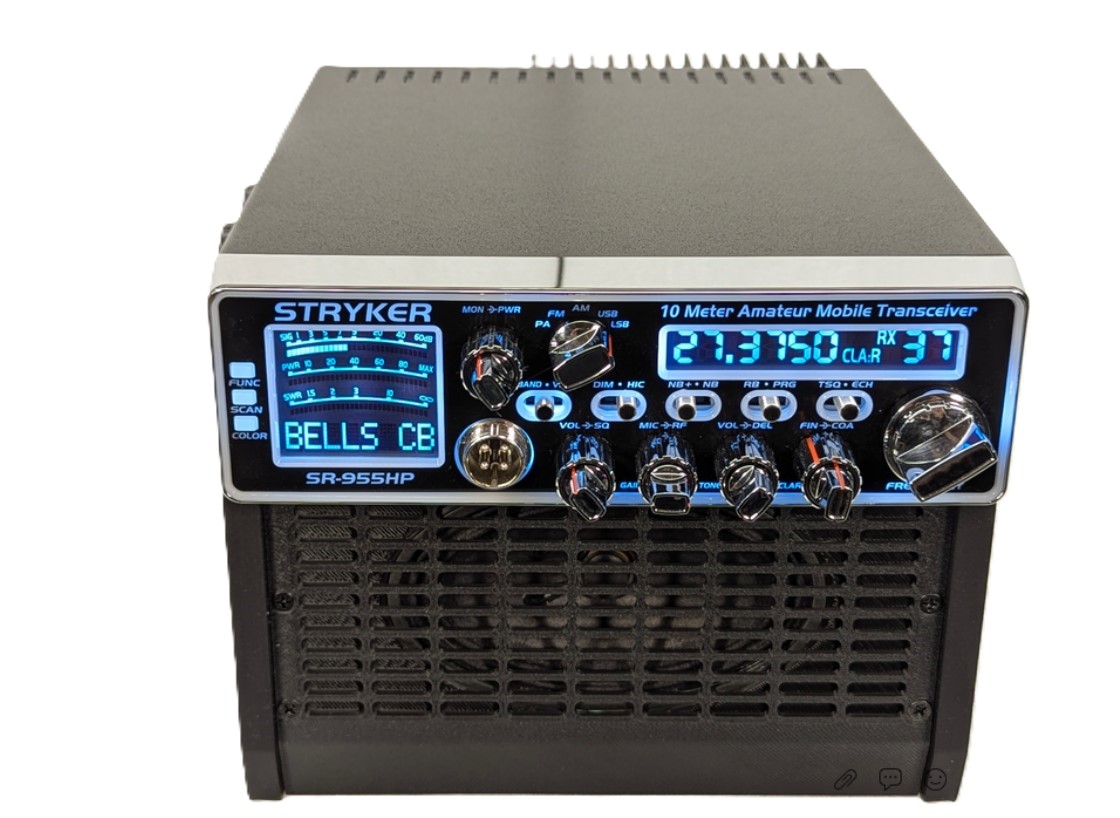

This base unit kit supports the Stryker SR-955HP
10-12 meter transceiver and provides a clean, compact
desktop setup. All you have to do is correctly
connect the power wires from your transceiver to
the power supply's terminal block.

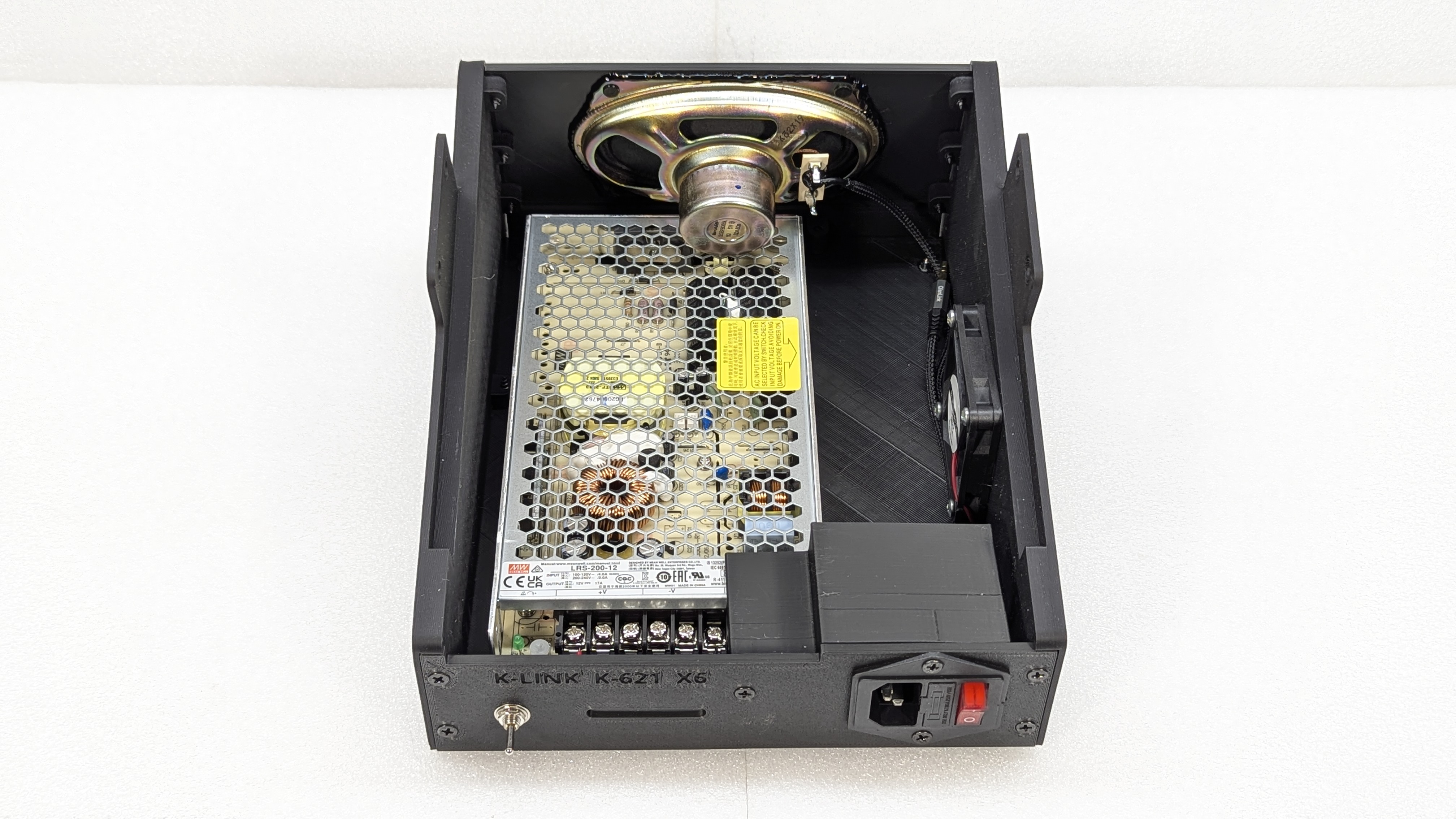

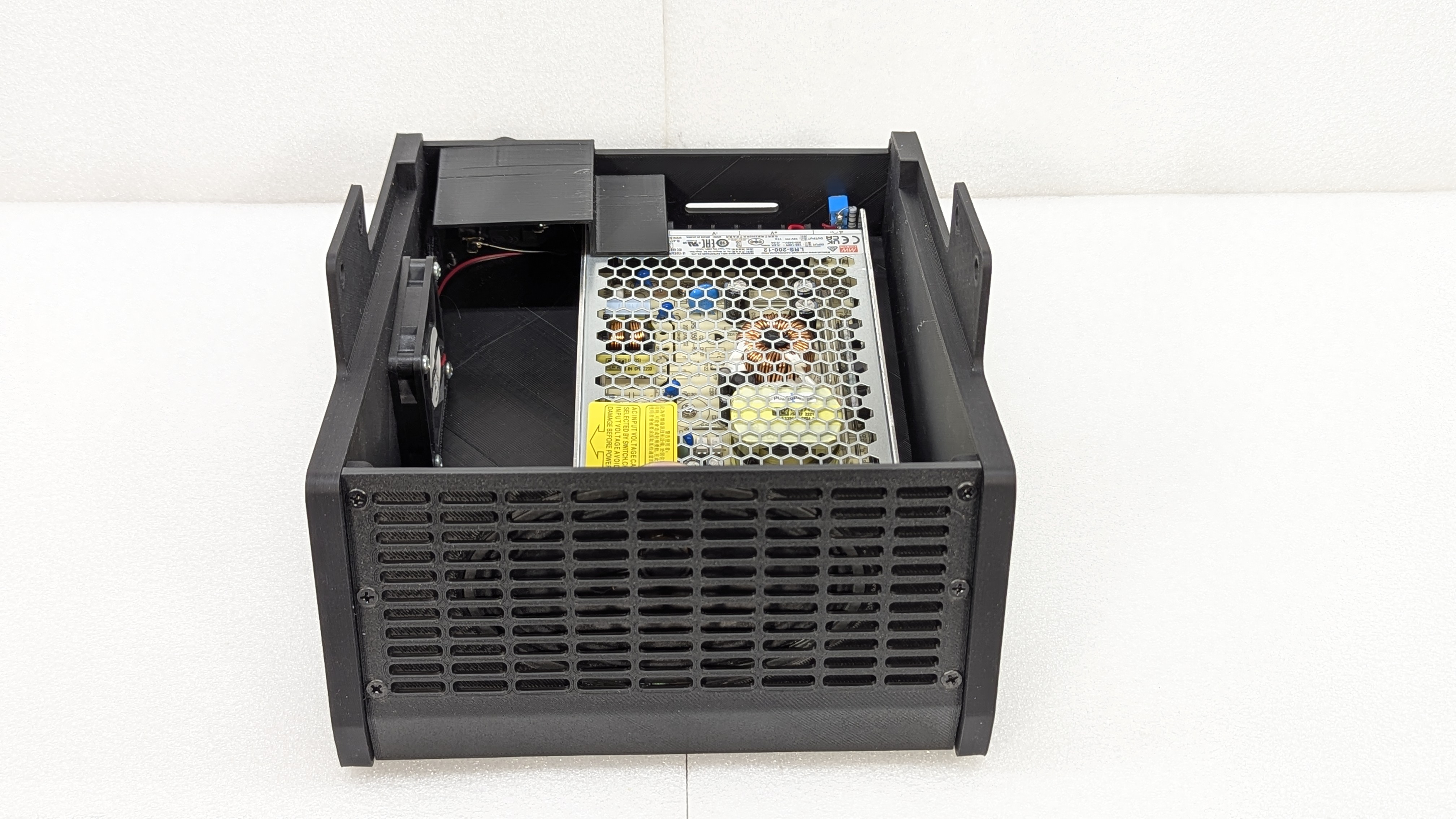

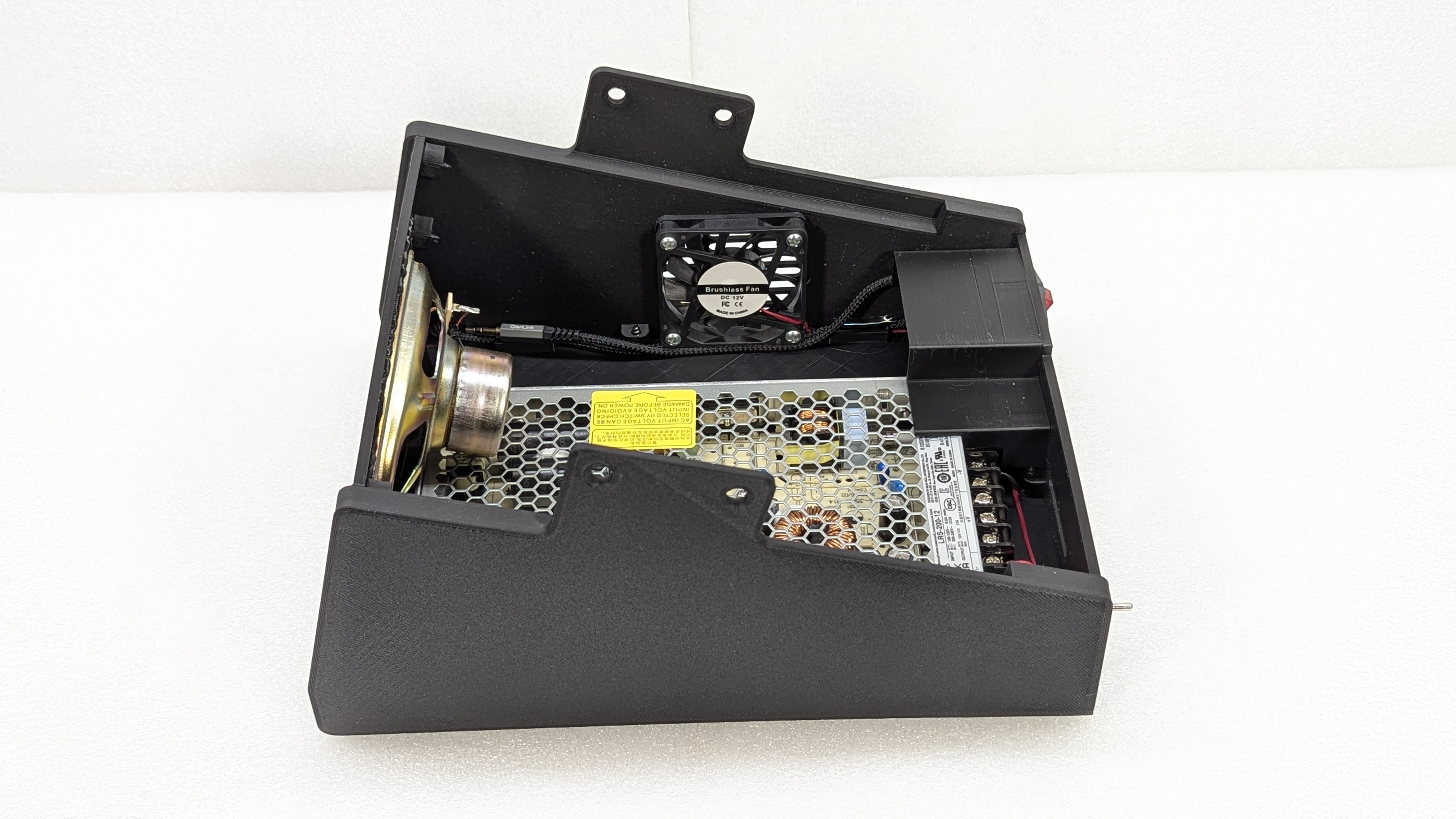

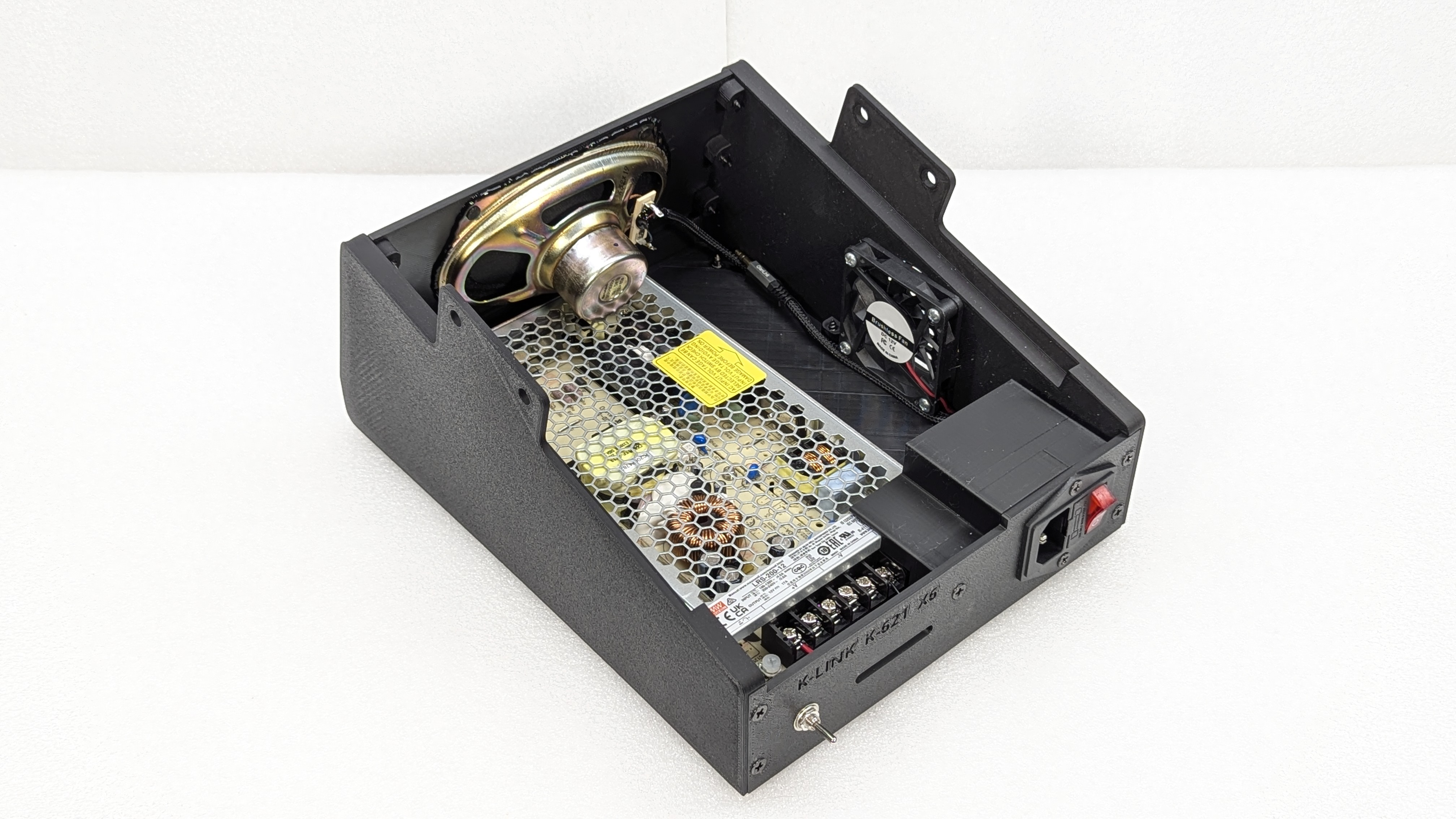

The enclosure is 3D printed and houses a genuine
Mean
Well LRS-200-12 switching power supply that is
supplied through an IEC320-C14 power inlet with
integrated power switch and fuse. A power cord is

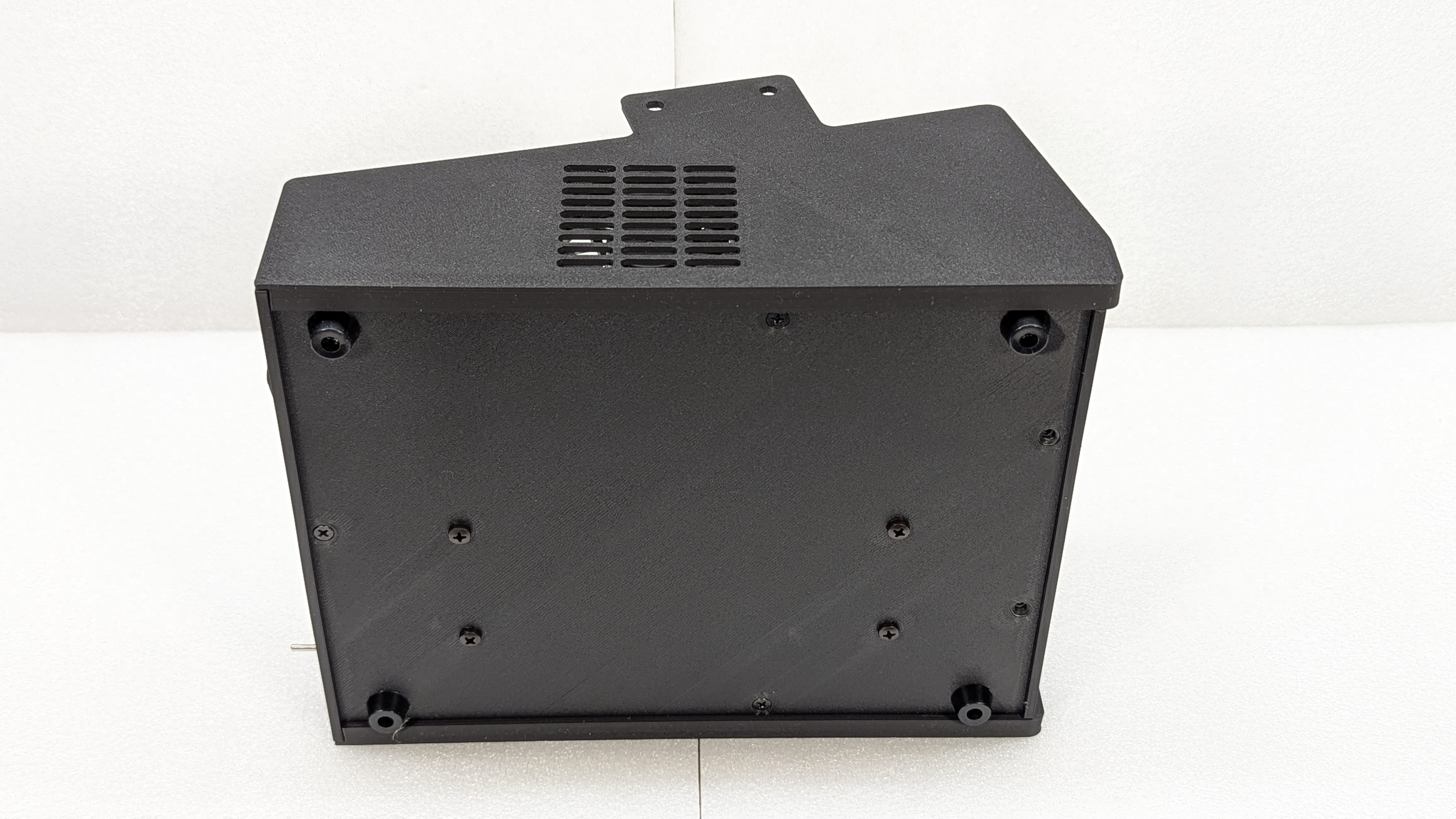

included. The base includes adhesive silicone rubber
feet.

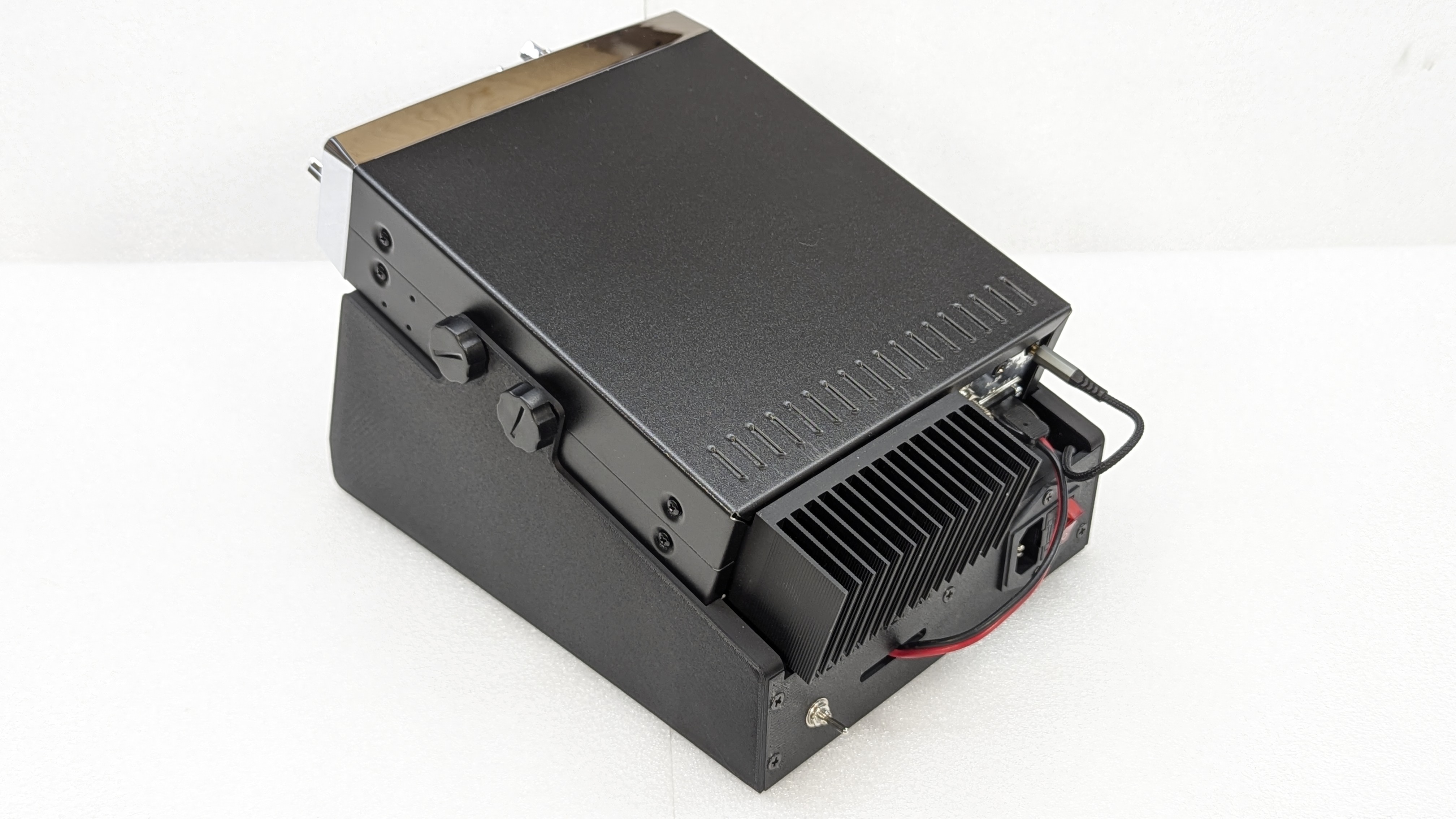

A 60mm cooling fan has been incorporated to positively
pressurize the enclosure and the outflow is directed
over the heatsink to keep things cool when running max
power in FM nd SSB mode. A series resistor reduces voltage
to the fan for quieter operation. A rear-facing
switch allows the fan to be turned off for silent
operation.

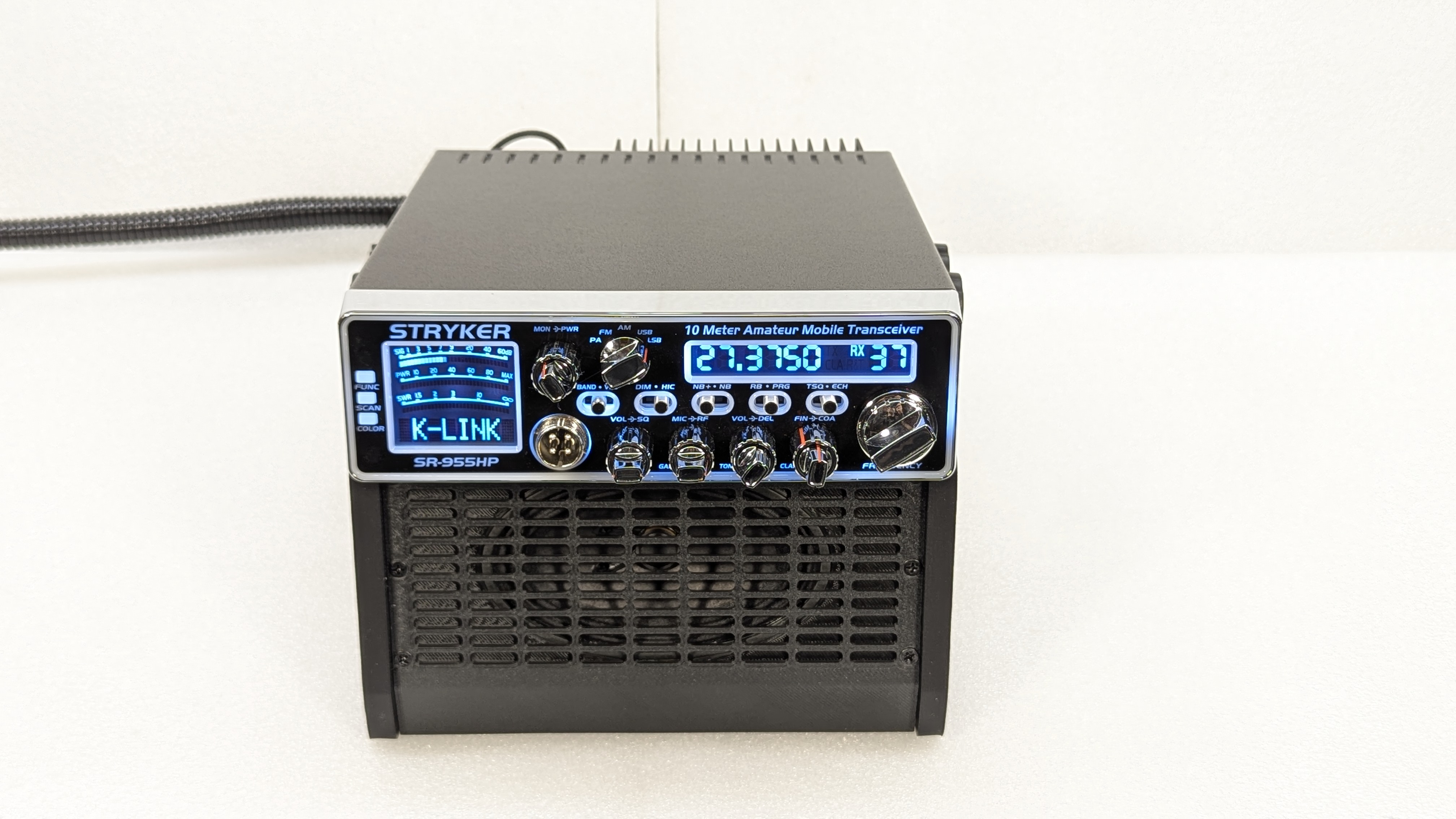

A front-facing 3x5 oval speaker has been incorporated
to provide a warmer tone to the audio and plugs into
the back of the transceiver with the 1/8" (3.5mm) phono plug.

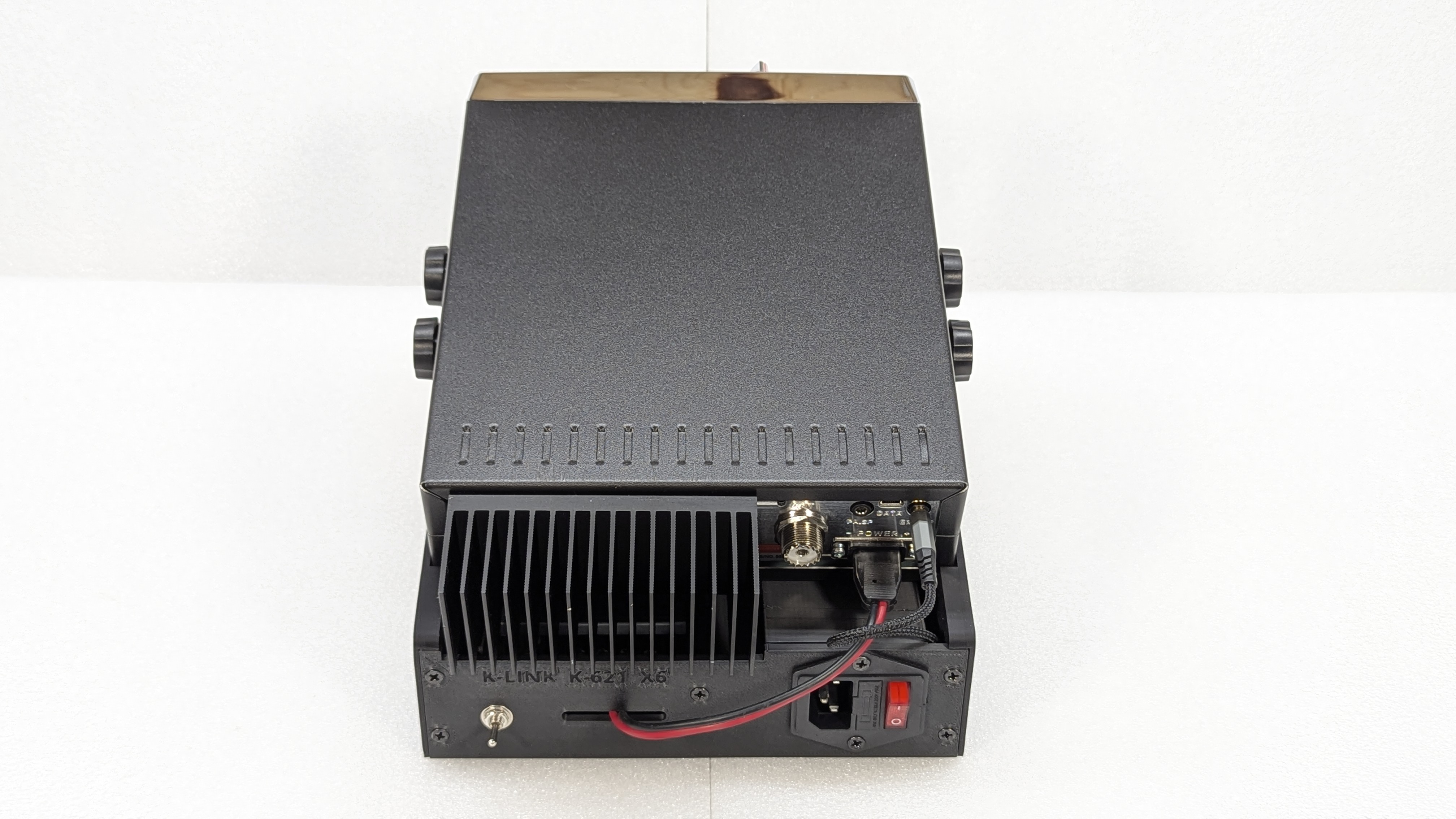

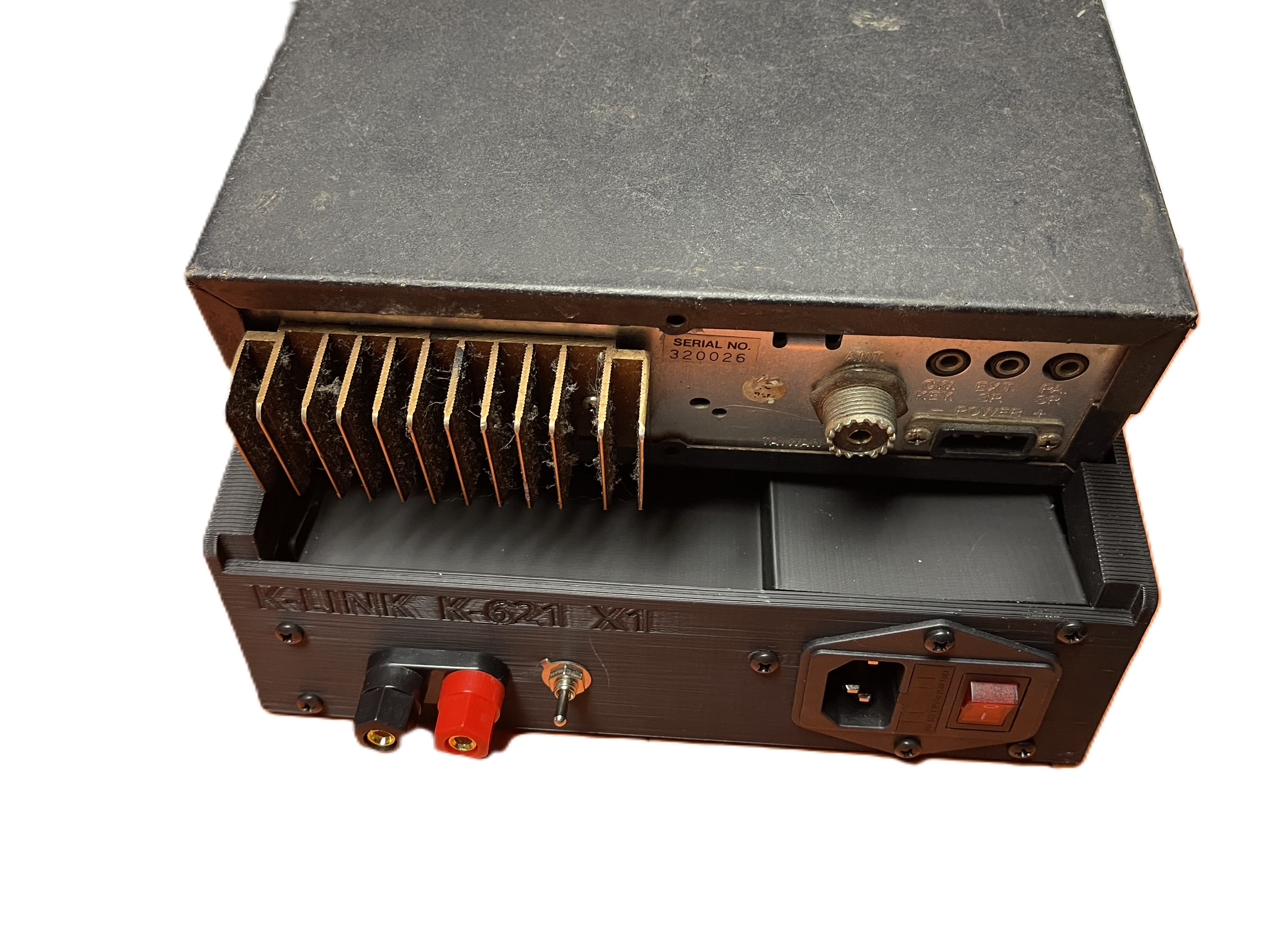

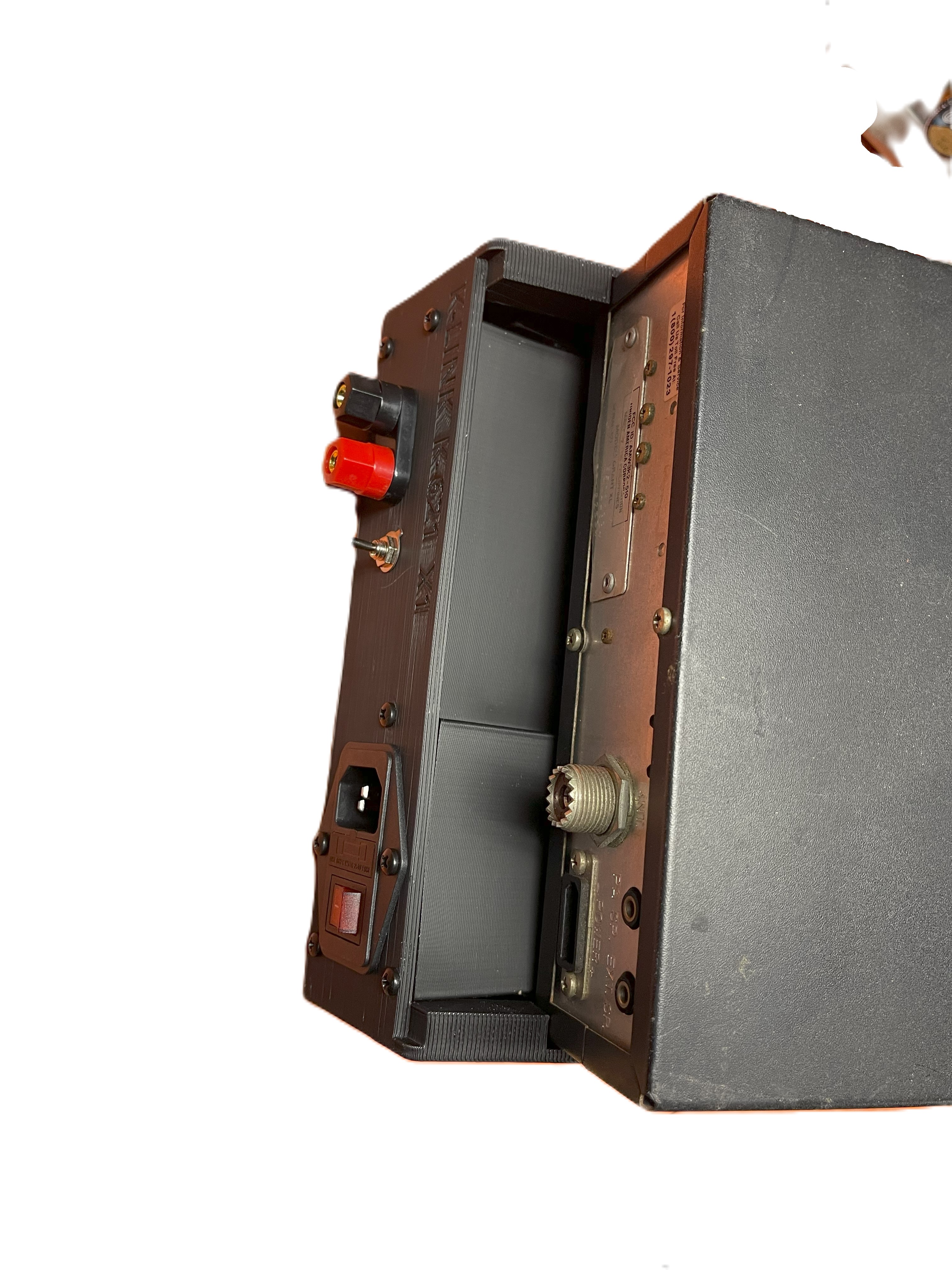

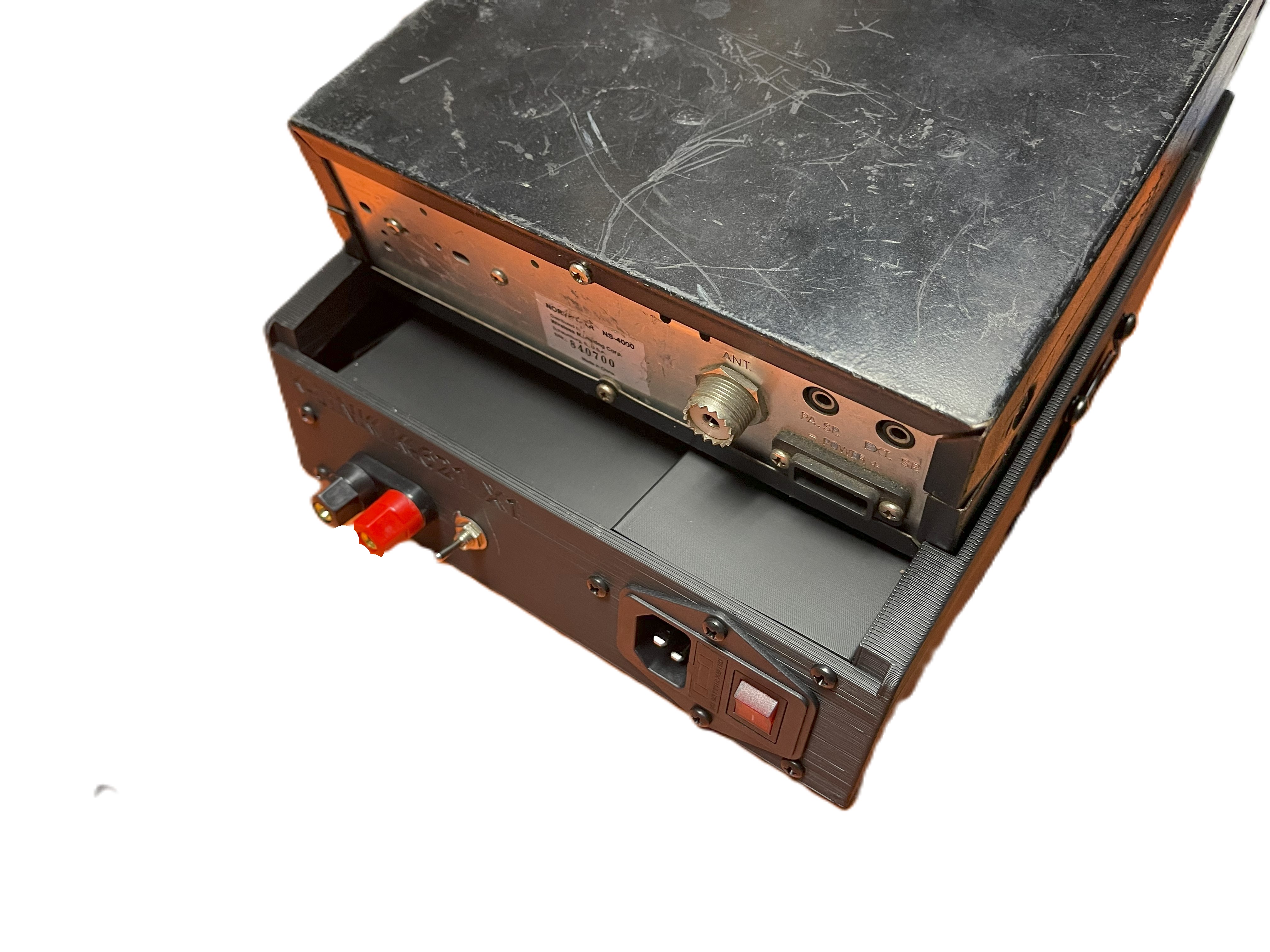

A cover is included over the power input and terminal
block of the power supply, to make it more difficult to
touch anything with voltage on it.
Material: PLA (3D printed plastic)
|
