                                  Coax Cable Jumpers



LMR-400-UF(Ultra Flex)

 Coaxial Cable Jumpers


 Download Data Sheet

LMR®-400-UF

Ultra-Flexible Low Loss Communications Coax

• Drop-in replacement for RG-8/9913 Air-Dielectric type Cable
• Jumper Assemblies in Wireless Communications Systems
• Short Antenna Feeder runs
• Any application that requires additional flexibility

LMR® standard is a UV Resistant Polyethylene jacketed cable designed for 20-year service outdoor use. The bending and handling characteristics are significantly better than air-dielectric and corrugated hard-line cables.

Flexibility and bendability are hallmarks of the LMR-400 cable design. The flexible outer conductor enables the tightest bend radius available for any cable of similar size and performance.

• Low Loss is another hallmark feature of LMR-400 Size for size LMR has the lowest loss of any flexible cable and comparable loss to semirigid hard-line cables.

• RF Shielding is 50 dB greater than typical single shielded coax (40 dB). The multi-ply bonded foil outer conductor is rated conservatively at > 90 dB (i.e. >180 dB between two adjacent cables).

Weatherability: LMR-400 cables designed for outdoor exposure incorporate the best materials for UV resistance and have life expectancy in excess of 20 years.

• Connectors: THESE JUMPERS wired with hand soldered Amphenol PL-259 or Type N connectors.







Interactive calculator ONLINE

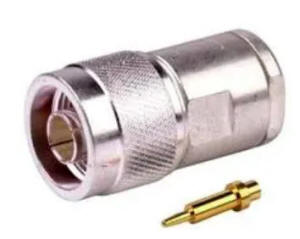

Amphenol Type-N

AMPHENOL RF  172113H243
RF / Coaxial Connector, N Type,

PL-259 Amphenol
AMPHENOL RF PL-259 RF / Coaxial Connector, UHF Coaxial, Straight Plug, Solder

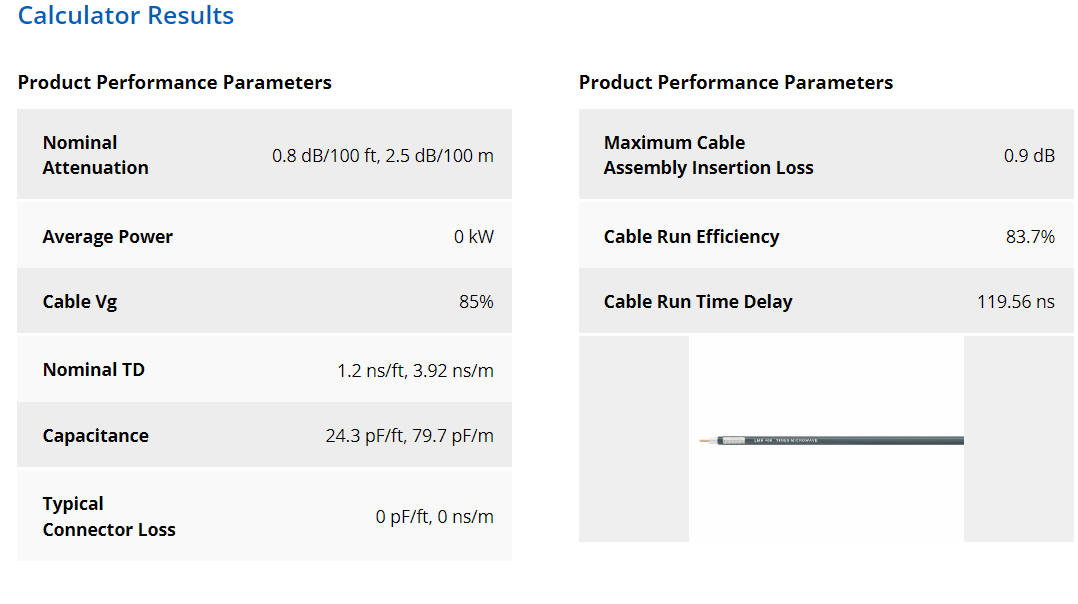

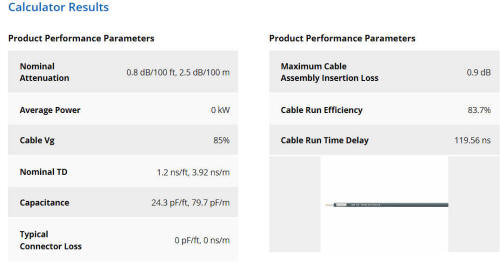

Example Calculate Attenuation = (0.146748) • FMHz + (0.000312) • FMHz

VSWR=1.0;

Ambient = +25°C (77°F)

Power: VSWR=1.0;

Ambient = +40°C; Inner

Conductor = 100°C (212°F);

Sea Level; dry air; atmospheric pressure; no solar loading



If calculated using CB radio 27.205 Mhz (channel 20)

LMR-400UF at 27Mhz

     1 FT Coax Cable Assemblies
     3 FT Coax Cable Assemblies
     6 FT Coax Cable Assemblies
     9 FT Coax Cable Assemblies
   12 FT Coax Cable Assemblies
   30 FT Coax Cable Assemblies
   44 FT Coax Cable Assemblies
   59 FT Coax Cable Assemblies
   74 FT Coax Cable Assemblies
   88 FT Coax Cable Assemblies
   102 FT Coax Cable Assemblies
   117 FT Coax Cable Assemblies
   132 FT Coax Cable Assemblies
   145 FT Coax Cable Assemblies
   161 FT Coax Cable Assemblies
   500 FT Roll of Coax
(no connectors)
$1100

N-type  AMPHENOL N Type
 Coaxial Connector
$21
PL-259 AmphenolAMPHENOL PL-259
Coaxial Connector
$6
Double female UHF barrel connector. Will connect two PL259 plugs. $6
Barrel Male to male UHF coupler. Also called PL259 male/ male. $10
prices calculated at $2.44 per foot.

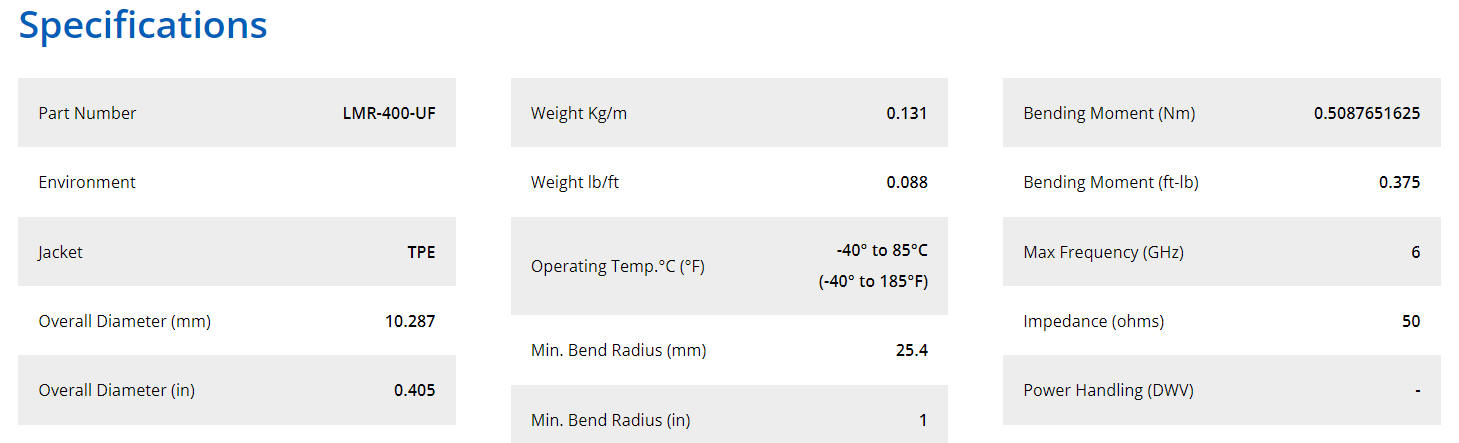

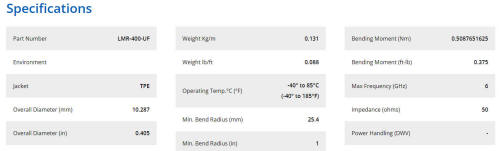

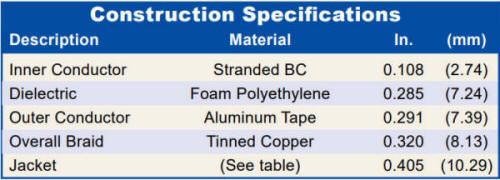

Construction Specifications

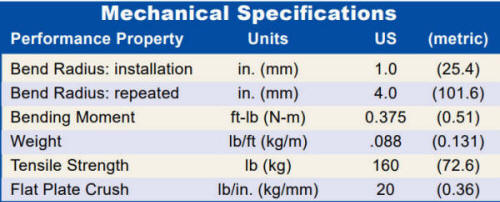

mechanical Specifcations

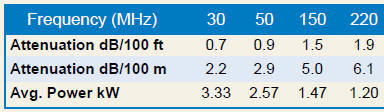

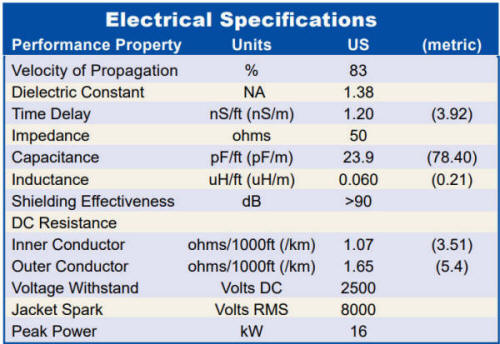

LMR-400UF Electrical Specifications

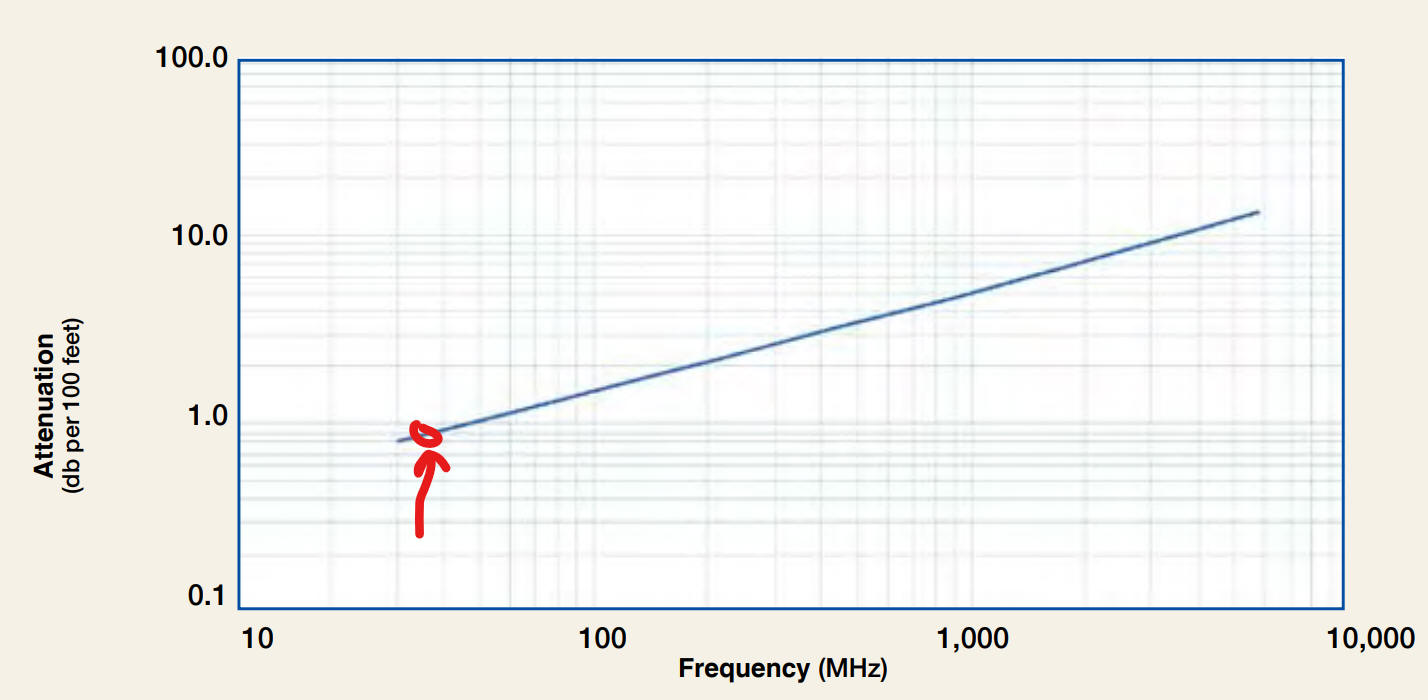

Attenuation chart

Velocity of Propagation  85%
