Star-Bryte Lighted Radio Knobs

CB Radio Accessories

Star-Bryte

Lighted Radio Knobs

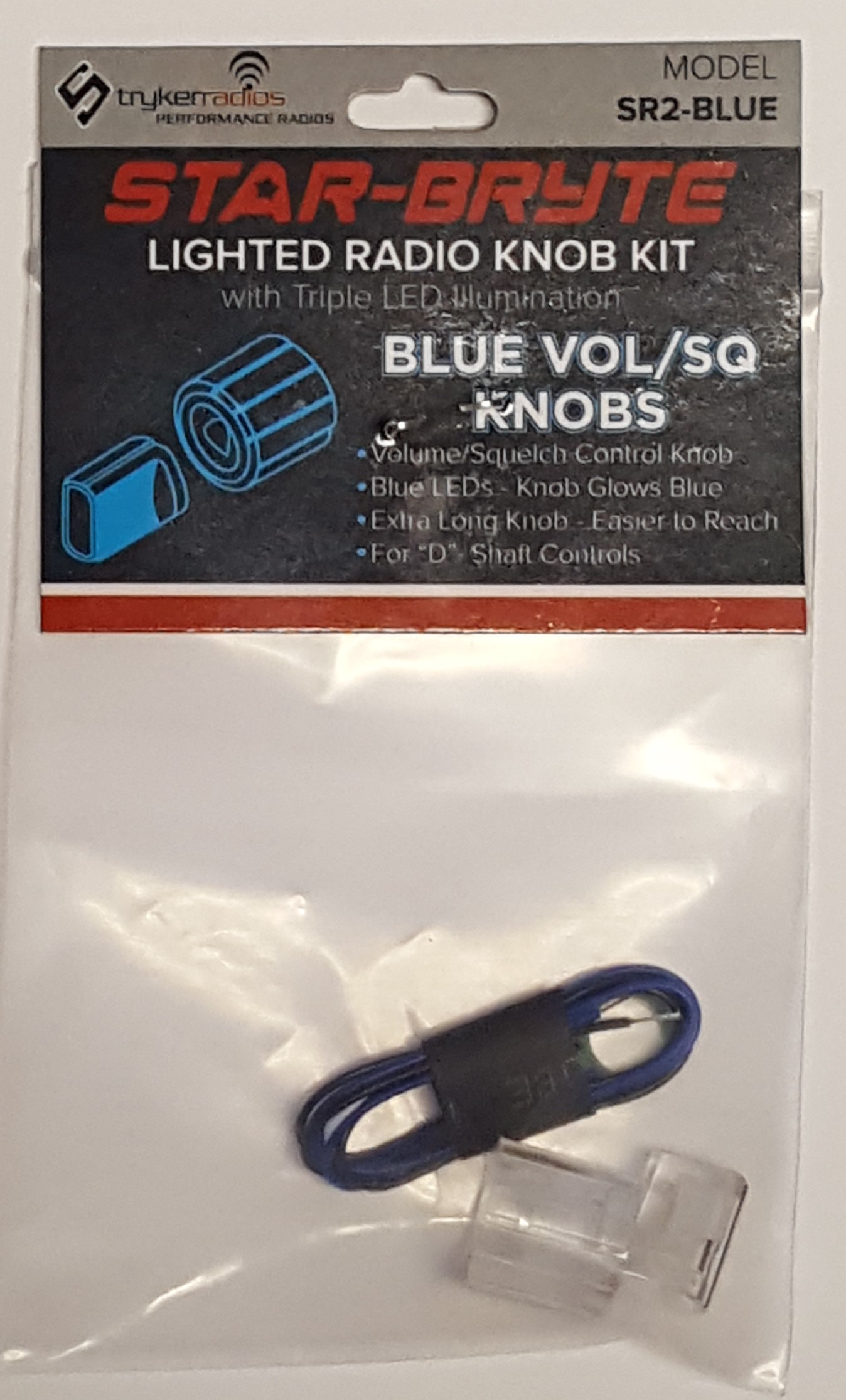

Lighted Radio Knob kit for your CB radio with triple LED illumination. Star Bryte made by Stryker Radio. The knob is clear with colored LED lights. Glows the LED through the clear knob.

The installation is rather difficult and very time consuming.

*** We found these to be too large for the Cobra 29LX series and too small to use a tension clip.
(on the vol/sq knob)

If all this confuses you please call to order by radio model type.

Model # SR-2 Volume/Squelch	Volume/Squelch Control Knob LED Inside-knob glows Extra Long Knob For "D" Shaft Controls Single Knob
Model # SR-3	Band/Rotary Control Knob LED Inside knob glows Extra Long Knob For Knurled (18 Teeth) Shaft Controls Single Knob
Model # SR-1 Channel Selector	Channel/Frequency Knob LED Inside knob glows Extra Long Knob For "D" Shaft Controls Single Knob

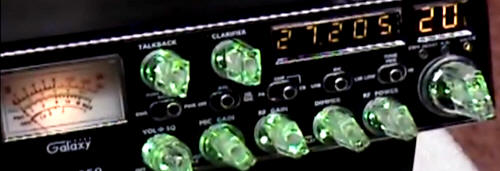

Galaxy 959 with Green
Galaxy DX-959

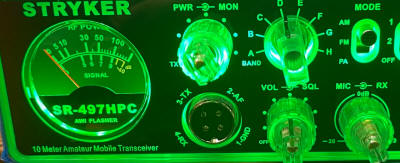

SR-497 with Starbryte knobs

On some radios that have illumination already, like the Stryker SR-497, all you have to do is change the knobs, no rings required.

Tech Tips: I usually use about a 100 ohm resister in series with the red wire. I run the black (-) wire through a switch and I use and an additional 200 Ohms for medium and 1000 ohms for very dim (night time). Resistance values changed to your liking, the larger the value the dimmer the light.

MODEL

PRICE

...SR2...
Volume/Squelch

$17

...SR3...
Band Switch

$17

...SR1...
Channel Selector

$17

LED RINGS ONLY

Volume/Squelch
Knob only-NO Rings

Band Switch
Knob only-NO Rings

Channel Selector
Knob only-NO Rings

*Make sure to specify your radio model exactly and how many of each type of knob you have. (you can tell us in the comments block when you check out)

Tech note: Do you need the metal clips for inside the knobs? Stryker expects you to use the clips from your old knobs, if you don't have the old knobs or if your old knobs didn't use metal clips, you can buy them HERE.

Easy two wire hook-up.
Easy Installation Instructions included.

OFF - ON

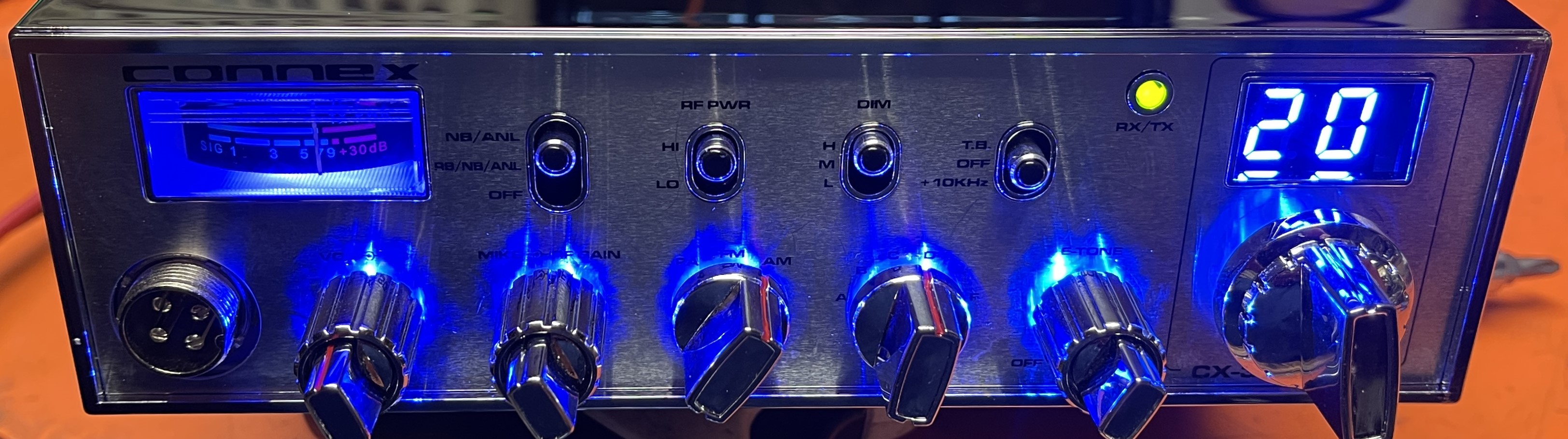

Rings without clear knobs
