  Base Station Antenna



CB Radio Base Station,
Beam Antenna

Dual Polarity

Download Manual

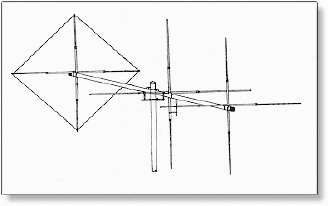

     A long-distance dual 3-element base station with 12.5 dB gain. Dual polarity. This antenna is designed for the CB'er who wants a booming base station with a moderately sized antenna.

You will run 2 coax cables to this antenna. It has a vertical and horizontal antenna gamma match.


Made of aircraft alloy 6063-T5 aluminum tubing with .050" wall thickness, additionally elements are made from 6006 an even tougher alloy. To prevent fatigue failure, no holes are made in any boom or element.

Power handling is 2000W PEP

Need Higher power?
Upgrade your gamma match to:



...Beam Antenna...


Boom Length (feet) 11.5
Boom OD (inches) 1.5
Number of Elements 6
Longest Radius (feet) 17.5
Turn Radius (feet) 10.5
Surface Area (sq. ft.) 4
Wind Survival (mph) 90
Tuning (Meters) 11
Gain (db) 12.5
Power Multiplication 21X
Front-to-Back Sep. (db) 34
VSWR (adjustable) 1.1 or less
Weight (lbs) 21
Shipping Weight (lbs) 23
Ship by: 81" x 6" x 6" Calculate shipping
for UPS or Priority Mail
  Our ZIP is 33334

The item most overlooked when ordering a custom radio is the microphone.  Your new tuned radio will NOT
sound great  with a stock mic on it  If your CB is more than a tool for work, you NEED to upgrade your microphone.
My personal favorites are the Astatic 636L and RD104E.

If you place an order from outside the continental USA, we will calculate your actual shipping and send you a PayPal payment request.  We do NOT export Antennas or Base station radios.

Orders requiring technical work are shipped
 in about 3 to 14 days.
