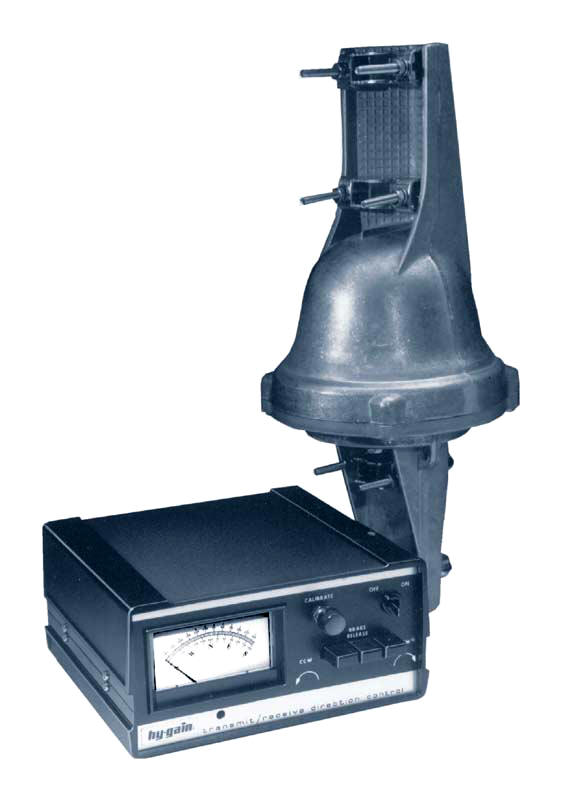

CD-45II
Antenna Rotator and Control Box

8.5 SF WIND LOAD

...Discontinued at Bells CB...

Download Manual

The CD-45II handles 8.5 sq. feet mounted inside a tower, or 5 sq. ft. with mast adapter. Low temperature grease good to -30 F degrees. Bell rotator design gives total weather protection, dual 24 ball bearing races gives proven support.



  • Die cast ring gear,
  • stamped steel gear drive,
  • heavy duty, trouble free gear train.
  • North center scale, dual lighted directional meter indicator,
  • 8-pin plug/socket on control unit,
  • snap-action control switches.
  • Low voltage control.
  • Safe operation,
  • takes masts to 2 1/16".
  • MSLD light duty lower mast support adapter included.
  • Power requirements: 110V 60Hz.






  ...CD45II Rotor and Control box...
...Discontinued at Bells CB...		 $469.50





CD-45II Rotator Specifications
Wind Load Capacity (inside tower) 8.5 square feet
Wind Load Capacity (with mast adapter) 5.0 square feet
Turning Power 600 pounds
Brake Power 800 pounds
Brake Construction Disc Brake
Bearing Assembly Dual race/48 ball bearings
Mounting Hardware Plate clamps/Steel U-Bolts
Control Cable Conductors 8
Shipping Weight 22 pounds
Effective Moment (in tower) 1200 ft/lbs.
