W-5000

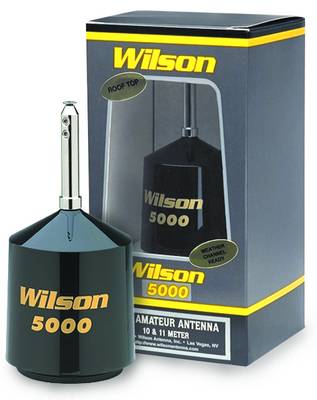

Roof Top
Mount

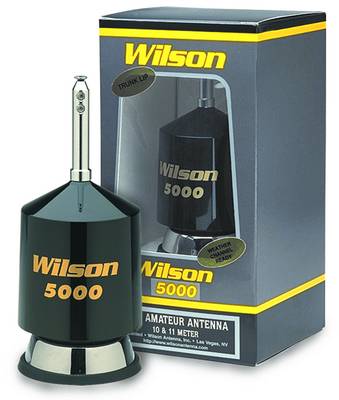

Trunk Lip
Mount

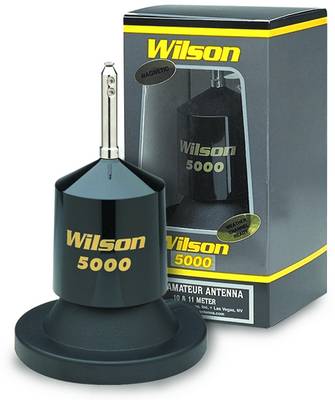

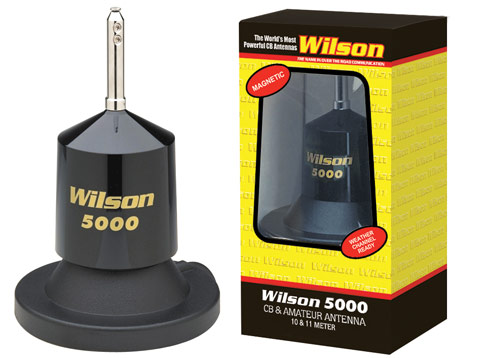

Magnet
Mount
SOLD

OUT
Discontinued
SOLD

OUT
$10950   $11950

This item ships in 2 separate boxes:
One for the antenna base and one tube for the whip
Base = 4lb box Regional A box
Whip = 1lb extra long tube 61" x 3" x 3" tube

Shipping Notice

New 2022 Shipping Rate

      The Wilson 5000 is the top performing base loaded CB antenna for the automobile. Wilson used the basic design of the Wilson Trucker 5000 with the exclusive low loss coil and proven performance qualities of the Wilson 1000. The Wilson trademark of designing an antenna with maximum efficiency is continued in the Wilson 5000.

     Extensive research and engineering efforts showed that a 6 gauge solid copper wire with a properly designed coil, displayed excellent performance characteristics. And though copper is one of the best RF conductors available - silver is even better. Wilson combined the best of both worlds by using 100% pure silver to heavily plate completely over the large solid copper wire. This means that using the Wilson design techniques, the Wilson 5000 will outperform all other base loaded antennas available.

     With the 5000 made from solid 3/16" copper silver plated wire, and the special design of the floating coil, it will not ice up, stop working even in severe winter conditions. There is no chance of the coil windings cracking from freeze up.

     The Wilson 5000 is over 65% larger than the famous Wilson 1000, and designed specifically for users who want the best antenna and have to ability to withstand some power applied to it. The Wilson 5000 will handle 5000 watts AM, 20,000 watts SSB ICAS ratings).

     Wilson's engineering quality, design, and attention to details is the key to the high performance. The Wilson 5000's performance and power handling abilities will prove itself the first time extra performance is needed to break through the noise on the air.

Note: This antenna performs the same as the W1000,
it only handles more power. If you're running under 1,000W
then the 1000 will do fine.





















































AVAILABLE IN BLACK ONLY



Wilson "5000" Specifications

  • 5,000 Watts AM, 20,000 Watts SSB (ICAS)

  • Coil covered with high impact Mobay Thermoplastic

  • Coil is 6 gauge solid copper wire with silver-plating

  • Exclusive low loss coil design

  • 62" 17-7 PH Tapered spring stainless steel whip

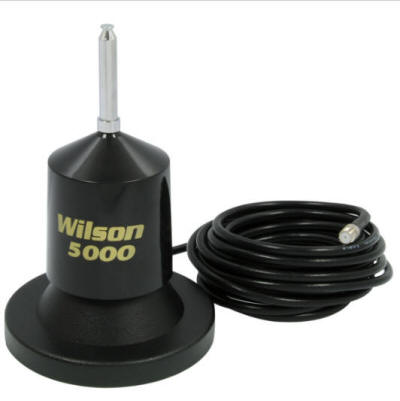

  • 18 feet of RG-8X low loss coaxial cable and PL-259 connector.

  • Frequency range 26 MHz to 30 MHz

  • Available in Roof Top or Magnetic Mounts

  • 2 year warranty
