CB Radio Accessories

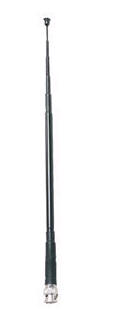

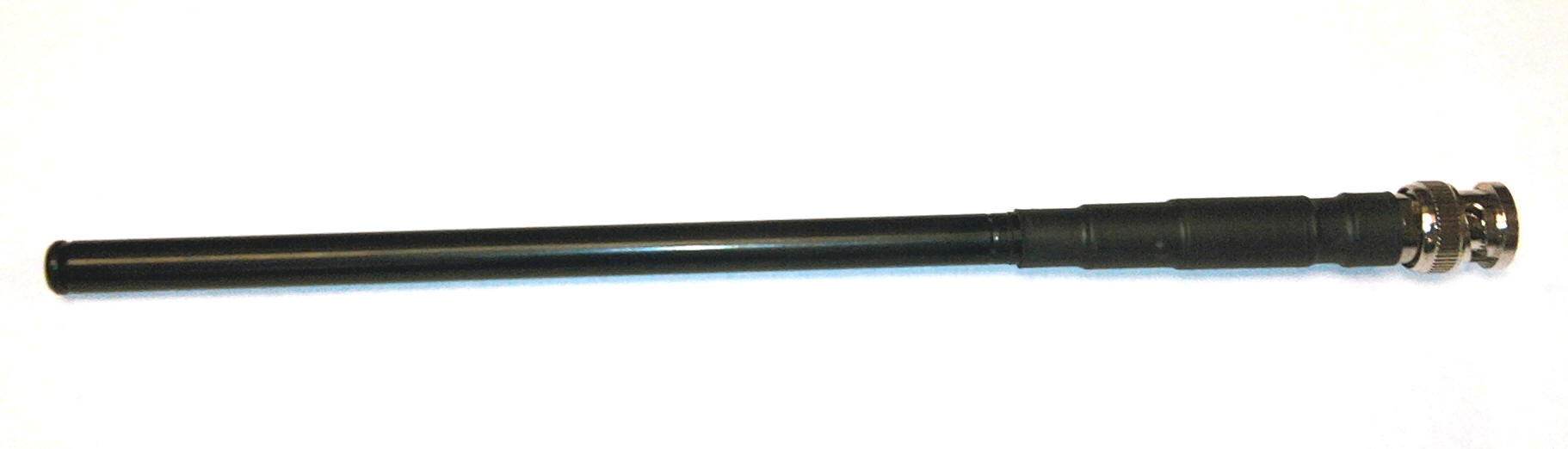

HT-1
Telescoping Antenna


This 27 inch telescopic whip will provide approximately double the range of the original "rubber duckie" antenna. Collapses down to 8 inches. It also increases the antenna bandwidth for those multi-extra channel units.

Fits all CB radios with a BNC connector on top:

  • Cobra HH-38, HH Roadtrip,
  • Midland 75-820, 75-822
  • Maxon HCB-40WX, HCB-30C and HCB-10C
  • Cherokee AH-27, AH-100
  • Magnum 1012
  • Northpoint AH-27
  • Many more...

Features

  • Black anodized.
  • Length 27.5" extended
  • 8.75" collapsed





.

.







SOLD OUT
Get Notified Via E-Mail when we are taking orders again

...HT-1...

$22.50

Also available in longer 51"


 Also available in rubber flexible



GENERAL
Frequency range ---.-- MHz
Bandwidth at 2:1 SWR points 6 MHz
Connector BNC
Unit Weight (OZ) 1.82
Shipping Weight (OZ) 4




I did a test using an MFJ-259B Antenna analyzer and these are the results:

Factory OEM antenna:

  • Center Frequency Fc = 27.655 MHz with 1.4 SWR
  • Bandwidth at 2:1 SWR points :
    27.205 - 28.525 MHz (1.32 MHz)
  • Non-Adjustable

HT Antenna Extended fully:

  • Center Frequency Fc = 27.025 MHz with 1.2 SWR
  • Bandwidth at 2:1 SWR points :
    25.405 - 31.605 MHz (6 MHz)
  • Adjustable center frequency (change length of the extention)
