Escort HP-55

Escort HP- 55

Download Manual

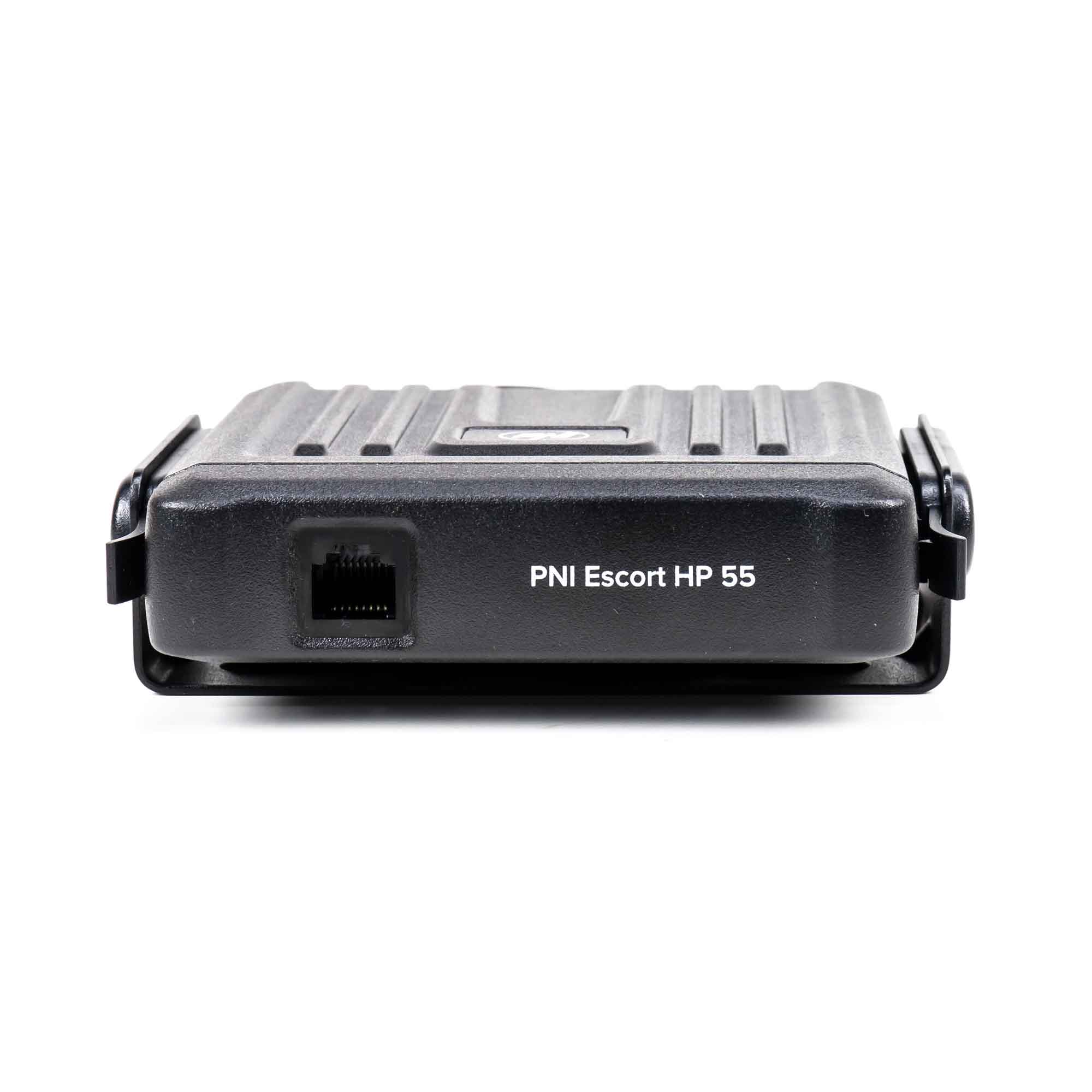

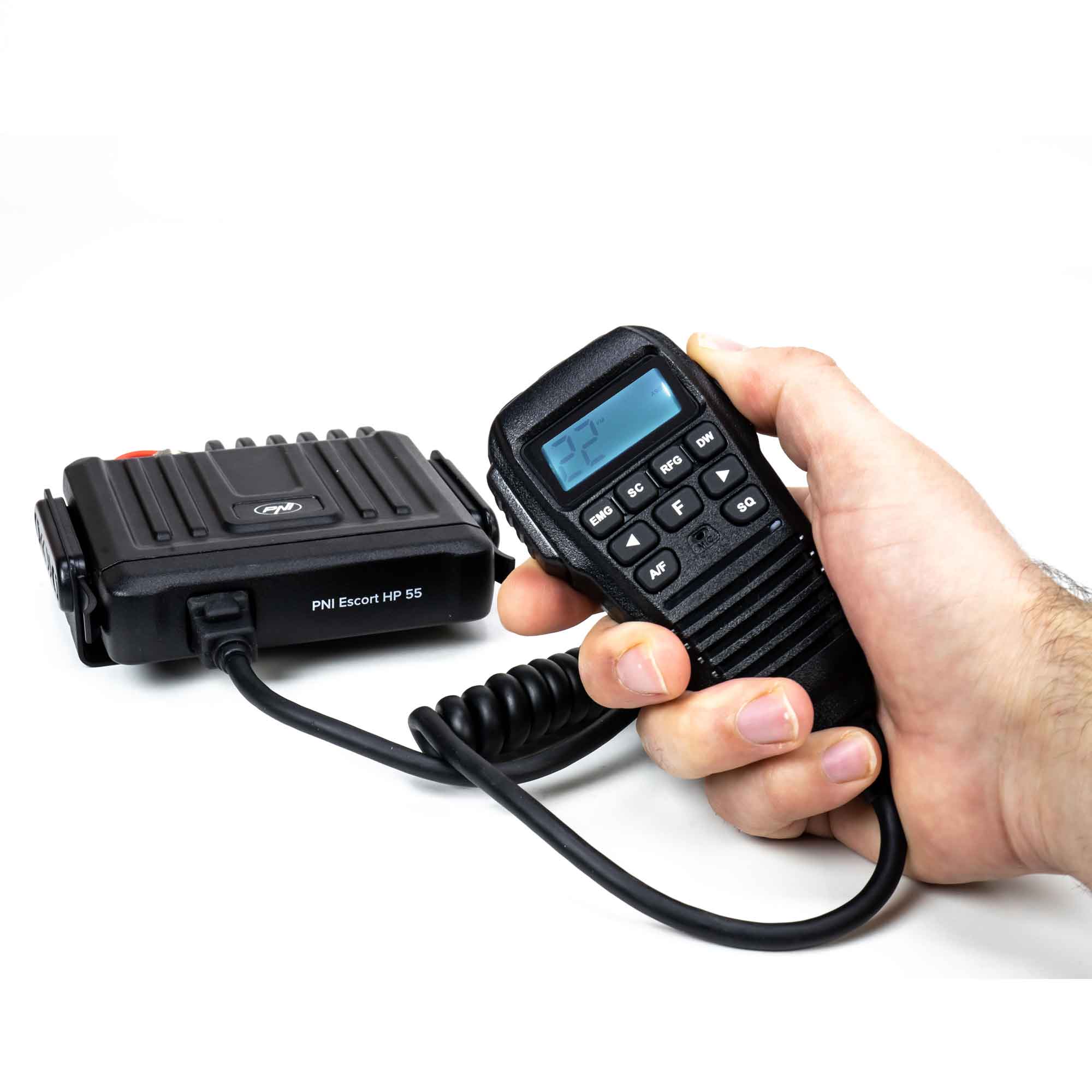

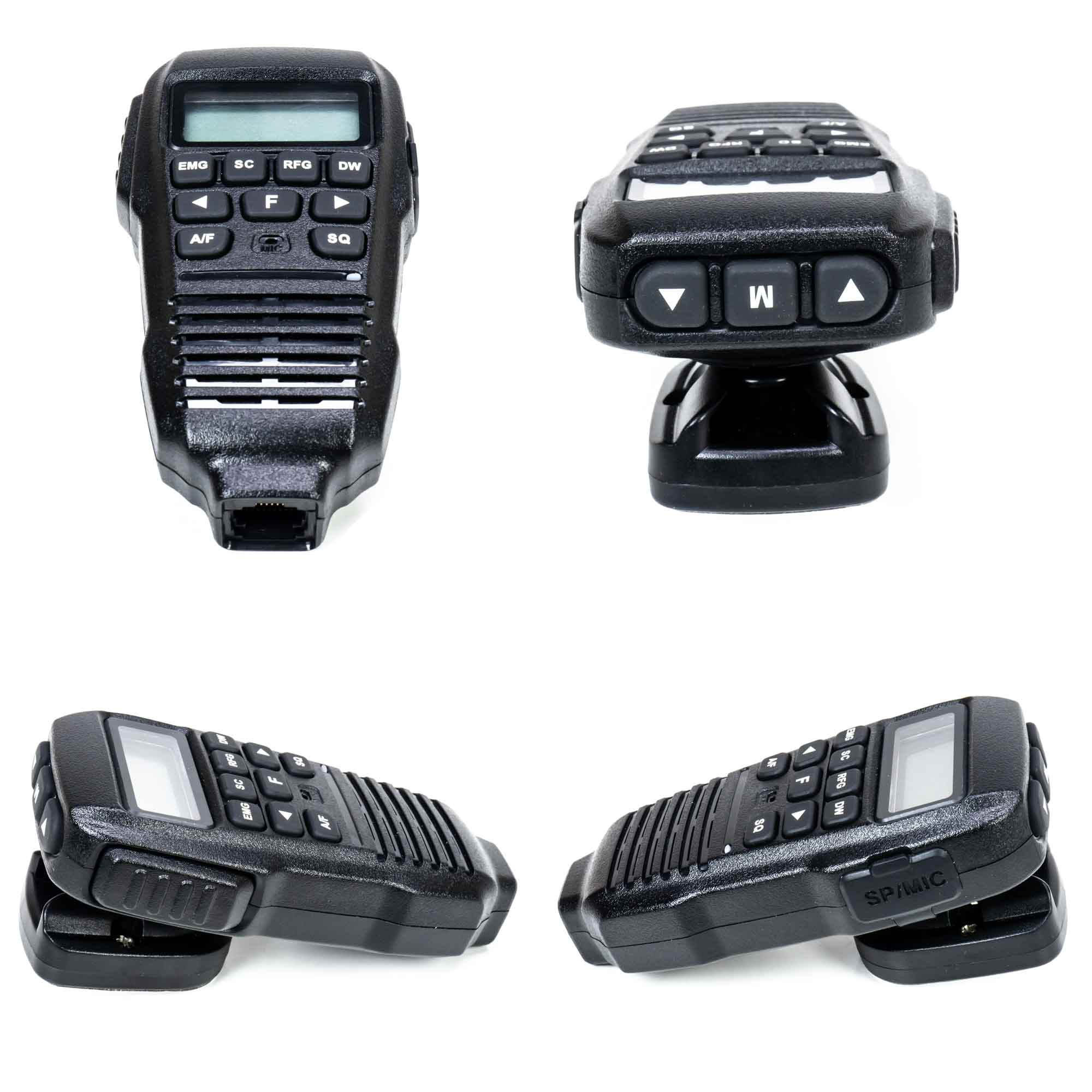

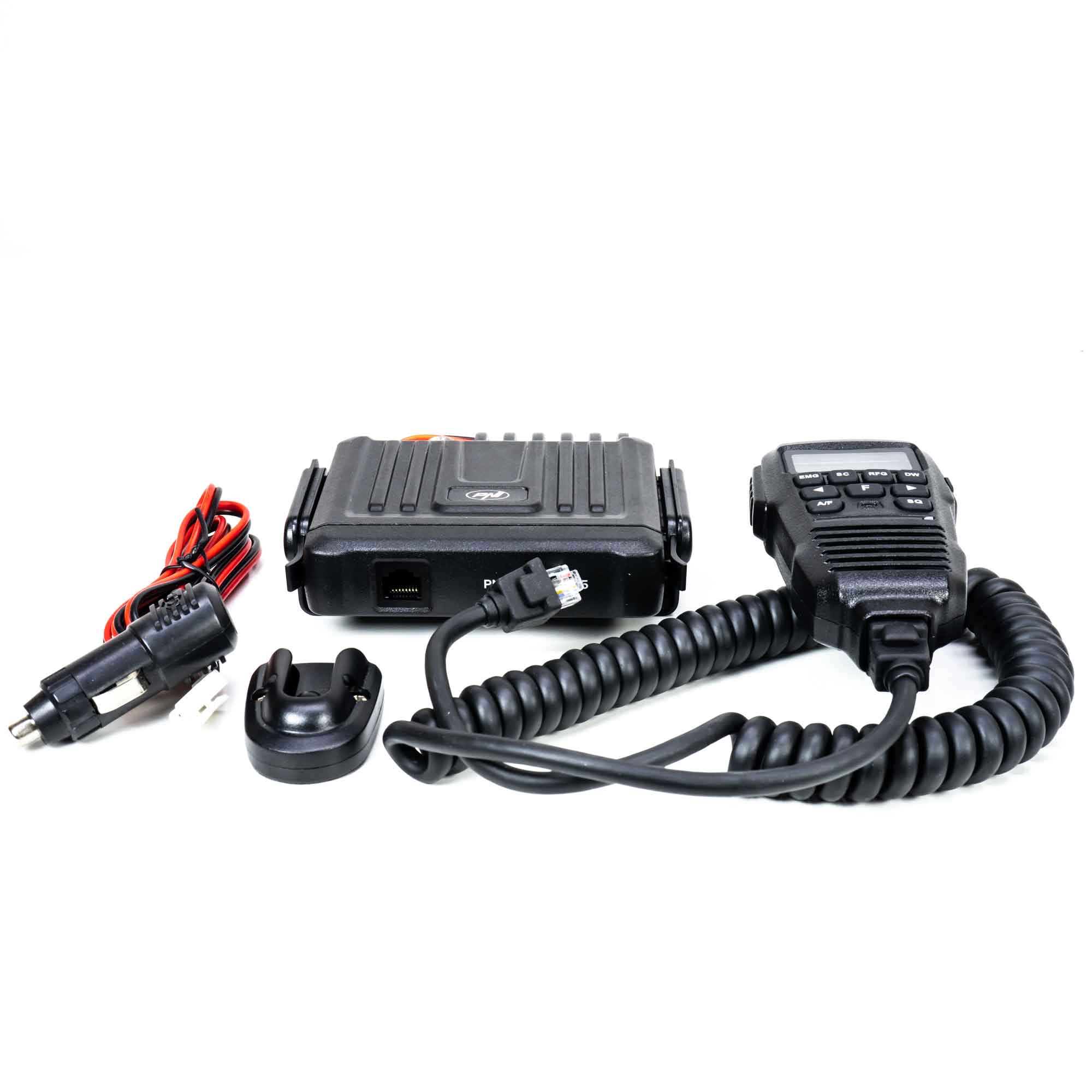

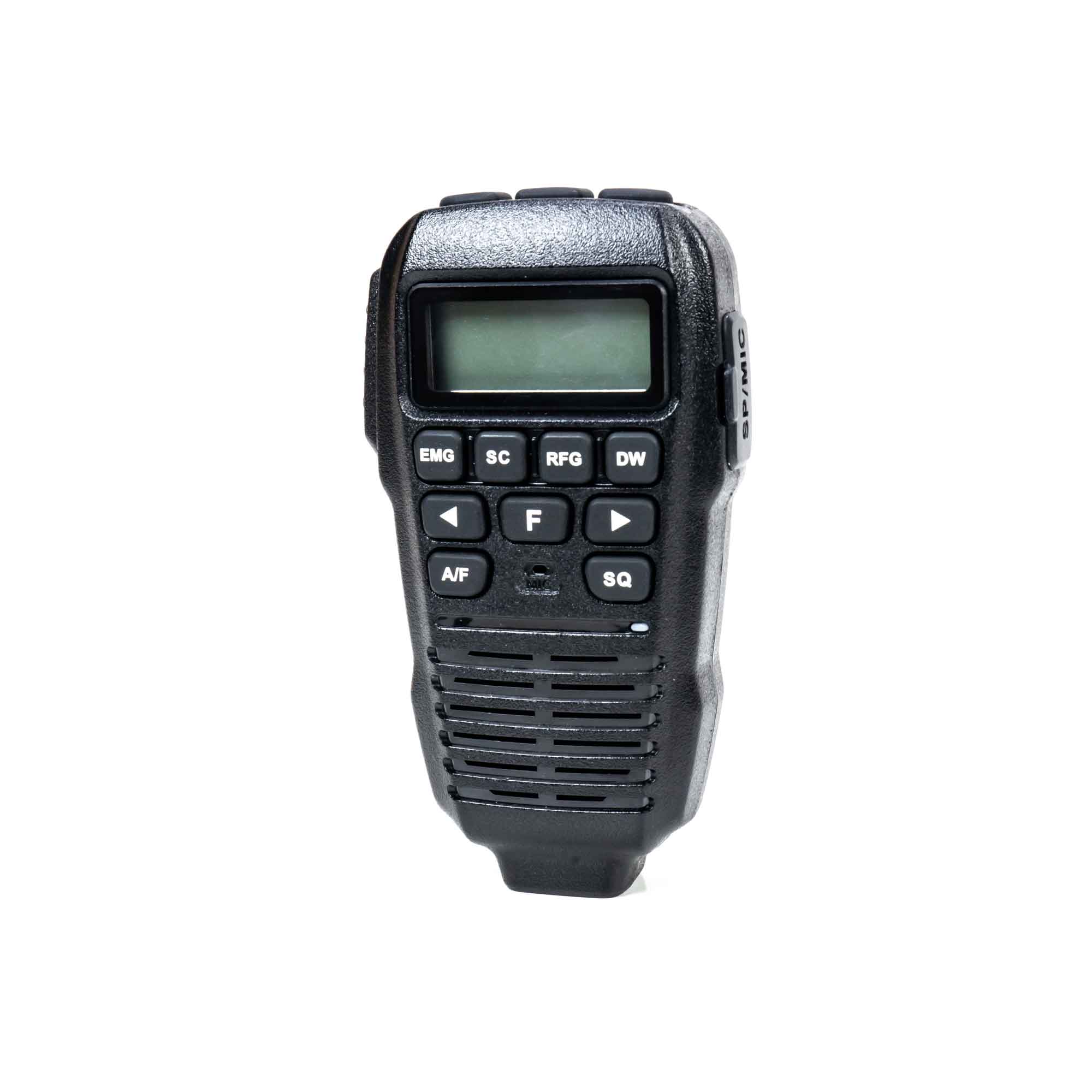

  The HP 55 PNI Escort CB Station is one of the smallest CB stations on the market. Due to its very small size, and especially the location of all the control keys on the microphone , the PNI HP 55 becomes an extremely reliable communication tool. Place the station body anywhere in the car and keep only the large LCD screen microphone and control keys at hand to quickly set the station channel, tape, and functions.

  • Working frequency 25,615 - 30,105 MHz
  • AM/FM
  • impedance 50 Ohm
  • Microphone type (pins) RJ4
  • Connector PL259 Cable length 4m
  • Operating temperature -26 ░ C ~ + 60 ░ C
  • Warranty : 24 Months (Manufacturer)



  PNI  Escort HP-55  PNI Escort HP55PNI Escort HP55
PNI Escort HP55PNI escort HP55PNI escort HP55

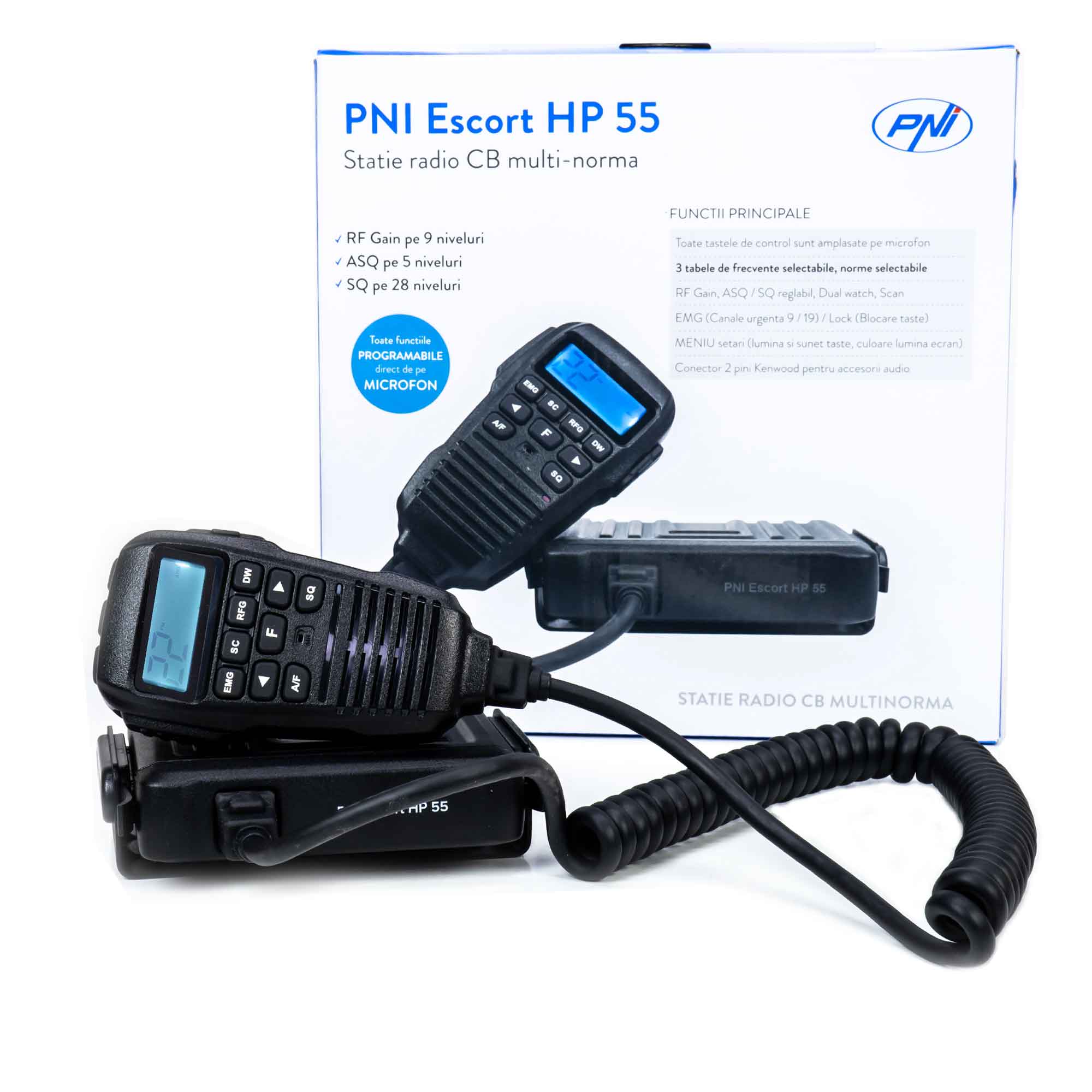

The HP 55 PNI Escort The HP 55 PNI Escort multi-norm station brings a novelty in the field of CB. Depending on the country you are traveling to, first select the frequency table and then the country-specific rule . Carefully consult the local legislation and set the station (maximum allowable emission power) accordingly.








Escort HP55 Radio $94.50

Optional Accessories
Dead Key
 Tune-up. perform a tune-up to radio to optimize power, audio and performance $19
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25

Tuned up values on these watt meters
Dosy Bird RMS *Bird 43P
AM / FM 4w 4w 4w
PEAK AM 13w 6w 21w
* The most informative and the one we use.



General characteristics
Model Furniture
Broadband type AM / FM
channels 40
Frequency 25,615 - 30,105 MHz
Microphone type (pins) RJ45
Power speaker audio 3 W
Sensitivity (20dB SINAD) 0.25 ÁV @ 12 dB SINAD
Audio signal distortion less than 8% @ 1KHz
Emission power 4 W
Modulation FM: 2 KHz, AM: 80%
feeding 13.2V ▒ 10%
Current absorbed 2 A.
Dimensions (W x H x H / Weight) 120mm (L) x 110mm (W) x 27mm (H)
Special features
Dual Watch Yes
Scan channels Yes
RF Gain Yes
ASQ Yes, 5 levels
Lock the keyboard Yes
Emergency channel button Yes
Multicolored screen Yes, 7 colors
SWR meter Yes
Manual squelch Yes, 28 levels
Accessory connection Kenwood 2-pin plug
Operating temperature -20 ░ C ~ +60 ░ C
Sound keys Yes
PTT (Push To Talk) Yes

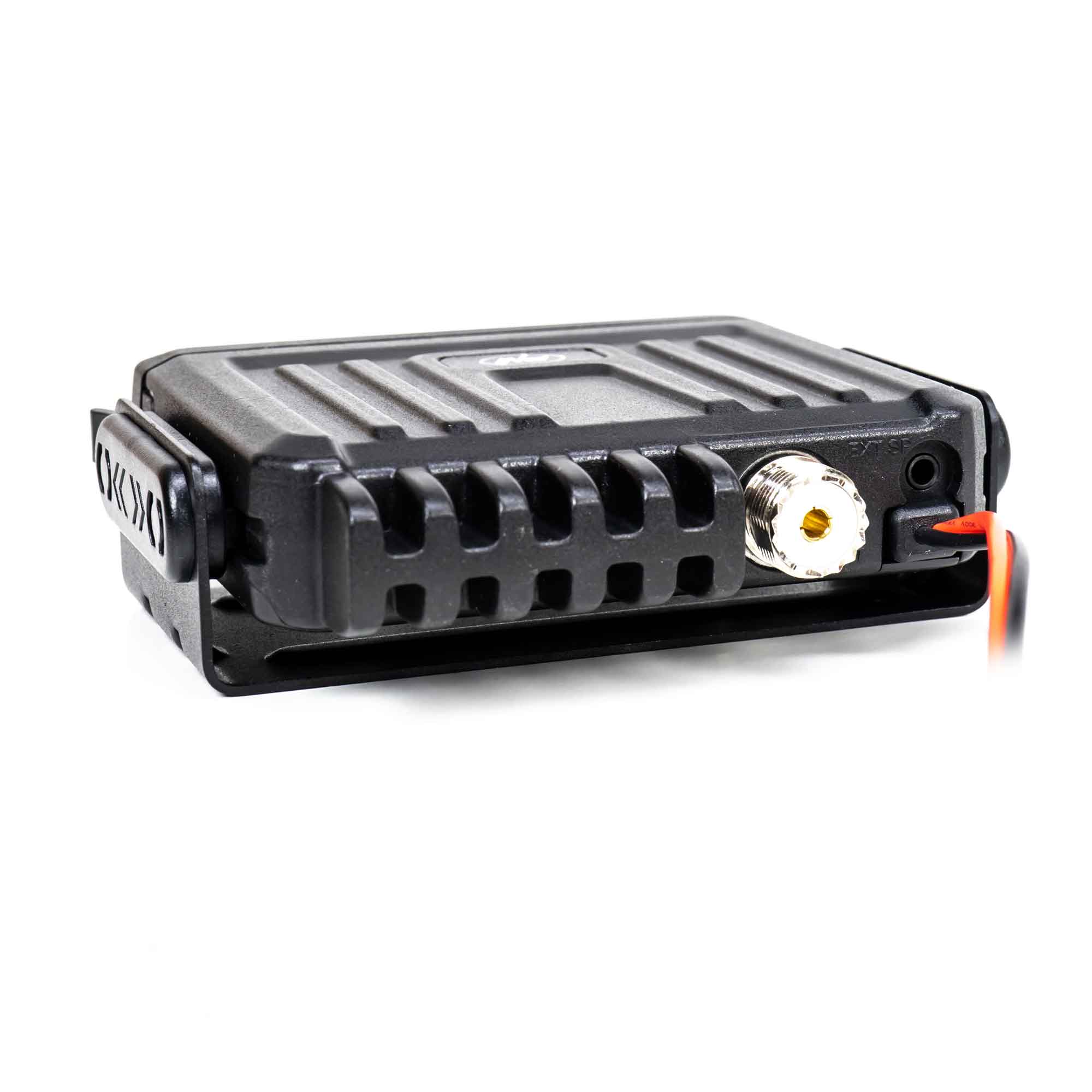

Rear panel connections
Additional speaker connection Yes
