PNI HP-6500


Download Manual

The PNI Escort HP 6500 is CB radio with RF gain, key lock function, channel scan, automatic and manual SQ and emergency channel selection.

Its small dimensions (only 110x120x25mm) allow the station to be located even in very narrow spaces, without having to resort to a real installation, such as a classic CB.Its small dimensions (only 110x120x25mm) allow the station to be located even in very narrow spaces, without having to resort to a real installation, such as a classic CB.

  • Working frequency 26.965 - 27.405 MHz *(and more)
  • AM/FM
  • Microphone type (pins) RJ4
  • Connector PL259 Cable length 4m
  • Operating temperature -26 C ~ + 60 C
  • Warranty : 24 Months (Manufacturer)

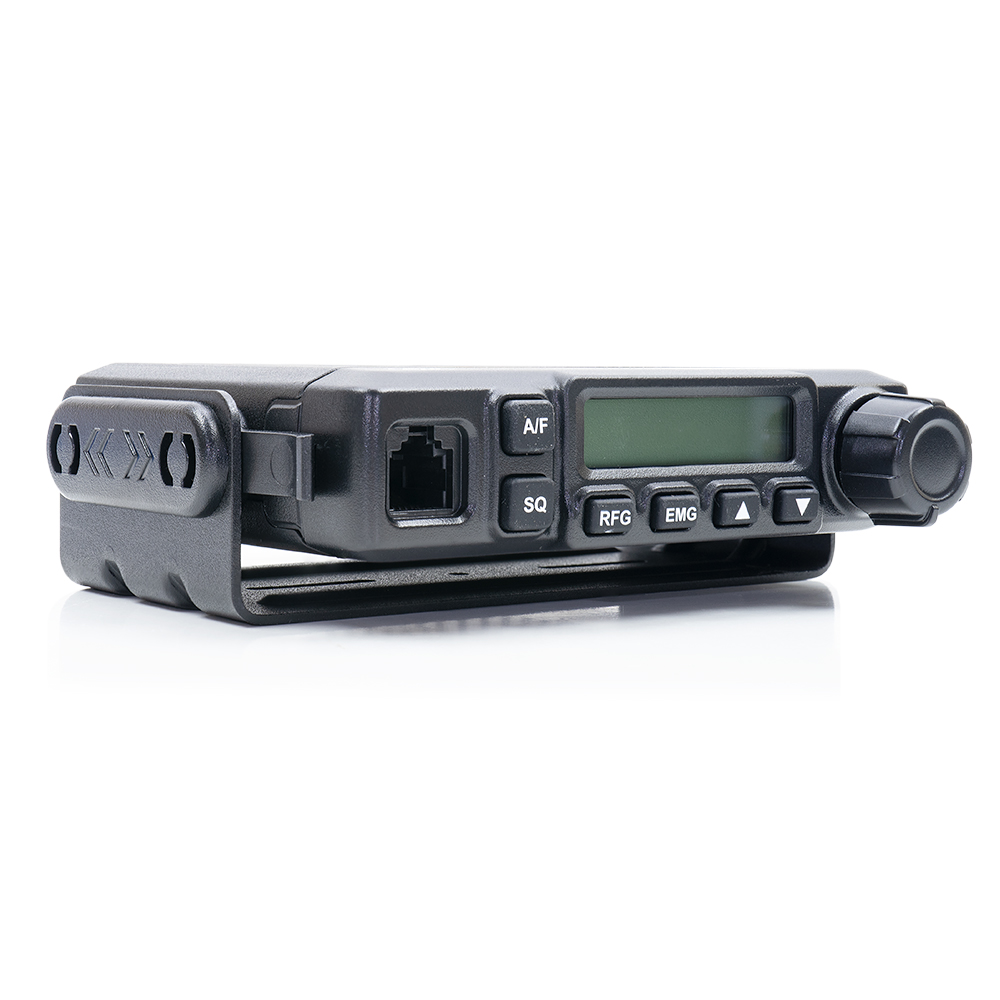

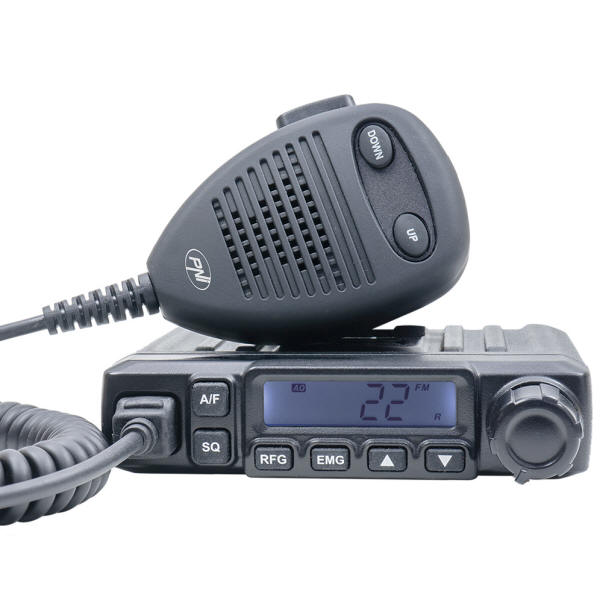

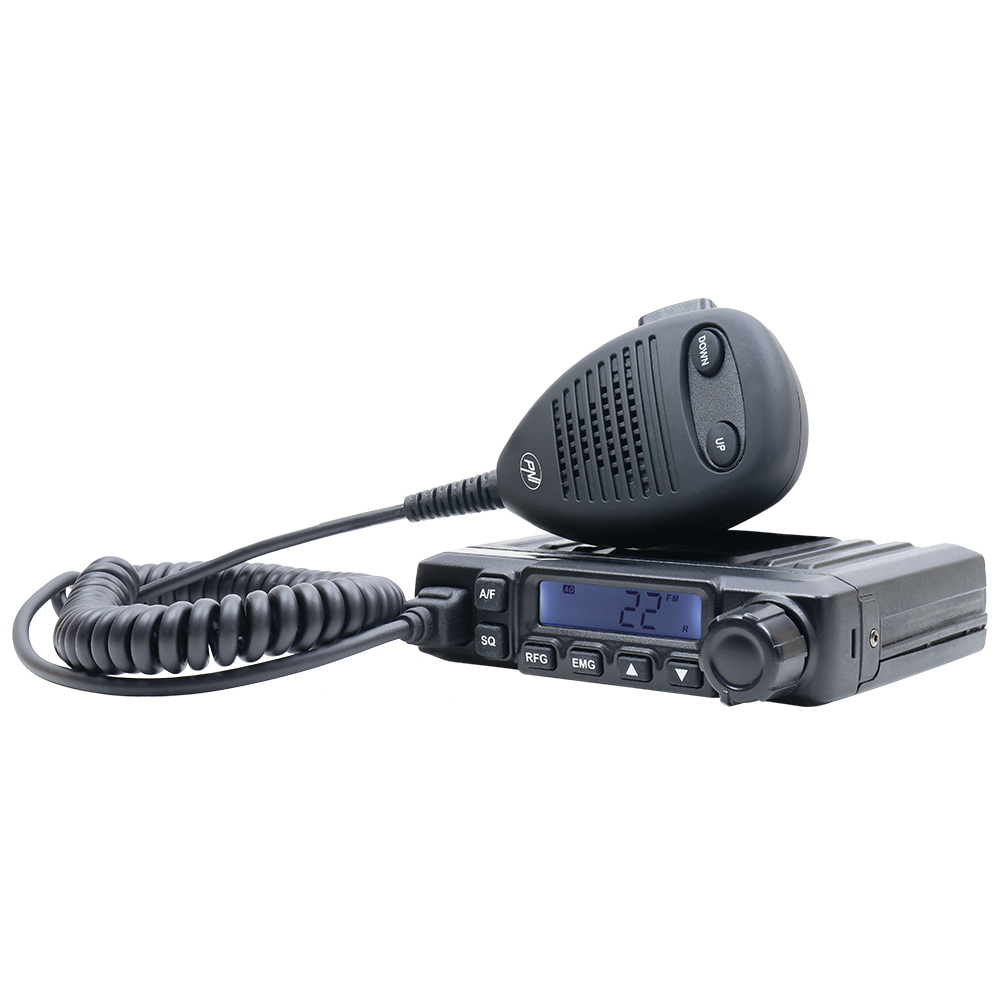

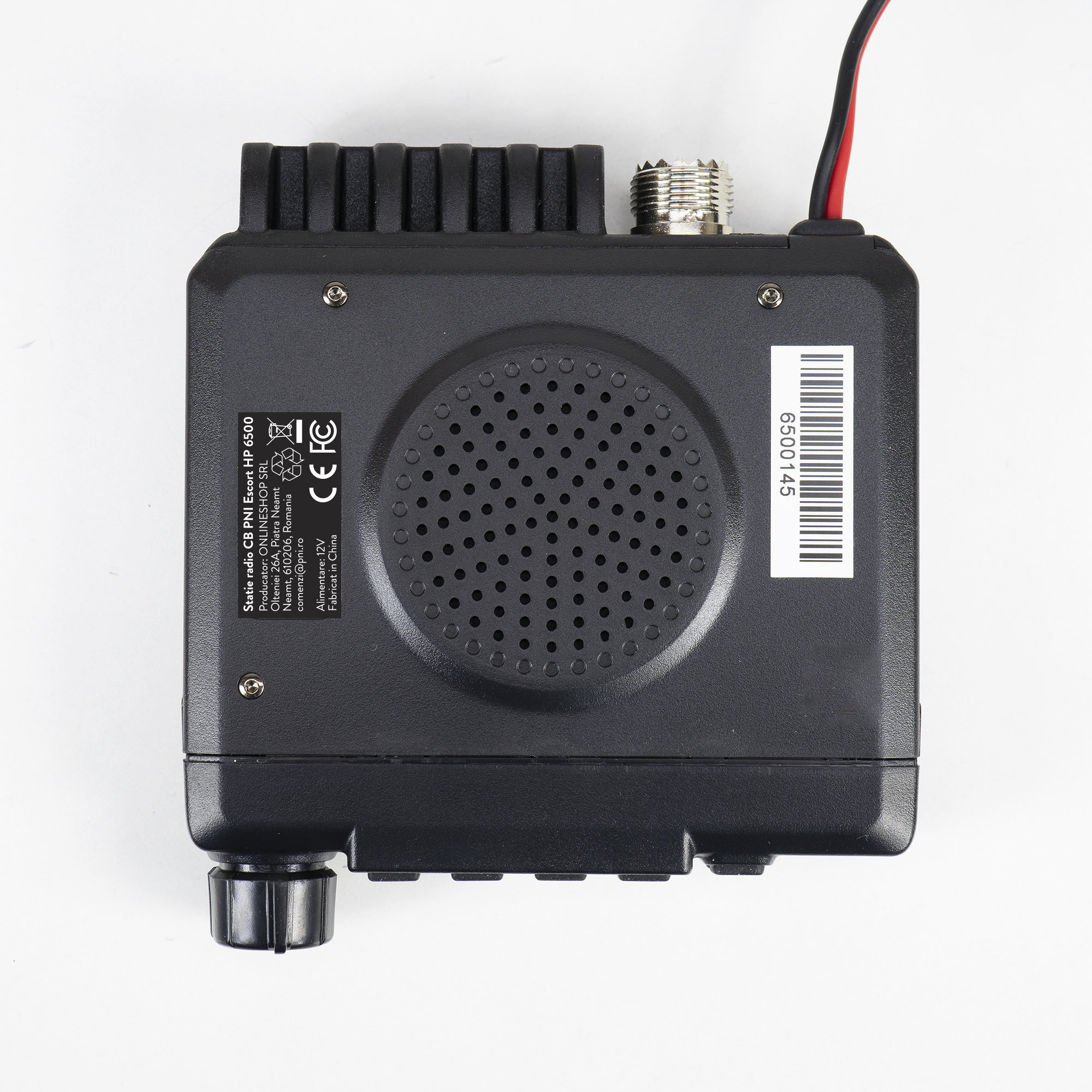

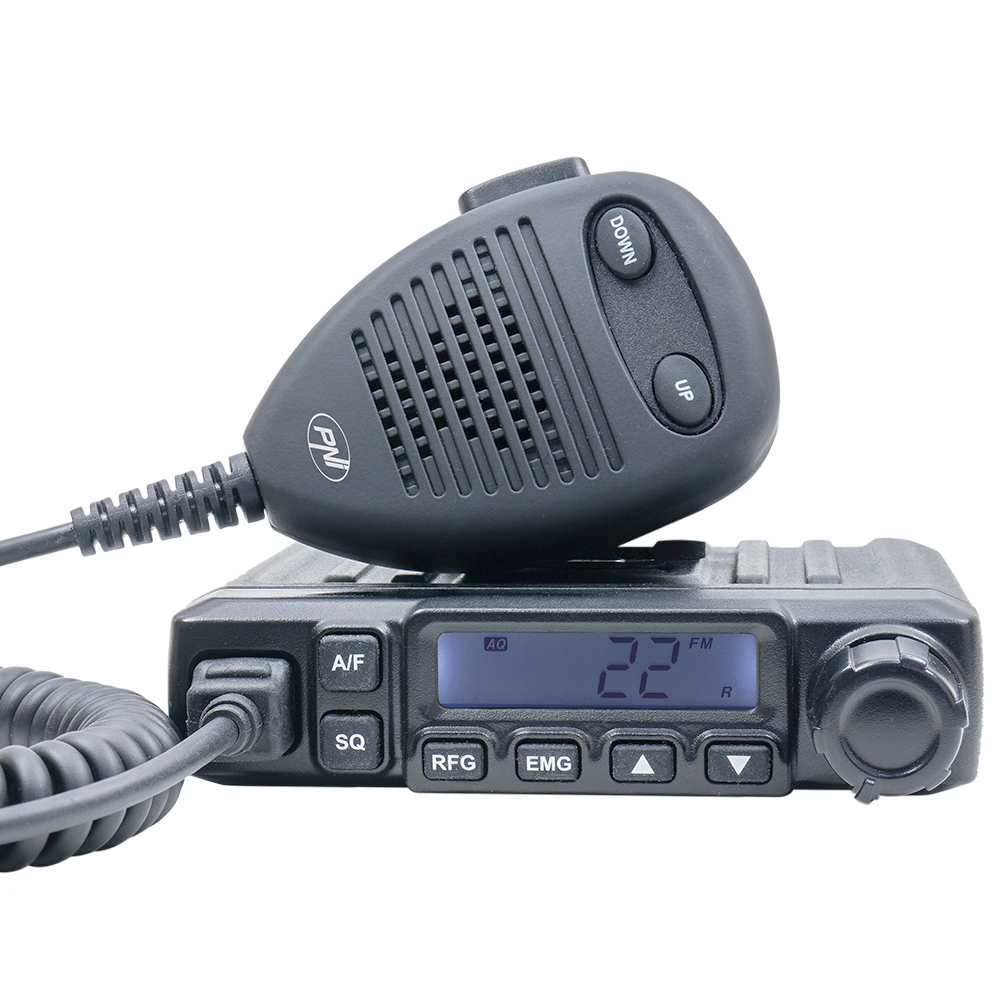

PNI Escort HP6500PNI escort HP 6500PNI Escort HP6500
PNI Escort HP6500PNI Escort HP6500


PNI Escort HP6500PNI Escort HP6500

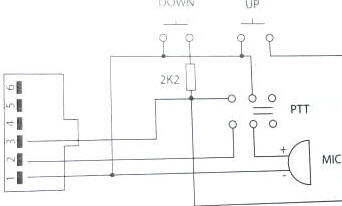

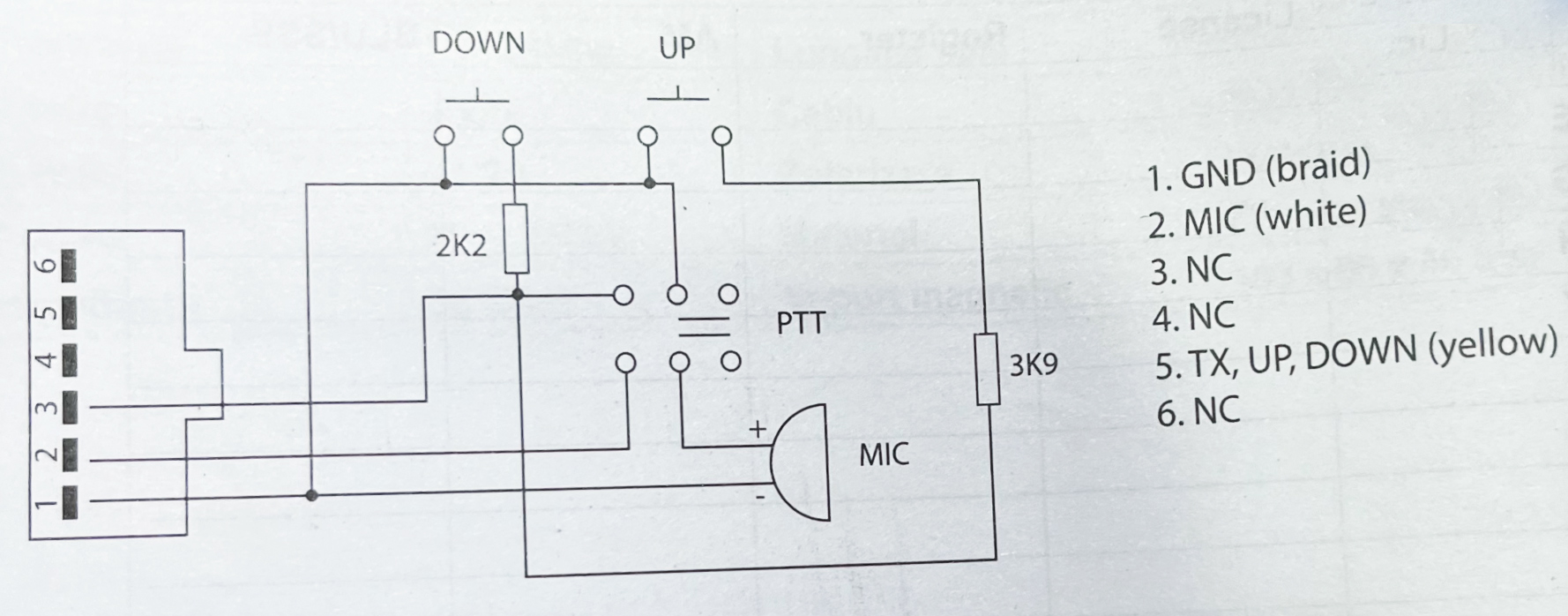

PNI Mic wiring for RJ45
         Microphone Wirring diagram

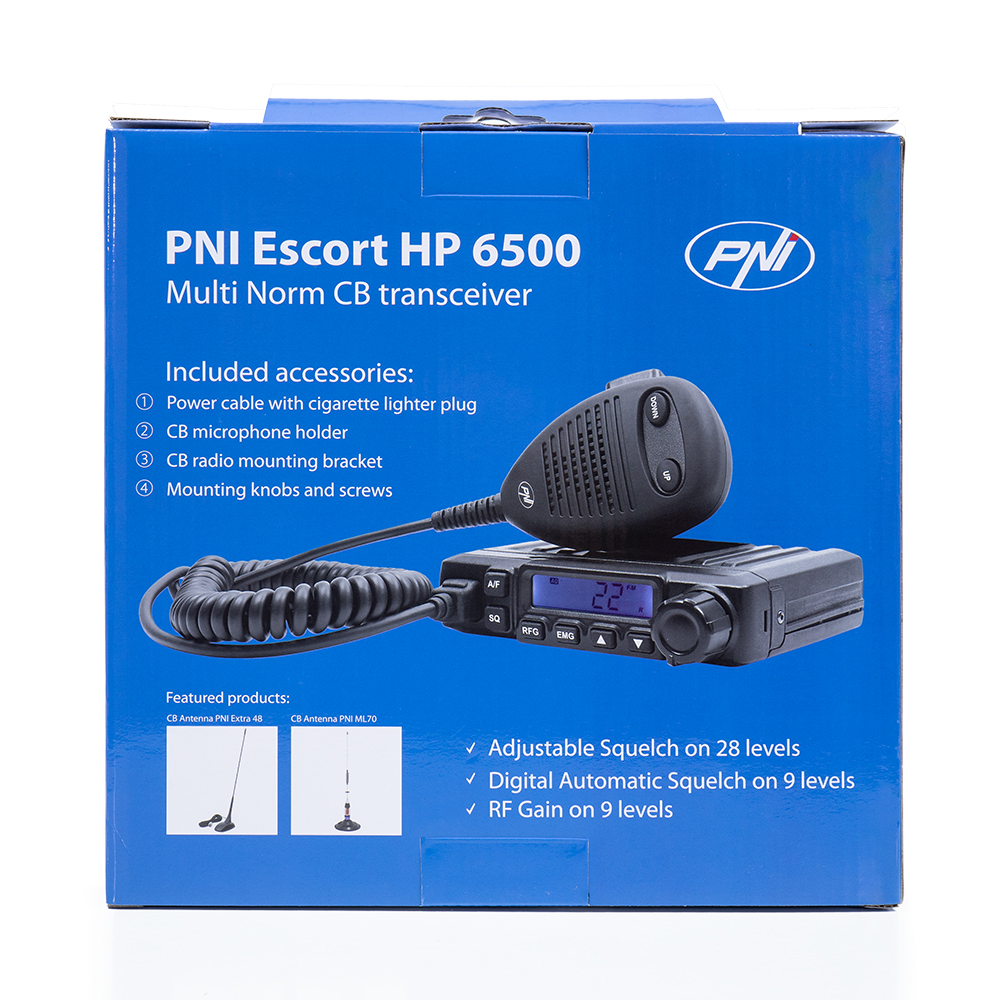

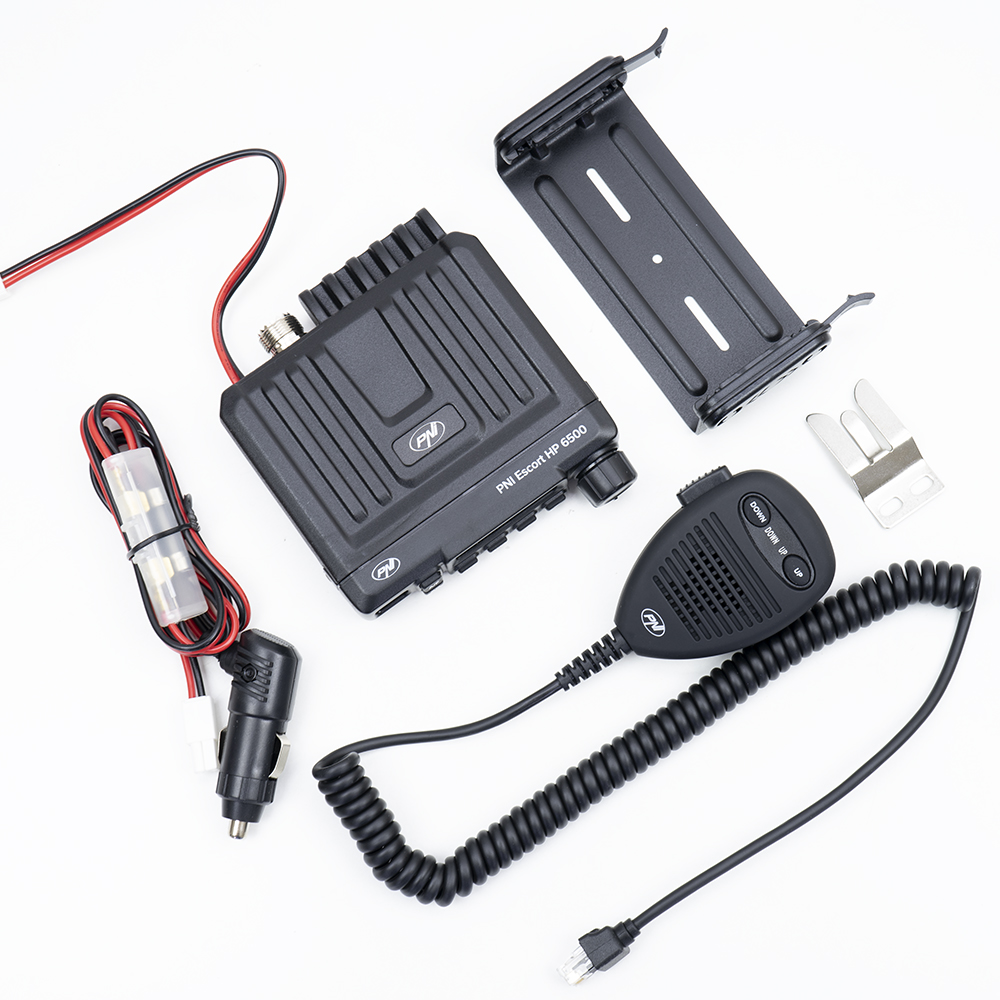

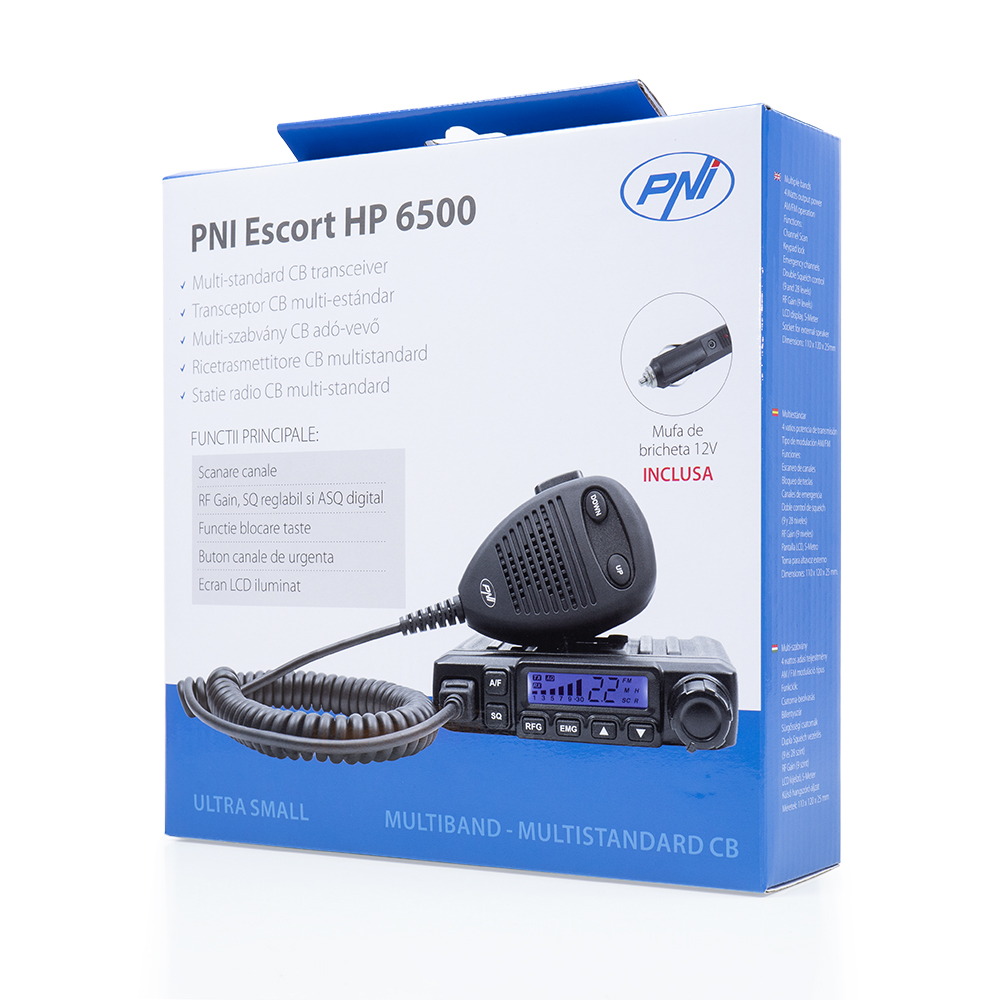

The package contains
  • Radio station
  • Microphone Support and radio fastener screws
  • Support and microphone grip screws
  • Power cord
  • Lighter jack plug
  • User manual
  • 1DIN mounting case



The HP 55 PNI Escort The HP 6500 PNI Escort multi-norm station brings a novelty in the field of CB. Depending on the country you are traveling to, first select the frequency table and then the country-specific rule . Carefully consult the local legislation and set the station (maximum allowable emission power) accordingly.





Escort HP6500 Radio $76.50


Optional Accessories
Dead Key
 Tune-up. perform a tune-up to radio to optimize power and audio performance. $19
Wireless Bluetooth Microphone.
(The microphone and dongle can communicate wirelessly with the CB radio station up to a maximum distance of 10m )
$39
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25



Tuned up values on these watt meters
Dosy Bird RMS *Bird 43P
AM / FM 4w 4w 4w
PEAK AM 11w 5w 18w
* The most informative and the one we use.



General characteristics
Model Furniture
Broadcasting type AM / FM
channels 40
Frequency *26.965 - 27.405 MHz
Audio speaker power 1 W
Sensitivity (20dB SINAD) greater than 1 μV AM / FM
Emission power 4 W
Modulation 80-90%
feeding 12 V
Current absorbed 2A max
Dimensions (L x H x D / Weight) 110 x 120 x 28  385 g
1DIN assembly Yes
Special features
Scanning channels Yes
RF Gain Yes, 9 levels
Keypad lock Yes
ASQ adjustable Yes, 28 levels
Emergency channel button Yes
Multicolored screen Blue
Squelch Digital Automatic (ASQ) Yes, 9 levels
Squelch manual Yes
S-meter Yes
Operating temperature -26 C ~ + 60 C

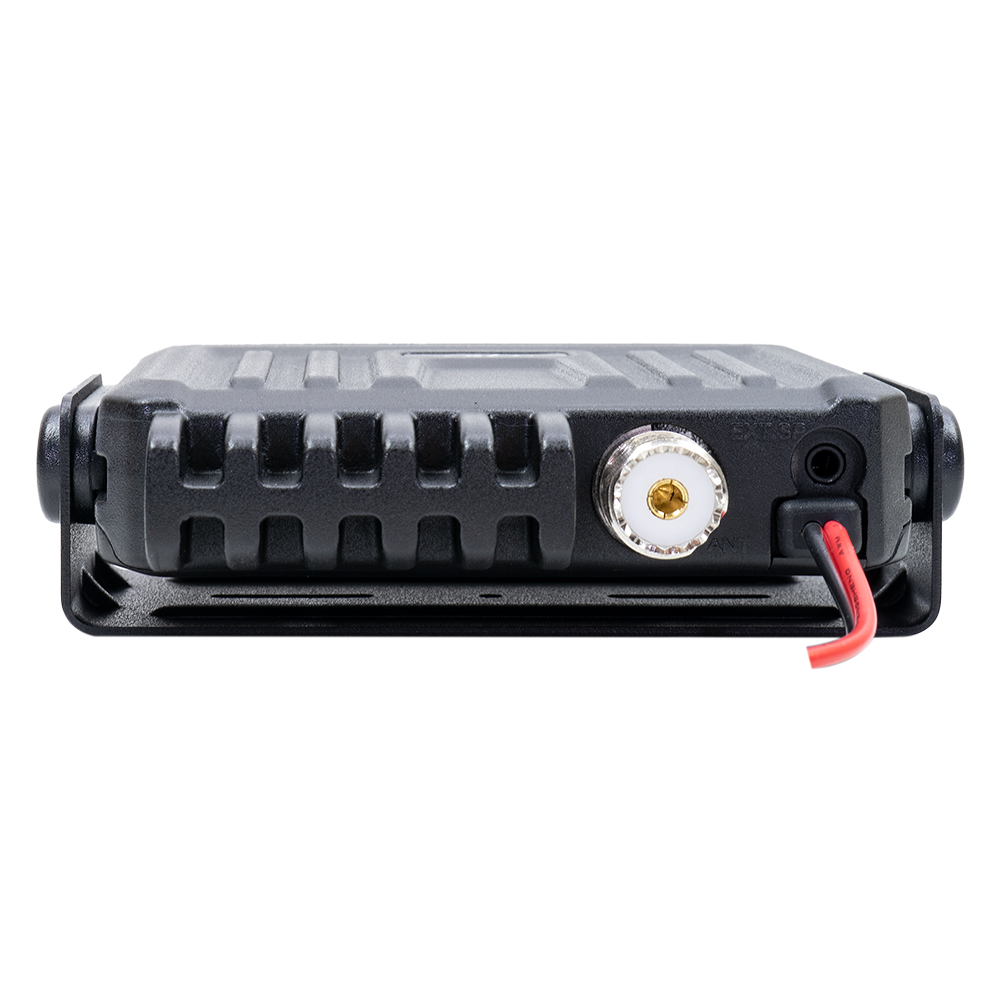

Rear panel connections
Additional speaker connection Yes
