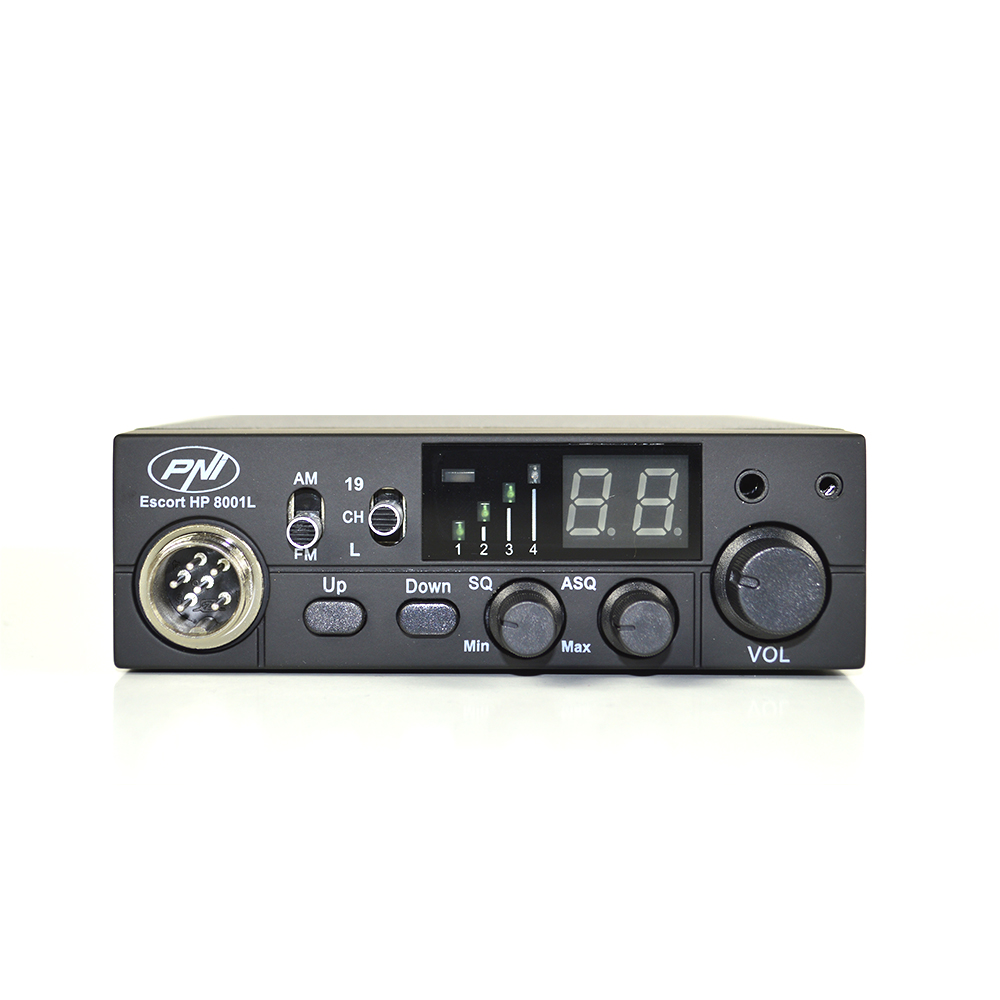

PNI Escort HP-8001L

PNI Escort HP-8001L Title

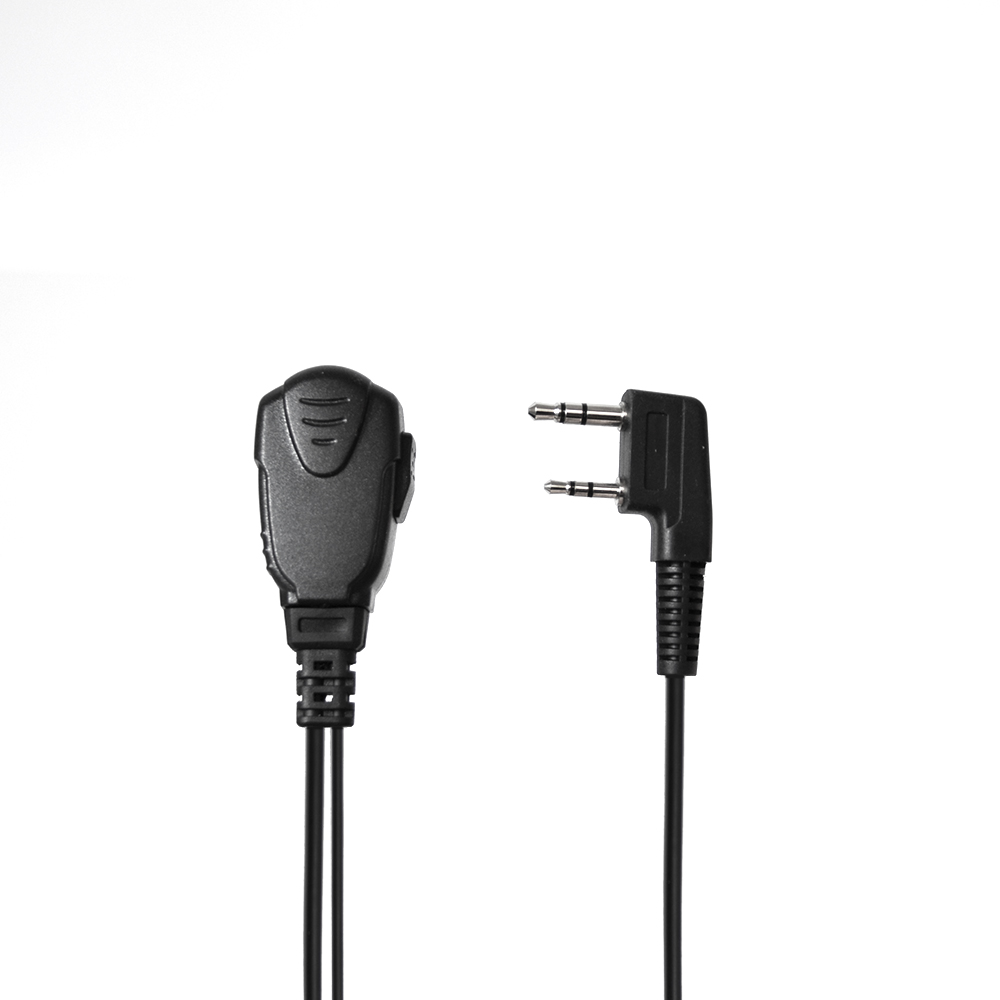

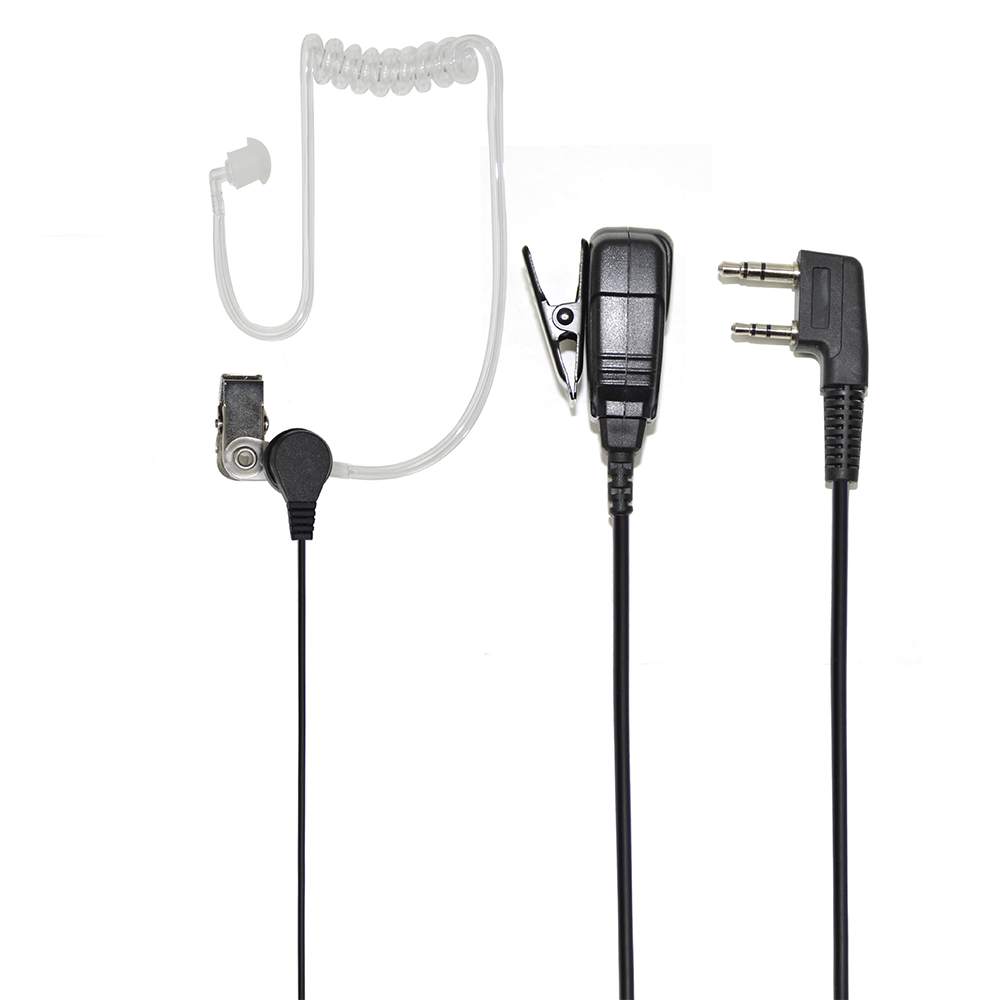

+HS81 Headset
                  HS81 Headset small

Download Manual

 An innovation in the CB segment, the adjustable automatic squelch (ASQ), offers maximum comfort even for the most demanding users of CB car radio stations. If until now we were used to activating / deactivating the ASQ, now PNI brings its adjustment function, a function that allows to eliminate up to 100% of interference, background noise and jamming in the CB band.

  • Working frequency 26.965-27.405 MHz

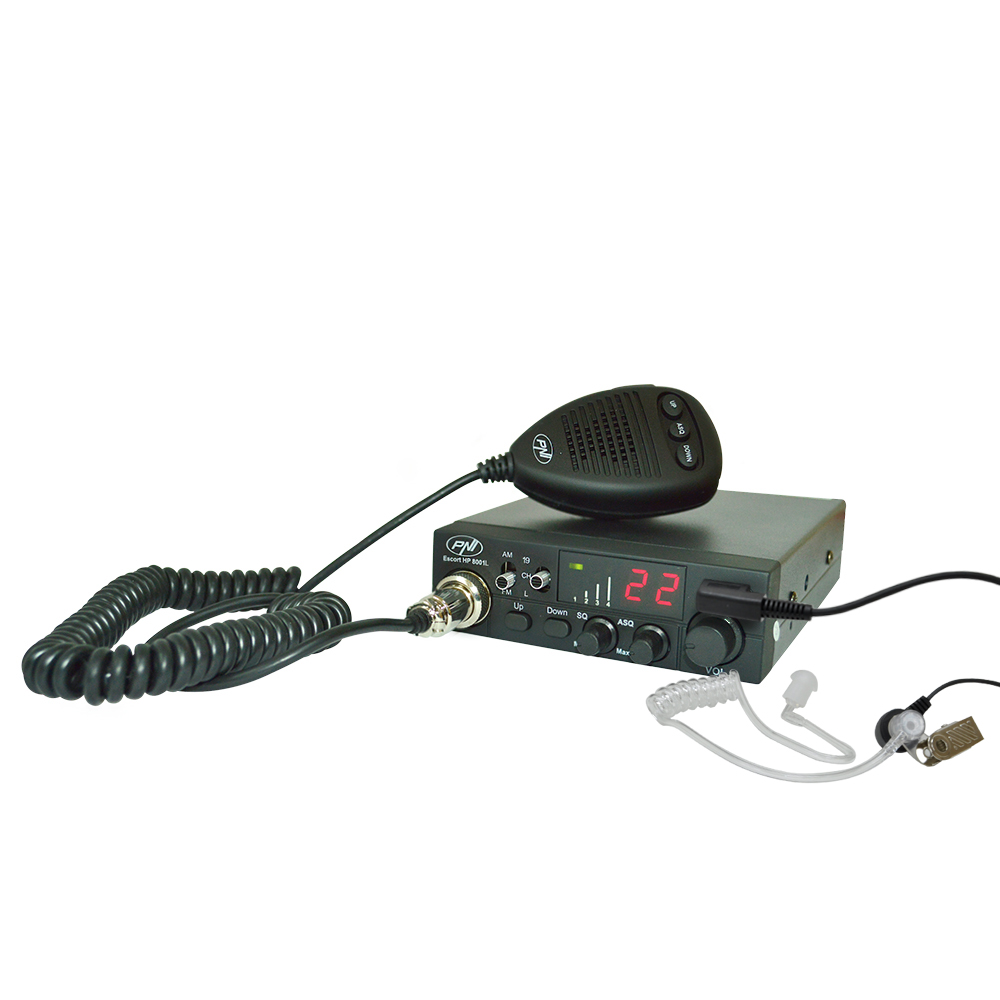

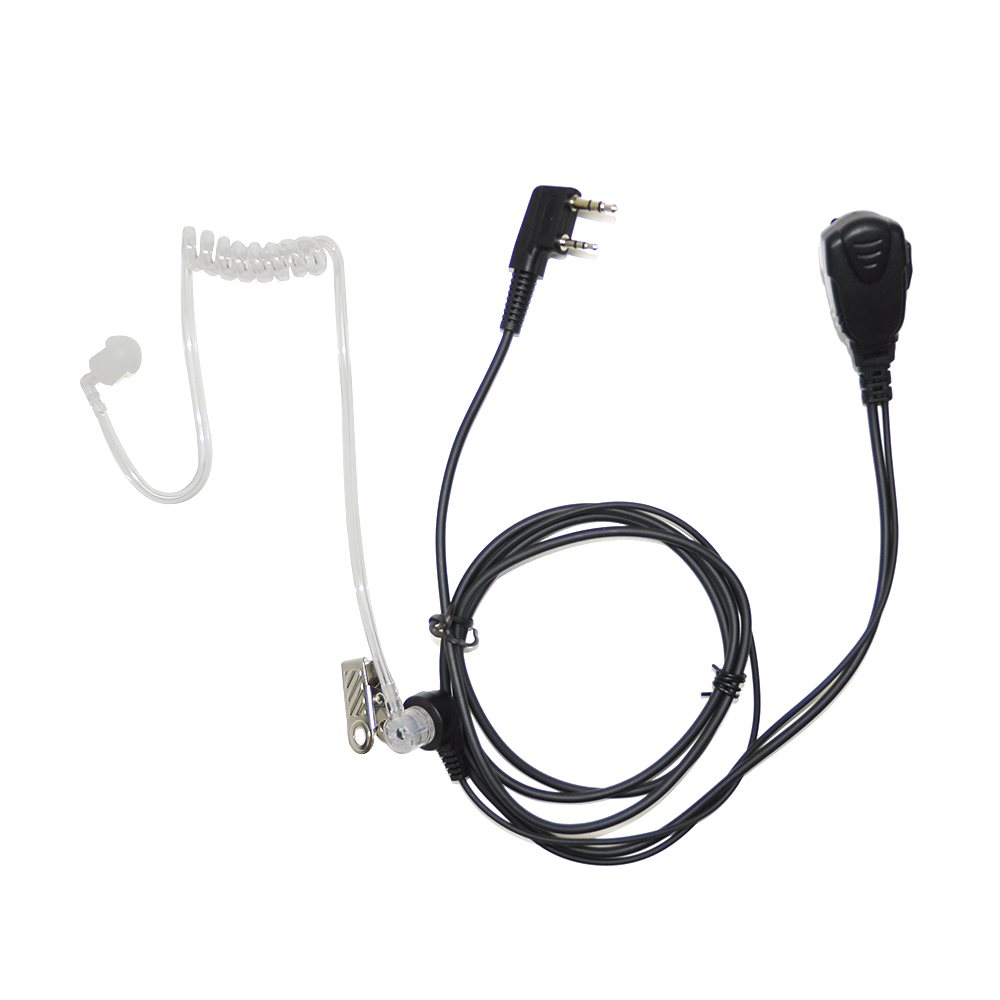

  • CB Radio HP 8001L PNI has plugs on the front panel for connecting a pair of headphones with a microphone, included in the package.
  • impedance 50 Ohm

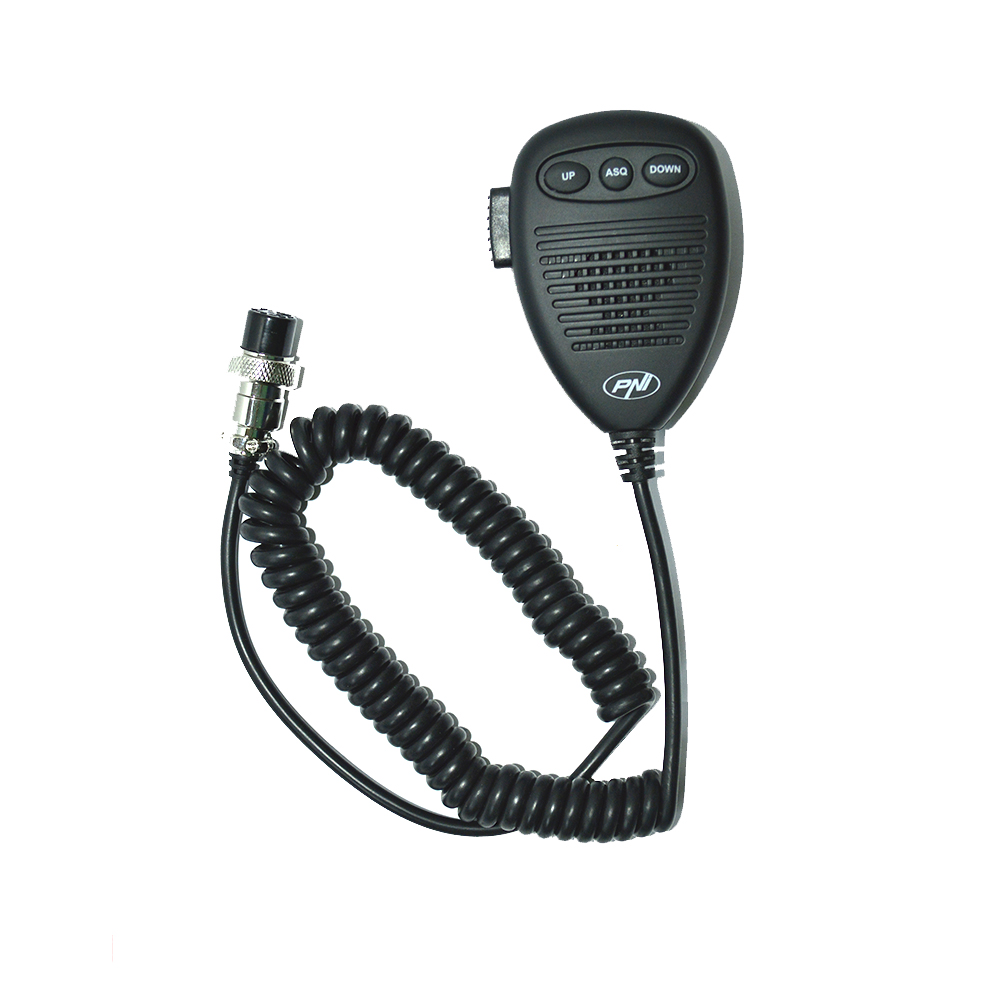

  • The HP 8001L ASQ Radio has a standard 6-pin microphone jack on the front panel. The microphone included in the package has buttons for channel selection, PTT button and ASQ activation button.

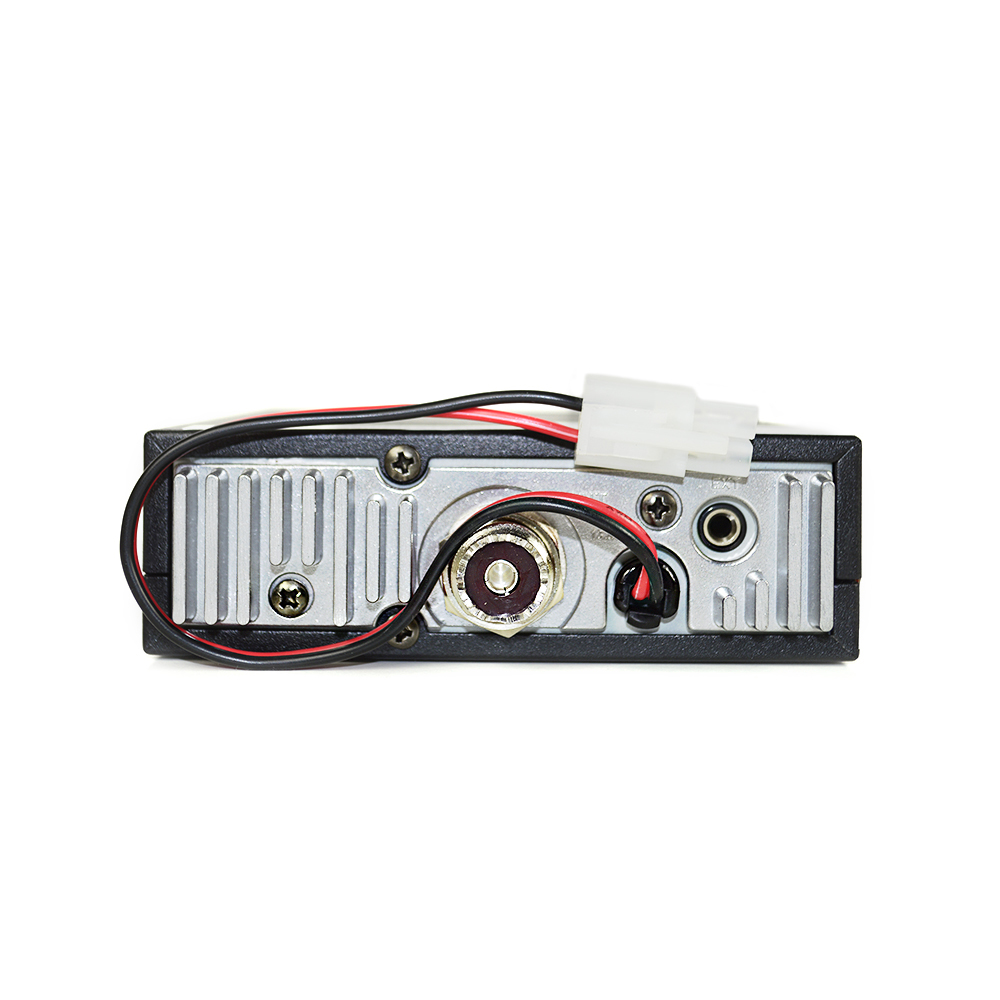

  • Connector PL259 Cable length 4m
  • Operating temperature -26 C ~ + 60 C
  • Warranty : 24 Months (Manufacturer)
asq

Adjustable ASQ

An innovation in the CB segment, the adjustable automatic squelch (ASQ), offers maximum comfort even for the most demanding users of CB car radio stations. If until now we were used to activating / deactivating the ASQ, now PNI brings its adjustment function, a function that allows the elimination of up to 100% of interferences, background noise and interference from the CB band.

PNI Escort HP-81001L PNI Escort HP-8001LPNI Escort HP-8001L
PNI escort HP-8001LPNI escort HP-8001LPNI Escort HP-8001L

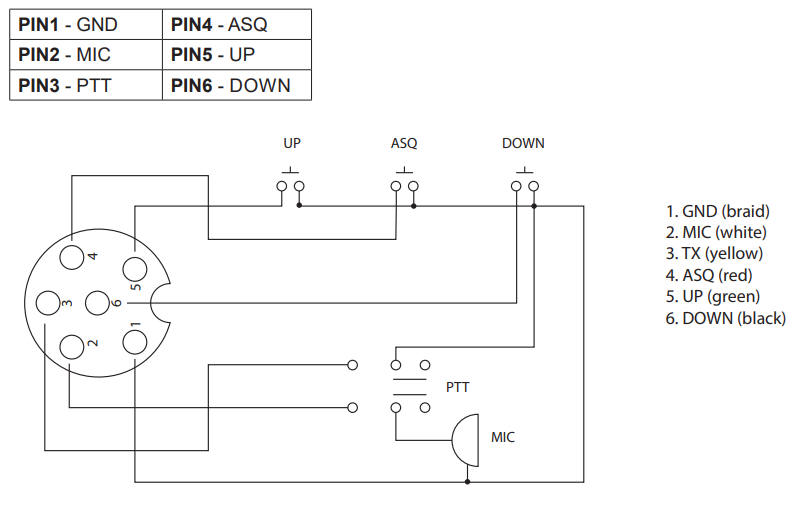

PNI Escort HP-8001L ear MicPNI Escort HP-8001L mic ptt and plug6-Pin PNI Mic Wiring


The HP 8001L PNI Escort radio station is compatible with the

  • BT-Dongle 8001 PNI Bluetooth adapter,

  • the BT-MIKE 8500 PNI Bluetooth microphone and the

  • BT-MIKE 7500 PNI Bluetooth headset.



The HP 55 PNI Escort The HP 8001L PNI Escort multi-norm station brings a novelty in the field of CB. Depending on the country you are traveling to, first select the frequency table and then the country-specific rule . Carefully consult the local legislation and set the station (maximum allowable emission power) accordingly.

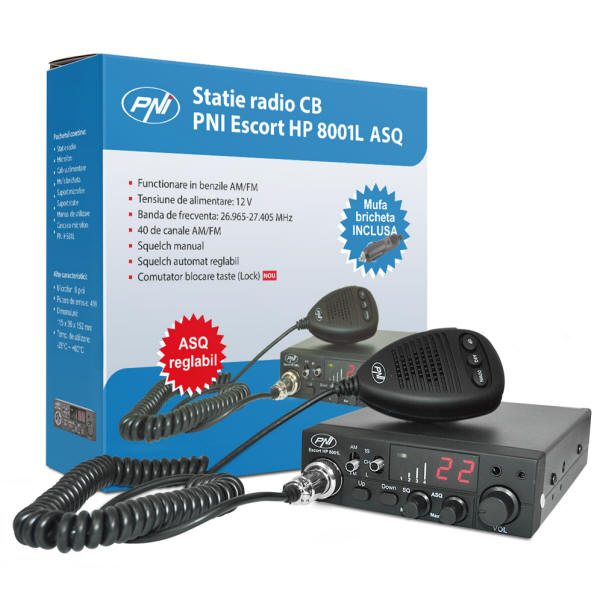

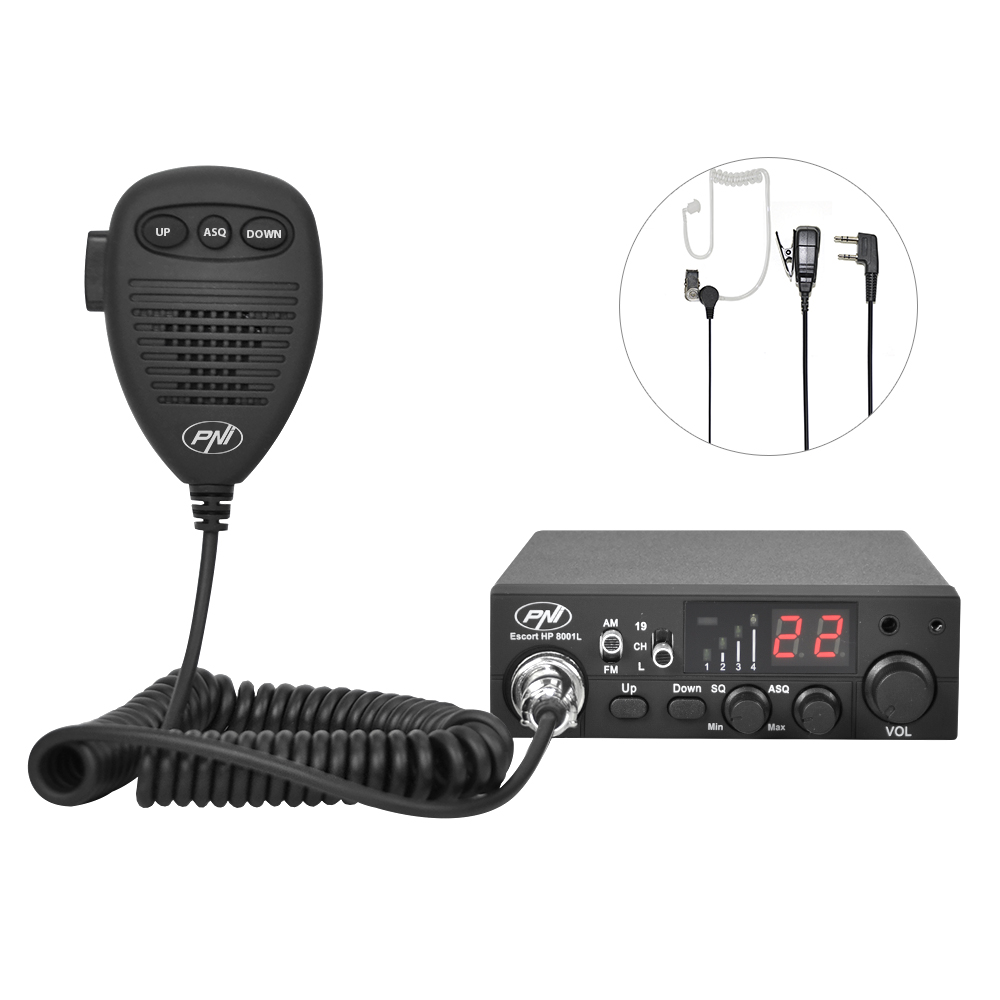

CB PNI Escort HP 8001L ASQ
 includes HS81 headset
$79
Dead Key
 Tune-up. perform a tune-up to radio to optimize power, audio and performance  In case you are driving an amplifier,  You can select the deadkey carrier you want. $19

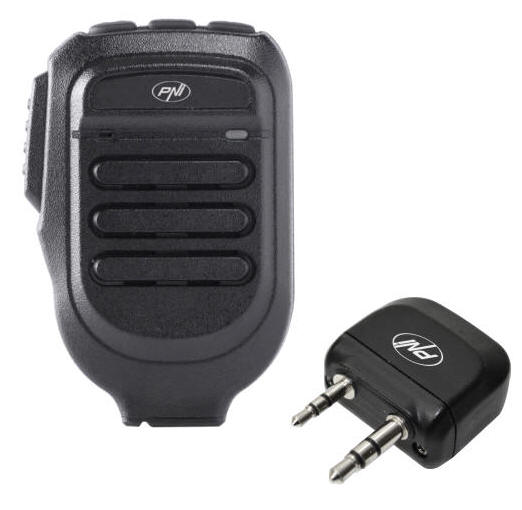

Wireless Bluetooth Microphone.
(The microphone and dongle can communicate wirelessly with the CB radio station up to a maximum distance of 10m )
$39
Tuned up values on these watt meters
Dosy Bird RMS *Bird 43P
AM / FM 5w 5w 5w
PEAK AM 15w 6w 25w
* The most informative and the one we use.



General characteristics
Frequency 26.965-27.405 MHz
Broadband type AM-FM
channels 40
feeding 12 V
Dimensions (W x H x H / Weight) mi mm / 0.8 kg
Microphone type (pins) 6 pines
Audio signal distortion less than 5% @ 1 KHz
Emission power 4W
Modulation FM: 1.8KHz 0.2KHz, AM: 85-95%
Current absorbed 2A
Model Furniture
Special features
ASQ - Automatic Squelch Yes
Keypad lock Yes
Emergency channel button 9/19 Yes (CH 19)
Adjustable ASQ Yes
Operating temperature -26 C ~ + 60 C

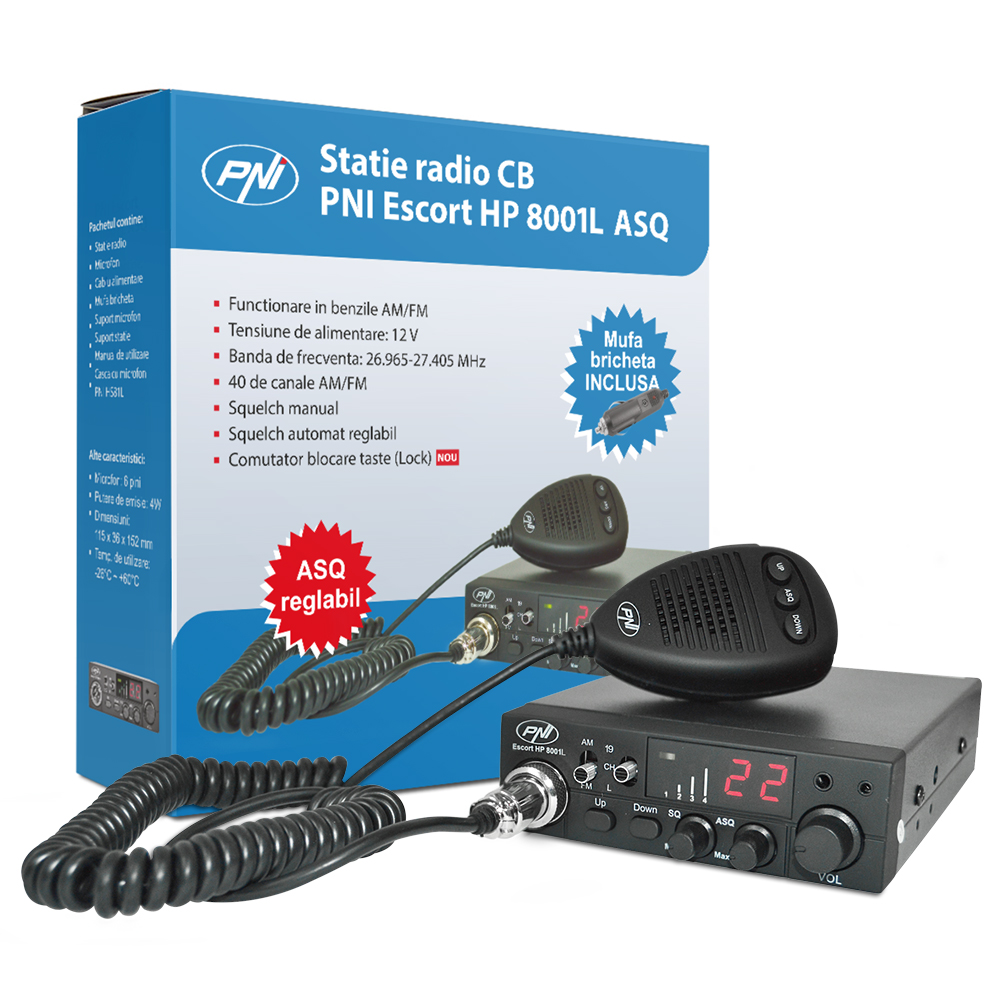

The package contains
Radio station microphone Yes
Radio station Yes
Microphone holder Yes
Station mounting bracket Yes
Power cable Yes
Lighter plug Yes
Headphones Yes, cable 150cm
