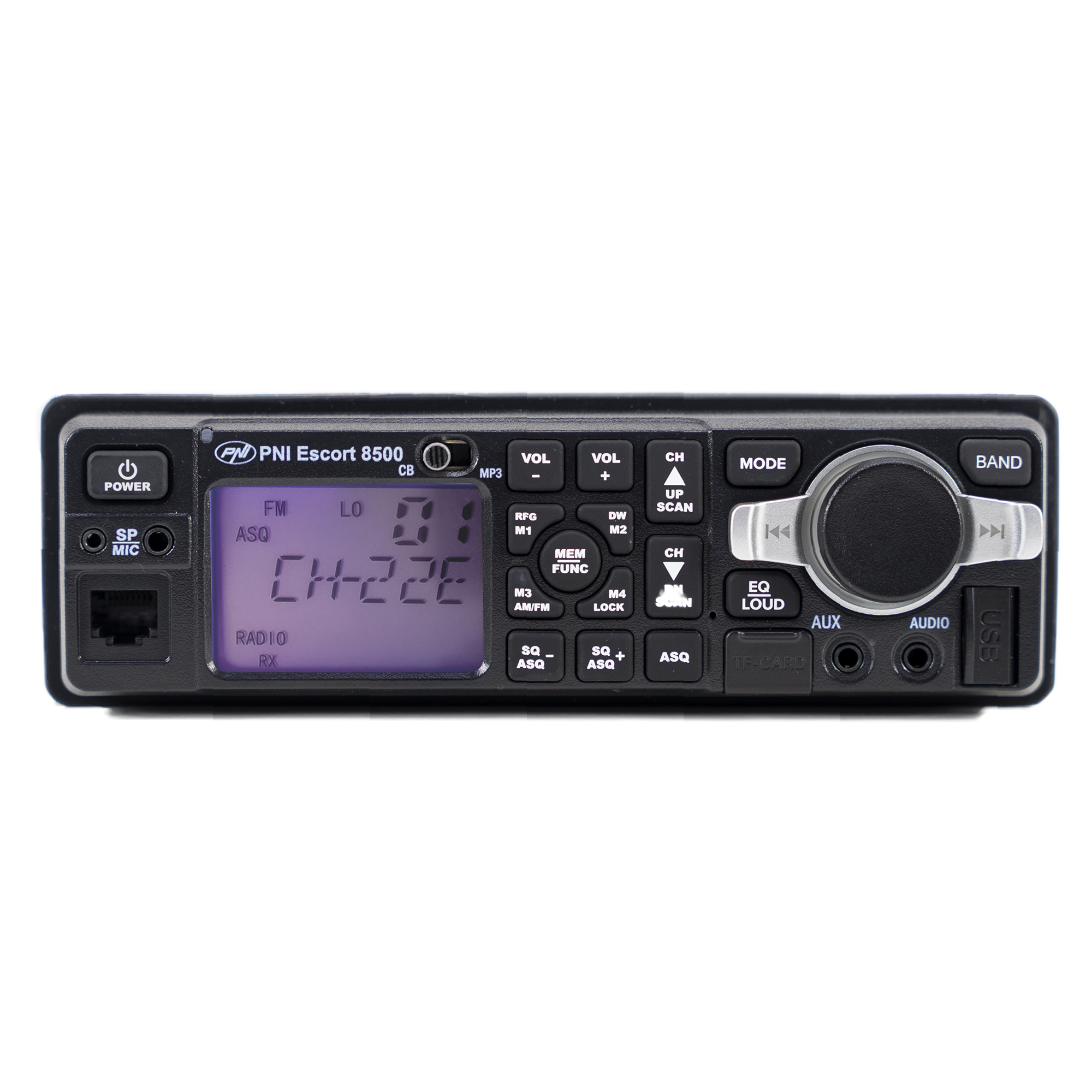

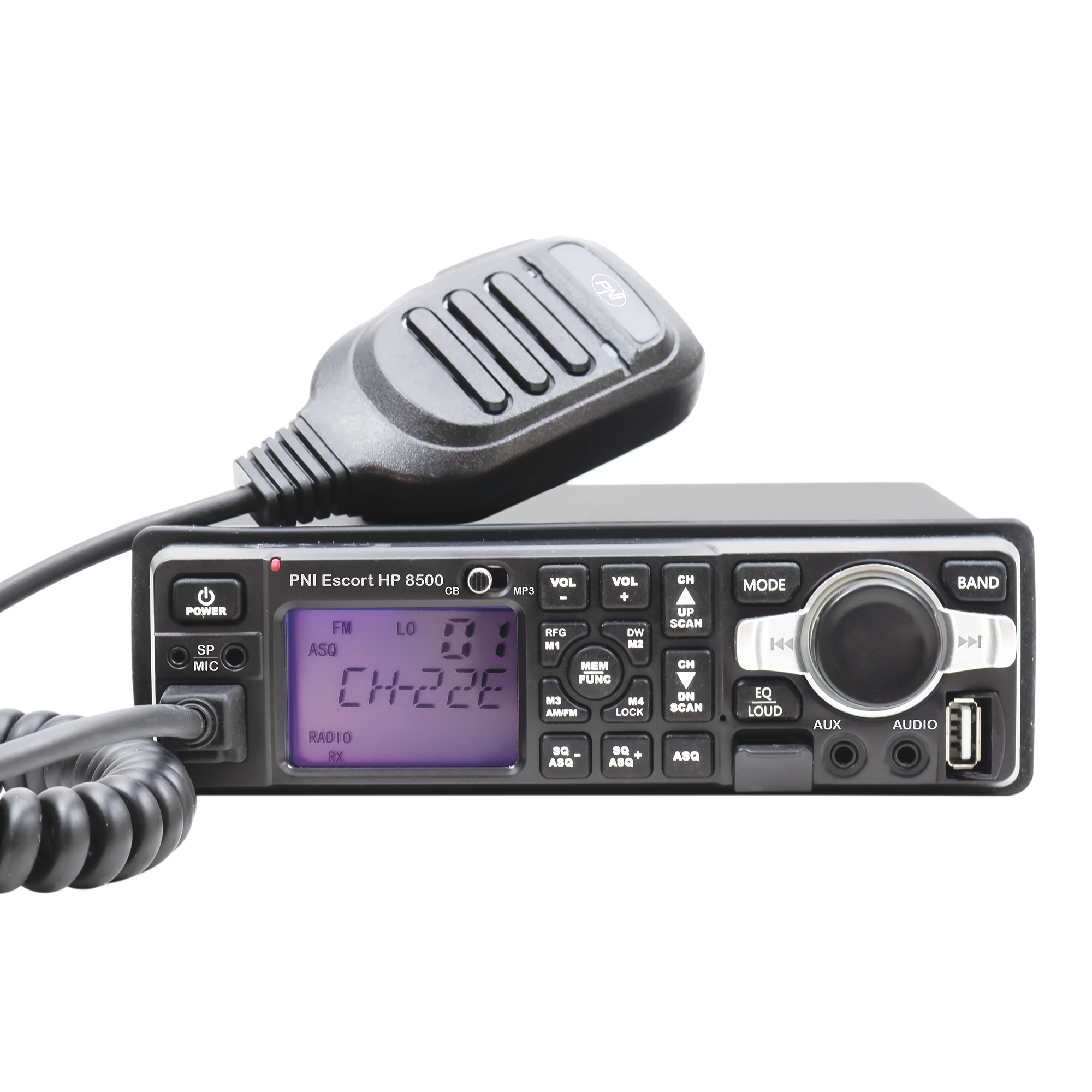

PNI Escort HP-8500


PNI HP8500 Title

  • AM / FM CB Radio

  • FM Music Radio

  • MP3 Player

Download Manual

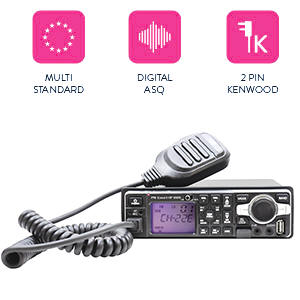

The CB PNI Escort HP 8500 car station is a reliable station that ensures clear communication over long distances.

With operation on FM and AM - multi-standard , automatic squelch on 5 levels and manually adjustable squelch, large illuminated screen, PNI Escort HP 8500 is equipped with all the necessary functions for communication in the CB band, among which we list:

  • Key lock;
  • Dual watch (monitoring two channels simultaneously);
  • Scan channel
  • Save channel
  • Automatic RF Gain (ARF) and Adjustable RF Gain (RF)

Car station, radio station, PNI

Car station, radio station, PNI

Functions in MP3 player mode

By switching the CB / MP3 button, the station becomes an MP3 player - PNI Escort HP 8500 .

With MP3 player mode you can play from several sources, such as: bluetooth (BT), USB, SD card or FM radio (attention, only FM radio).

The SD and USB slot supports a maximum of 32 GB and can read files such as: MP3, WMA, APE, FLAC, AAC, MP4, M4A, WAV, AIF.

The maximum bluetooth communication distance is about 10 meters.

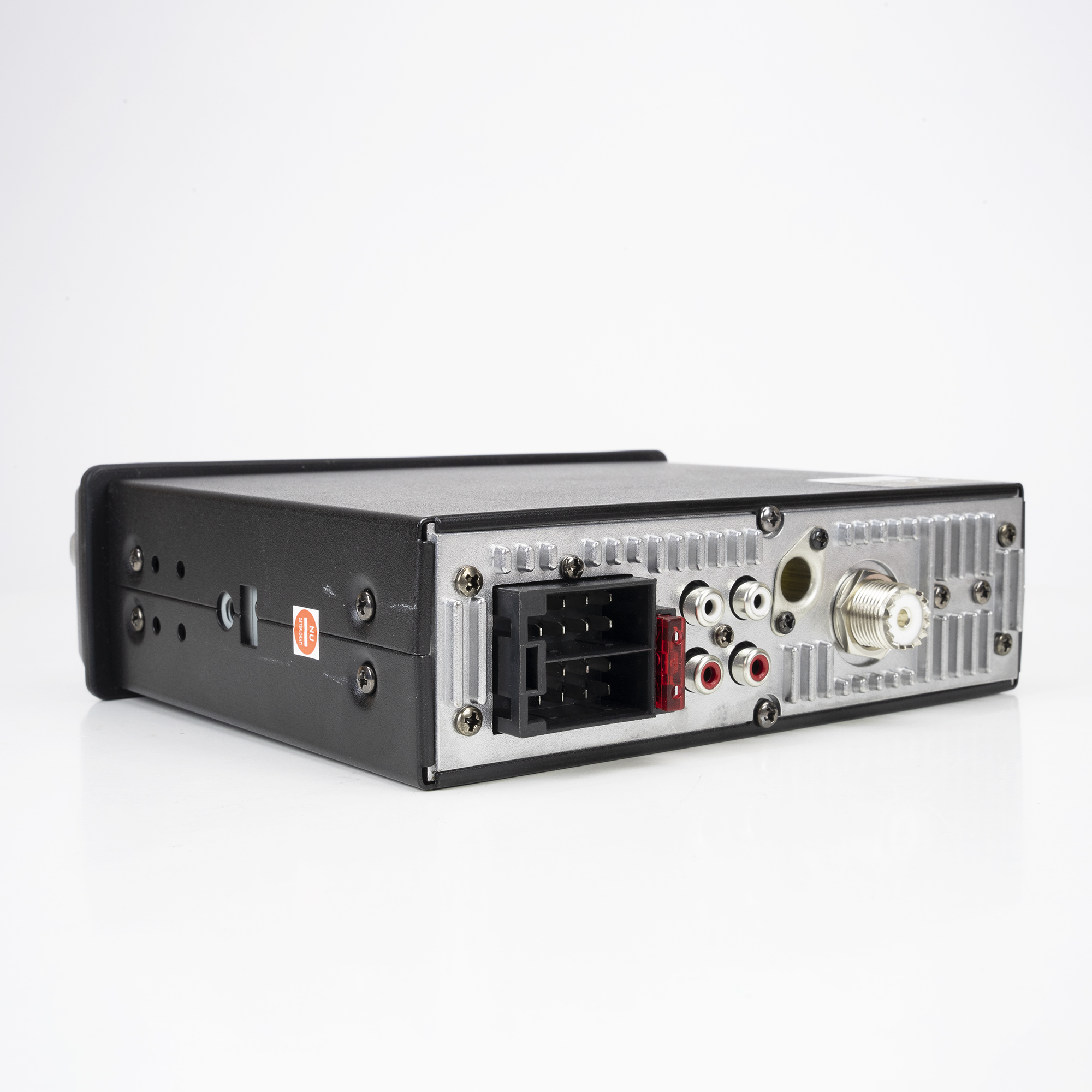

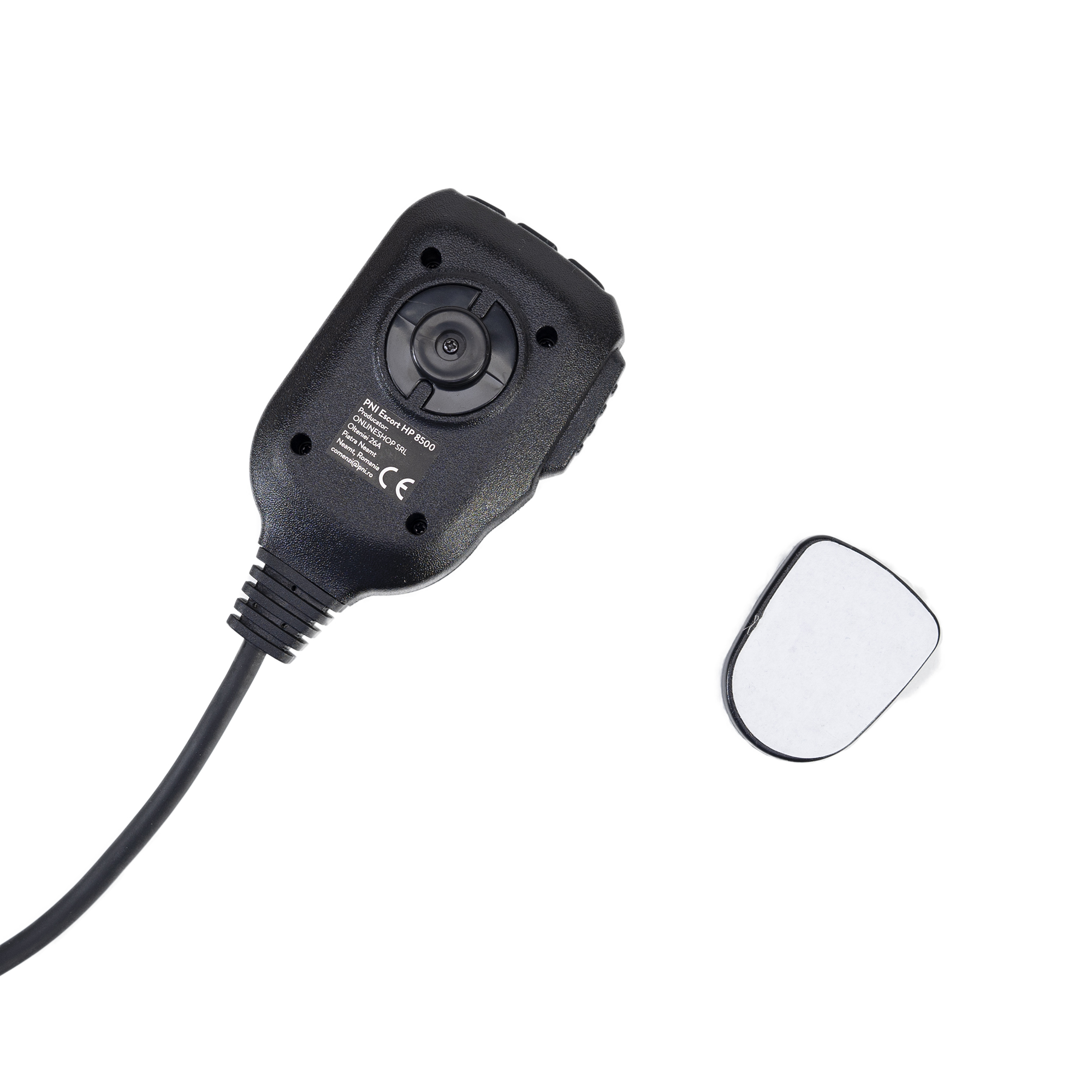

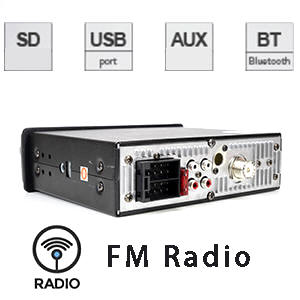

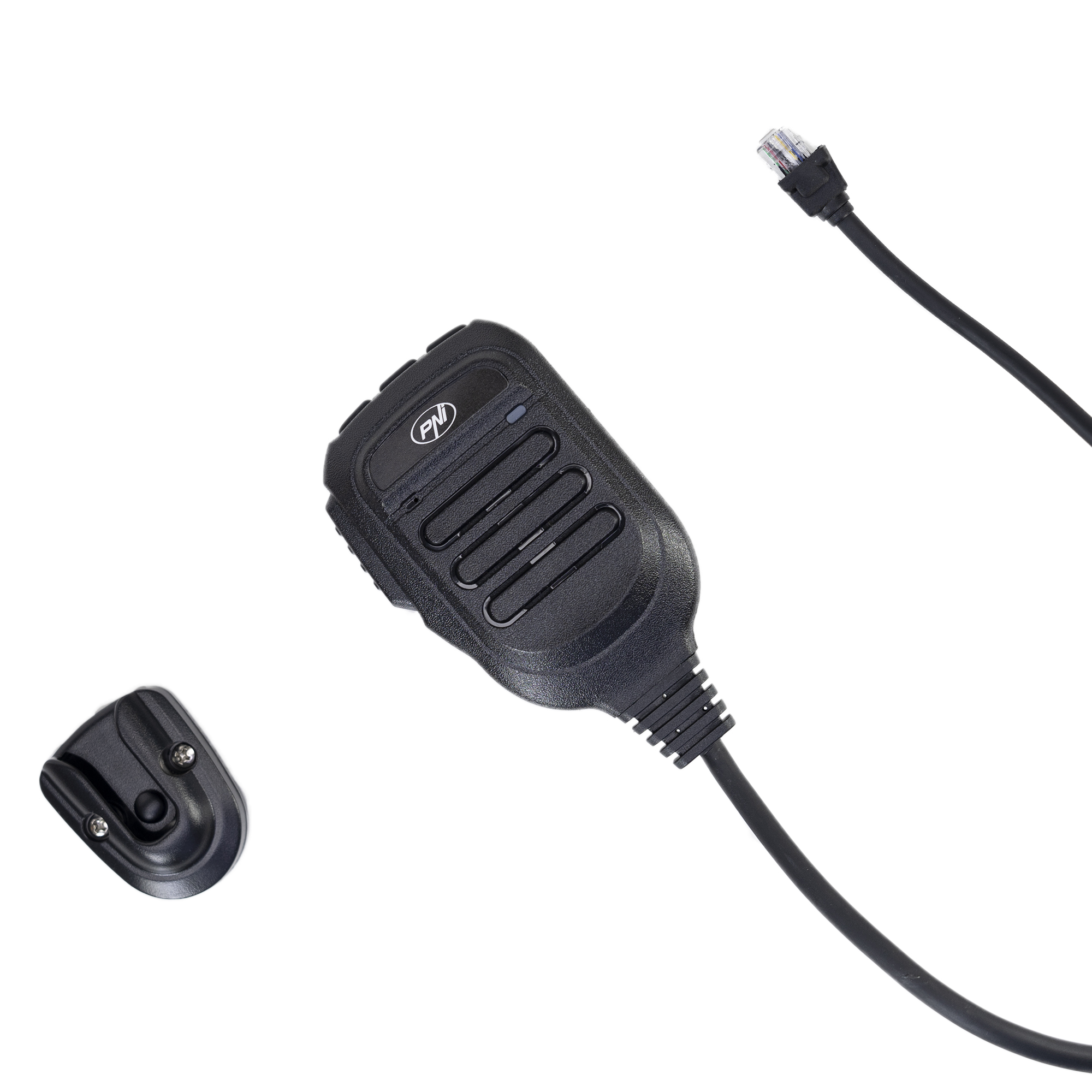

PNI HP-8500 Rear PanelPNI HP8500 Microphone back sidePNI  HP-8500 Microphone and hook

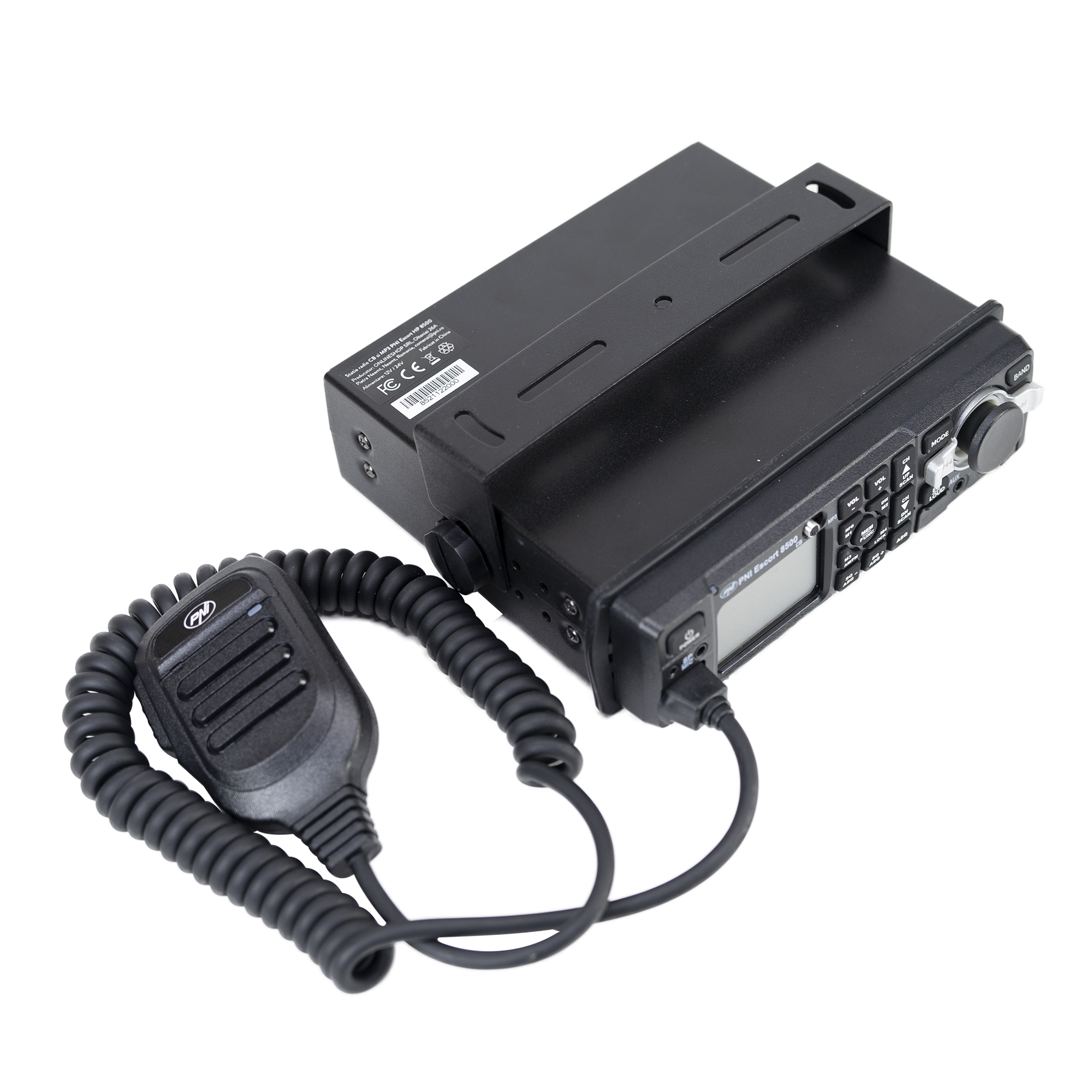

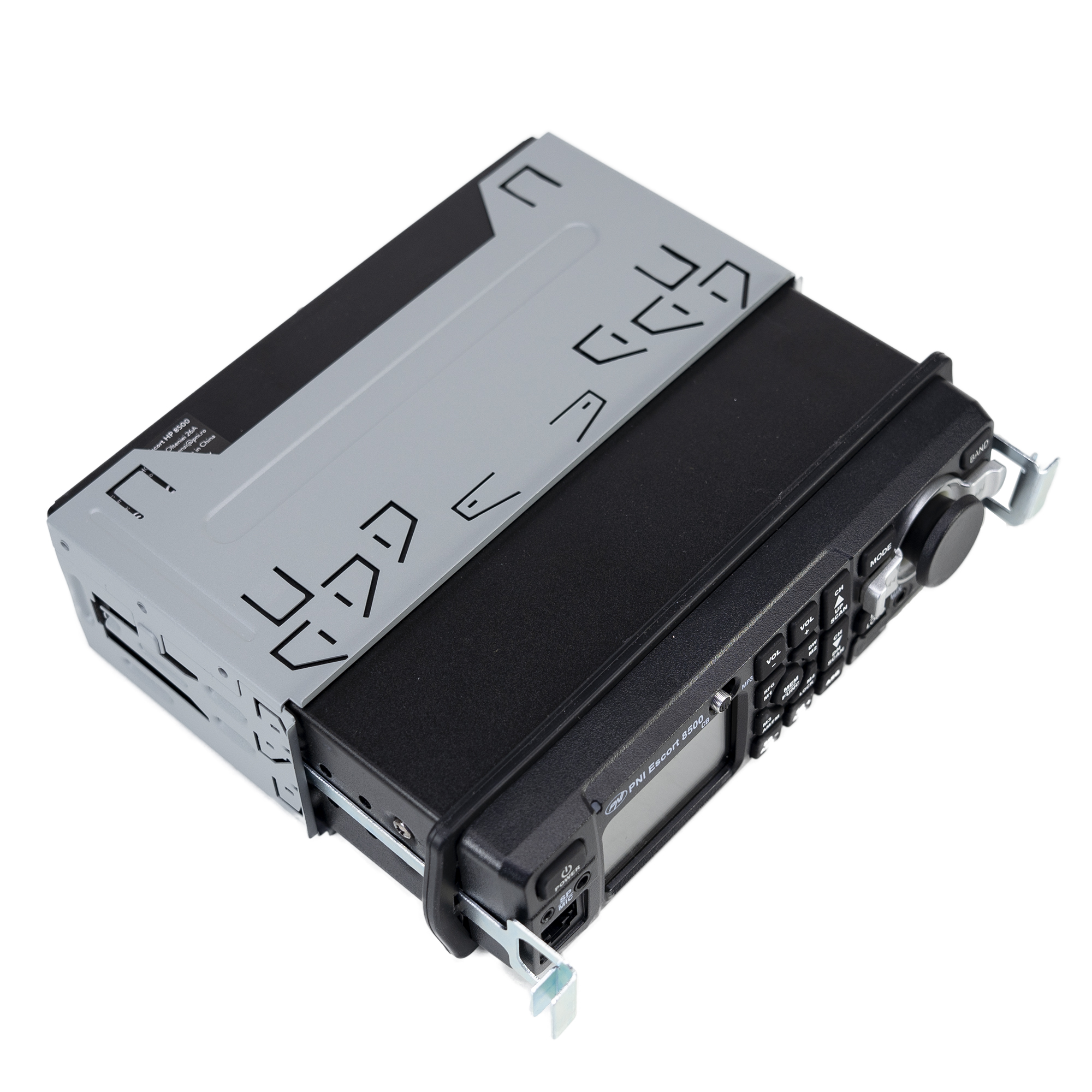

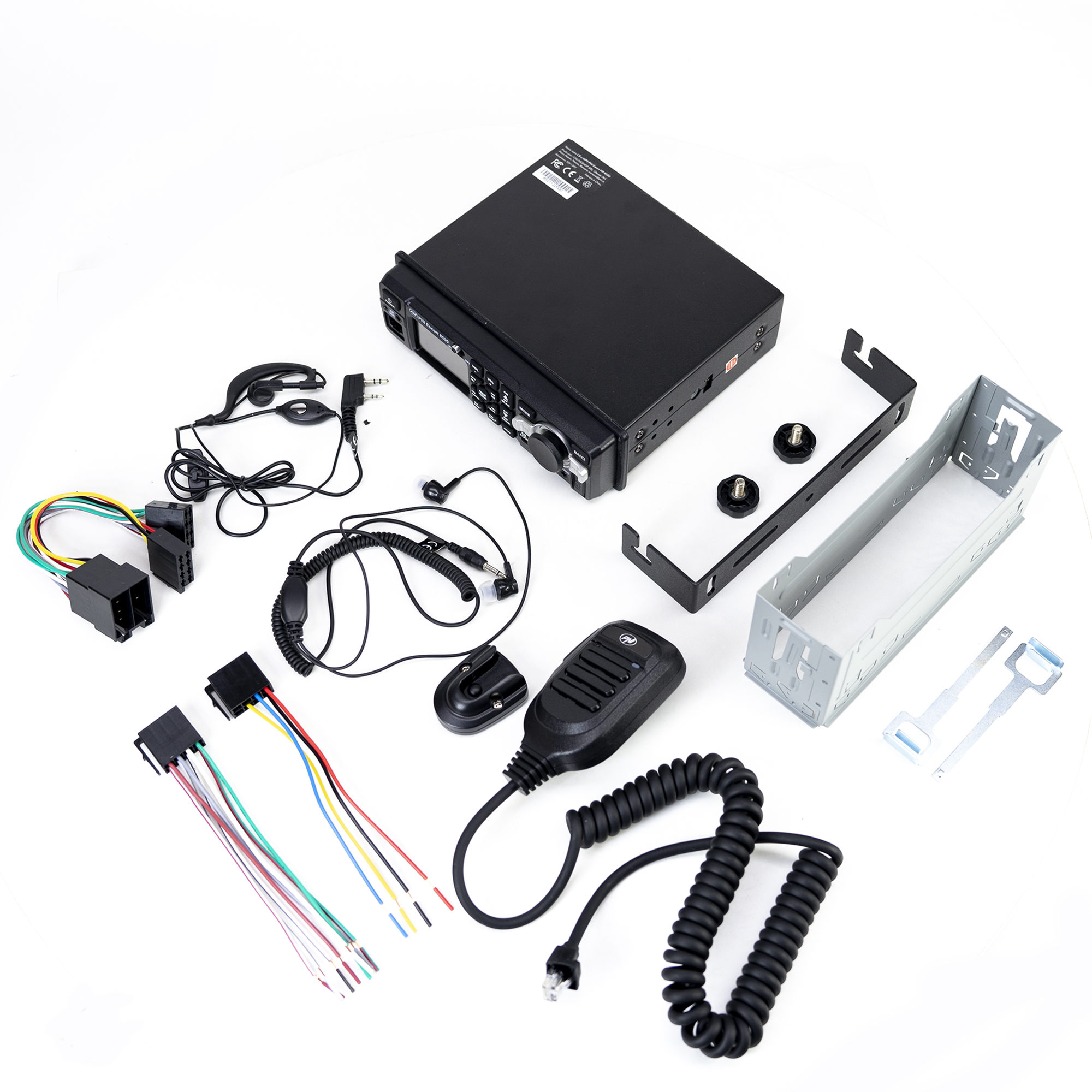

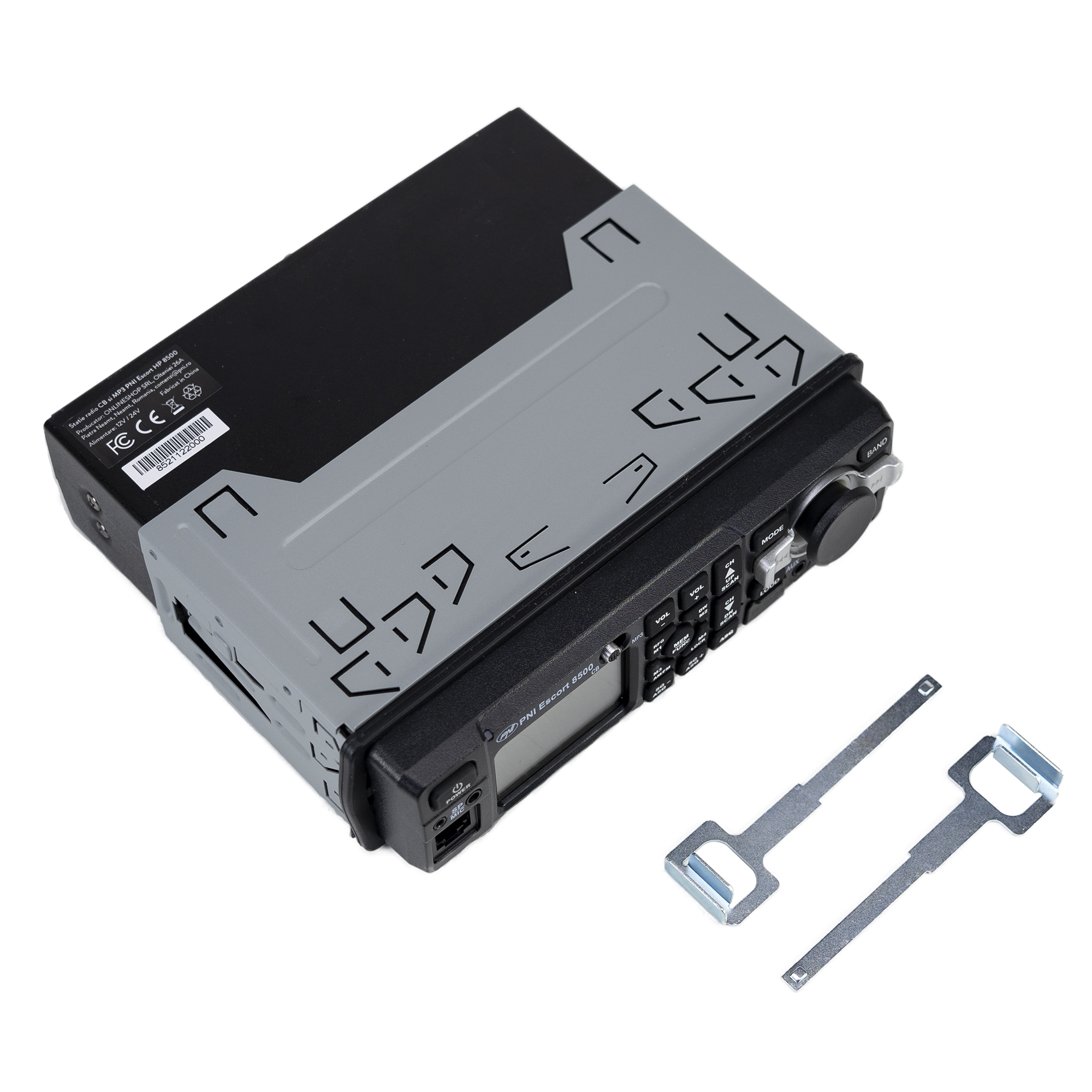

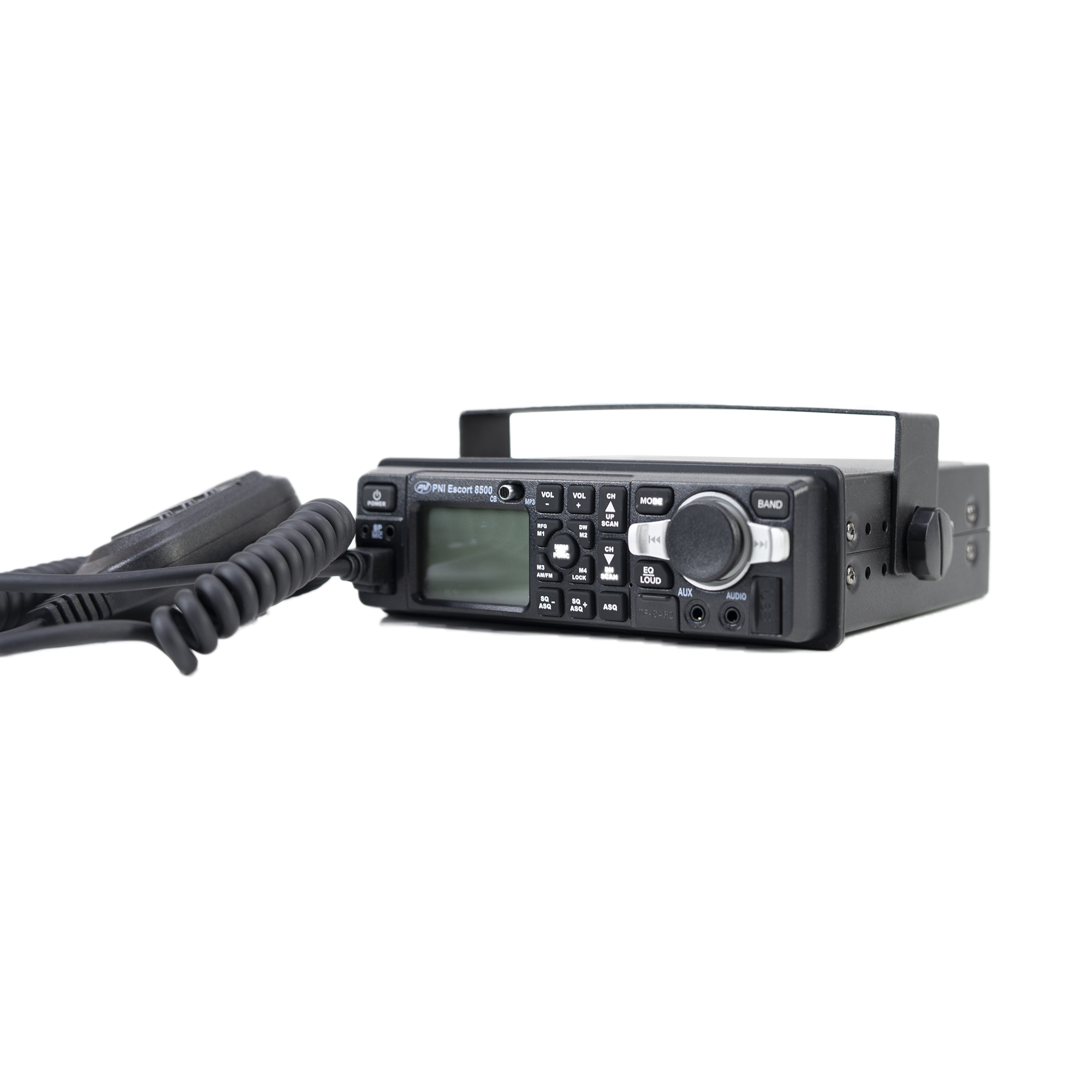

PNI HP-8500 All Parts in boxPNI HP8500 Shown in DIN bracketPNI HP8500 Shown in DIN bracket

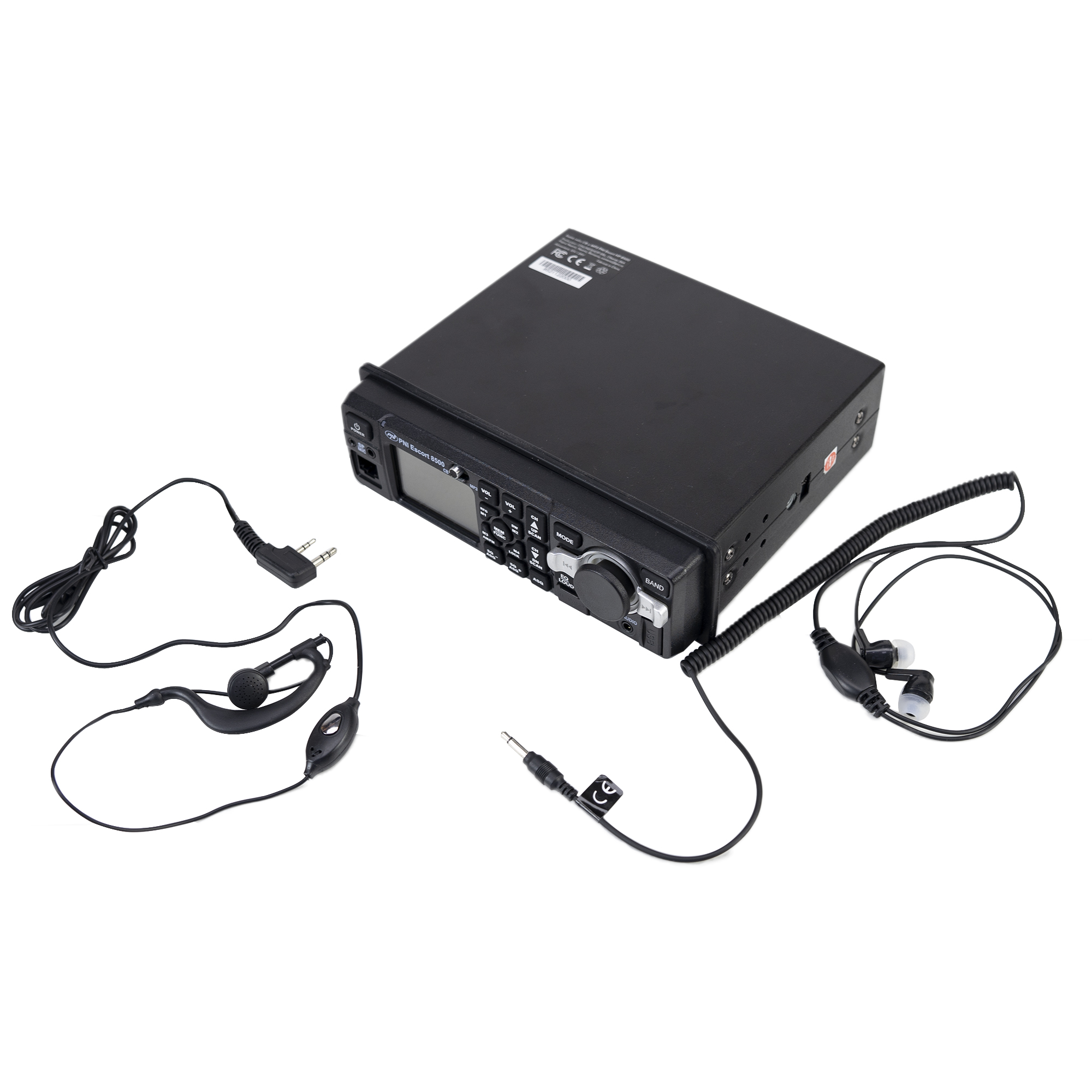

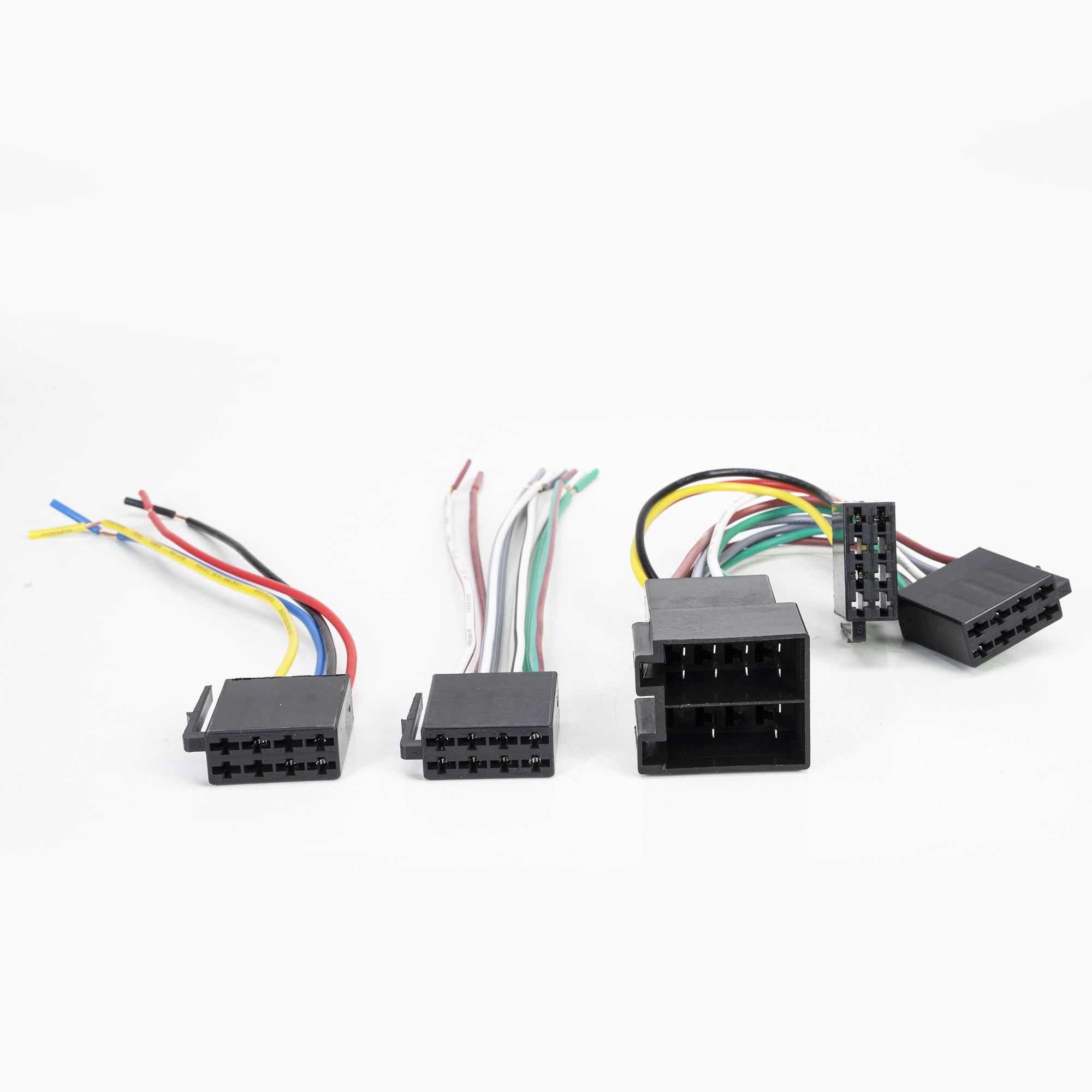

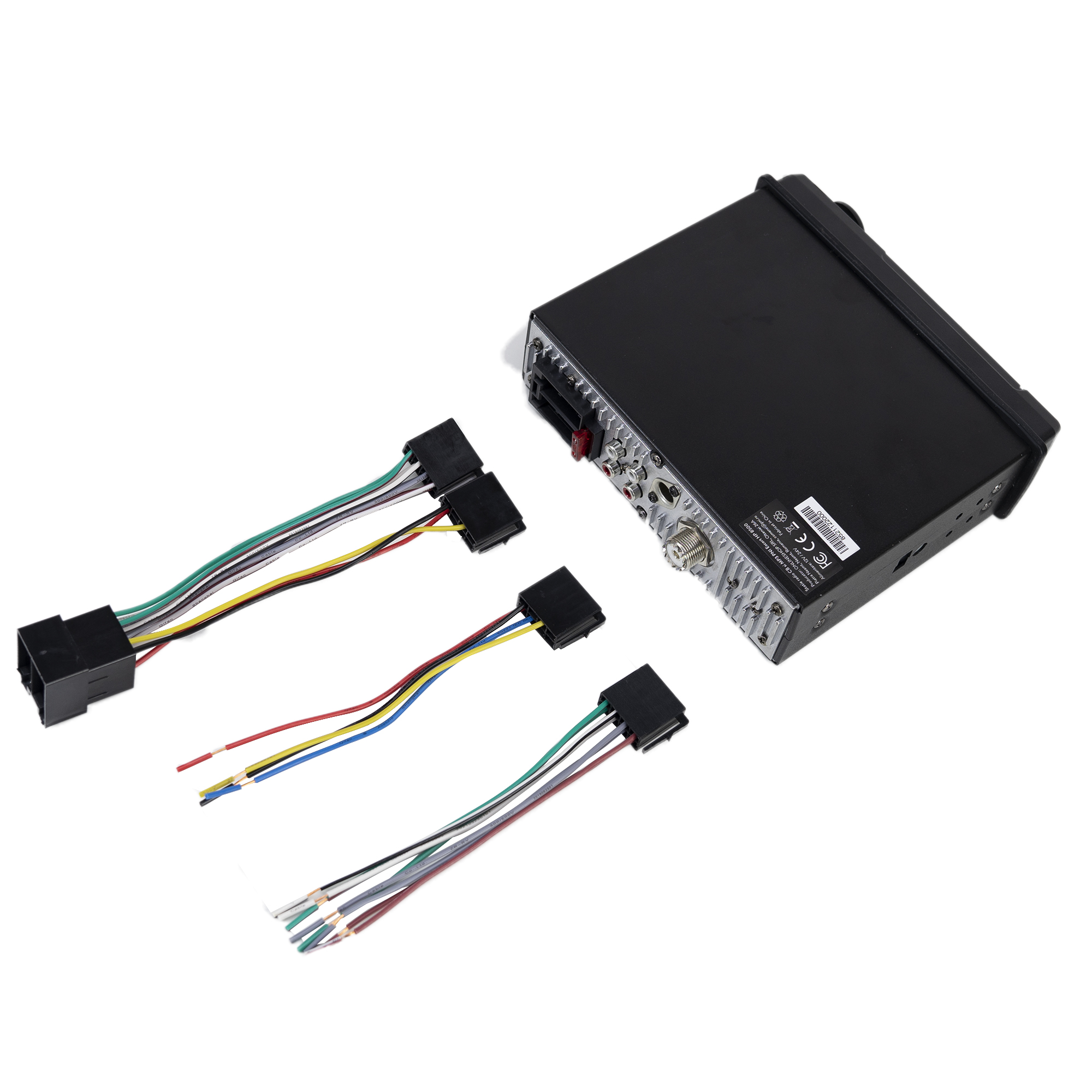

PNI HP8500 shown with earbud accessoriesPNI  HP8500 shown with install cables and plugs





SOLD OUT
Get Notified Via E-Mail when we are taking orders again
Escort HP8500 CB Radio $99.50
Dead Key
Tune-up. perform a tune-up to radio to
optimize power, audio and performance
$19



Tuned up values on these watt meters
Dosy Bird RMS *Bird 43P
AM / FM 5w 5w 5w
PEAK AM 12w 6w 18w
* The most informative and the one we use.


2 in 1 innovation
a device that incorporates the features of a CB (car) radio station and an MP3 player with FM function.

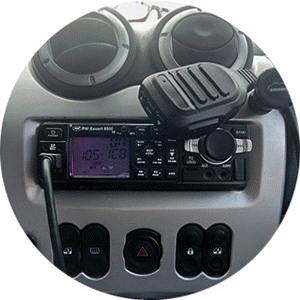

  HP8500 In Dash

General characteristics
Model Portable
Broadband type AM / FM
channels 80 FM / 40 AM
Frequency 26,965 - 27,405 MHz
Microphone type (pins) RJ45
Emission power 4 W
feeding 12 V / 24 V
Dimensions (W x H x H / Weight) 180 x 160 x 52 mm
‎7.09 x 6.5 x 1.97 inches
Montage 1DIN Yes
Special features
Dual Watch Yes
Scan channel Yes
RF Gain Yes, 6 levels
ASQ Yes, 5 levels
Keypad lock Yes
Urgent channel Yes
Roger Beep Yes
Multicolored screen blue, red, purple, green, cyan, yellow, light blue
Channel memory Yes
Manual squelch Yes, 28 levels
Operating temperature -26 C ~ + 80 C
Sound key Yes
Automatic start Yes
Channel monitoring
Display Yes
Rear panel connections
ISO connection Yes
RCA connections Yes
Front panel connections
USB port Yes
Micro SD card slot Yes
AUX Yes
1 pin headphone connector Yes, for MP3 player mode
2 PIN PNI-K headphone connector Yes, for CB station mode
The package contains
Radio station Yes
Microphone Yes
User manual Yes
1DIN mounting housing Yes
