PNI Escort HP8900

PNI Escort HP-8900 Title

Download Manual

CB Radio PNI Escort HP 8900 allows the most accurate control over the background noise specific to the CB band. The 28-level adjustable SQ function and the 9-level adjustable ASQ allow the user to filter and eliminate noise, making communication clearer. The 9-level RF Gain function allows control over the reception frequency, reducing distortion.

The large color LCD screen (1.77 inches) displays information such as current channel, frequency, modulation, signal strength (RX / TX), norm and active functions, being a reliable indicator of the operation status of CB Radio

The MENU key on the front panel of the station allows direct access to the menu of additional settings: screen brightness, key sound, automatic start, as well as activating, deactivating and setting functions such as TOT, RF Gain, Noise Blanker, Roger Beep and CTCSS / DCS.

CB Radio PNI Escort HP 8900 ASQ 12V/24V, RF Gain, CTCSS-DCS, Dual Watch Main functions CB Radio PNI Escort HP 8900 ASQ 12V/24V, RF Gain, CTCSS-DCS, Dual Watch CB Radio PNI Escort HP 8900 ASQ 12V/24V, RF Gain, CTCSS-DCS, Dual Watch

Multi-Standard CB Radio

By changing the standard (frequency band), performing the procedure easily with a simple key combination, and by changing the modulation (AM/FM) according to the selected standard, the CB radio PNI Escort HP 8900 can be used in various European countries. such as Romania, Italy, Spain, UK, Germany, Poland etc. Before using this PNI transceiver, please familiarize yourself with the legislation of each country, regarding the use of the CB band, the maximum allowable output power and the need to be unlicensed.

Noise Control Functions: SQ, ASQ and RF Gain

The CB radio PNI Escort HP 8900 offers the most precise control over the background noise specific to the CB band: the 28-step adjustable SQ function and the 9-step adjustable ASQ allow the user to filter out noise and eliminating the need for clearer communication. The 9-level RF amplification function allows control over the receiving frequency, reducing distortion.

1.77" color display

The large color LCD (1.77 inch) screen displays information such as current channel, frequency, modulation, signal strength (RX/TX), standard and active functions, and is a reliable indicator of the transceiver's operating status.

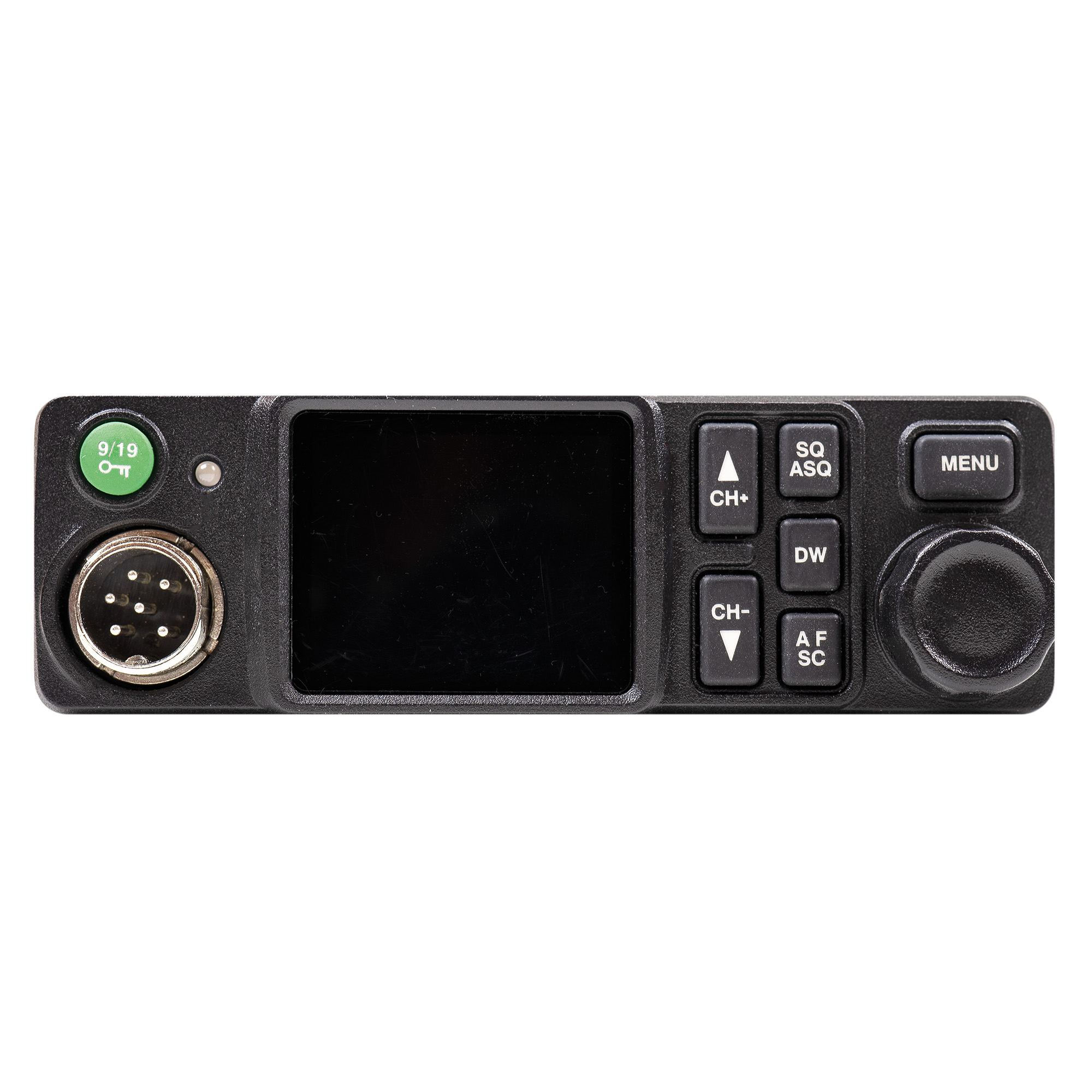

Additional settings menu

The MENU button on the front panel of the radio gives direct access to the menu with additional settings: screen brightness, key tone, automatic start, as well as activation, deactivation and setting functions such as TOT, RF Gain, Noise Blanker, Roger Beep and CTCSS / DCS.





  • Working frequency 26.965-27.405 MHz
  • Connector PL259 Cable length 4m
  • Operating temperature -26 ░ C ~ + 60 ░ C
  • Warranty : 24 Months (Manufacturer)


PNI Escort HP8900PNI Escort HP8900PNI-Escort HP8900
PNI escort HP8900PNI Escort HP8900PNI Escort HP8900

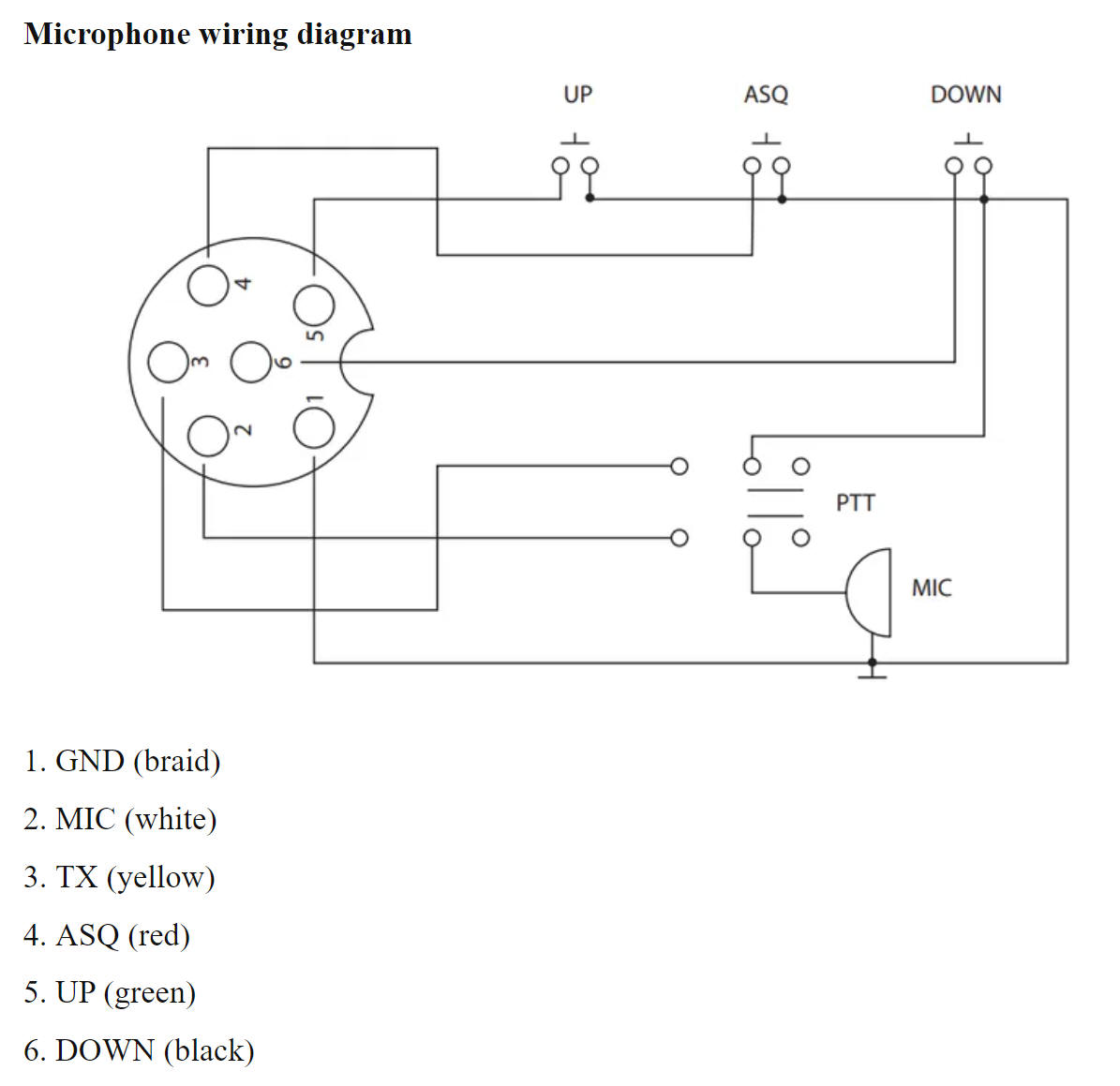

6-Pin PNI Mic Wiring





The HP 55 PNI Escort The HP 8900 PNI Escort multi-norm station brings a novelty in the field of CB. Depending on the country you are traveling to, first select the frequency table and then the country-specific rule . Carefully consult the local legislation and set the station (maximum allowable emission power) accordingly.
CB PNI Escort radio station HP 8900 $99.50

Optional Accessories
Dead Key
 Tune-up. perform a tune-up to radio to optimize power, audio and performance $19
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25

Tuned up values on these watt meters
Dosy Bird RMS *Bird 43P
AM / FM 5w 5w 5w
PEAK AM 16w 6w 21w
* The most informative and the one we use.



General characteristics
Model Furniture
Transmission band type AM / FM
channels 40
Frequency 26,965 - 27,405 MHz
Microphone type (pins) 6 pins
Audio speaker power 3 W
Sensitivity (20dB SINAD) 0.25 ÁV @ 12 dB SINAD
Emission power 4 W
feeding 12 V
Current absorbed 122 x 130 x 37 mm
Dimensions (W x H x H / Weight) 660 g
Montage 1DIN Yes
Special features
Dual Watch Yes
Scan channel Yes
RF Gain Yes, 9 levels
Keypad lock Yes
Adjustable ASQ Yes, on 9 levels
Urgent channel Yes
Roger Beep Yes
Noise filter NB (Noise Blanker) / HI CUT
SWR meter
CTCSS / DCS (encoder / decoder) Yes
Manual squelch Yes, 28 levels
and meter Yes
Accessory connection 1 pin plug
TOT (Time out Timer) Yes
Operating temperature -26 ░ C ~ + 60 ░ C
Sound key Yes
Automatic start Yes

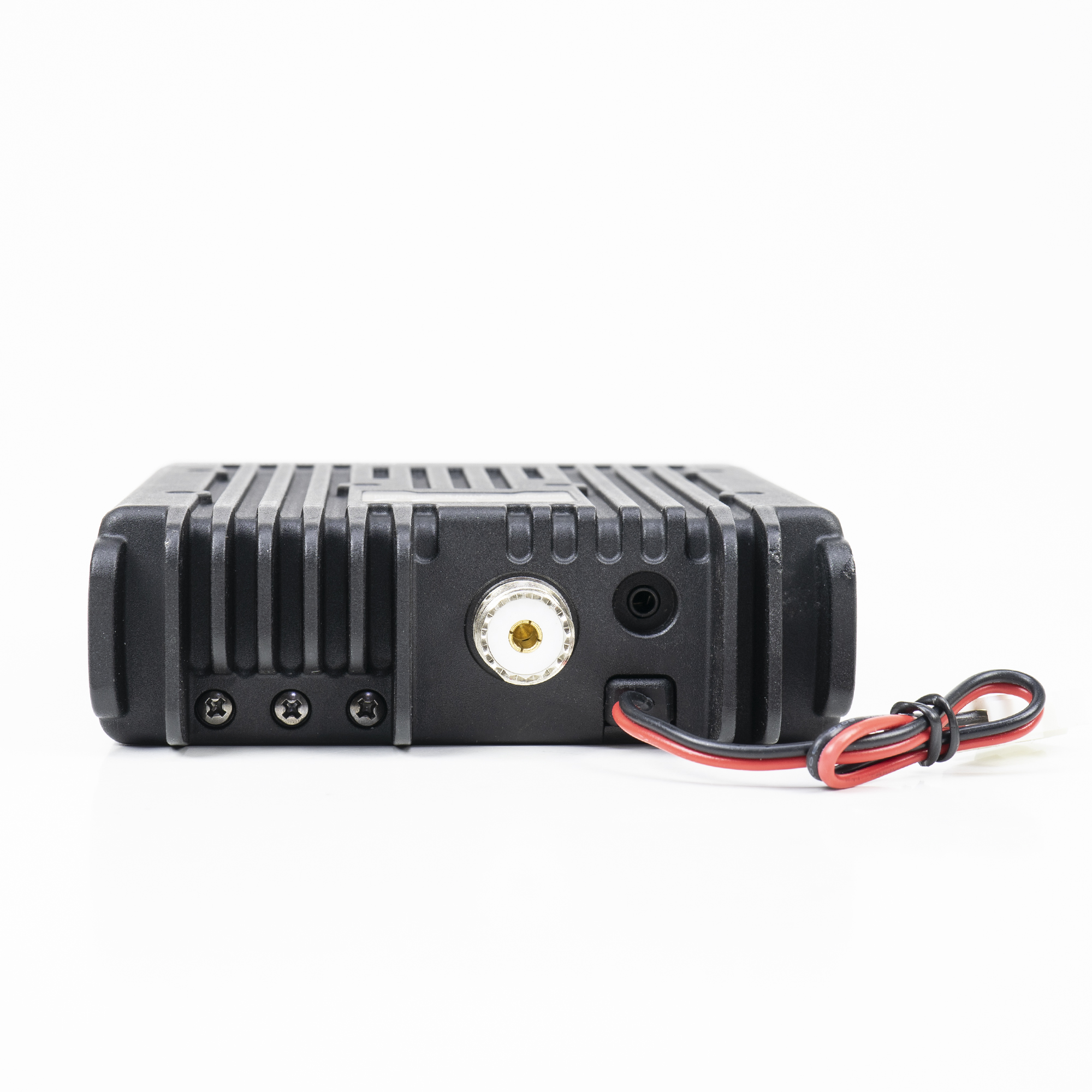

Rear panel connections
Headphone connection Yes, 1 pin

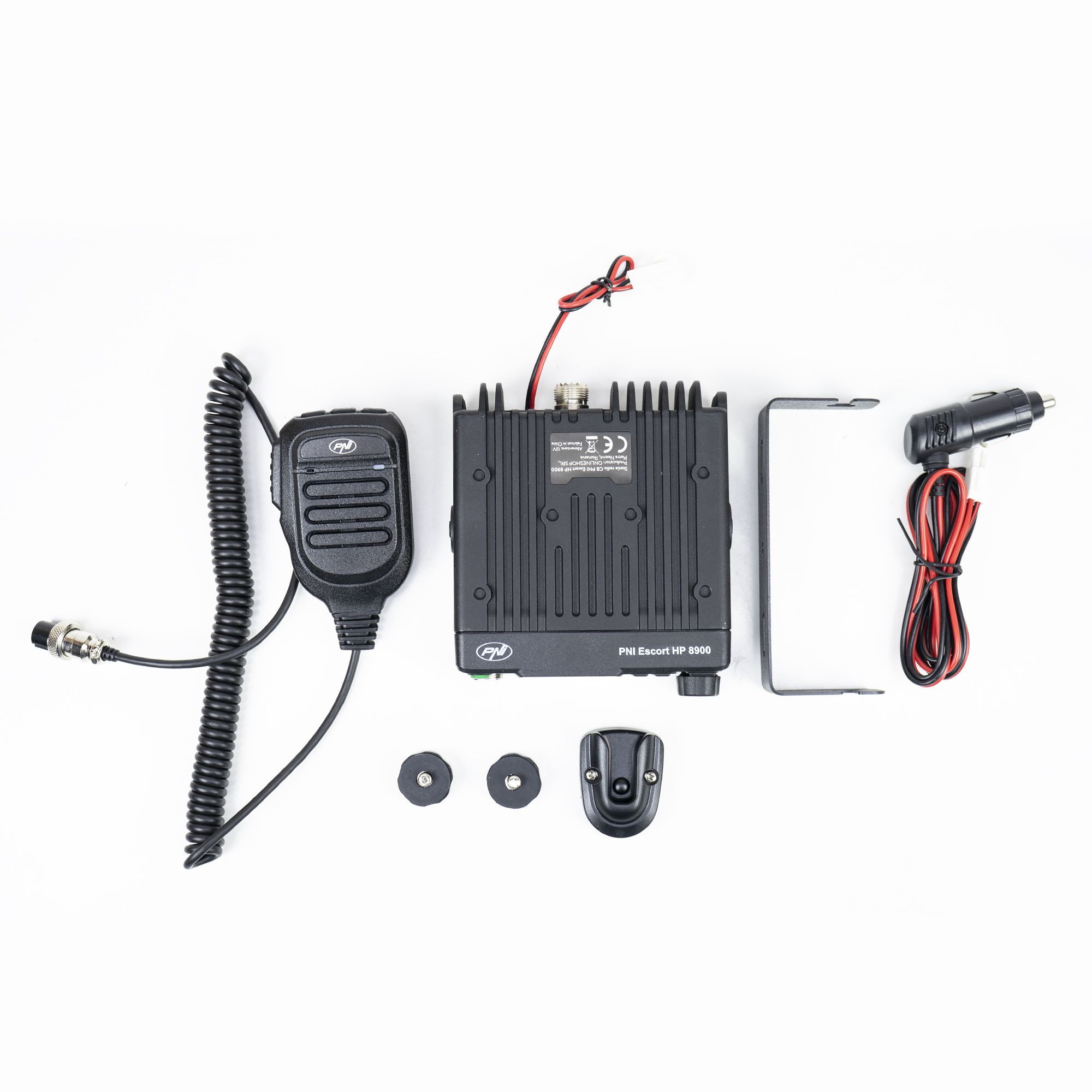

The package contains
Radio station Yes
Microphone Yes
Radio station mounting bracket and screws Yes
Microphone holder and screws Yes
Power cord Yes
Lighter plug Yes
User manual Yes



PNI Escort HP-8001L

PNI Mic Wiring
