  Orders with radio work are delayed 7 - 14 days
PNI_Logo

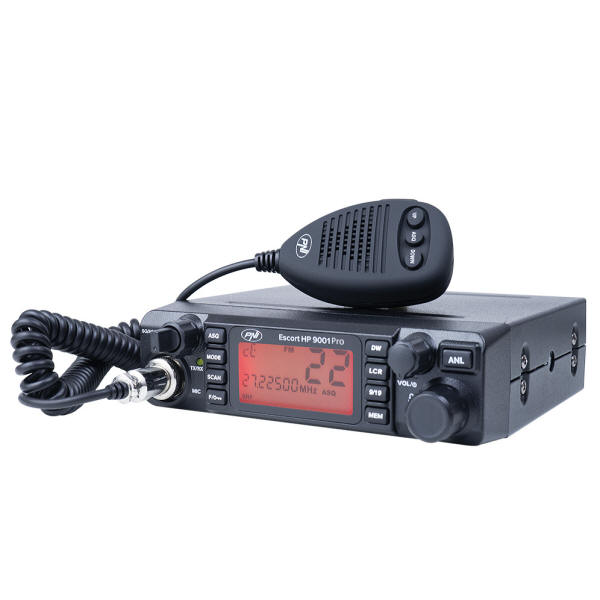

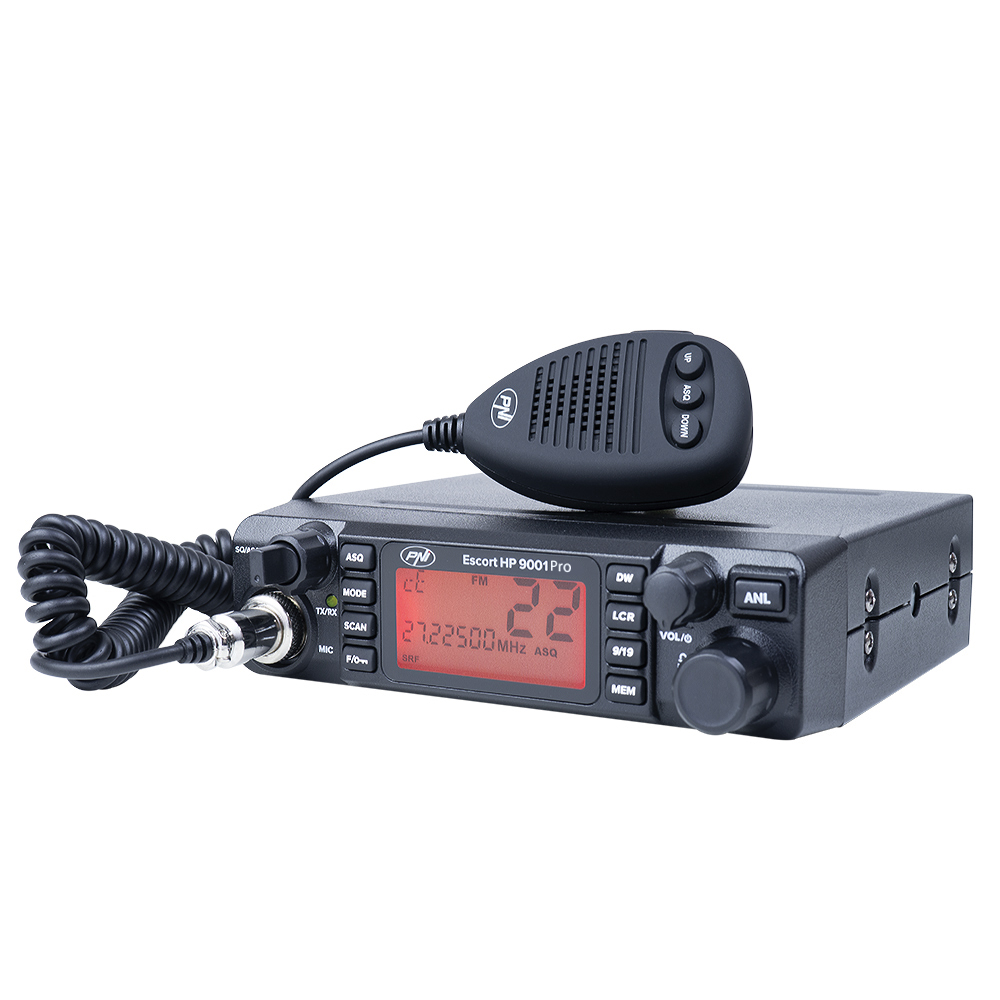

PNI Escort HP-9001Pro


PNI HP-9001P

Download Manual
Winrar Logo  Download Software

pni

  • Working frequency 26.965 - 27.405 MHz *(and more)
  • AM/FM
  • Frequency Display
  • Dual WAtch
  • ANL
  • Multicolor Display
  • Scan feature
  • Automatic Squelch (Adjustable)
  • Microphone type (pins) 6-Pin Ring
  • Operating temperature -26 ° C ~ + 60 ° CC
  • Warranty : 24 Months (Manufacturer)

PNI Escort HP-9001 ProPNI Escort HP9001 Pro

PNI Escort HP-9001 ProPNI Escort HP9001 Pro
6-Pin PNI Mic Wiring
Multi-standard CB Radio   Adjustable ASQ, key lock function   Multicolored screen
Multi-standard CB Radio
With 80 AM / FM channels, with a power ranging from 1W to 4W depending on the country, the HP 9001 PRO easily adapts to the standards required in different countries. 		 Adjustable ASQ, key lock function. With compact dimensions, easy to install and equipped with essential functions (ASQ, Lock, Dual Watch, Scan, ANL, MEM) PNI Escort HP 9001 is enriched with several buttons, including the one dedicated to 9/19 emergency channels and the screen multifunctional backlit.
Evolution of the previous PNI Escort HP 9001, the new PRO version adds the possibility of 24V power supply. PNI Escort HP 9001 PRO accompanies car, truck or shooting drivers on the road. It is an excellent product, equipped with all the functions necessary for efficient communication. It is an easy-to-use communication tool. 		 Multicolored screen
For maximum visual compliance, the HP 9001 PRO meets your needs by providing 7 screen colors, such as: red, green, purple, blue and yellow.


Escort HP9001 Pro Radio $109.50

Optional Accessories
Dead Key
  Tune-up. perform a tune-up to radio to optimize power, audio and performance $19
PNI-HP8000 Programming CableProgramming Cable. We don't know anything about programming these units and we can provide no assistance with it. $15
 Add a Small External Speaker
 (plugs into back of the radio for improved sound)		 $12
 Add a Large External Speaker
 (plugs into back of the radio for improved sound)		 $25

Tuned up values on these watt meters
Dosy Bird RMS *Bird 43P
AM / FM 5w 5w 5w
PEAK AM 18w 6w 25w
* The most informative meter and the one we use.



General characteristics
Model Furniture
Broadband type AM / FM
channels 40
Frequency 26,965 - 27,405 MHz*(and more)
Microphone type (pins) 6 pin
Power speaker audio 3 W
Sensitivity (20dB SINAD) less than 0.5 µV AM / FM
Emission power 4 W
Modulation FM: 1.8KHz ± 0.2KHz, AM: 85-95%
feeding 12 V / 24 V
Current absorbed maximum 2200mA
Dimensions (W x H x H / Weight) 46 x 142 x 158 mm / 500g
6.3 x 6.69 x 1.77 inches
1DIN mounting Yes
Special features
Dual Watch Yes
Scan channels Yes
ASQ Yes
Lock the keyboard Yes
LCR - the last channel selected Yes
Adjustable ASQ Yes
Noise filter ANL (Automatic Noise Limiter)
Multicolored screen Red, Green, Purple, Blue, Yellow
Channel memory Yes
Operating temperature -26 ° C ~ + 60 ° C

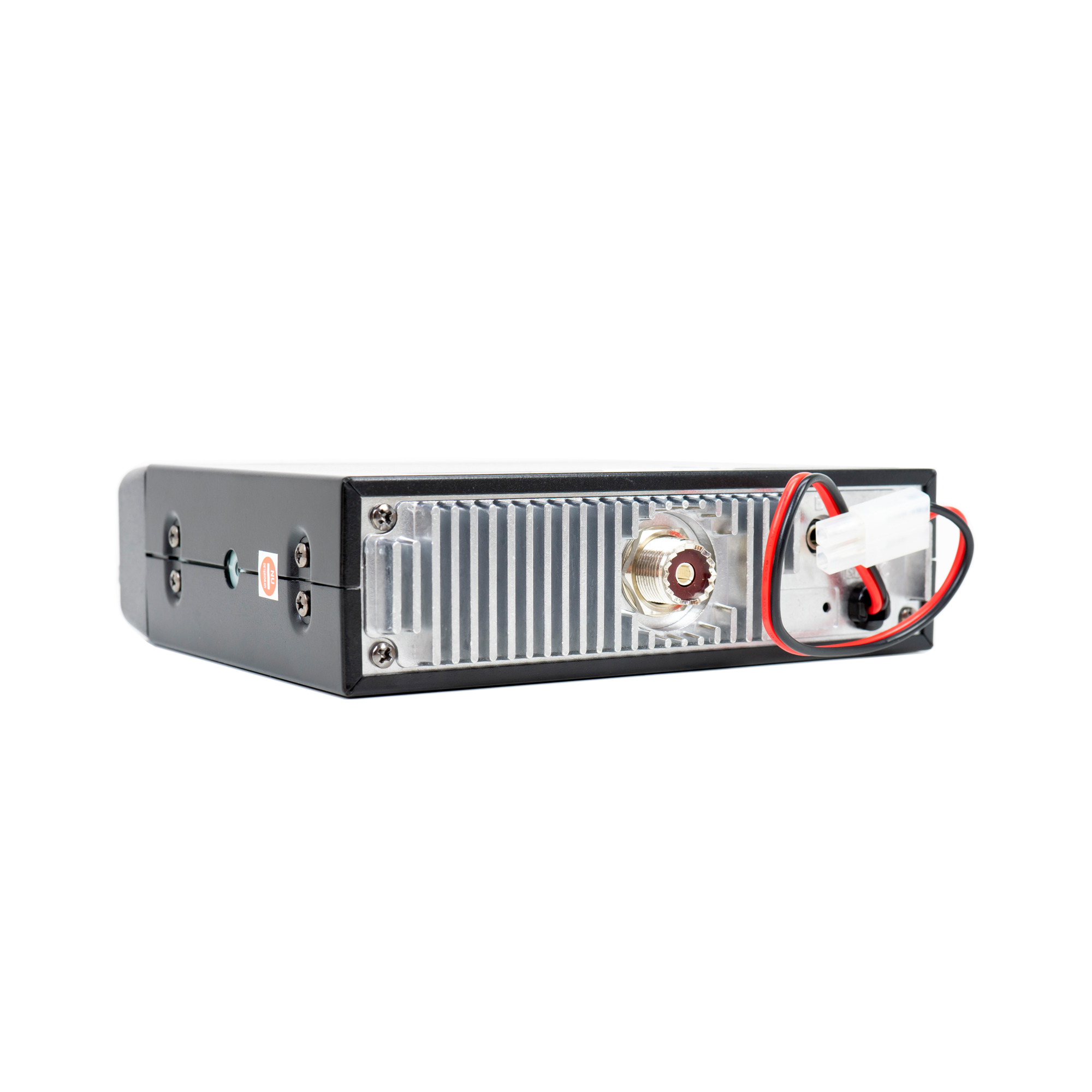

Rear panel connections
Additional speaker connection Yes
Microphone connection Yes

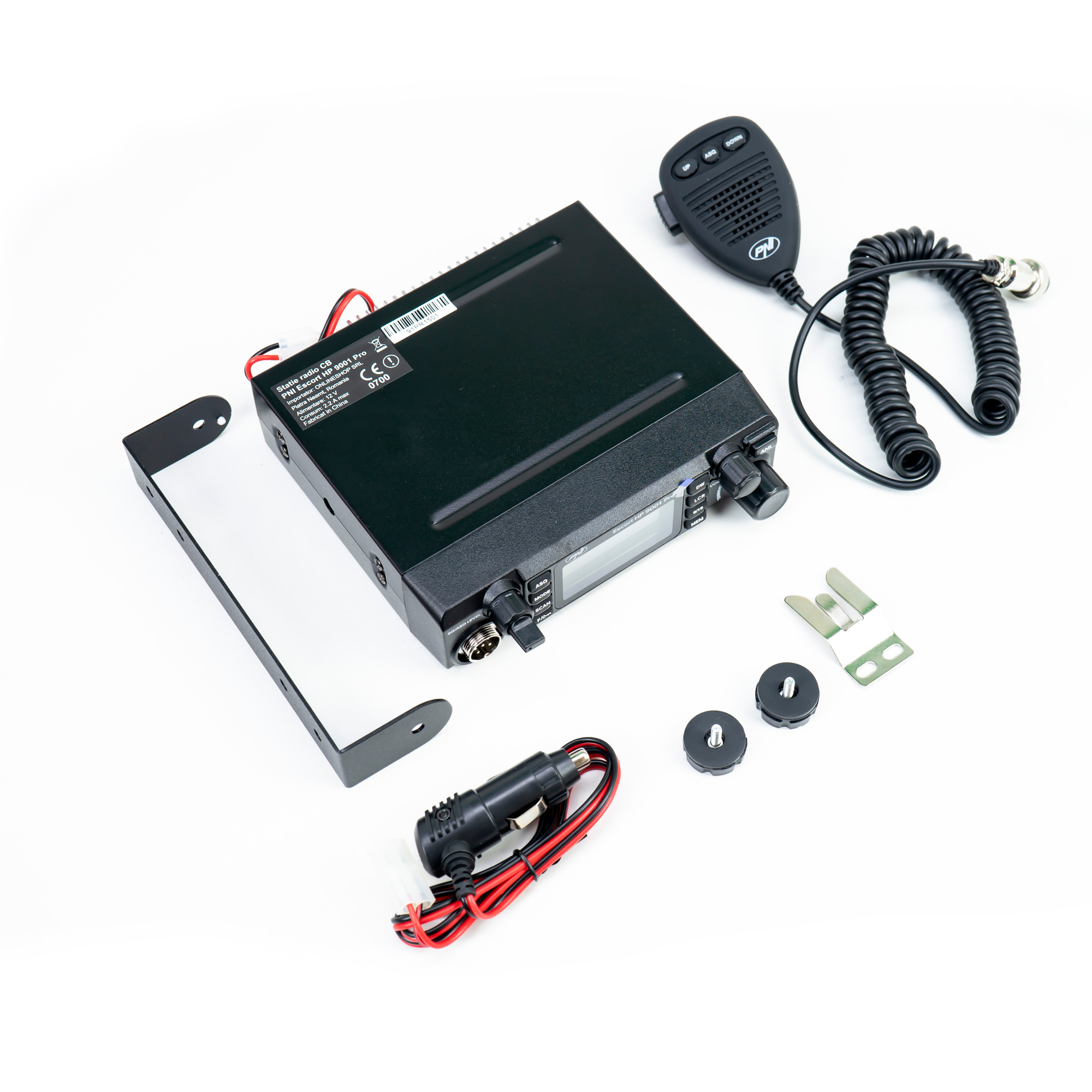

The package contains
Radio station Yes
Microphone Yes
Support and screws holding radio station Yes
Microphone mounting bracket and screws Yes
Power cable Yes
Lighter plug Yes
User manual Yes
