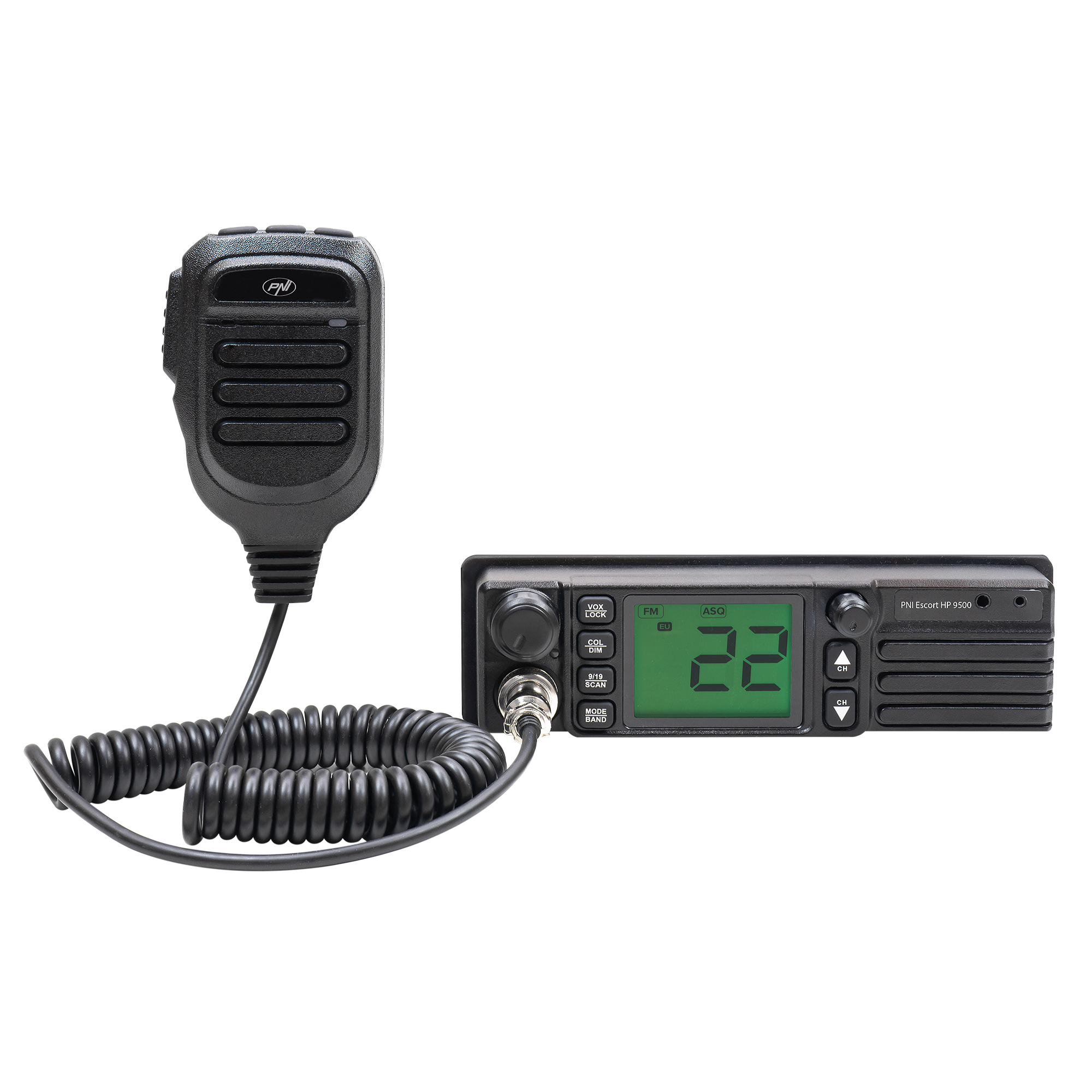

PNI Escort HP 9500 is a reliable CB station that ensures clear communication over long distances. With operation on AM and FM, multi-standard Frequencies. The HP 9500 has a robust, compact design making this station easy to place in any space in the car. The package includes a 1 DIN housing for mounting the station on board the car. The HP 9500 is a reliable companion for drivers of cars, trucks and trucks. PNI Escort HP 9500 is powered by 12V or 24V. The detachable power cord and the cigarette lighter plug required for power supply are included in the package.



  • Working frequency 26.965 - 27.405 MHz *(and more)
  • AM/FM
  •  5-level automatic Squelch and adjustable Squelch,
  • large multicolored lighting screen,

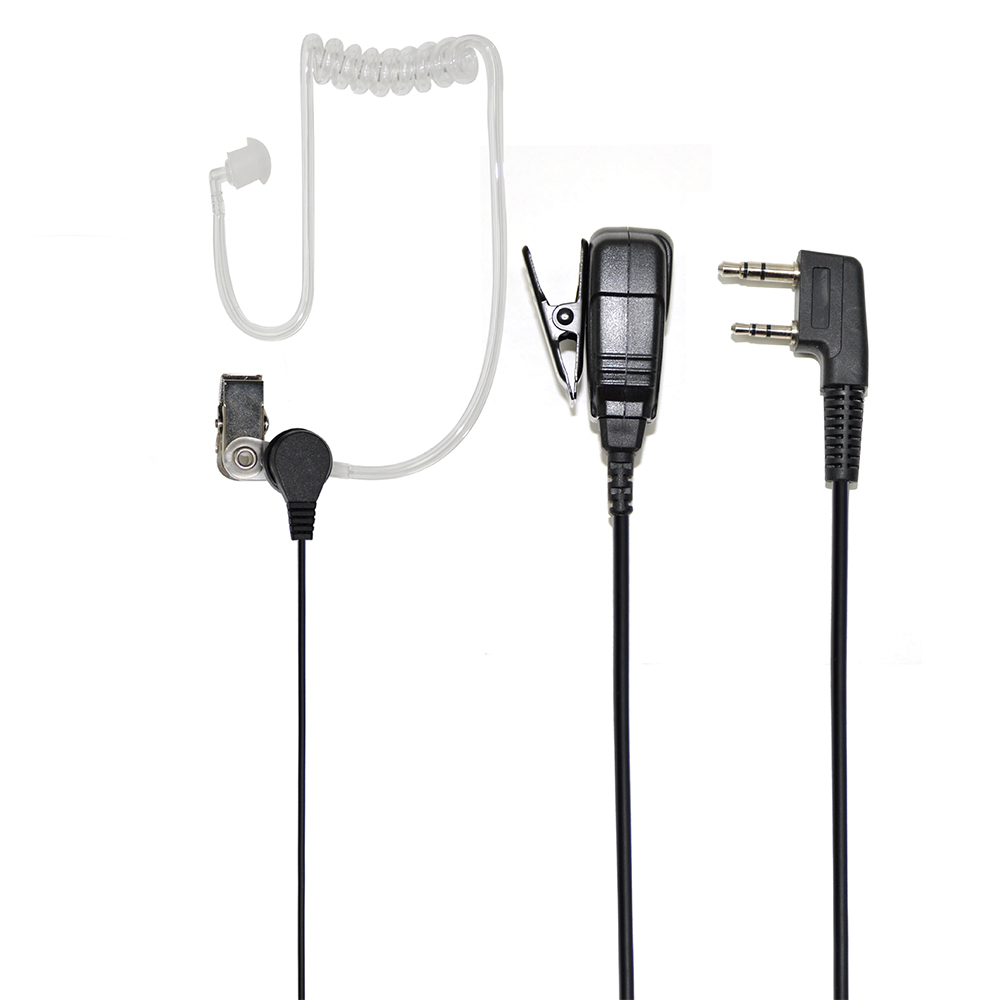

  • On the front panel it has a 2-pin Kenwood connector for using the station hands-free.

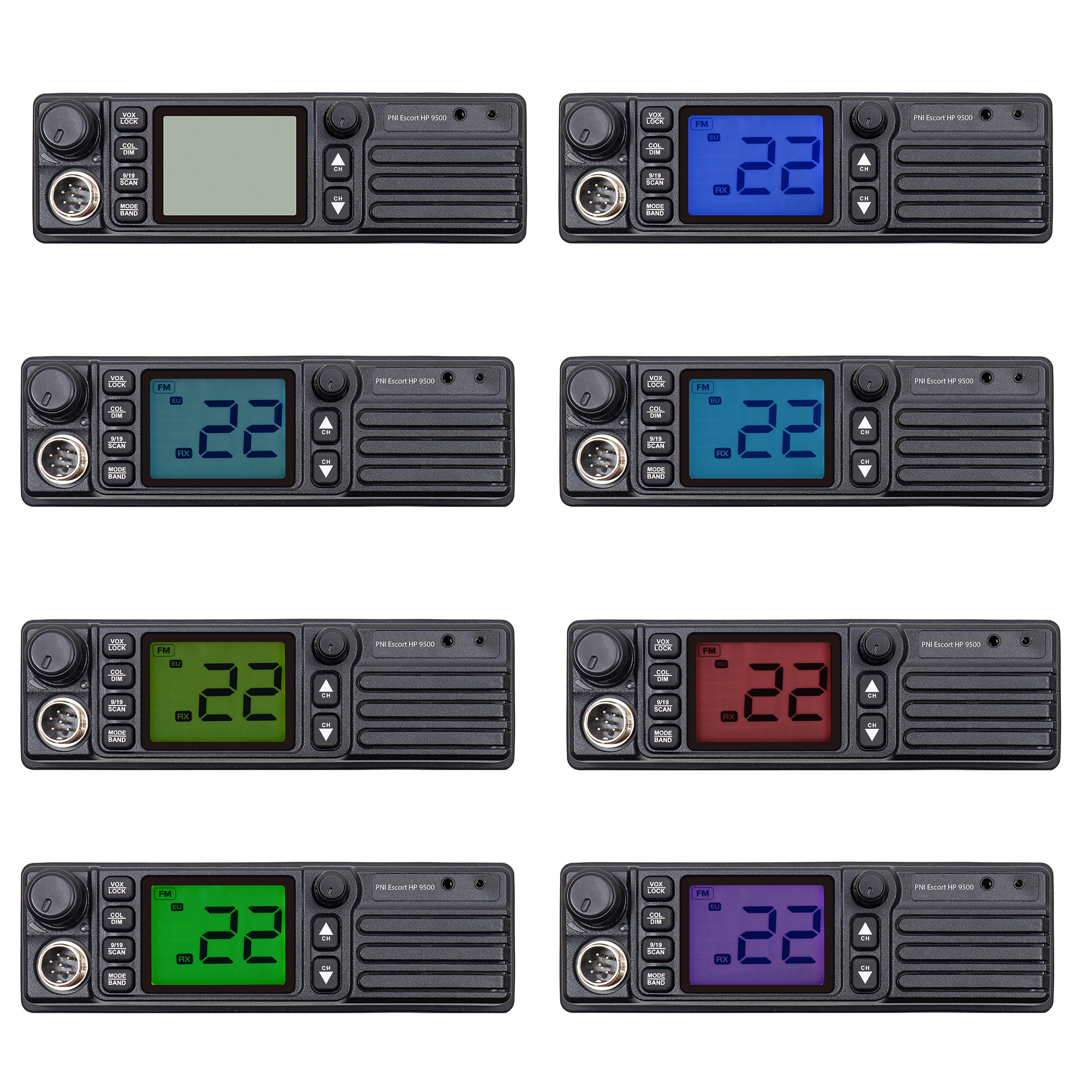

  • Multicolor Display
  • Scan feature
  • Automatic Squelch (Adjustable)

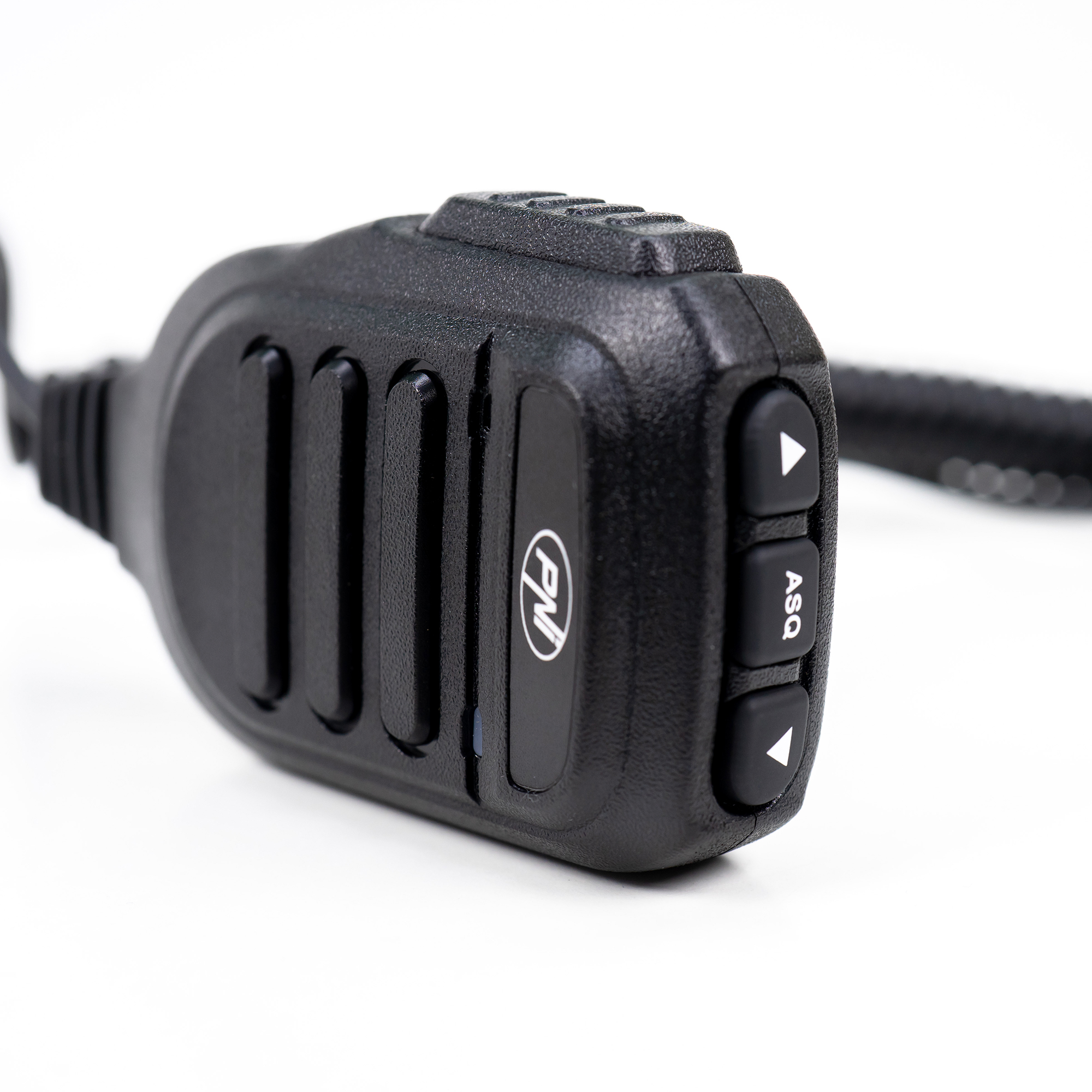

  • Microphone type (pins) 6-Pin Ring
  • Operating temperature -26 C ~ + 60 CC
  • Warranty : 24 Months (Manufacturer)





CB Radio PNI Escort HP 9500 multistandard  CB Radio PNI Escort HP 9500 multistandard  CB Radio PNI Escort HP 9500 multistandard

Multi-standard CB radio, can be used all over Europe

PNI Escort HP 9500 CB radio allows the communication in the main European frequency bands. Set the standard corresponding to the country where you are, by simply pressing the MODE / BAND key. The selected standard (UK, EU, DE) will be displayed on the screen throughout the use of the device.

An excellent product equipped with everything you need to communicate in the CB band

PNI Escort HP 9500 is a reliable CB transceiver that provides clear communication over long distances. With AM and FM operation, multi-standard, 5-level automatic Squelch and adjustable Squelch, large multi-color illuminated display, the HP 9500 radio is equipped with all the basic functions required for CB band communication. On the front panel it has a 2 pin Kenwood connector for hands-free use of the device.

Ultra-compact design, front speaker, 1 DIN mount

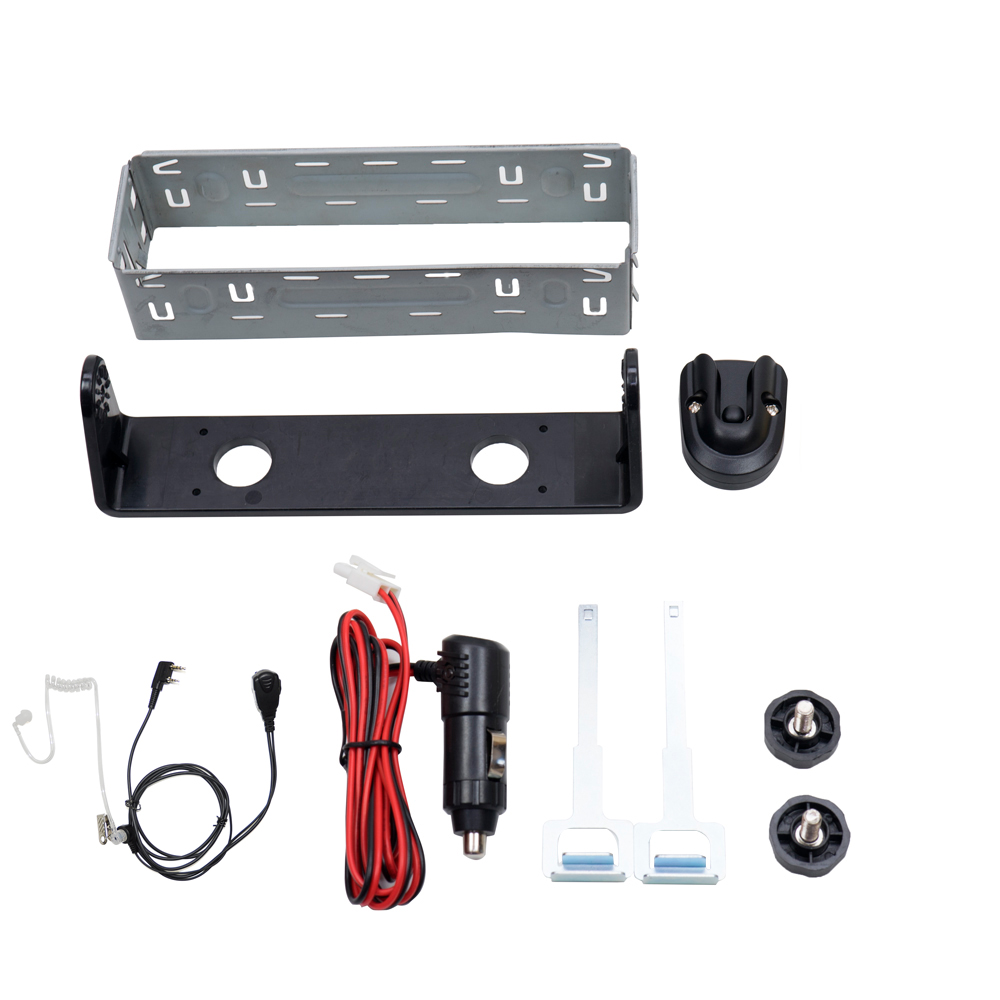

PNI Escort HP 9500 CB radio has a robust, compact design making this radio easy to place in any space in your car. The package includes the 1 DIN casing for mounting the radio in the dashboard. The HP 9500 is a reliable companion for car, truck and truck drivers.


Escort HP9500 Pro Radio $99.50


Optional Accessories
Dead Key
Tune-up. perform a tune-up to radio to
optimize power, audio and performance
$19

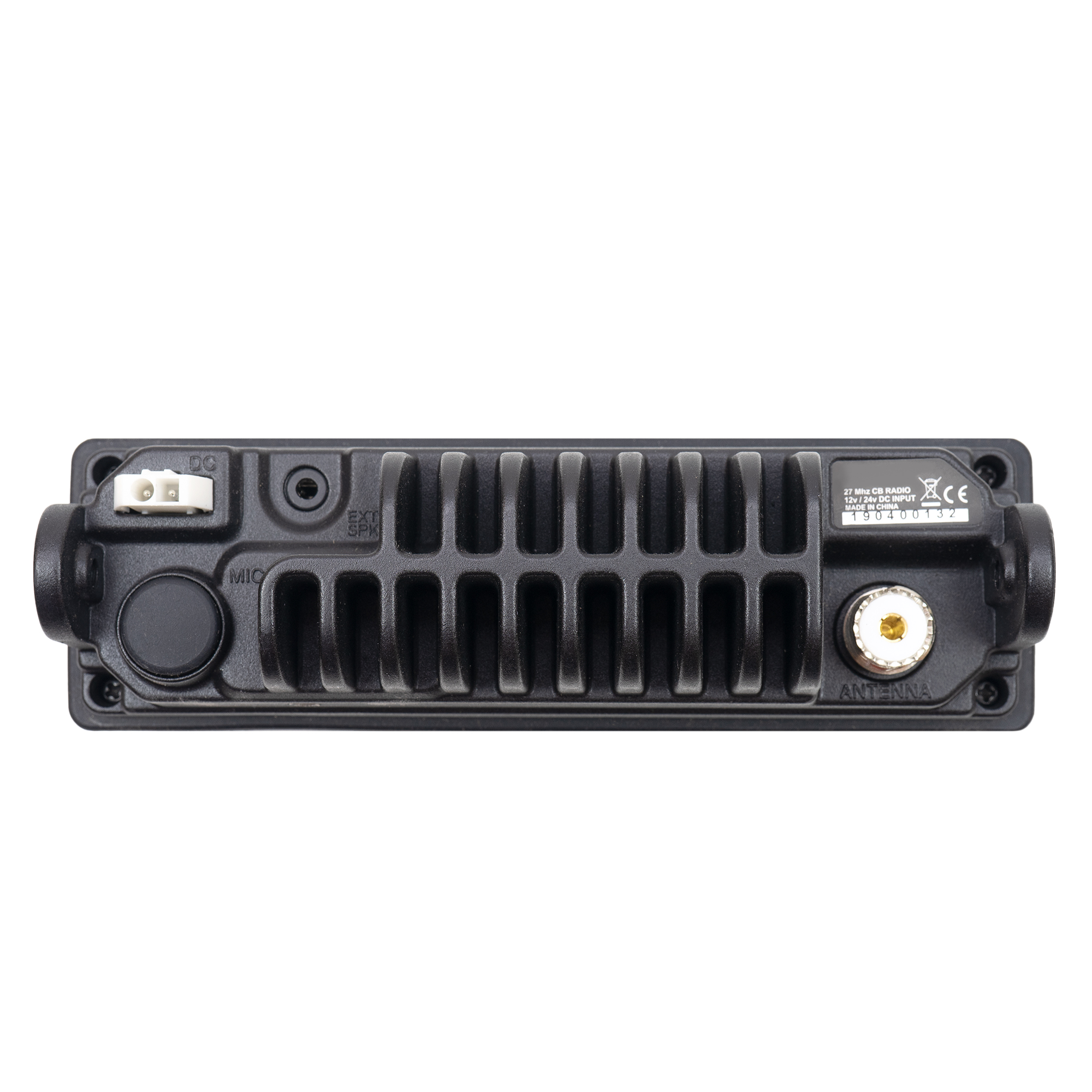

 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25

Tuned up values on these watt meters
Dosy Bird RMS *Bird 43P
AM / FM 5w 5w 5w
PEAK AM 13w 6w 19w
* The most informative and the one we use.

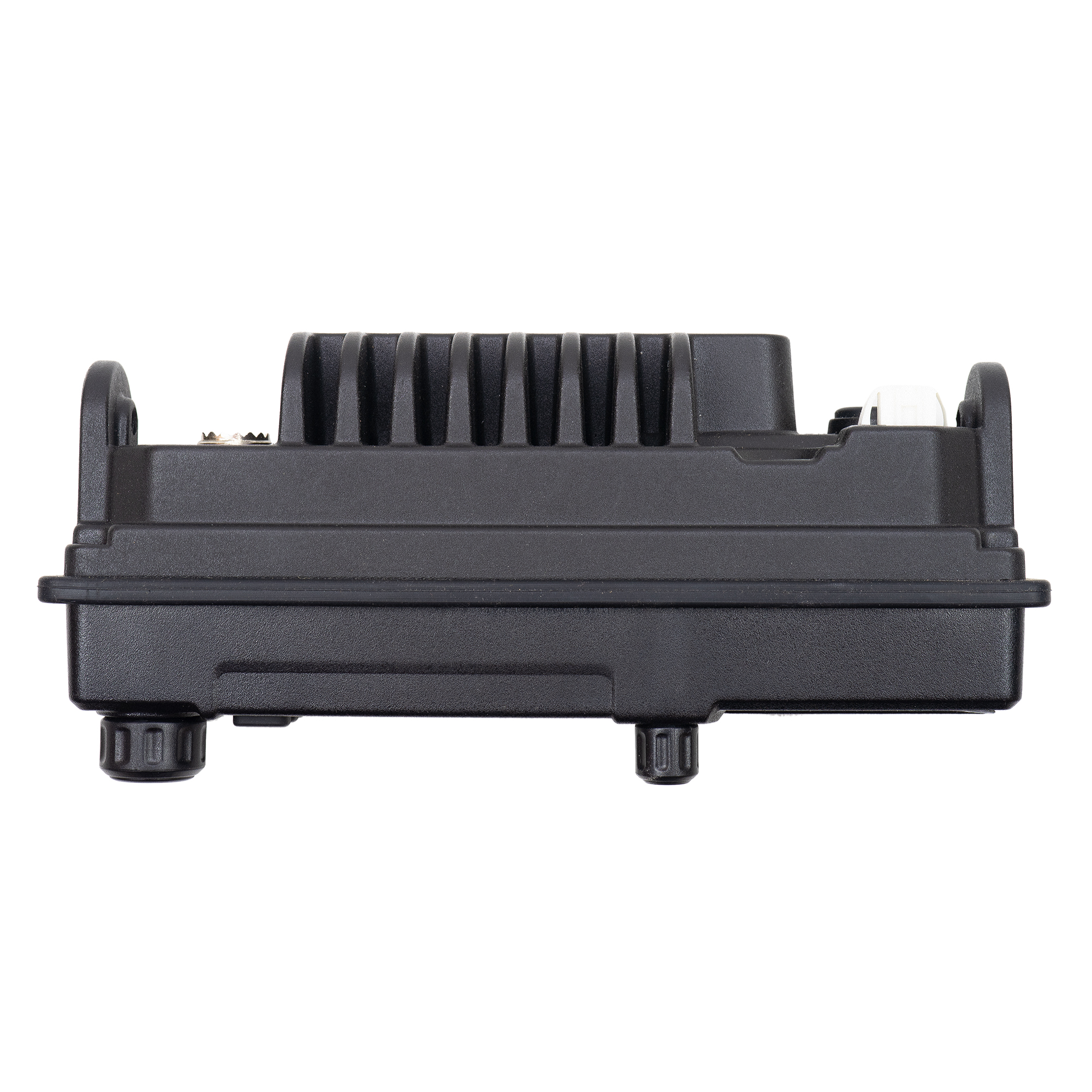

PNI Escort HP-9500PNI HP9500
PNI HP-9500PNI-HP-9500PNI Escort HP9500PNI Escort HP-9500

HP9500 PNI6-Pin PNI Mic Wiring



General characteristics
Model
Broadband type AM / FM
channels Channels max. 80 AM/FM (according to the set multistandard mode) Frequency control
Frequency 26,965 - 27,405 MHz*(and more)
Microphone type (pins) 6 pin
Power speaker audio 3W @ 8Ω (10% distortion)
Sensitivity 0.5μV (AM), 0.25μV@12Db(FM)
Emission power 4 W
Modulation FM: 2KHz 0.2KHz, AM: 85-95%
Power source 12 V / 24 V
Current absorbed maximum 1.8A (800ma in RX)
Dimensions (W x H x H / Weight) 187 x 56 x 85 mm - 786g
7.36 x 2.2 x 3.35 Inches - 28 oz
Adjacent channel selectivity  ≥60 dB Signal/noise ratio 45 dB
Frequency control   PLL synthesized
Signal/noise ratio  45 dB
1DIN mounting Yes
