                              Mobile CB Radio

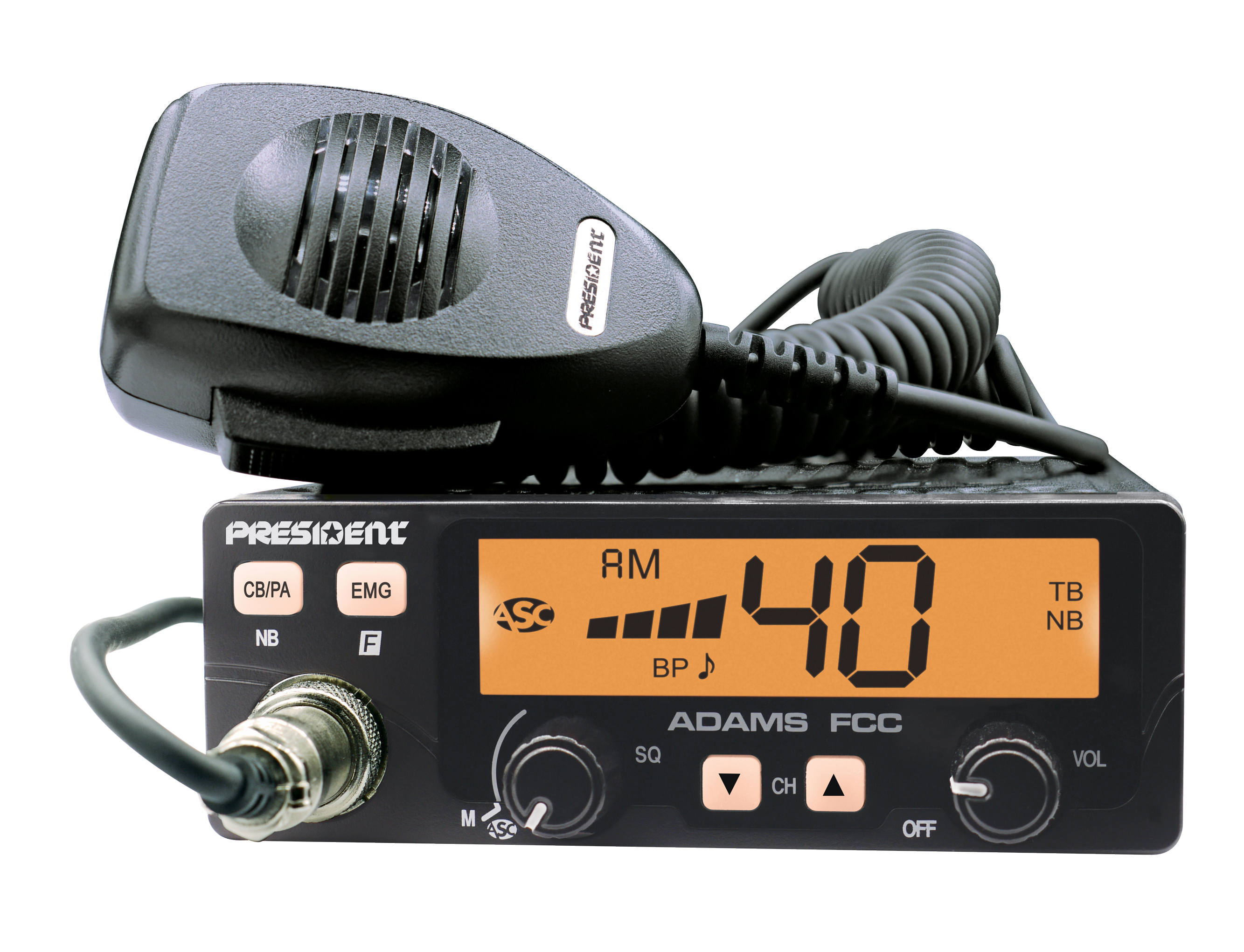

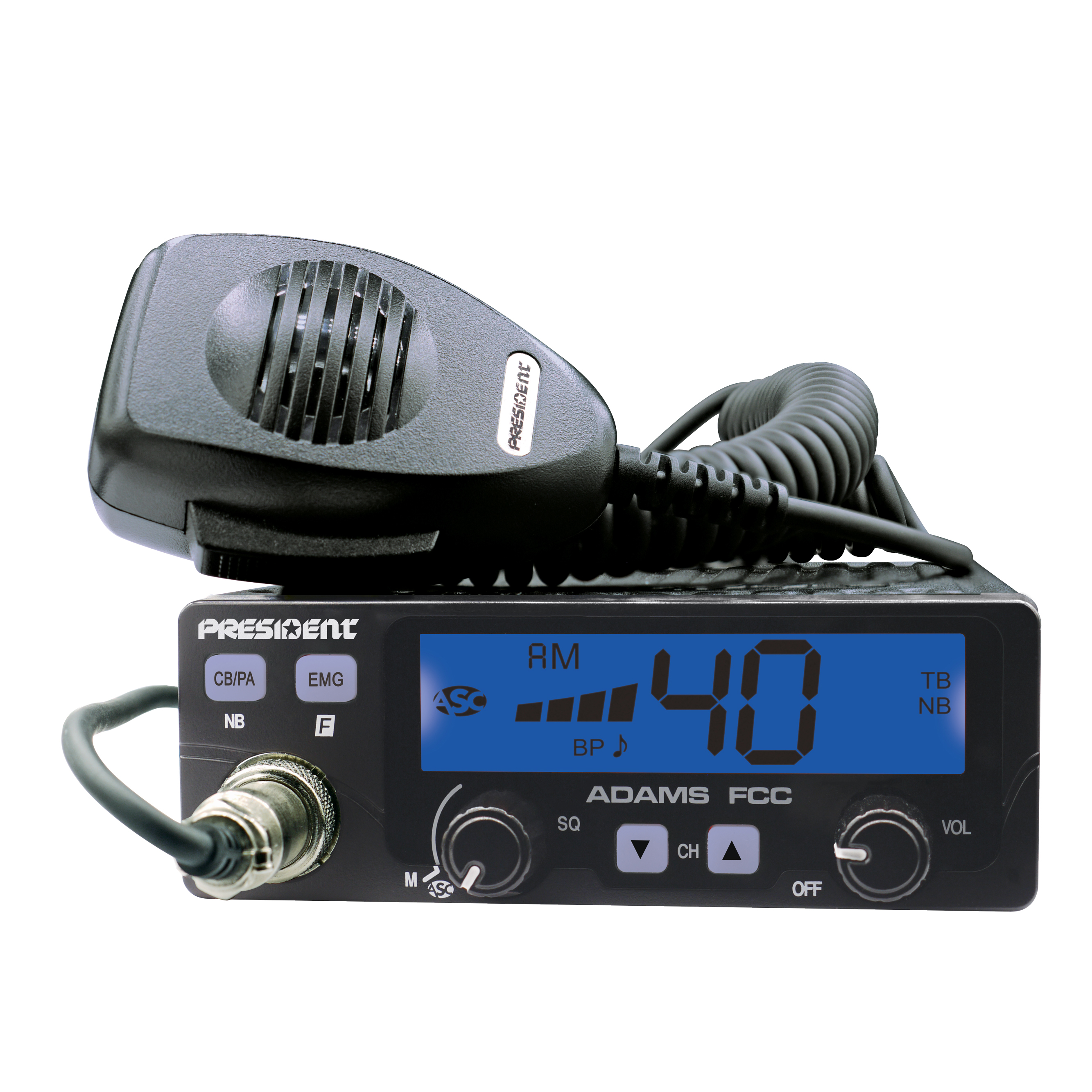

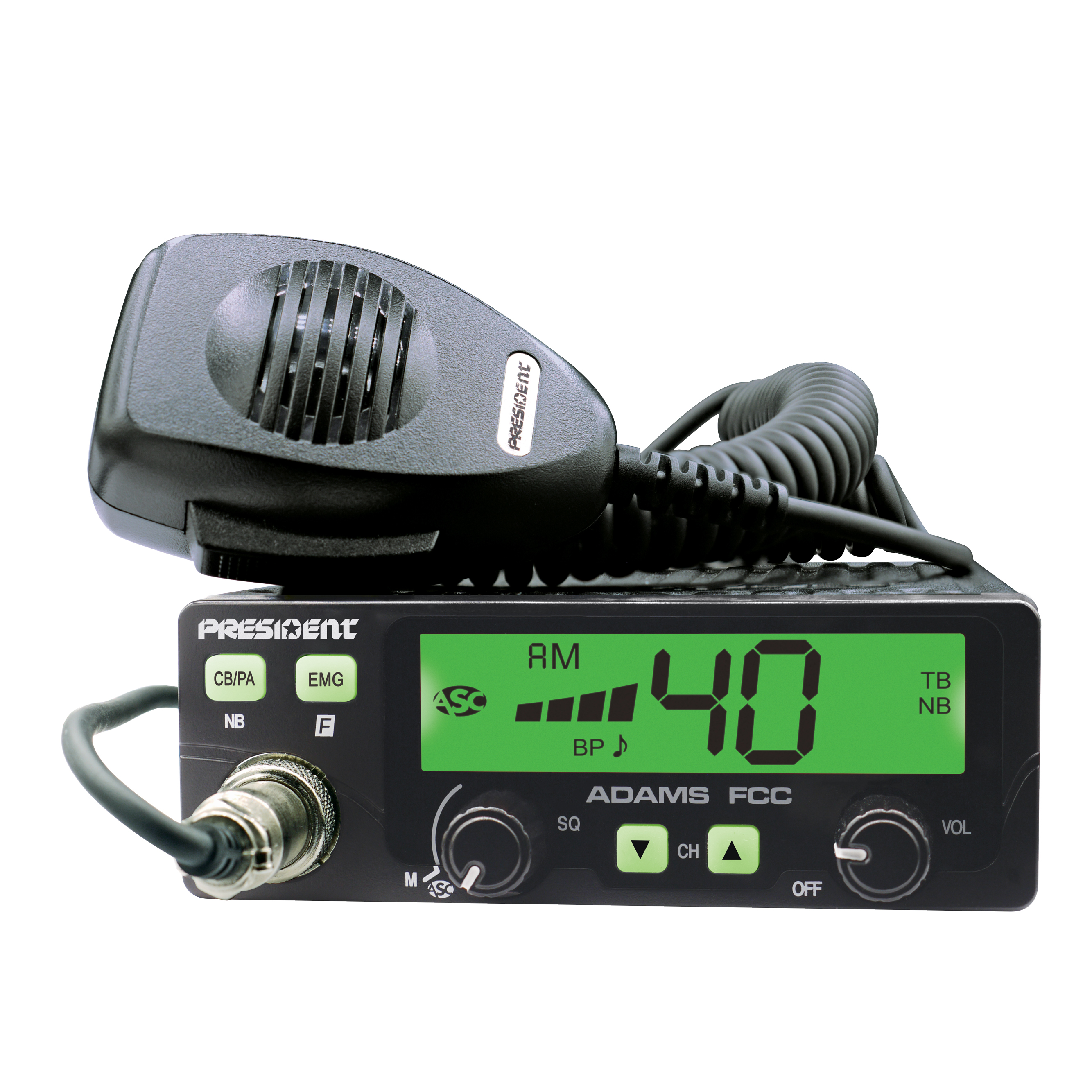

Adams-Orange

Click for larger image

Adams
AM  CB Radio

  Download Manual

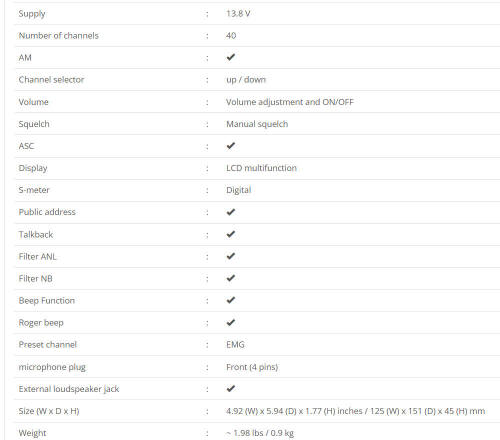

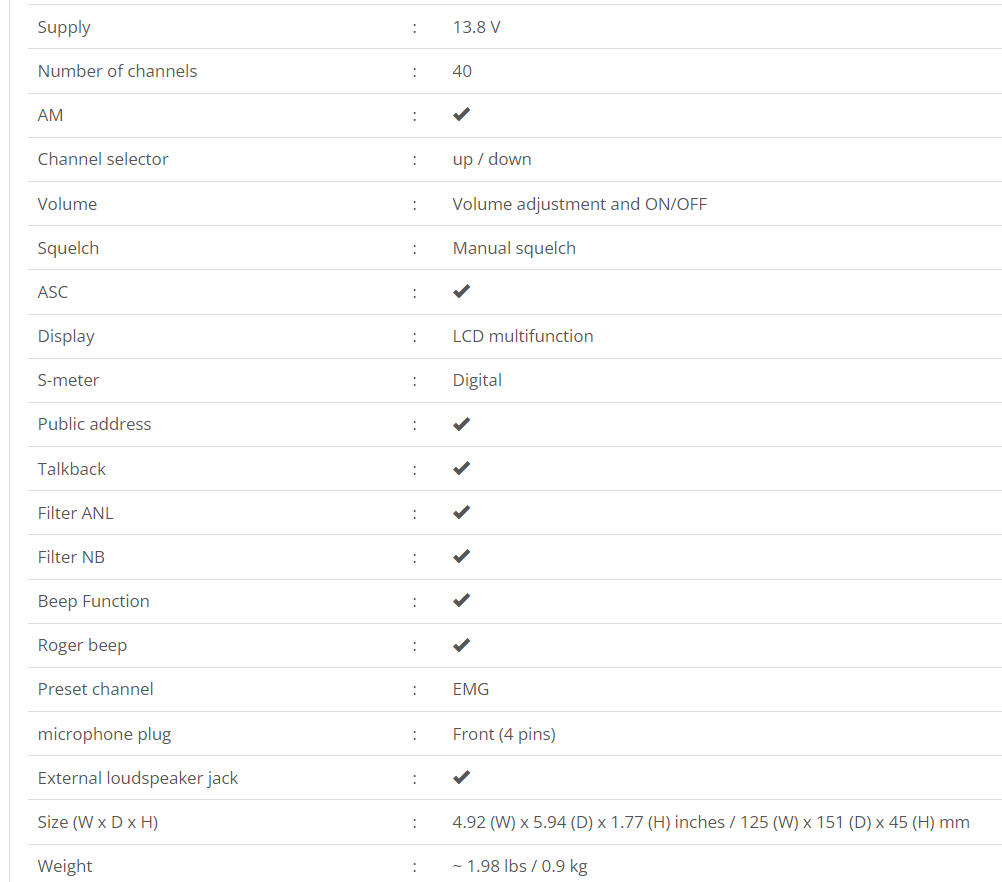

Features



- 40 channels AM
- Up/down channel selector
- Volume adjustment and ON/OFF
- Manual squelch and ASC
- Multi-functions LCD display
- S-meter
- ANL filter , NB
- F function key
- Beep Function
- Roger Beep
- EMG programmable
- Talkback
- Public Address
- Microphone Dynamic / Electret
- Front microphone plug
- External loudspeaker jack

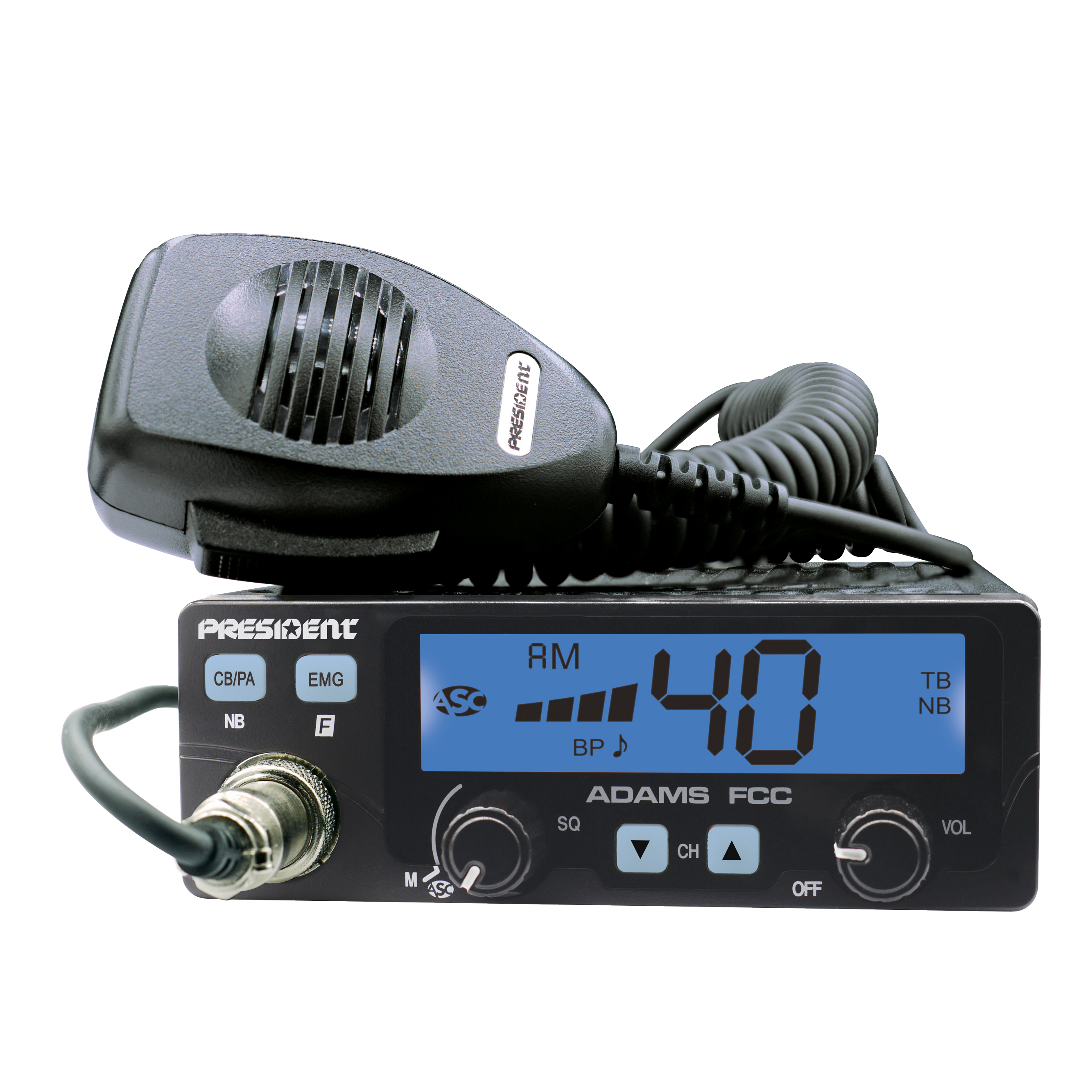

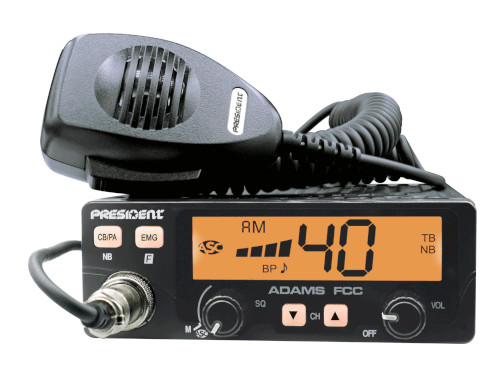

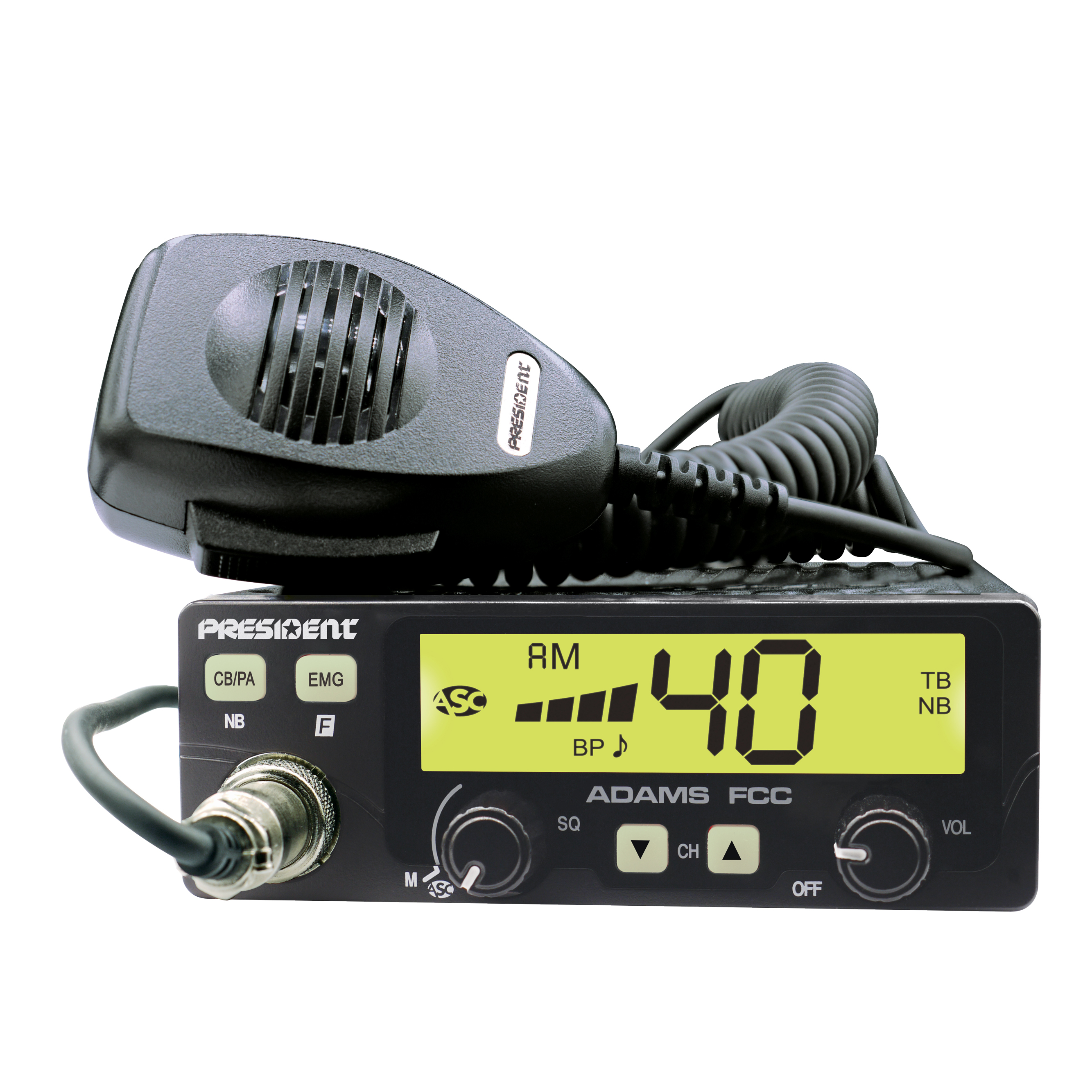

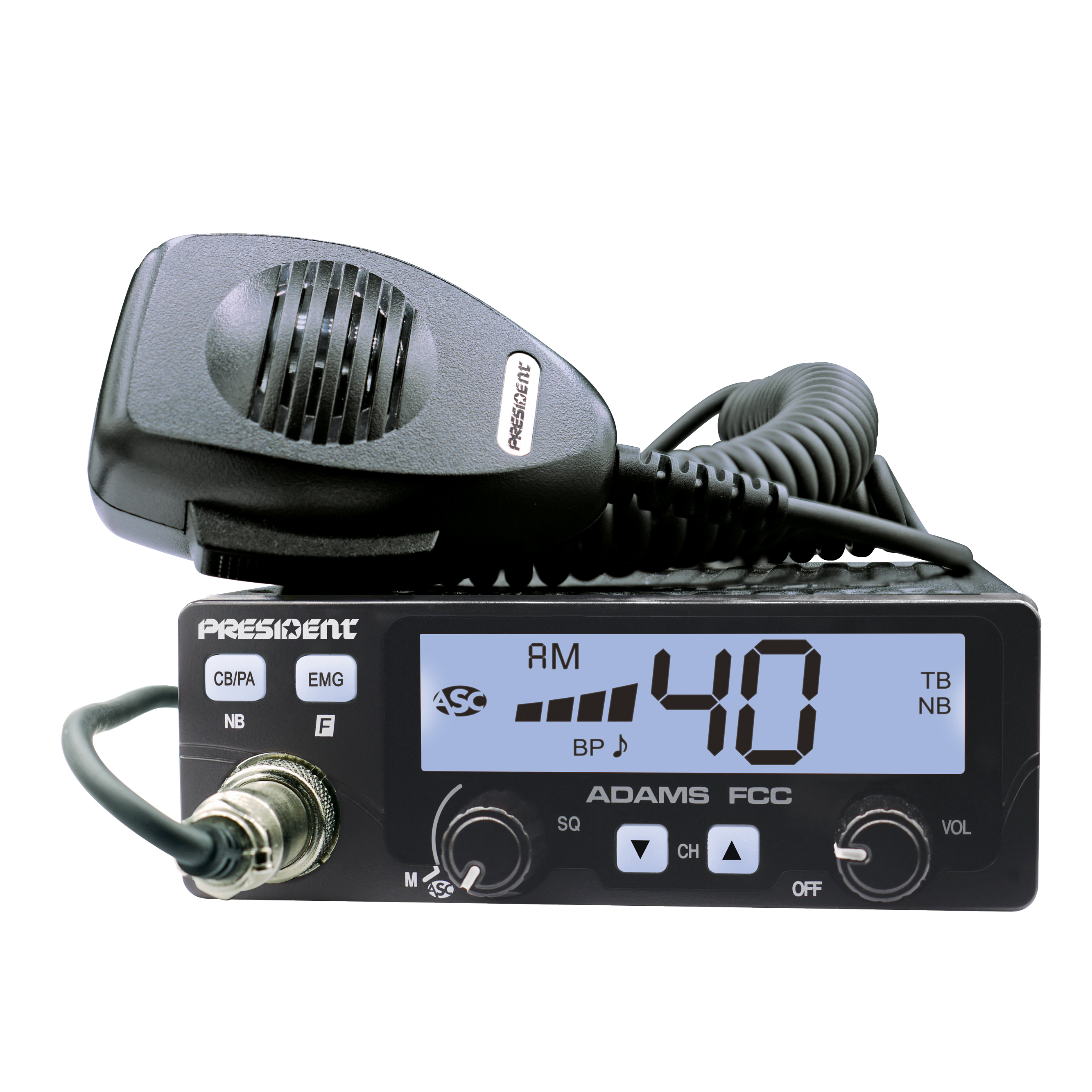

Back light color:



 WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov



ASC2+3 years warrantyRoHS2

Presidents Intro Video







President extends the warranty to 5 years, when a consumer buys a President radio and antenna together.

WARRANTY SERVICE IN USA FOR 1 to 5 YEARs:


KDC SALES
17294 FM 3083
CONROE TX. 77302
936-231-3753









... Adams.. $64.50
Warranty Duration 2 + 3 years.

Optional Accessories

 Add a Small External Speaker
 (plugs into back of the radio for improved sound)		 $12

 Add a Large External Speaker
 (plugs into back of the radio for improved sound)		 $25

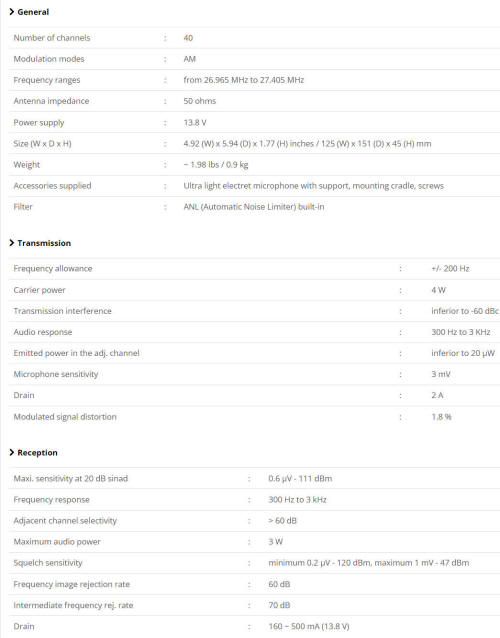

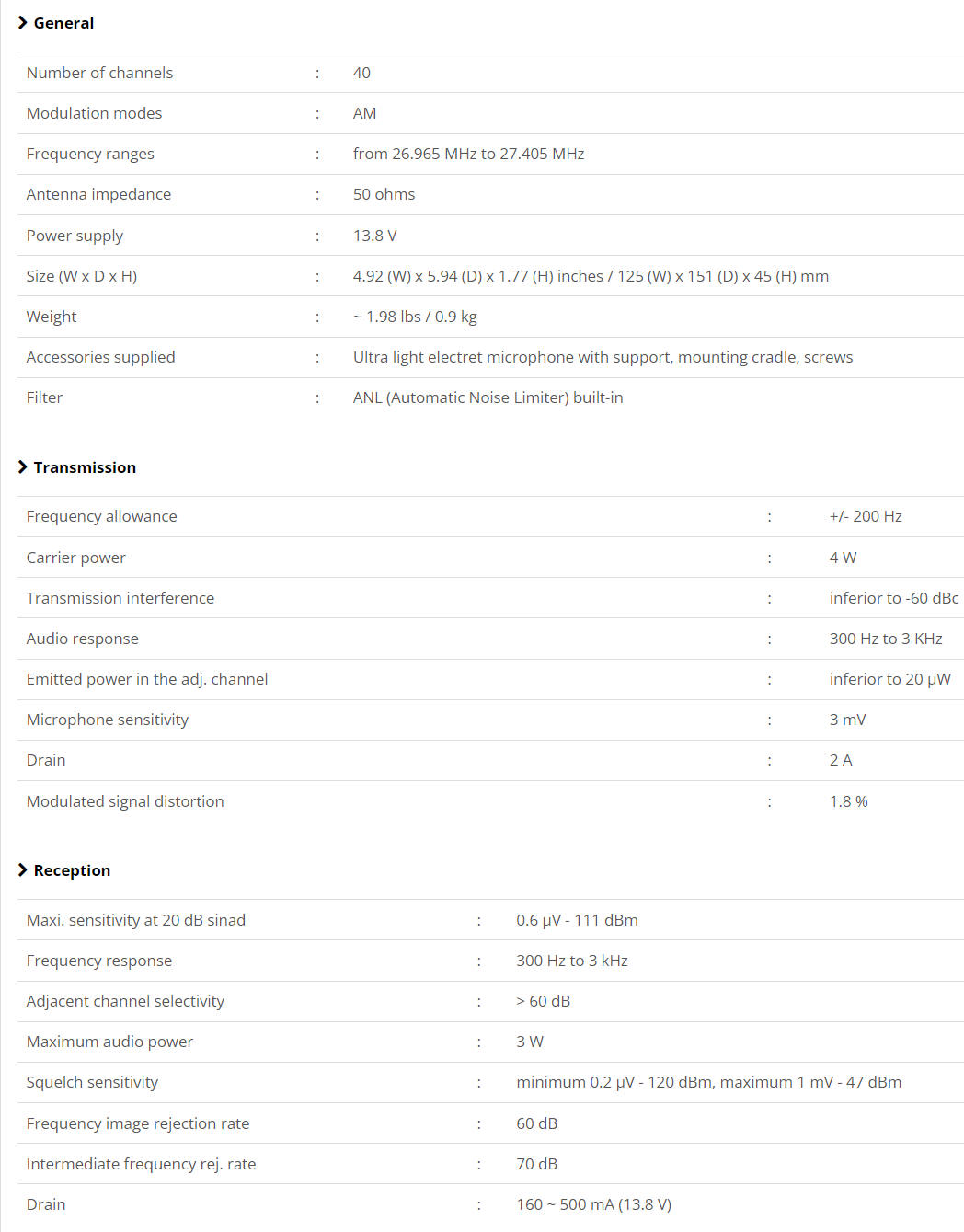

General
Number of channels : 40
Weather alert :
Modulation modes : AM
Frequency ranges : from 26.965 MHz to 27.405 MHz
Antenna impedance : 50 ohms
Power supply : 13.8 V / 27.6 V
Size (W x D x H) : 4.92 (W) x 5.94 (D) x 1.77 (H) inches
Weight : ~ 1.98 lbs
Accessories supplied : Ultra light electret microphone with support, mounting cradle, screws
Filter : ANL (Automatic Noise Limiter) built-in
Transmission
Frequency allowance : +/- 200 Hz
Carrier power : 4 W RMS
Transmission interference : inferior to -60 dBc
Audio response : 300 Hz to 3 KHz
Emitted power in the adj. channel : inferior to 20 μW
Microphone sensitivity : 3 mV
Drain : 2A
Modulated signal distortion : 1.8 %
Reception
Maxi. sensitivity at 20 dB sinad : 0.6 μV - 111 dBm
Frequency response : 300 Hz to 3 kHz
Adjacent channel selectivity : > 60 dB
Maximum audio power : 3W
Squelch sensitivity : minimum 0.2 µV - 120 dBm, maximum 1 mV - 47 dBm
Frequency image rejection rate : 60 dB
Intermediate frequency rej. rate : 70 dB
Drain : 160 ~ 500 mA (13.8 V)

Warranty Duration 2 + 3 years.
