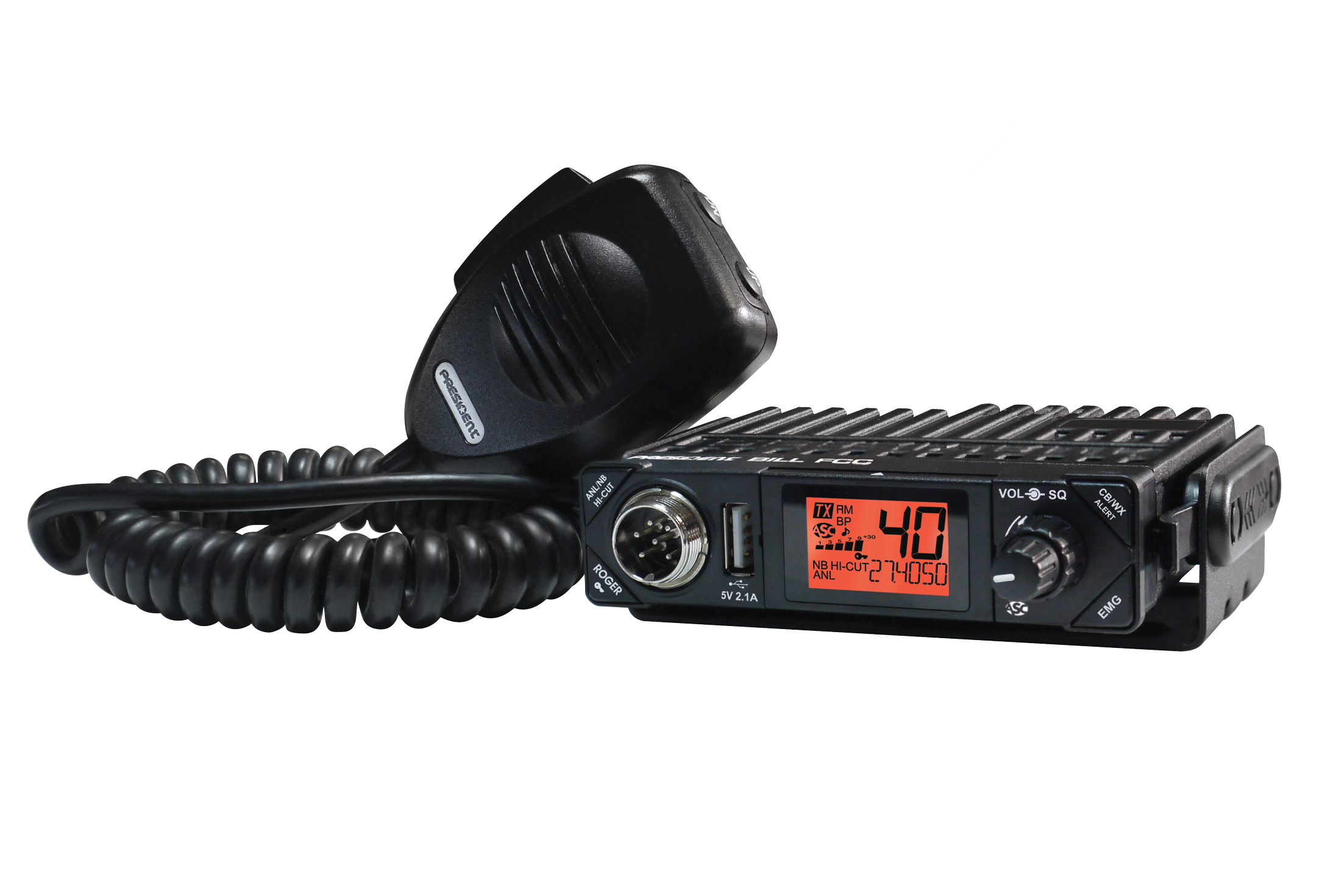

                              Mobile CB Radio



Click for larger image

Bill FCC
AM  CB Radio

  Download Manual


Features



- 40 channels AM
- 12 V
- USB 5V / 2.1A
- Up/down channel selector
- Volume adjustment and ON/OFF
- Manual squelch and ASC
- Multi-functions LCD display
- ANL filter, NB, HI-CUT
- Scan
- Beep Function
- Roger Beep
- Preset channel programmable
- TOT (Time out timer)
- Weather channel with Alert
- Front microphone plug
- Microphone Electret or Dynamic
- External loudspeaker jack

Back light color:





ASC2+3 years warrantyRoHS - Lead Free

Click for larger images






Click for larger images



President extends the warranty to 5 years, when a consumer buys a President radio and antenna together.

WARRANTY SERVICE IN USA FOR 1 to 5 YEARs:


KDC SALES
17294 FM 3083
CONROE TX. 77302
936-231-3753




Mic wiring diagram:





... Bill.. $99.50
Warranty Duration 2 + 3 years.

Optional Accessories
 Astatic D104-M6b Amplified microphone.
(wired for this radio with a 6 pin plug and a battery installed)
$54

  Install a Record/Playback Module 18 seconds (wired inside the radio with  two pushbuttons on the side to record 18 seconds and to play it back) $77

Sound Byte link address

 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger
 any 18 second sound byte you want)
$65

Sound Byte link address

 Install a Noise toy as a background theme music (wired inside the radio with a switch to play any background
 music at very low volume so you can talk over it.)
$65

 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12

 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$18

Your Gmail

Tune-up VIDEO. Make a completion video to show tune-up levels and modifications. To be posted on YouTube, Subscribe to my YouTube Channel for notice. $19



General
Number of channels 40 Cx (100% FCC)
Number of weather channels 7 Cx
Weather alert
Modulation modes AM
Frequency ranges from 26.965 MHz to 27.405 MHz
Weather channels from 162.400 MHz to 162.550 MHz
Antenna impedance 50 ohms
Power supply 13.8 V / 27.6 V
Size (W x D x H) 4.02(W) in. x 3.94(D) in. x 0.98(H) in. / 102 mm x 100 mm x 25 mm
Weight ~ .705 lbs / ~ 0.3 kg
Accessories supplied Ultra light electret microphone with support, mounting cradle, screws
Transmission
Frequency allowance +/- 200 Hz
Carrier power 4 W (Constant / Stabylised)
Transmission interference inferior to 4 nW (-54 dBm)
Audio response 300 Hz to 3 kHz
Emitted power in the adj. channel inferior to 20 W
Microphone sensitivity 5.5 mV / 2.2 mV (dyn)
Drain 1.7 A (with modulation)
Modulated signal distortion 2%
Reception
Maxi. sensitivity at 10 dB (S+N)/N 0.5 V - 113 dBm
Frequency response 300 Hz to 3 kHz
Adjacent channel selectivity > 60 dB
Maximum audio power 2.5 W
Squelch sensitivity minimum 0.2 V - 120 dBm, maximum 1 mV - 47 dBm
Frequency image rejection rate 60 dB
Intermediate frequency rej. rate 70 dB
Drain 180 -500 mA



Warranty Duration 2 + 3 years.






The item most overlooked when ordering a custom radio is the microphone.  Your new tuned radio will NOT
sound great  with a stock mic on it  If your CB is more than a tool for work, you NEED to upgrade your microphone.
My personal favorites are the Astatic 636L and RD104E.
