CRE SS-9900

CRT FRANCE

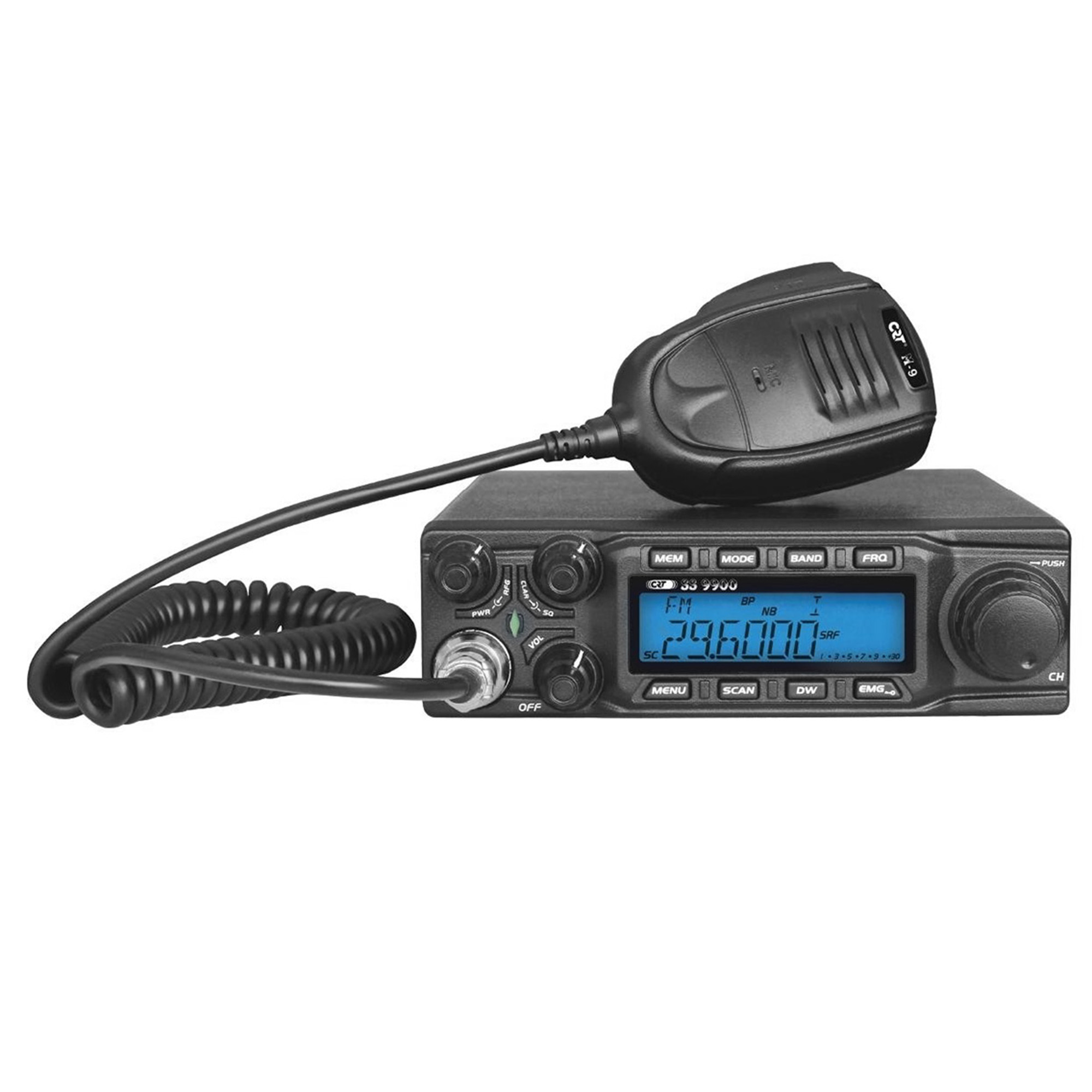

CRE SS-9900 Title

Download Manual

      The CRT 9900 benefits from a noise filter to enjoy clear sound without jitter noise, automatic squelch, dual channel monitoring and adjustable echo.

     The station offers the possibility of tuning from 1W to 40W or from 4W to 80W by licensed radio amateurs and only under the conditions specified in the legislation; (only in certain bands with the limitations and related restrictions). The CB CRT SS 9900 radio station is version 6, allowing you to switch from 27MHz to 28MHz or 28MHz to 27MHz, using the buttons directly without the need for software interventions.

      The CRT 9900 features 4 modes of use: AM, FM, LSB and USB. The station can be programmed with a computer and a USB cable providing additional functions.

Multi Band - AM / FM / USB / LSB / CW / PA

Features

- Dual Watch: Yes
- Channel scan: Yes
- RF Gain: Yes
- ASQ - Automatic Squelch: Yes
- Keyboard lock: Yes
- Noise filter: NB (Noise Blanker), ANL (Automatic Noise Limiter), HI-CUT
- Roger Beep: Yes
- Clarifier: Yes
- Step frequency adjustment: Yes
- Emergency channel button 9/19: Yes
- RF power control: Yes
- Programmable: Yes
- SQ - Squelch: Yes
- RF PWR: Yes
- SWR meter: Yes
- VOX: Yes
- And meter: Yes
- Operating temperature: -22F to 122F , or -30C to +50C
- Key sound: Yes
- Aryl: Yes
- Security codes: Yes, CTCSS/DCS

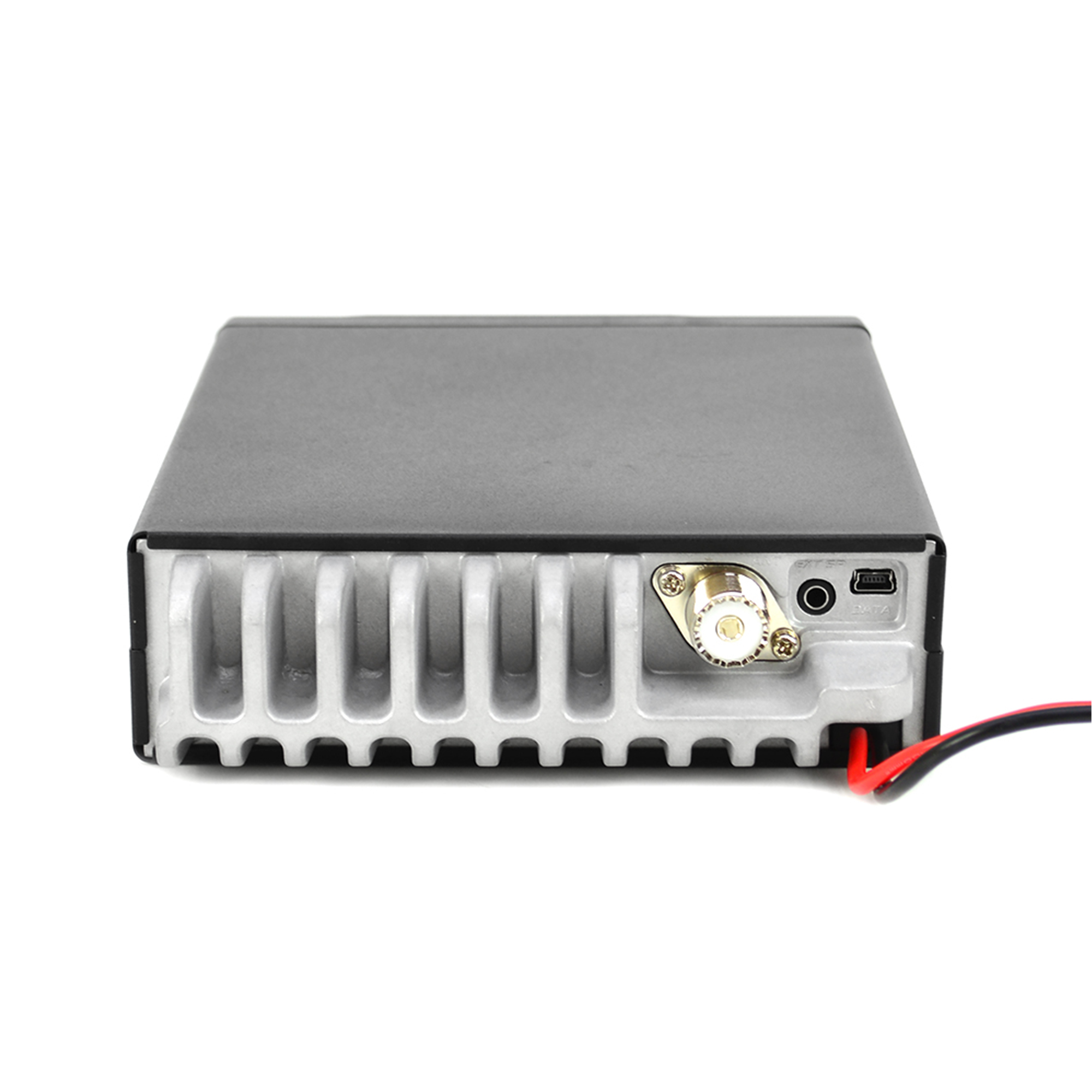

Rear panel connections:
- Additional speaker connection: Yes
- CW (morse) connection: Yes
- Programming connection: Yes

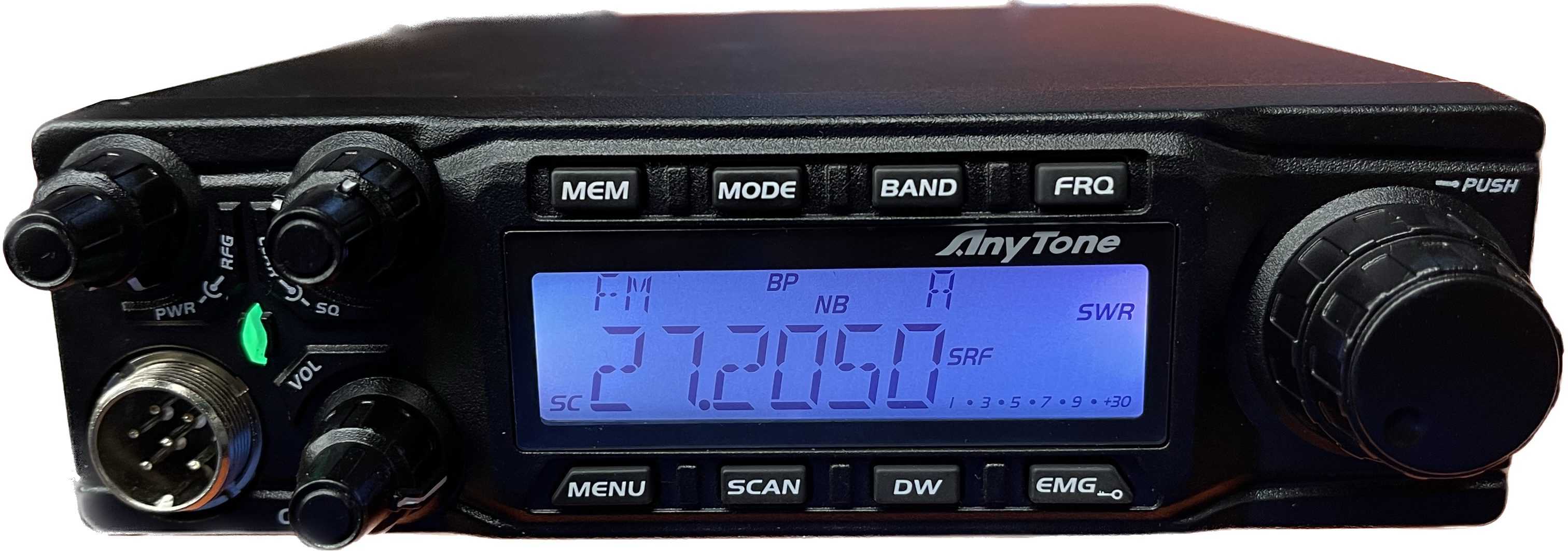

This looks a lot like the
AnyTone AT-
6666.

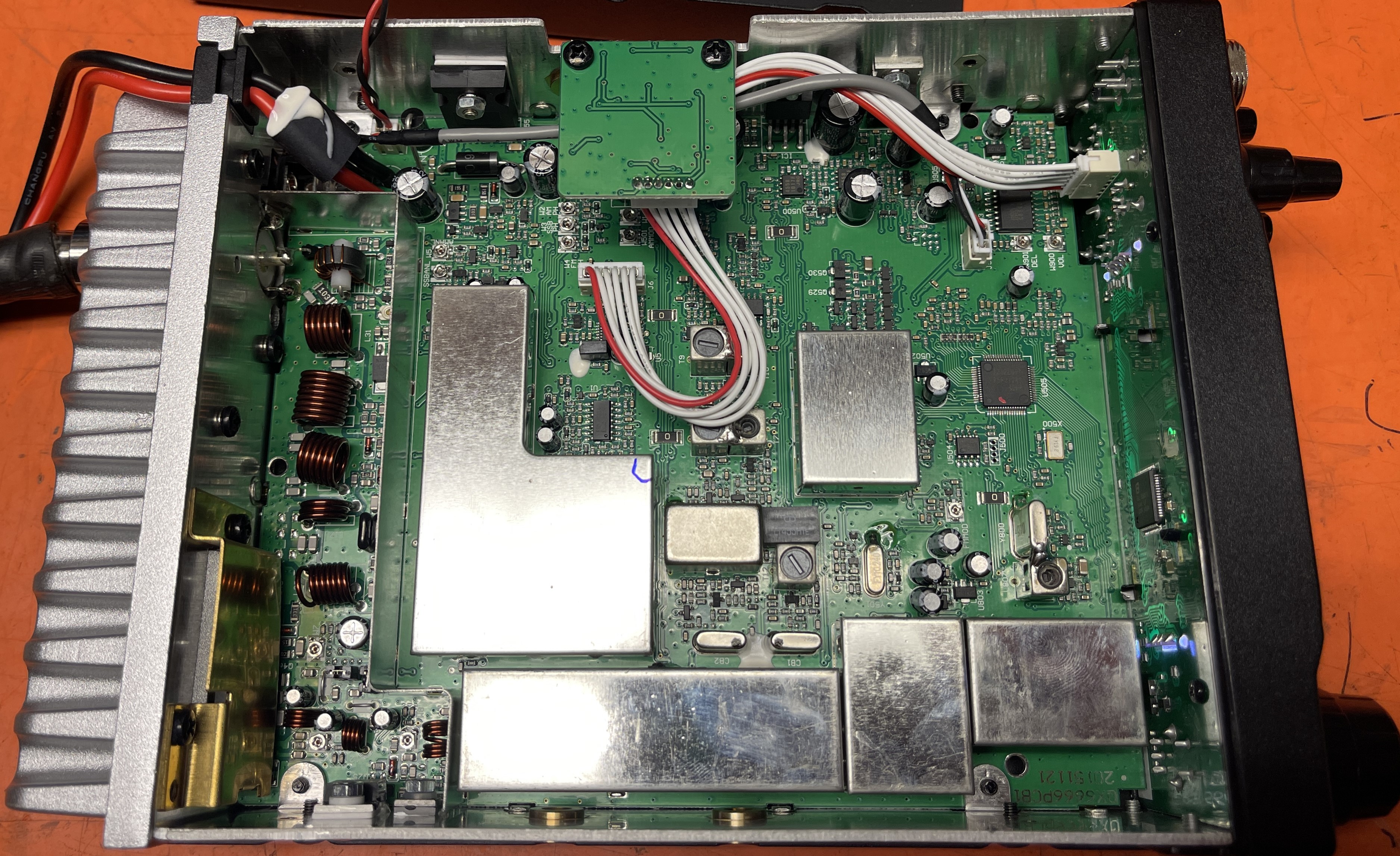

CRT SS_9900CRT_SS-9900

CRT_SS-9900CRT_SS-9900

Coming
Soon

Get Notified Via E-Mail when we are taking orders again
CRT SS-9900  All Mode
10 Meter transceiver
$224.50


Optional Accessories
 Tune-up and frequency conversion.
(Tune-up, Alignment and expanded frequency)
$49
Switch Location

 Install an EXTERNAL PTT keying port. We use an RCA jack for a TX output PORT to your external device. Every time you key it provides a connection between the +/- of the RCA connector.

1) Output RCA completely isolated  from the radio. Both +/-  connect to a relay that isolates it from the radios circuits.
   2) Optional BYPASS switch in case your external device does not have a standby (turns port off (stays open))
     4) Heavy duty relay can handle any keying circuit voltage, even the SB-220's - 120VDC circuit.
$49
/
$59
/
$69
 Install a Record/Playback Module 18 seconds (wired inside the radio with a switch on the side to record 18 seconds and to play it back over the air) $77

Sound Byte link


SOLD OUT
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 18 second sound byte you want)
$65

Sound Byte link


SOLD OUT
 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25

Tuned up values on these watt meters
Dosy Bird RMS *Bird 43P
AM / FM
PEAK AM
* The most informative and the one we use.





General characteristics
Model
Broadband type AM / FM/SSB/CW
channels 60 channels in each band (6-bands)
Frequency 28,000-29,700 MHz (and more)
Sensitivity (20dB SINAD) 1.0 ÁV AM / FM; 0.25 ÁV SSB
Sensitivity (10dB) 1 uV
Security codes CTCSS / DCS
Microphone type (pins) 4 pin
Power speaker audio 4W
Emission power AM / CW: 1-12W (adj); FM: 2-40W (adj); USB / LSB: 0-30W (adj)
Power source 13.8 VDC + / -15%
Current absorbed Max 12A
Dimensions (W x H x H ) 200 X 60 X 240 millimeter
7-7/8 x 2-23/64 x 9-29/64 inches
Frequency control   PLL synthesized
