   10 Meter Mobile Radio

SR-25MC

Click for larger

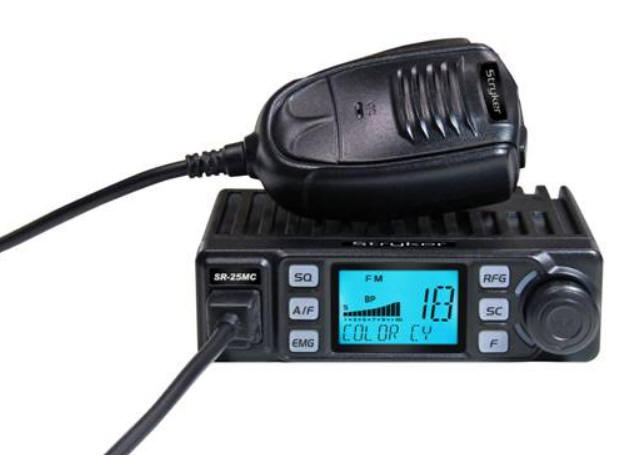

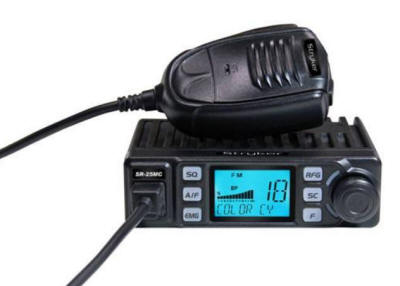

SR-25MC

AM/FM 10 Meter Radio

Download Manual

      Stryker has once again succeeded in packing tons of features and performance into a very compact AM/FM 10 meter radio.

     Compact doesn’t begin to describe the size of the SR-25MC, it’s only 4.88″ (L) x 3.97″ ( W) x 1.41″ (H). The length and width of the SR-25MC are very close to that of the iPhone 7, so it’s significantly smaller than the SR-94HPC. The beauty of this is that no matter how new your vehicle is, you can easily find a place to install it.

      Even though it’s small, the SR-25MC will transmit 20 watts PEP on high power. A cast aluminum heatsink efficiently dissipates heat and makes for a very rugged chassis. Another benefit is this helps stabilize the circuit board and makes it virtually immune to vibration.

      The SR-25MC has a 7 color LCD Display, and this makes the screen easy to read day or night. If the lights are too bright, a 6 level dimmer allows you to select the perfect amount of illumination.

Main Features Of SR-25MC

The microphone included with the SR-25MC sounds very nice and has up and down buttons that are using for adjusting many features & functions.  In the function menu, you will find a surprising amount of features that the SR-25MC offers.

Features
  • Small Size:
  • 20 watts Peak on high power
  • Microphone Gain
  • RF Power –High & Low Power, this is very helpful when using an amplifier

  • Squelch
  • ASQ (Auto Squelch)
  • HI-CUT Receive Filter
  • Scan Functions (Squelch or Time)
  • EMG CH 9 & 19 (You can change these)
  • Talkback
  • Noise Blanker
  • Auto RF Gain (You can turn this on or off)
  • RF Gain
  • Roger Beep (5 different beeps to choose from)
  • Backlight Color (Red, Green, Blue, Cyan, Yellow, Purple, & White)
  • Dimmer (Level 1 – 6)
  • -5KHz Function
Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca

...SR-25MC.... $109.50





Optional Accessories

 Frequency conversion. (expanded frequency coverage)
No internal adjustments possible.

$20

 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12

 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25


Power Output on these watt meters
Dosy Bird RMS *Bird 43P
AM 3.5w 3.5w 3.5w
PEAK AM     12w
* The most informative meter and the one we use.
