   10 Meter Mobile Radio

CLOSED

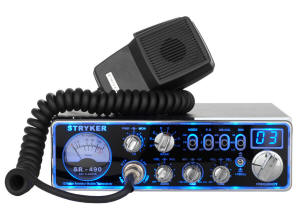

SR-490HP

AM/FM 10 Meter Radio
See the new version - SR-497HC

Download Manual

Best in class power output and top of the line features. Introducing the Stryker SR-490HP 10 Meter Amateur Radio.

The new Stryker SR-490HP is the big brother to the SR-440HP 10 Meter Amateur Radio. We've designed it for class leading power with 90+ watts PEP. As usual we've loaded the radio with real world, common sense features that make using it a blast. Highlighted below are some of the more important features that the SR-490HP offers.




Features

High Power Final Transistor - The SR-490HP uses a single SGS Thomson SD1446 flange mounted transistor that provides the user with 90+ watts PEP. If you want be heard, the SR-490HP has the power required to do some serious talking.

Digital Echo with/ Dual Front Mounted Controls - Provides the operator a much wider range of effects and control than typical factory or aftermarket echo boards. Our board is able to reproduce the human voice with virtually no distortion providing maximum clarity and enjoyment.

Dual Roger Beeps - Two different roger beeps are included with the SR-490HP. These are controlled using a switched that is located on the front panel. This is a feature that you will find on virtually no other radio direct from the factory. Most importantly the roger beep can be turned off when it's not needed.

Variable Power Control – Allows the operator to adjust or vary their carrier from one watt to over 90 watts PEP.

Variable Talk Back Control – The infamous talk back squeal is virtually eliminated with our independently controlled talk back circuitry. The operator can adjust the volume to the perfect level as operating conditions require. Best of all the user no longer has to turn down the microphone gain to stop the annoying squeal that is often the result of poor design or cost cutting at the production level.

Up-Armored™ Receiver- Our exclusive receiver protection works even under the harshest conditions, such as those experienced at a busy truck stop with many operators running high power radios. In addition our receiver filtering is tighter than most radios on the market. This means adjacent channel rejection is improved.

Back Lighted Controls - Our exclusive face plate design provides operators with back lighted controls, making adjustments even in the darkest conditions easy. Best of all our design is extremely durable and can be dimmed using the dimmer switch located on the front panel of the radio.


Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca

...Discontinued...
New version - SR-497HC





Additional Features Include:
  • Width : 7-7/8 in
    Height : 2-3/8 in
    Depth : 9-1/4 in
  • Blue meter light and channel display
  • Large round meter that is easy to read
  • Advanced NB/ANL Circuit Reduces Interference
  • AM/FM Operation and PA Circuitry
  • Automatic AWI (Antenna Warning Indicator) alerts the operator if their SWR's are too high
  • Three Position dimmer switch on front panel
  • Front microphone connector for easy mounting in tight spaces
  • Receive and Microphone gain controls
  • Frequency Counter Jack pre-wired for FC-390 style counters
  • 1 Year Limited Factory Warranty
