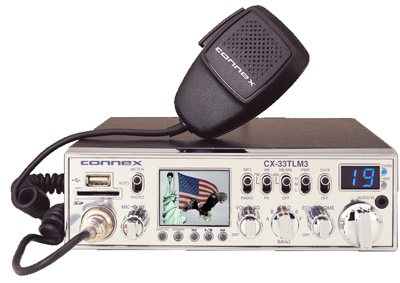

Connex 33TLM3

Orders with radio work are delayed 3 - 10 days

Dual MOSFET's
Built in Echo
AM/FM
Mic Gain Control
Dimmer control
Adjustable Talk-Back
Instant Channel 19
Blue Display
6 Banks of Channels
LCD Display
Play/Stop Switch: This push switch controls the play and stop function for MP3 player
Reverse: This push switch is used to scroll down the music list or to select previous track.
Next/Forward Switch: This push button switch is used for selecting or skipping to the next track from the music list.
SD Port: Used for connecting SD card for music or photo source.
USB Port: Used for connecting USB Stick for music or photo source.
Meter/Auto/Photo Switch: In the meter mode, the display will indicate the strength of the signal being received, as well as the RF power output, modulation and SWR. In the photo mode, a USB stick or SD card must be plugged into the USB or SD port to use a photo for display. In auto mode, the display will toggle between a pre-selected meter and a photo in about 3 seconds.

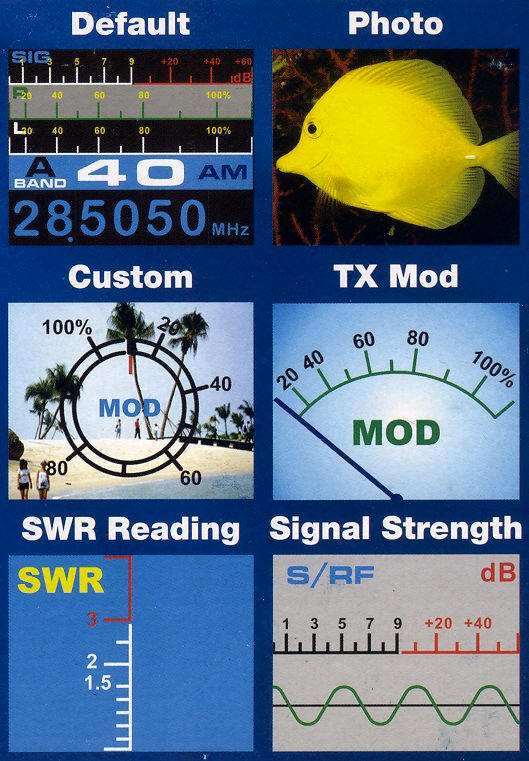

Various displays available on the LCD screen.

Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca

GENERAL
Frequency Range	28.065 to 28.505 MHz
Frequency Control	Phase Lock Loop (PLL) synthesizer.
Frequency Tolerance	0.005%
Frequency Stability	0.001%
Operating Temperature	-30 °C to +50 °C.
Microphone	Plug-in dynamic; with push-to-talk switch and coiled cord.
Input power	13.8V DC nominal, 15.9V max, 11.7V min.(Positive or negative ground).
Transmit:	AM/FM Hi Power 6A.
Receiver:	Squelched, 0.3A.
	Maximum Audio output, _ 0.7A.
Size	2-3/8” (H) x 7-7/8” (W) x 9-1/4” (D).
Weight	12.0 1bs.
Antenna Connector	UHF, SO239
Meter	Illuminated; indicates relative output power, received signal strength.
Transmitter
Power output	AM/FM, - Selectable 10W/2W
AM Peak Power	30Watts.
Modulation	High-and low-level Class B, AM Variable capacitance FM.
Spurious Emissions	60 dB
Frequency Response	AM and FM: 450 to 2500 Hz.
Output Impedance	50 ohms, unbalanced
Output Indicators	Meter- shows relative RF output power. Transmit LED glows red when transmitter is in operation.
Receiver
Sensitivity	AM: 0.5 mV for 10 dB (S+N)/N at greater than ½ -watt of audio output.
	FM: 1.0 mV for 20 dB (S+N)/N at greater than ½-watt of audio output.
Selectivity	AM/FM: 6 dB @ 3 KHz, 50 dB @ 9 KHz.
Image Rejection	More than 65 dB.
IF Frequency	AM/FM: 10.695 MHz 1st IF, 455 KHz 2nd IF
Adjacent-Channel Rejection	60 dB AM
RF Gain Control	45 dB adjustable for optimum signal reception.
Automatic Gain Control (AGC)	Less than 10 dB change in audio output for inputs from 10 to 100,000mV.
Squelch	Adjustable; threshold less than 0.5 mV.
ANL	Switch-able
Noise Blanker	RF type
Audio Output Power	4 watts into 8 ohms.
Frequency Response	300 to 2800 Hz.
Built-in Speaker	8 ohms, round. or External Speaker (Not Supplied) 8 ohms; disables internal speaker when connected.
