     10 Meter Mobile Radio

Click for much larger view

3600 HP
AM/FM 10 Meter Radio

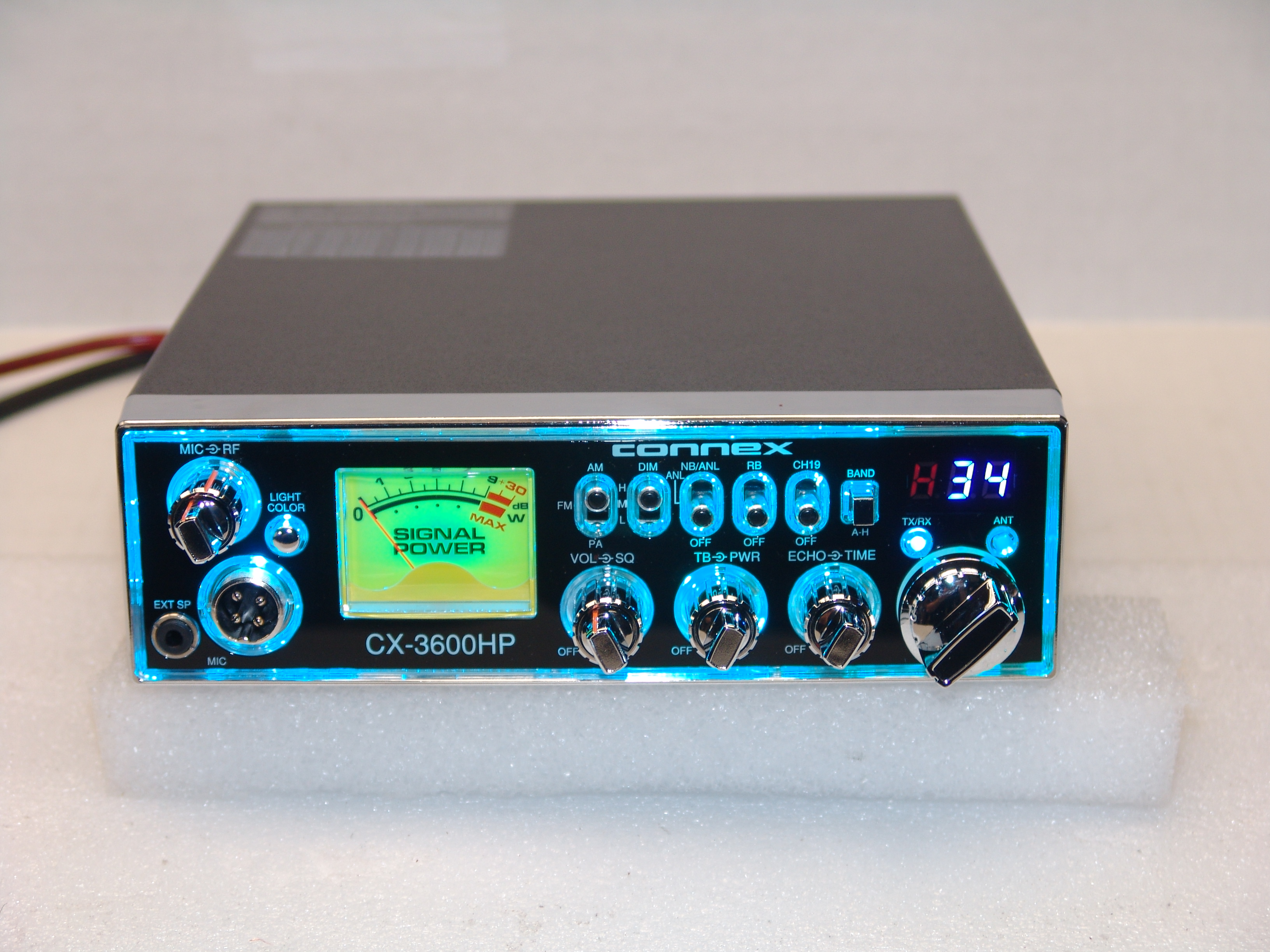

Another new radio from Connex, the CX-3600HP. Same features as the 3400HP but with a 100W output.

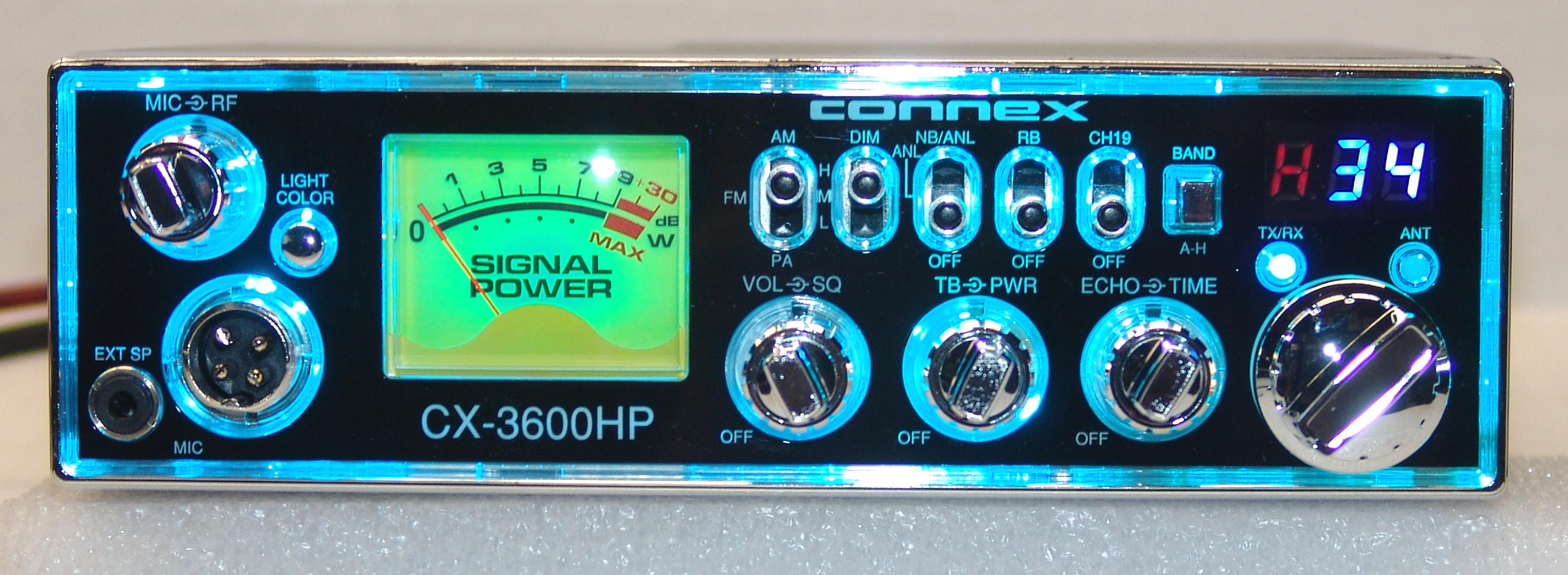

This one has a backlit control panel with 6 selectable colors. A few other big changes in the styling include the front speaker jack, large meter with radial arc movement and a band select button with band display next to the channel.



Features

  • 6 Colors, selectable backlight
    • white
    • light blue
    • green
    • yellow/orange
    • purple
    • dark blue
  • Large meter style
  • AM, FM, Mobile
  • Echo/talkback
  • Hi/Low Power Switch
  • 3 pos dimmer
  • Push Button Band Selector
  • Ant warning indicator
  • Roger Beep
  • PA
  • Dual Finals
  • front ext speaker jack
  • frequency counter jack
  • 100W watts peak power




YouTube Videos



IMAGES:
Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca


...Discontinued...

 $329.50





CB Microphone Wiring (Galaxy)



GENERAL
Frequency Range 28.065 to 28.505 MHz
Frequency Control  Phase Lock Loop (PLL) synthesizer.
Frequency Tolerance 0.005%
Frequency Stability 0.001%
Operating Temperature -30 °C to +50 °C.
Microphone Plug-in dynamic; with push-to-talk switch and
coiled cord.
Input power 13.8V DC nominal, 15.9V max, 11.7V min.(Positive or negative ground).

Transmit:

AM/FM Hi Power --A.

Receiver:

 Squelched, --A.
  Maximum Audio output, _ ---A.
Size 3-3/8” (H) x 7-7/8” (W) x 9-1/4” (D). (estimated)
Weight 8.0 1bs.

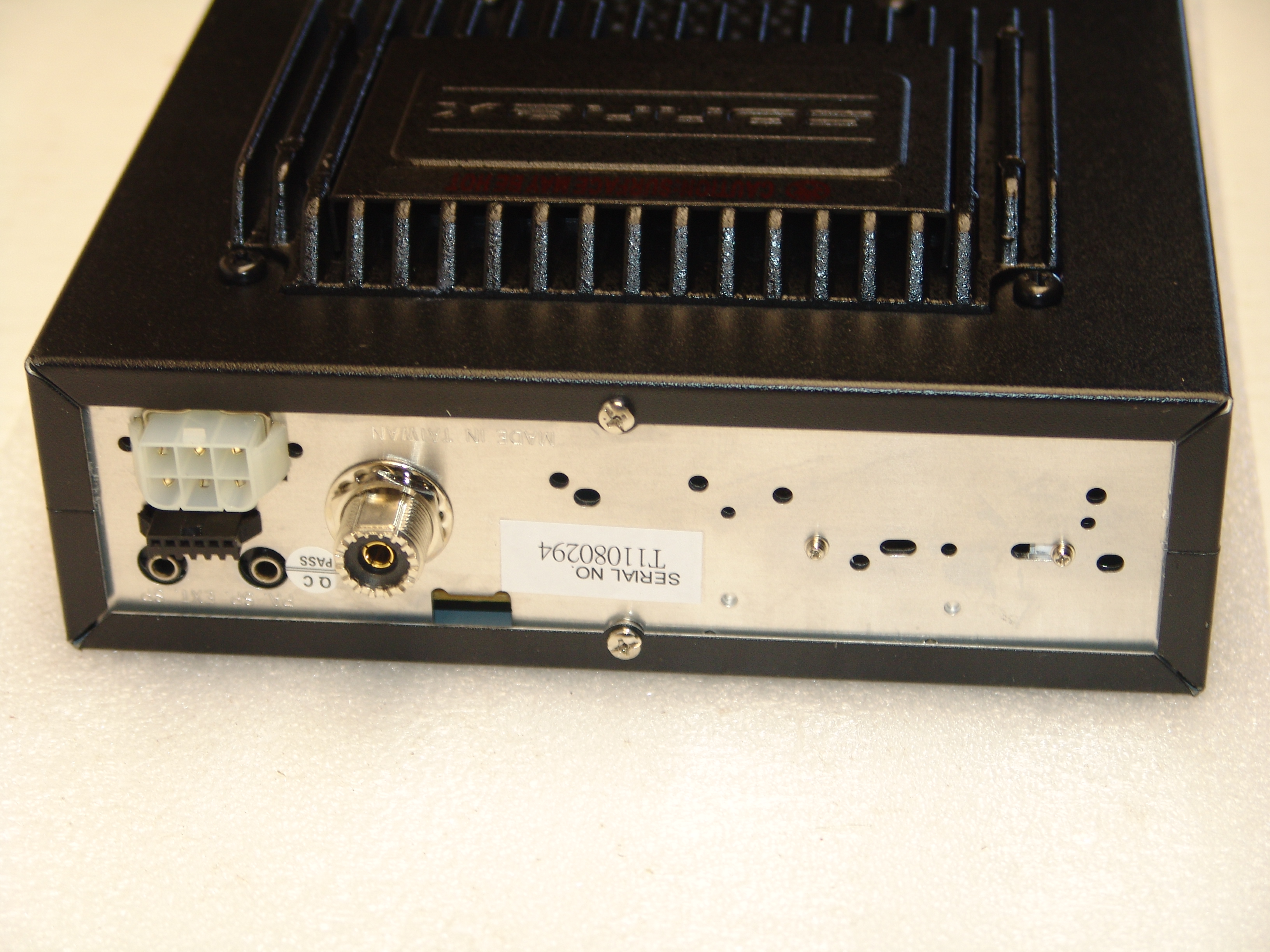

Antenna Connector UHF, SO239
Meter Illuminated; indicates relative output power,
received signal strength.

Transmitter
Power output AM/FM, - Selectable 25W/5W
AM Peak Power  100 + Watts.
Modulation High-and low-level Class B, AM
Variable capacitance FM.
Spurious Emissions 60 dB
Frequency Response AM and FM: 450 to 2500 Hz.
Output Impedance 50 ohms, unbalanced
Output Indicators  Meter- shows relative RF output power.
Transmit LED glows red when transmitter is
in operation.

Receiver
Sensitivity AM: 0.5 mV for 10 dB (S+N)/N at greater than
½ -watt of audio output.
  FM: 1.0 mV for 20 dB (S+N)/N at greater than
½-watt of audio output.
Selectivity AM/FM: 6 dB @ 3 KHz, 50 dB @ 9 KHz.
Image Rejection More than 65 dB.
IF Frequency  AM/FM: 10.695 MHz 1st IF, 455 KHz 2nd IF
Adjacent-Channel
Rejection		 60 dB AM
RF Gain Control 45 dB adjustable for optimum signal
reception.
Automatic Gain Control
(AGC)		 Less than 10 dB change in audio output for
inputs from 10 to 100,000mV.
Squelch Adjustable; threshold less than 0.5 mV.
ANL Switch-able
Noise Blanker  RF type
Audio Output Power 4 watts into 8 ohms.
Frequency Response 300 to 2800 Hz.
Built-in Speaker 8 ohms, round. or
External Speaker (Not Supplied) 8 ohms; disables internal speaker when connected.
