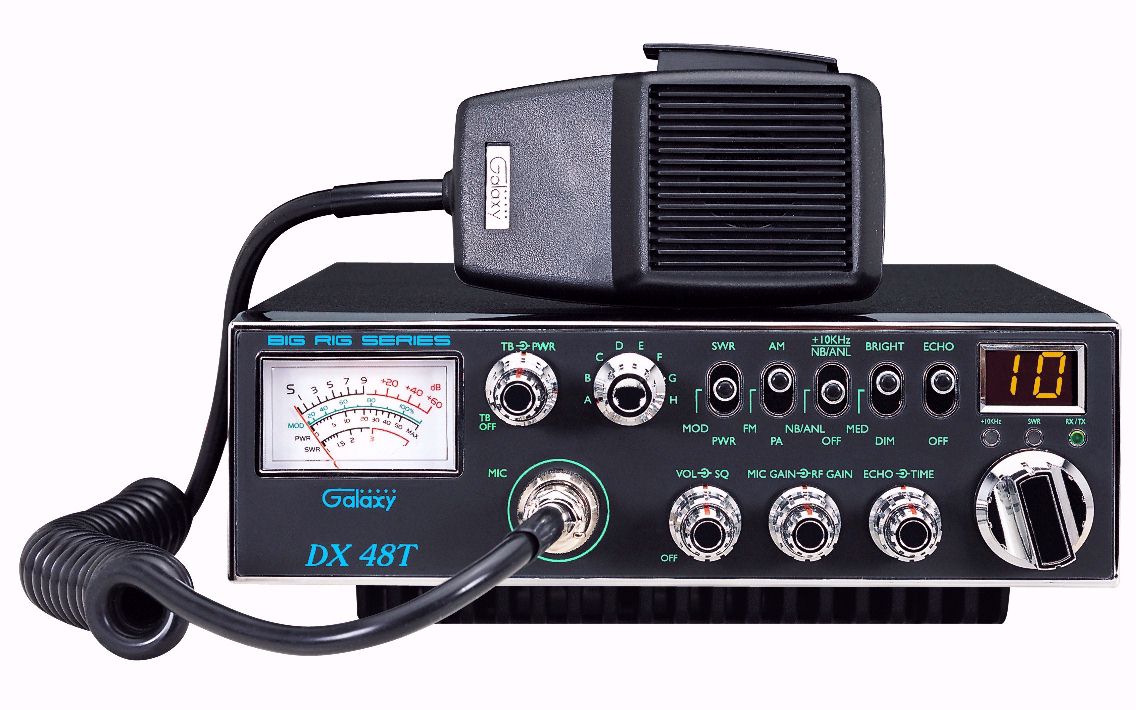

DX 48T
High Power AM/FM
10 Meter Radio

Download Manual
Features
  • A High Performance output circuit that uses two Toshiba 2SC2290 power transistors to generate 50 watts for AM and FM operation (No SSB operation)
  • New chassis incorporates a solid aluminum finned rear section as a heat sink
  • Additional heat sink on the bottom of the radio with an internal Micro cooling fan increases the radio height from 2.5 to 3 inches

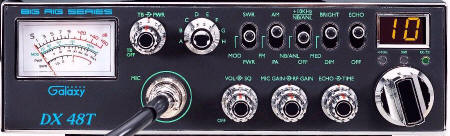

  • New "StarLite" faceplate is matte receive with all lettering backlit in green and blue
  • Main circuit board upgraded to the same board as the DX 2517 base radio
  • Front mic jack
  • Heavy duty DC power cord
  • Large, easy-to-read meter with 4 scales:
    1. "S" meter indicates up to 60dB over S9
    2. Modulation percentage scale for use on AM
    3. Calibrated power scale
    4. SWR scale
  • Automatic SWR circuit (No complicated calibration procedure required)
  • LED lights red to warn of high SWR
  • Variable power output control
  • Echo with dual controls
  • Talkback circuit with On/Off switch and volume control
  • Green/Red LED indicator for Receive/Transmit
  • NB/ANL circuit
  • Receive gain control
  • Two year limited warranty





Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca



  *** This Item has been Discontinued
         by the manufacturer and remains
         here for reference and support
         information only. ***

CB Microphone Wiring (Galaxy)





Items NOT included:
  • -- No frequency counter
  • -- No jack for frequency counter
  • -- No Roger Beep circuit
  • -- No clarifier
  • -- Three-position dimmer switch takes the place of a variable dimmer pot
