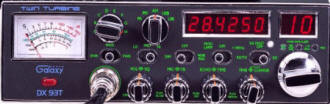

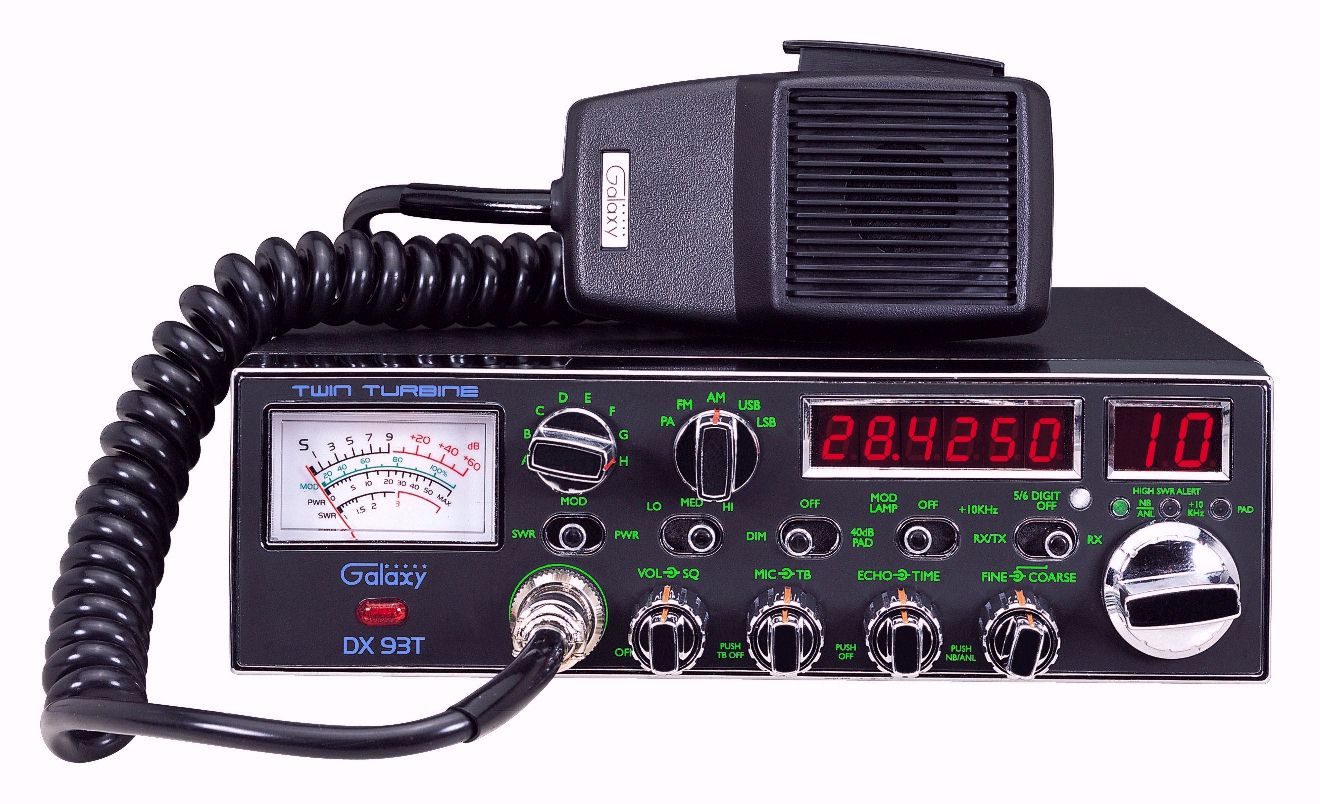

DX 93T
Medium Power AM / FM / SSB
10 Meter Radio

Back side of Galaxy DX 93T 10 Meter Radio
Features
  • A High Performance output circuit that uses one Toshiba 2SC2290 power transistor to generate 20 watts for AM/FM and 50 watts for SSB operation
  • Dual Mini cooling fans on the rear increase the overall radio length by only one half inch
  • New chassis incorporates a solid aluminum finned rear section as a heatsink
  • Main circuit board upgraded to the same board as the DX 2517 base radio
  • New "StarLite" EL faceplate is matte receive with all lettering backlit in green and blue
  • Retro-look red modulation lamp flickers like the old neon lamps of the Fifties and Sixties
  • Our exclusive "SuperSlider" circuit maximizes frequency control by switching the Fine clarifier between Receive/Transmit and Receive Only operation or completely out of the circuit with one slide switch. The Coarse clarifier operates on both receive and transmit unless the SuperSlider switch is off. When switched off, both clarifiers are out of the circuit.
  • Switch-able sixth digit provides five or six digit frequency display
  • Red channel and frequency digits
  • Front mic jack
  • Heavy duty DC power cord
  • Large, easy-to-read meter with 4 scales:
    1. "S" meter indicates up to 60dB over S9
    2. Modulation percentage scale for use on AM
    3. Calibrated power scale
    4. SWR scale
  • Automatic SWR circuit (No complicated calibration procedure required)
  • LED's light red to warn of high SWR
  • Echo with dual controls
  • Talkback circuit with On/Off switch and volume control
  • Meter glows red during transmit
  • NB/ANL circuit with green LED indicator
  • Two year limited warranty





Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca

Download Manual

... Discontinued ...

  *** This Item has been Discontinued
         by the manufacturer and remains
         here for reference and support
         information only. ***






Changes:
  • A three-position power level switch takes the place of a variable output pot
  • A 40dB attenuator switch takes the place of a receive gain pot
  • A dim switch takes the place of a dimmer pot
  • No On/Off switch for the frequency display
  • No Roger Beep circuit
