    Click image for larger view

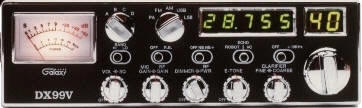

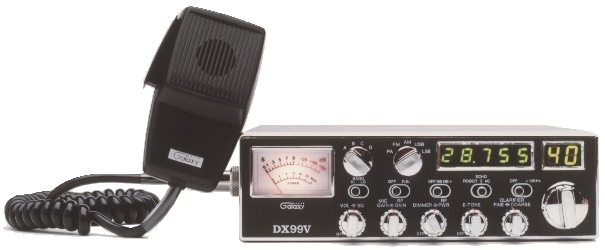

DX 99V
AM / FM / SSB  10 Meter Radio

Download Manual
Features
  • Frequency Counter (with "ON/OFF" switch)
  • Variable Dimmer Control for Meter Lamp, Frequency Display and Channel Readout
  • Large Meter with Scales for Signal Strength and Power Output
  • Meter glows Red during Transmit
  • Roger Beep (with "ON/OFF" switch)
  • Noise Blanker/ Automatic Noise Limiter
  • +/-10 KHz Switch
  • SSB in addition to AM/FM/PA
  • PA
  • Echo Board with Dual Control
  • Voice Changer with Pitch Control
  • Robot Sound (one-position)
  • Talk Back "ON" during Echo, VC or Robot
  • Variable Power Output
  • 10 Watts Maximum Power Output - AM
  • 25 Watts Maximum Power Output - SSB
  • 1.5 KHz Clarifier for Receive Only
  • 5.0 KHz Clarifier for Receive and Transmit



CB Microphone Wiring (Galaxy)



  *** This Item has been Discontinued
         by the manufacturer and remains
         here for reference and support
         information only. ***


See also the Galaxy 99V2

Tuned up values on these watt meters
Dosy Bird RMS *Bird 43P
AM 2 ~ 8w 2~8w 2 ~ 8w
FM 2 ~ 8w 2 ~ 8w 2 ~ 8w
SSB 20w 13w 35w
PEAK AM 6 ~ 20w 3 ~ 10w 23 ~ 38w
* The most informative meter and the one we use.



Specifications
GENERAL
Channels 40 CH
Frequency Range 28.315 to 28.755 MHz
Frequency Control Phase Lock Loop (PLL) synthesizer.
Frequency Tolerance  0.005%
Frequency Stability  0.001%
Operating Temperature Range -30°C to +50°C
Microphone Plug-in dynamic; with push-to-talk switch and coiled cord.

Input Power 13.8V DC nominal, 15.9V max, 11.7V min. (positive or negative ground).

Transmit: AM full mod., 4A.
SSB 25 watts PEP output, 6A

Receiver: Squelched, 0.6A
Maximum audio output, 1.2A

Size 2-3/8” (H) x 7-7/8” (W) x 9-1/4” (D).
Weight 5 lbs.
Shipping Weight 9 lbs.
Antenna Connector  UHF, SO239
Meter Illuminated; indicates relative output power, received signal strength and transmit power.

TRANSMITTER

Power output AM/FM/ 10 watts.
SSB, 25 watts PEP.

Modulation High-and low-level Class B, Amplitude Modulation: AM. Variable
Frequency Modulation: FM.
Intermodulation Distortion SSB: 3rd order, more than –25dB.
5th order, more than –35dB.





SSB Carrier Suppression  55dB
Unwanted Sideband  50dB
Frequency Response AM and FM: 450 to 2500 Hz.
Output Impedance  50 ohms unbalanced.
Output Indicators  Meter shows relative RF output power and SWR. Transmit LED glows red when transmitter is in operation.


RECEIVER
Sensitivity  SSB: 0.25 uV for 10 dB (S=N)/N at greater than ½-watt of audio output.
AM: 1.0 uV for 10 dB (S+N)/N at greater than ½-watt of audio output.
FM: 1.0 uV for 10 dB (S+N)/N at greater than ½-watt of audio output.
Selectivity AM/FM: 6 dB @ 3KHz, 50 dB @ 9KHz.
SSB: 6 dB @ 2.1KHz, 60 dB @ 3.3KHz.

Image Rejection  More than 65 dB.
IF Frequency  AM/FM: 10.695 MHz 1st IF, 455 KHz 2nd IF
SSB: 10.695 MHz


Adjacent-Channel Rejection 60 dB AM/FM & 70 dB SSB


RF Gain Control 45 dB adjustable for optimum signal reception.

Automatic Gain Control (AGC) Less than 10 dB change in audio output for inputs from 10 to 100,000 microvolts.



Squelch Adjustable; threshold less than 0.5 uV.
ANL  Switchable.
Noise Blanker RF type, effective on AM/FM and SSB
Clarifier Range Fine  (TX/RX) ±1 KHz.
Audio Output Power  4 watts into 8 ohms.
Frequency Response  300 to 2800 Hz.
Built-in Speaker  8 ohms, round.
External Speaker (Not Supplied) 8 ohms; disables internal speaker when connected.
