10 Meter Mobile Radio |
|
 |

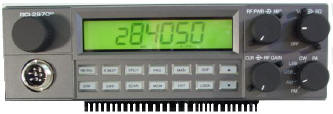

2970DX
AM/FM/SSB/CW 10 Meter Radio
see the new 2970 N2
|
|
 Download Manual
Service
Manual
Download
Schematic drawings
|
Ranger Communications
once again sets the performance and reliability standard for entry
level amateur mobile transceivers with the latest generation of our
popular RCI-2950/70 series of cost effective, multi mode, high
performance transceivers.
Introducing the new RCI-2950DX & RCI-2970DX. These new
DX models feature microprocessor control of not one but two amateur
bands. The new RCI-2950DX, rated at 25W PEP and the RCI-2970DX, rated
at 150W PEP are perfect for the recent band openings on 10 and 12
meters. Now you can upgrade your mobile Ham capabilities with a radio
that is rich in features and reasonable in cost.
The new DX models have retained the operating features
of its popular predecessors, including programmable repeater offset
and capabilities for a CTCSS tone option — great for increasing
repeater activity on 10 meters — and receiver scanning for quick
search of active frequencies. The units offer three methods of
frequency selection, non-volatile memory to store and scan up to ten
favorite frequencies, and front panel frequency selector lockout.
In addition, the DX Series offers an impressive array
of design and performance improvements:
-
An improved
receiver: designed for increased sensitivity and image
rejections.
-
A double FET
balanced mixer: for improved receiver intermodulation rejection.
-
New power supply
protection: and temperature compensation for improved stability
and reliability over wide temperature ranges.
-
Surface mount
components: for increased resistance to shock and vibration.
-
Improved display
lighting: for easy reading in a wide range of light conditions.
-
Variable Power
Output from 150 watts to 2 watts - great for PSK-31 operation.
More features:
- 10
& 12 Meter Bands
-
Large Frequency Display with Dimmer
-
Improved Receiver Design
-
New Green Back-light Display
-
Variable Output Power Control
-
Active Frequency Scanner
-
Receiver Clarifier (±0.5kHz)
-
Ten Programmable Frequencies
-
Noise Blanker/ANL Circuitry
-
Frequency Selector Lockout
-
Programmable Repeater Offset
-
Public Address Feature
What's different in the 2970DX from 2970?
- An improved receiver: designed for increased sensitivity and
image rejections.
- A double FET balanced mixer: for improved receiver
intermodulation rejection.
- New power supply protection: and temperature compensation for
improved stability and reliability over wide temperature ranges.
- Surface mount components: for increased resistance to shock and
vibration.
- Improved display lighting: for easy reading in a wide range of
light conditions.
- Variable Power Output from 150 watts to 2 watts - great for
PSK-31 operation.
- Green backlit display
- Frequency range now 12-10 meters.
Comply with part 15 of the FCC Rules. Operation is subject to
the condition that this device does not cause harmful
interference. Further information can be found at the FCC
website http://fcc.gov or
the ARRL website http://arrl.org.
Transmitting using this radio requires an Amateur Radio License.
Licensing information can be obtained by visiting
www.fcc.gov or
http://arrl.org. In Canada, visit
http://strategis.ic.gc.ca
or http://www.rac.ca
|
|
|
...Discontinued...
see the new 2970 N2
***
This Item has been Discontinued
by the manufacturer
and remains
here for reference and support
information only. *** |
|
|
Specifications
|
General |
RCI-2970DX |
|
Frequency Range |
10
Mtr: 28.000 - 29.6999 MHz
12 Mtr: 24.8900 - 24.9900 MHz |
|
Tuning Steps |
1
MHz, 100 KHz, 10 KHz, 1 KHz, 100 Hz |
|
Emission |
USB, LSB, CW, AM, FM |
|
Frequency Tolerance |
0.005% |
|
Frequency Control |
Microprocessor / Phase-Locked-Loop Synthesizer |
|
Frequency Stability |
0.001% |
|
Operating Temperature Range |
-10
ºC to + 50 ºC |
|
Meter Function |
RF
Output, RX Signal Strength, Modulation, SWR
(LCD Display Indicates Relative Values) |
|
Antenna Impedance |
50
W |
|
Input Voltage |
13.8 Vdc |
|
Microphone |
400
W
Dynamic PTT - 6 Pin |
|
Size (W x D x H) |
7" x 9" x 3-7/8" |
|
Weight |
7 lb 6 oz |
|
Shipping Weight |
11 lb |
|
Transmitter |
|
|
RF
Power Output |
50 Watts RMS: CW / AM / FM
150 Watts: SSB (PEP) |
|
Current Draw @ Full Power |
18 Amps |
|
Modes |
USB, LSB, CW, AM, FM, PA |
|
CW
Keying |
Semi break-in |
|
Carrier Suppression |
-
50 dB |
|
Spurious Emission |
-
50 dB |
|
Antenna Connector |
UHF
Type, 50
W |
|
Receiver |
|
|
Sensitivity |
AM
/ CW: 0.5 µV for 10 db SINAD
FM: 0.25 µV for 12 db SINAD
SSB: 0.15 µV for 10 db SINAD |
|
Selectivity |
-
55db |
|
Image Rejection Ratio |
-
65 db |
|
Audio Output Power |
2.5
Watts @ 10% THD into 8
W |
|
|
|
