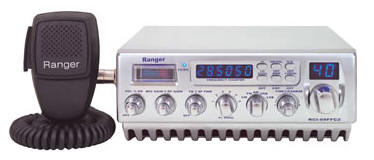

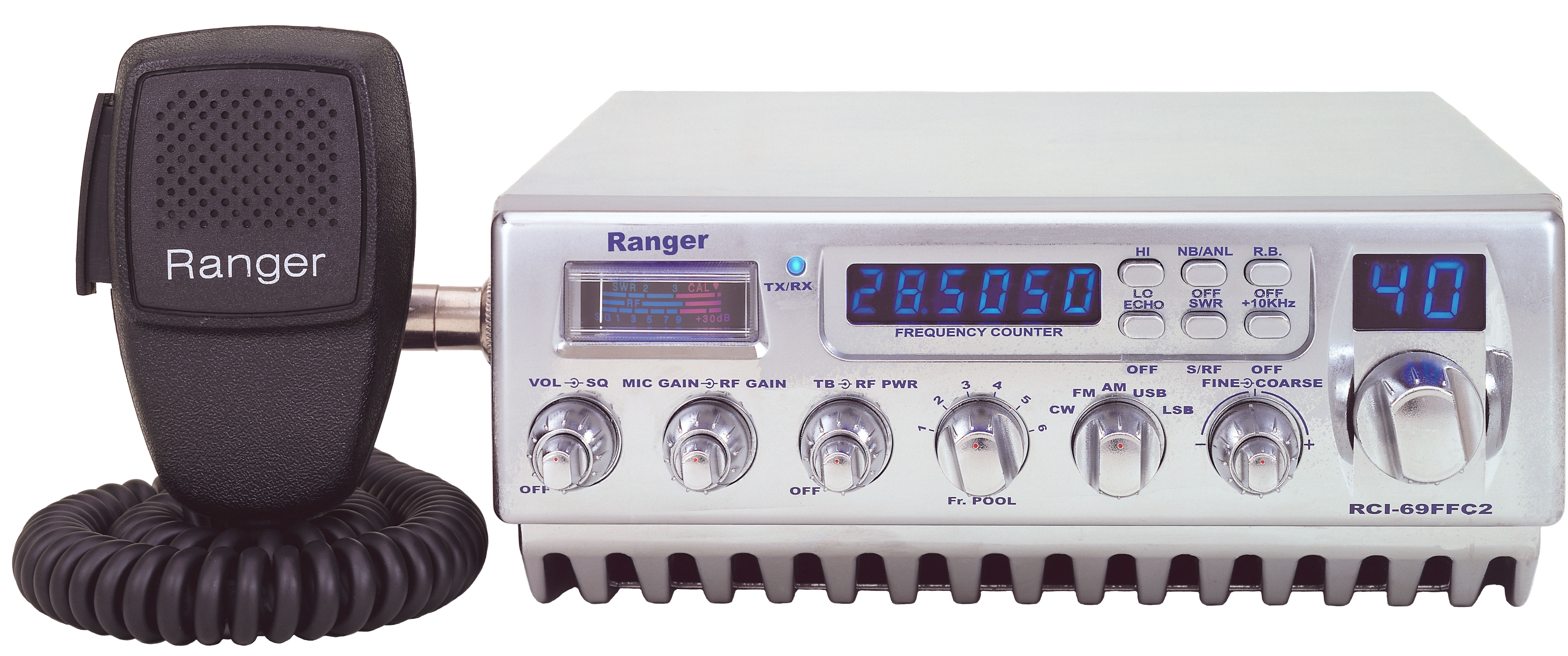

RCI-69FFC2
AM/FM/SSB 10M Mobile Radio


The Ranger RCI-69FFC2 amateur mobile transceiver offers exceptional value for Novice and Technician Class amateurs upgrading to Tech Plus and higher.

This entry-level unit is designed for easy, reliable and safe mobile operation. The RCI-69FFC2 transceiver provides excellent receiver sensitivity. The amplifier section has eight IRF520 MOSFET transistors with dual fans for maximum efficiency.

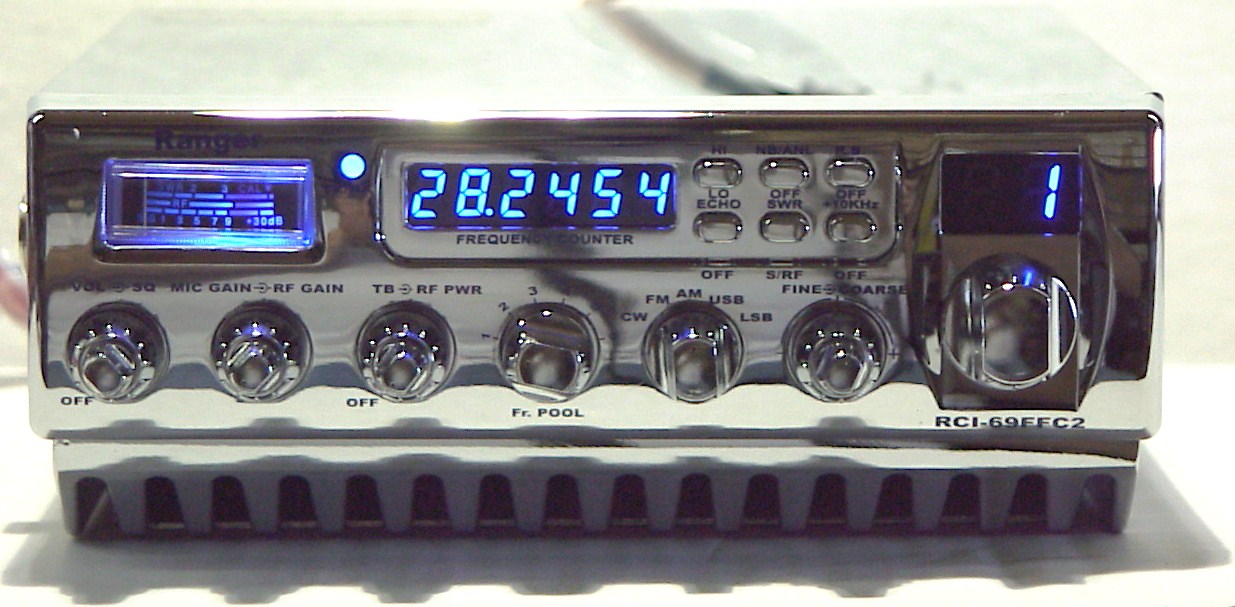

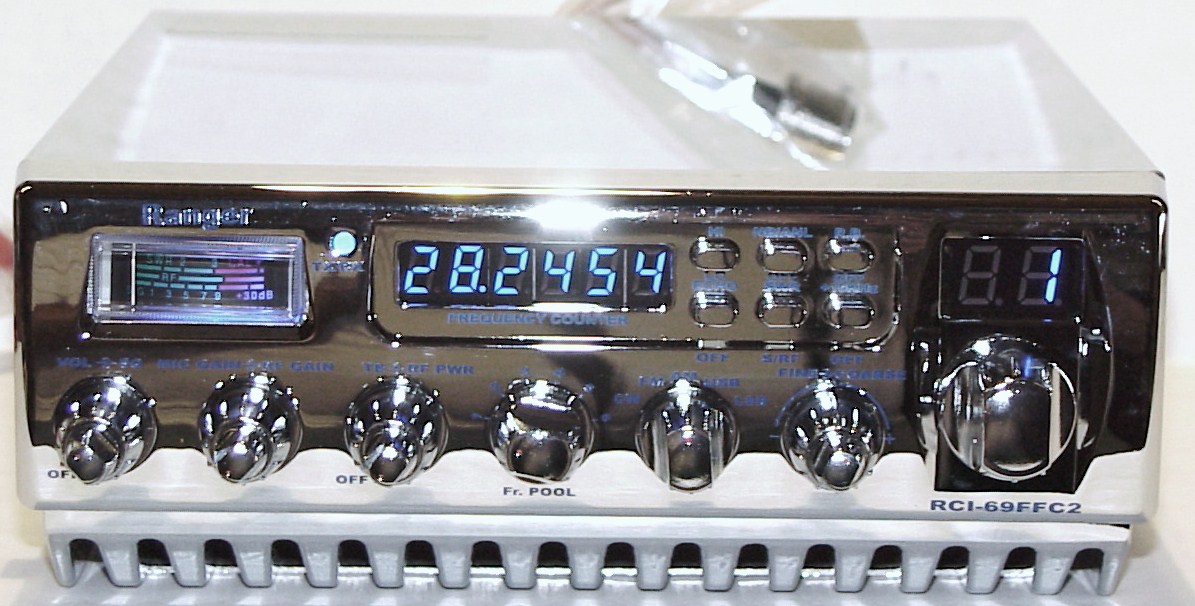

The easy-to-use frequency selection system covers the 10- meter amateur band in 6-band segments. Actual operating frequency is accurately displayed in the 6-digit LED display that’s easy to read even in bright sunlight.

A channel indicator speeds return to a popular or previously used frequency without interfering with the operator's attention to the road.

Selectable Automatic Noise Limiter (ANL) and Noise Blanker assures noise reduction during mobile operation.

Front panel RF power output control and RF Gain controls enable the operator to set transmitter power and receiver sensitivity to match operating conditions.

Additional front panel controls assure optimum performance under widely varying conditions:

— A +10 kHz switch complements the frequency selection system by shifting the Tx and Rx frequencies up by a known amount for increased driving safety.

— Easy-to-read panel meter - three-functions indicating received signal strength, transmitter power output, and antenna SWR.

  • AM -FM- SSB and PA Modes

  • High Sensitivity Receiver Design

  • Echo &Talk/Back

  • Variable RF Power Output

  • Built-in Frequency Counter

  • Blue LED Display

  • Multifunction Panel Meter

  • Display Dimmer

  • Fully Chromed Housing and Face

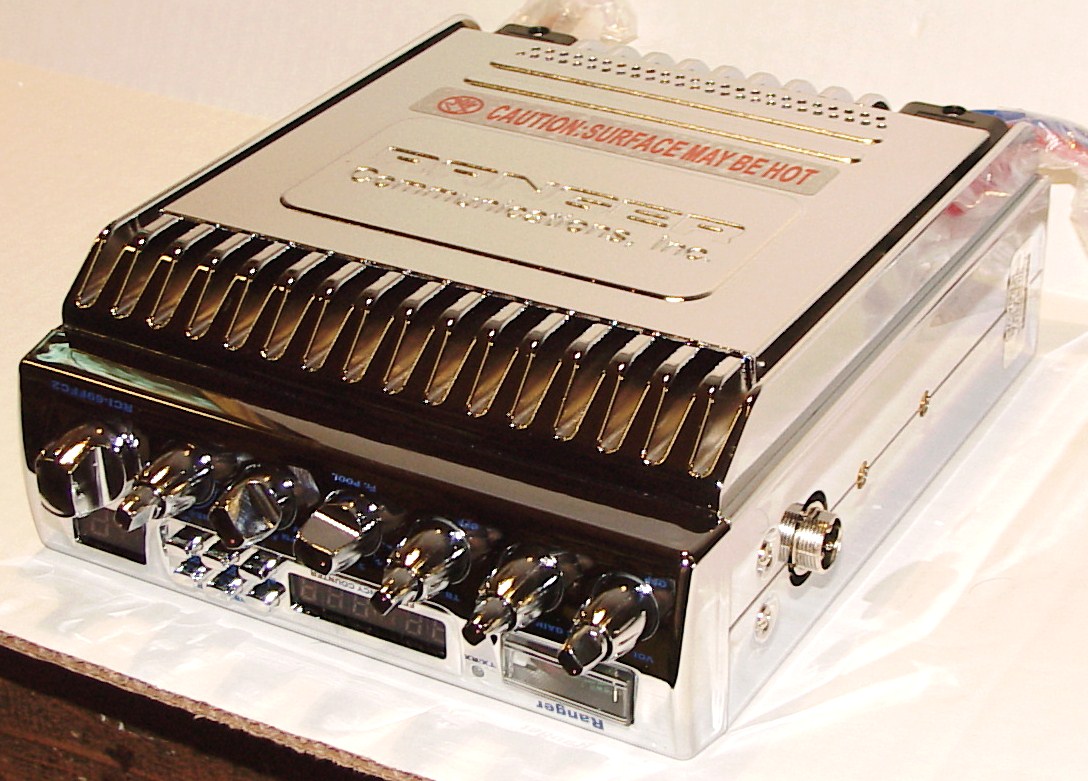

  • Heavy Duty Chrome Heat Sink












Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca

  *** This Item has been Discontinued
         by the manufacturer and remains
         here for reference and support
         information only. ***

 ($448.50)







 General
 Frequency Range

28.245 - 29.655 MHz

 Modes

AM-FM-SSB-PA

 Frequency Control

PLL Synthesizer

 Frequency Stability

0.001%

 Operating Temp. Range

- 20 ºC to + 50 ºC

 Input Voltage

13.8 Vdc

 Antenna Impedance

50 Ohms

 Size (W x D x H)

7-7/8" x 10-3/4"
x 2-7/8"

 Weight

8 Lbs.


 Transmitter



 RF Power Output

(After tune-up:)
AM-FM: 60W RMS
AM: 240W PEAK
SSB: 200W PEP

 Spurious Distortion

- 50 dB

 Audio Distortion

10 %

 Frequency Response

300 to 2500 Hz

 Microphone

Dynamic


 Receiver



 AM Sensitivity for 10 dB SINAD

0.5 µV

 Squelch Sensitivity

0.5 µV

 Image Rejection

- 55 dB

 Hum and Noise

- 40 dB

 Audio Output Power

2.5W @ 10% THD
