CN-901-HP



Wattmeter

Download Manual

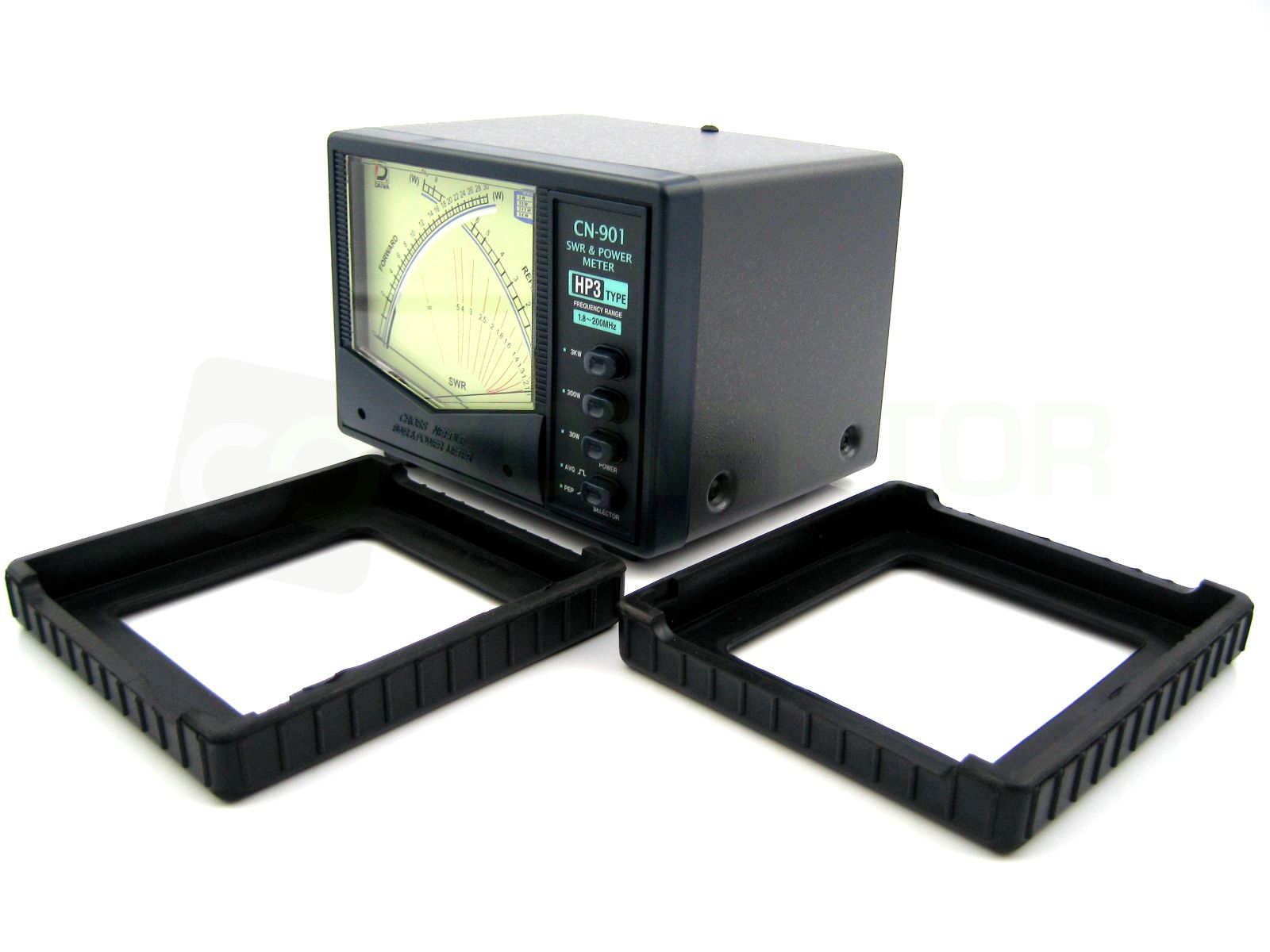

Daiwa CN-901 Professional Series Bench Meters offer accurate readings, reliable performance, and great value.

Daiwa's large, lighted and easy-to-read cross needle meters will provide your ham shack with consistent readings. CN-901 Series meters feature qualities that will make measuring SWR and power during an antenna test, as well as matching and tuning transmitters, an easy task.

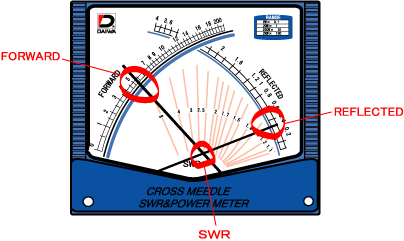

Their dual-needle meters have one scale that measures forward power while the other reads reflected power. The existing SWR is indicated at the crossing point of the two needles… so you can read all three of these important measurements at the same time!






SOLD OUT
...2KW Power Meter ... $189.50





frequency range
1.8-200 MHz
power range (forward)
20/200/2000 watts
Max power rating
2000 watts
accuracy
+-10% full scale
impedance
50 ohms
connectors
input: SO-239
output: SO-239
size
4.3"H x 6.3"W x 4.8"D
Shipping weight
5 pounds
