Frequency Counter

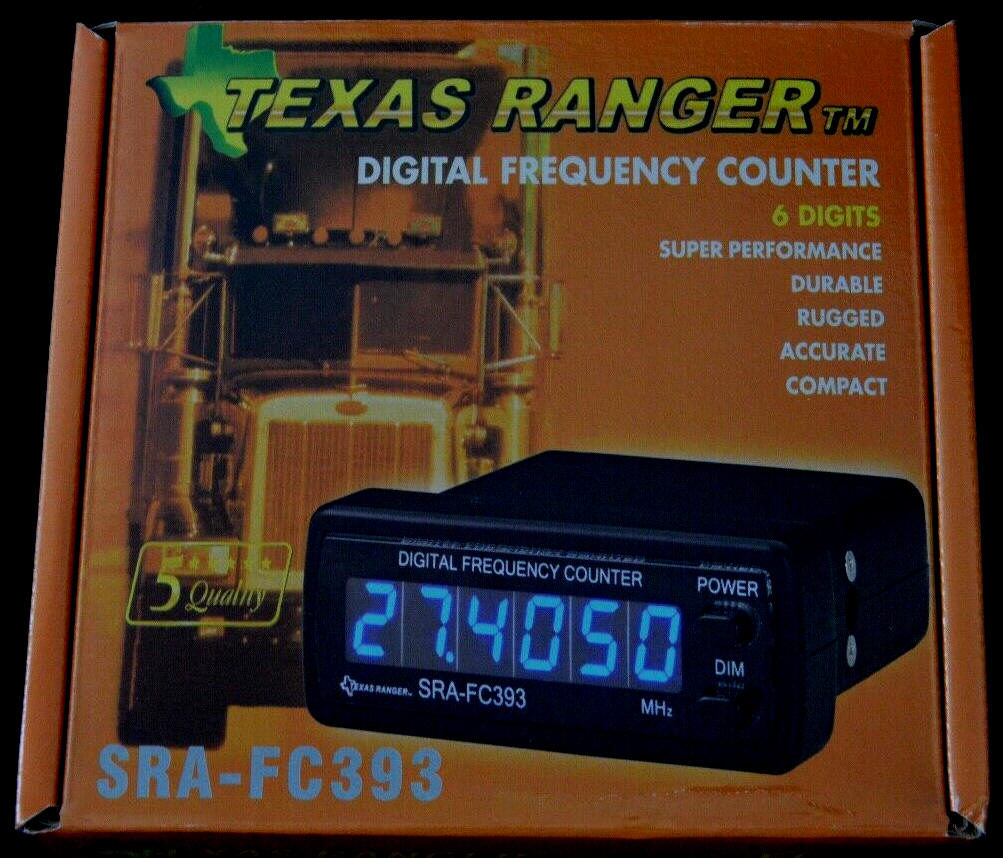

SRA-FC393
Click image for larger view

SRA-FC393


(Blue display)

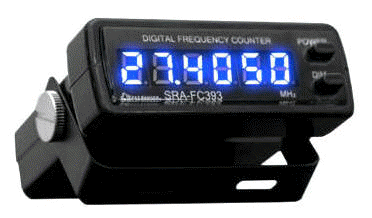

Texas Ranger SRA-FC393 is a universal frequency counter which indicates the frequency of the selected channel. It is designed for use in some CB and Amateur radios with a rear external 6pins frequency counter jack.
Directly compatible with radios such as Connex, Galaxy, General, Mirage, Superstar and Ranger.
    It is not a stand alone counter and will not read actual output frequency, just the frequency of an internal oscillator and then add to that to show the transmit frequency on the display.

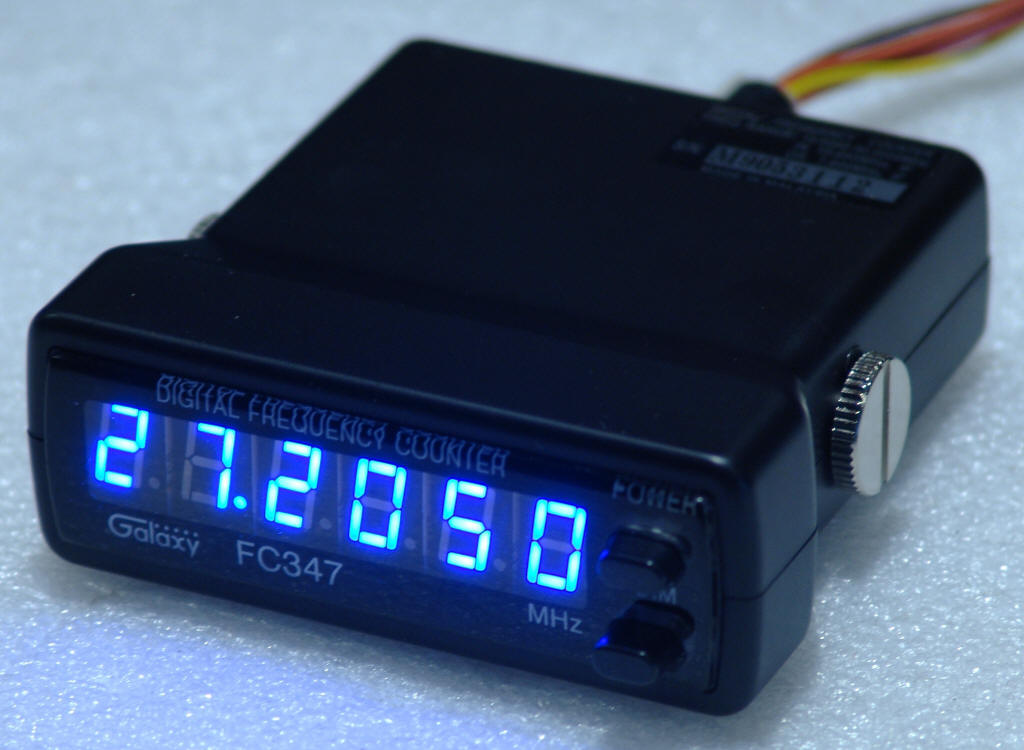

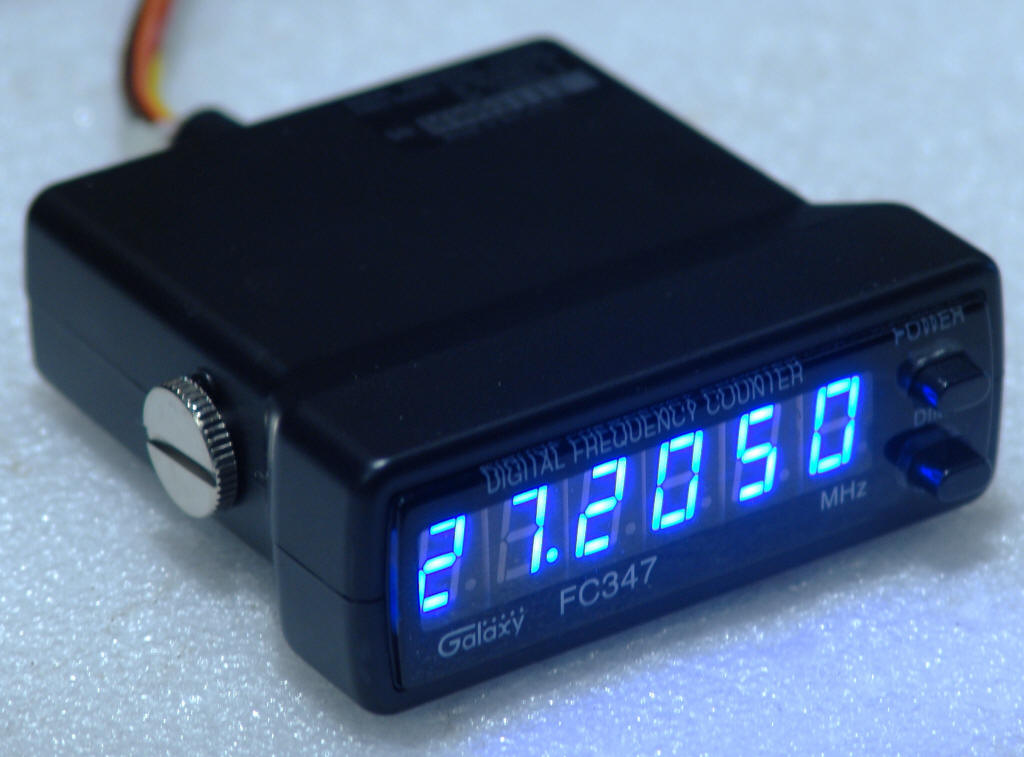

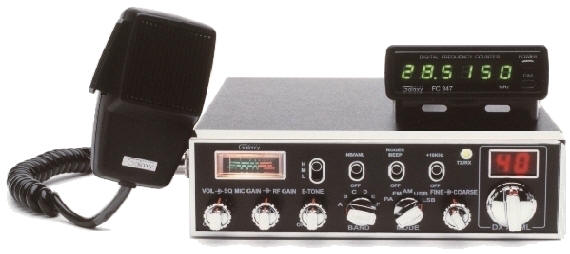

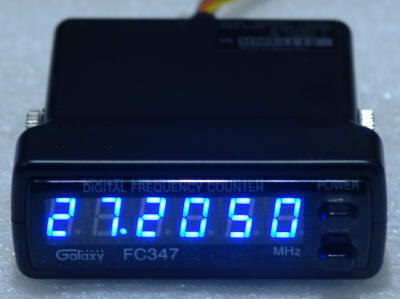

*** THIS IS NOT LIKE THE FC-347 and 390 that were
compatible with Cobra/Uniden Radios.
This is for a 16MHZ VCO frequency tap ONLY.



  • Displays the Frequency ALL the time, in RX and TX.
  • No soldering required on many of the Galaxy radios, Texas Ranger TR-296 series, Connex and General. It plugs directly into a socket on the back of the radio next to the antenna connector.










Display is now BLUE

...Texas Ranger
 (SRA-FC393)...
$69.99



 General



 Power Requirements

8 - 13.8 Vdc

 Consumption Current

60 mA

 Input Impedance

5K W, 20pF

 Standard Oscillating Frequency

4.5 MHZ, 10 ppm

 Input Voltage

100 mV - 2 Vrms

 Size (W x D x H)

1 3/16" x 3 1/2" x 3 1/4"

SRA-FC393 insructions
DATA SHEET


*** THIS IS NOT LIKE THE FC-347 and 390 that were compatible with Cobra/Uniden Radios.
This is for a 16MHZ VCO frequency tap ONLY.

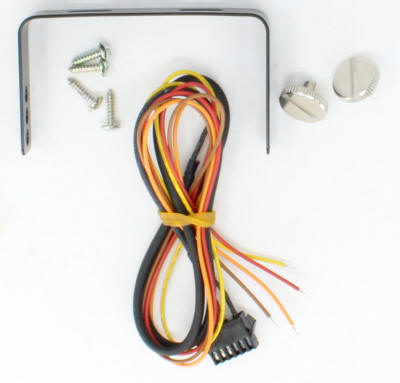

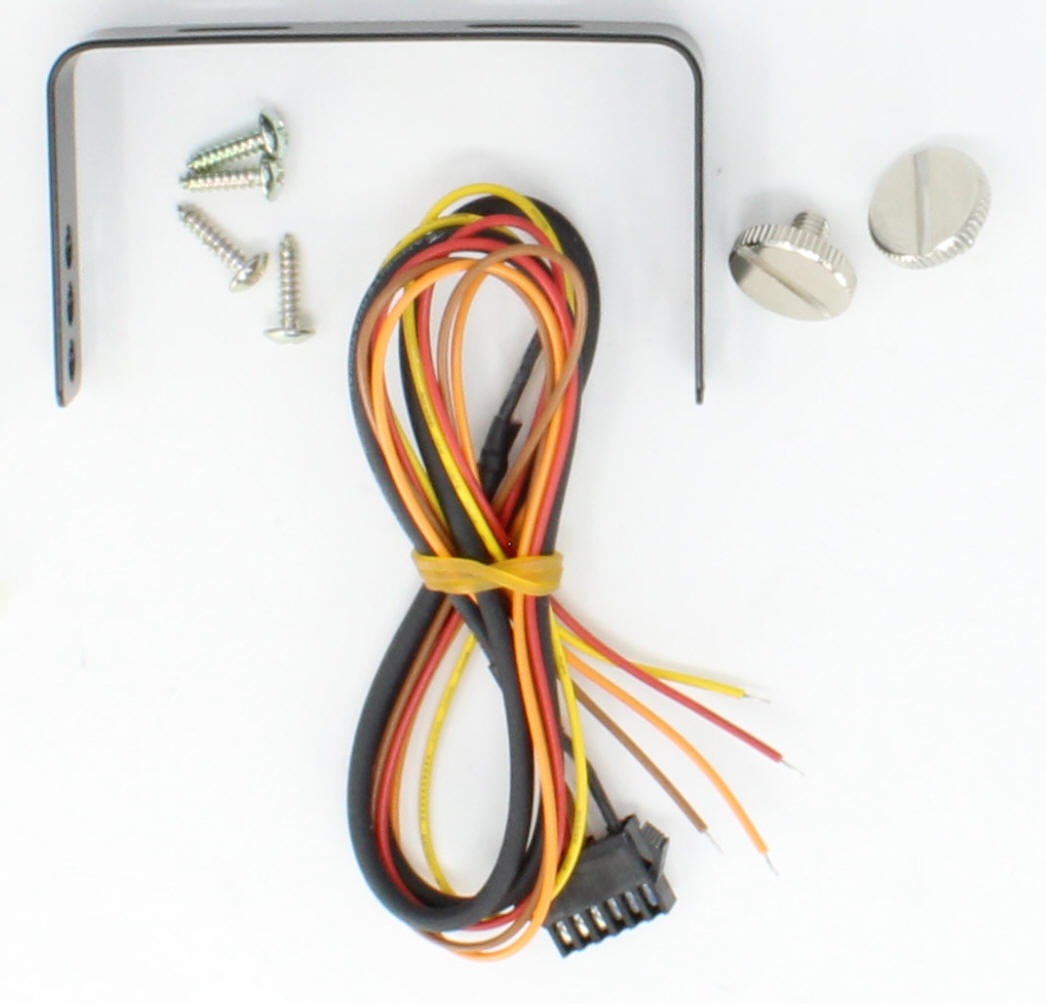

Parts included





Picture 1 of 3
