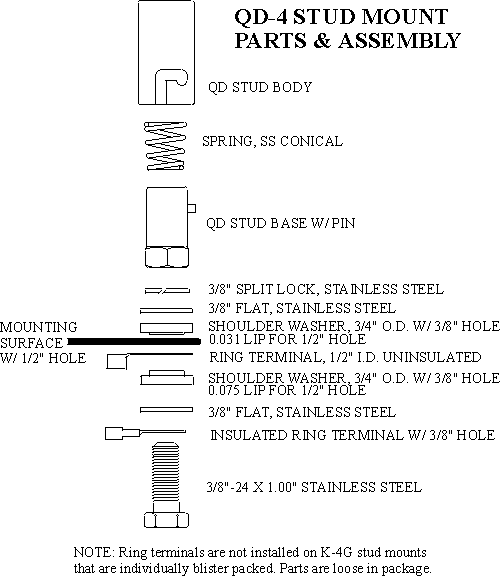

Click for assembly diagram

QD-4
Firestik® Quick Disconnect
Stud Mounts

Also Available with screw-on S0-239
     These QD stud mounts are heavy-duty and ready to be attached to any antenna mount with the standard 1/2" (13mm) hole. They are specifically designed to accept any 3/8"-24 threaded antenna up to 5' (152cm) in length. The total height above the mounting surface is only 2.3" (58mm), or about one-half the height of using a K-1A on a standard stud mount. With a simple push and twist motion, your antenna can be removed from your vehicle.

     Model QD-4 is for use with coax cables that are finished with ring type terminals. Both the ground and center lead connections are provided for on this mount. The QD-4 requires just 1/2" (13mm) on the underside so it is the perfect choice for tight area

     All of the machined  are made with half-hard brass and finished with bright nickel-chrome. Insulators are made from rugged nylon and the hardware (bolts, washers) as well as the tension spring are fabricated with stainless steel.



...Discontinued ...

"The importance of the stud mount cannot be over stressed! The antenna stud mount acts as a bridge between the antenna and the coaxial feed line. Accordingly, it needs to allow for efficient transfer of your transmitted and received signals to and from the transceiver. If the stud mount doesn't perform that task efficiently you end up with unneeded loss. And if that isn't enough, the stud mount must be strong enough to withstand all of the stress placed upon it from an antenna that is subject to severe wind load and vibration."
