Base
Sation Antenna
|
|
A-99
Omni-directional Base Antenna
|
Download Manual |

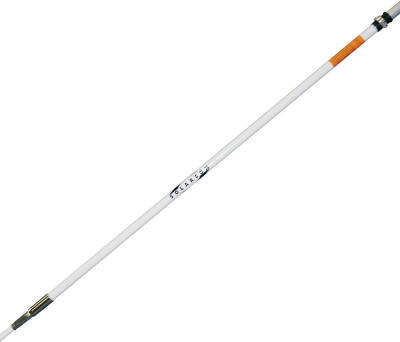

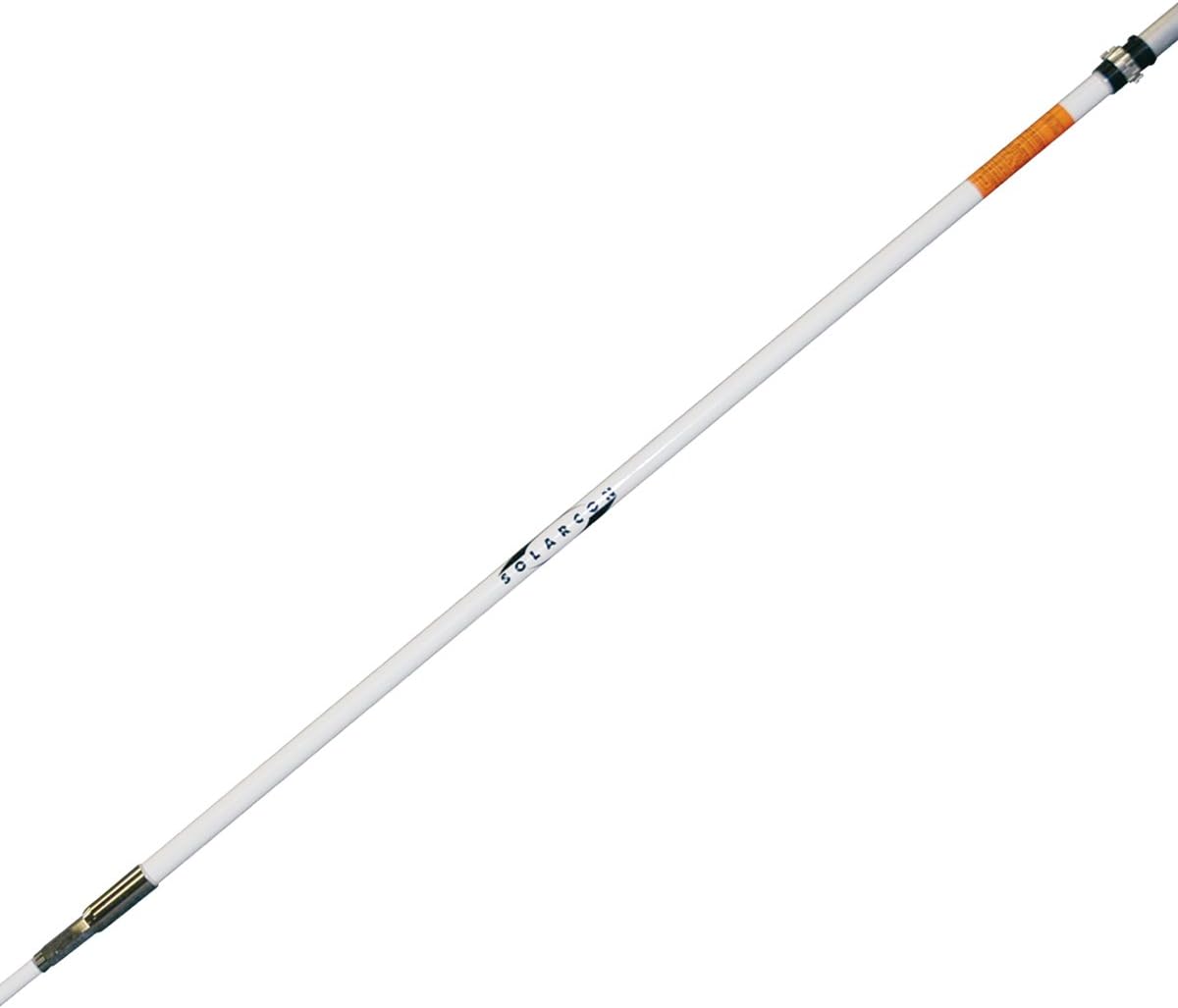

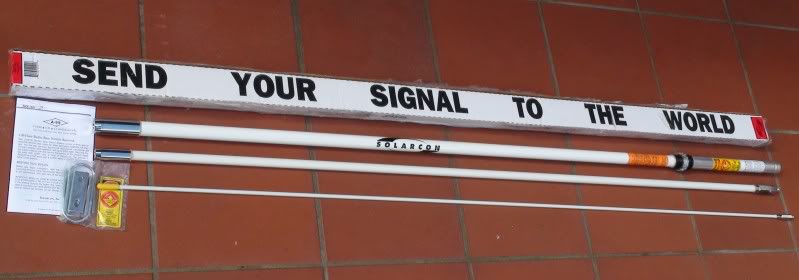

The Solarcon 99 antenna is by far the best selling CB radio Base station
antenna on the market. It's easy to use, easy to tune, and easy to install.
 |
-
1/2 wave over 1/4
-
Omni-Directional
-
Fiberglass (weather tough)
-
Handles 2000 Watts (peak) about 1000 RMS
-
SWR Tunable, 25-32 Mhz.
-
Covers far above and below the traditional CB channels
-
Solarcon claims 9.9 dBi, we believe it to be closer to 3.9
dBi Gain.
-
DC Grounded
-

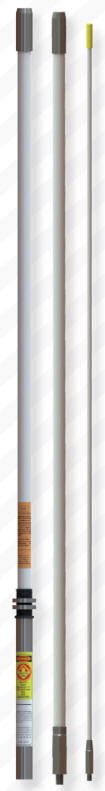

17.34' Tall ( Three Sections )
-
Insulated up to 14,500 Volts
-
UPS Shippable
( 74" x 3" x 2" and 6 lbs.)
|
| |
|
|
|
|
|
...Solarcon
A-99 base Antenna... |
$139.50 |
|
|
...Solarcon
A-99 With the
GPK-1 Ground Radial Kit...
In my humble opinion the A-99 is
basically a modified J-pole type antenna (1/2 wave
over a 1/4) and does not require any added ground
plane radials.
 |
$189.50 |
|
|
Specifications
|
| VSWR |
1.5 or less |
| Gain |
9.9 dBi |
| Tuning |
25.000 - 32.000 Mhz |
| Connector |

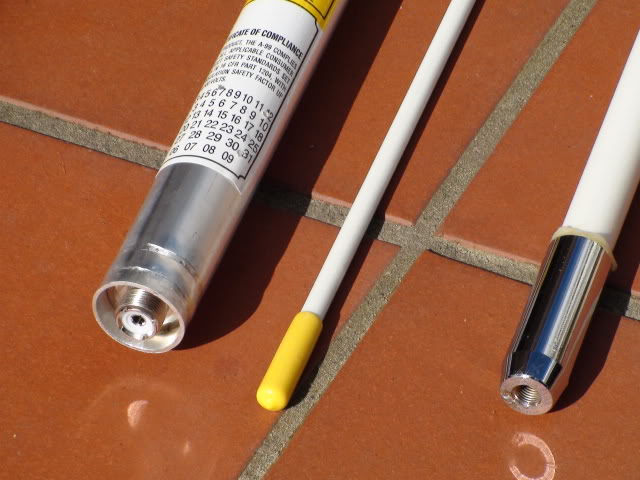

SO-239 (cable not included) |
| Weight |
6 lbs (extra long shipping code) |
|
Can be Used for :
Export
Commercial
10 Meter Ham
CB Radio
|
|
Chat
