Magnum LRD-1012 27" High Gain Antenna For 1012 Radio

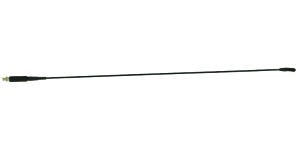

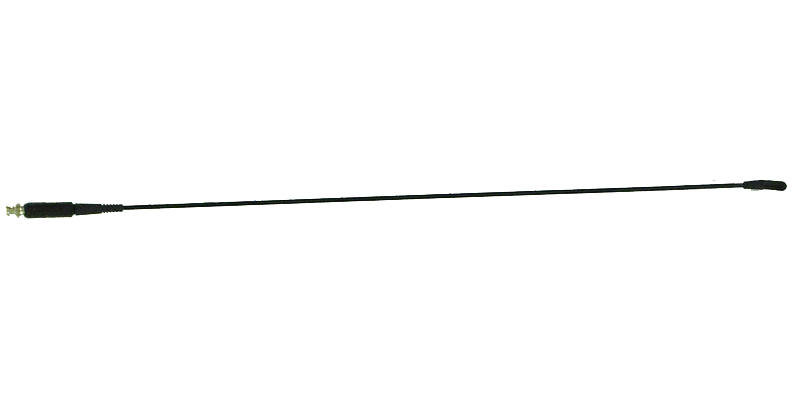

HT-2
Soft flexible Antenna


This 24" rubberized whip will provide better range than the original "rubber duckie" antenna.

It also increases the antenna bandwidth for those multi-extra channel units.

Fits all CB radios with a BNC connector on top:

  • Cobra HH-38, HH Roadtrip,
  • Midland 75-820, 75-822
  • Maxon HCB-40WX, HCB-30C and HCB-10C
  • Cherokee AH-27, AH-100
  • Magnum 1012
  • Northpoint AH-27
  • Many more...

Features

  • Black rubberized.
  • Length 24"
  • Very flexible















Discontinued

...HT-2...

$29.50




GENERAL
Frequency range
Bandwidth at 2:1 SWR points
Connector BNC
Unit Weight (OZ) 1.82
Shipping Weight (OZ) 4



I did a test using an MFJ-259B Antenna analyzer and these are the results:

Factory OEM antenna:

  • Center Frequency Fc = 27.655 MHz with 1.4 SWR
  • Bandwidth at 2:1 SWR points :
    27.205 - 28.525 MHz (1.32 MHz)
  • Non-Adjustable

HT-1 Antenna Extended fully:

  • Center Frequency Fc = 27.025 MHz with 1.2 SWR
  • Bandwidth at 2:1 SWR points :
    25.405 - 31.605 MHz (6 MHz)
  • Adjustable center frequency (change length of the extention)

HT-2 Antenna : (untested)

  • Center Frequency Fc =
  • Bandwidth at 2:1 SWR points :
    --.--- to --.--- MHz
