  Orders with radio work are delayed 3 - 10 days

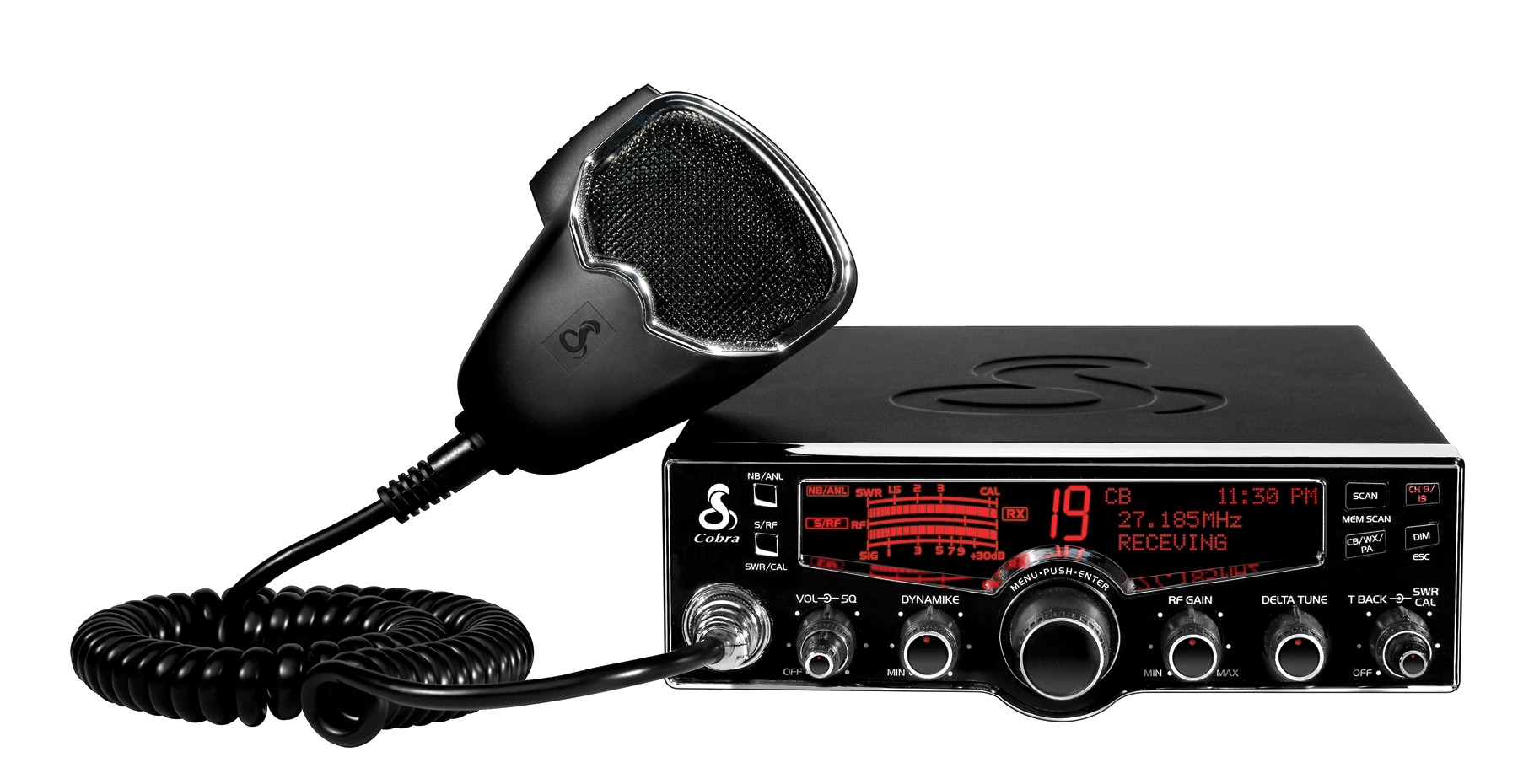

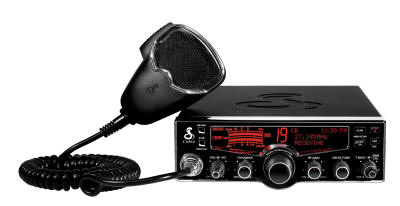

Cobra 29 LTD CLASSIC

29 LX

w/ NEW Surface Mount PCB

Download Manual

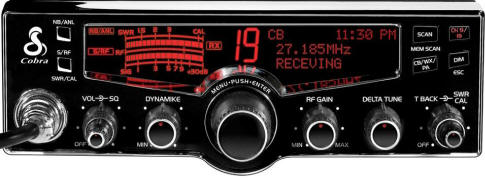

    On the outside, this CB features a completely redesigned, modern look with selectable LCD display that can be red, green, blue or amber to match the interior of a cab. The display also has customizable night and day settings to enhance readability in both very bright and very dark conditions. The 29 LX’s large center scroll knob provides simple one-touch programming of the unit for easy setup and channel changes. Lastly, the 29 LX includes a redesigned ergonomic microphone for easy and comfortable use.

 Internally, the 29 LX is based on the classic 29 LTD with some new added features. The new weather alert scan automatically advances to the next clear NOAA weather channel when driving cross-country, ensuring the driver is always getting the latest weather alerts and warnings. Also new in the 29 LX is the industry’s first and only Radio Check Diagnostic. Now drivers can monitor continuously their radio’s RF output, SWR setting, and battery voltage. Like previous Cobra 29 models, the 29 LX includes 4 Watts AM RF power output, the maximum allowed by law, instant access to emergency channel 9 and information channel 19, as well as Delta Tune to clarify incoming signals and adjustable Dynamike® boost, which increases the microphone’s sensitivity for increased voice clarity.

 Features
  • Technician Friendly
  • Same size as Cobra 29LTD series
  • Same accessories
  • Weather Scan Feature is Dramatically Different
    Automatically advances to the next clear
    Weather channel when driving cross-country
  • Software Controlled Menus
  • 4-color Display
  • All Channel Scan
  • Memory Channels
  • Cobra 29 Reliability

    Radio Check Diagnostic
    INDUSTRY 1ST!

    • Allows monitoring of RF output power
    • SWR (Standing Wave Ratio) of the antenna
    • Battery Voltage
    • Low Battery Alarm

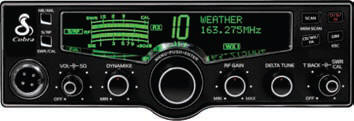

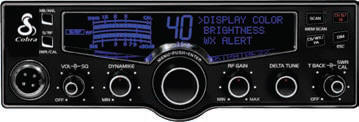

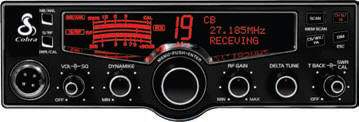

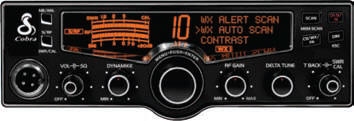

4-color Illuminated LCD Display Allows programming of Blue, Red, Amber or Green display.



Cobra 29LX Gift BoxCobra 29LX Gift Box

Cobra 29LX Gift Box








Tune-up Reports and Custom work done here at BellsCB:
This is a playlist and has multiple videos
 (notice the   button to change to the next video)


The item most overlooked when ordering a custom radio is the microphone.  Your new radio will NOT sound great with a stock mic on it even if you have it tuned.  If your CB is more than a tool for work, you NEED to upgrade your microphone.
My personal favorites are the Astatic 636L and RD104E.


SPECIFICATIONS
Unit Dimensions: 7-1/4 x 2-1/4 x 8-5/8
Microphone Type: 4 Pin Screw-On Dynamike
Frequency Control: Phase Lock Loop Synthesizer
RF Output Power: 4 Watts (Maximum FCC allowed)
CB Channels: 40 Channels (26.965 to 27.405 MHz)
Individual Carton
Dimension: (in) 		11-7/8 x 13-1/8 x 2-3/4



CB Microphone Wiring (Galaxy)

... Cobra 29 LX...

 $159.50





Optional Accessories
Tune-up. Perform a tune-up to radio to increase power, audio and performance.  $29
Switch Option
Dead Key
  Low Dead Key (carrier). (perform a tune-up to radio to increase peak power with loud audio a lower carrier (dead key). This is perfect to match many amplifier types. $49
or
 $59
 		 VARIABLE POWER Install a power regulator / super modulator circuit and a new variable rear control. Perform a tune-up to the radio. Increased peak power  and audio  performance. Smooth Variable AM carrier from 1/2w to 5 watts variable. $79
SOLD OUT
 Cobra 29LTD with RFXRFX-95HD2. Install a completely new final section consisting of a high power MOSFET and perform a tune-up to the entire radio to increase power, audio and performance with an AM carrier of 15 watts with 90+ watts peak power.
 Amp on/off switch in the back. 		$189
 Change factory power cord to a 10 Gauge Power Cord (14 foot) and modify the DC Jack for high amperage 2 Pin Quick connector. A 3300uF Capacitor is also added for additional DC filtering. This is only helpful when you have the RFX-95HD2 and is NOT required for a stock radio
 10G power cordStryker SR-955 Power Cord UpgradeStryker SR-955 Power Cord UpgradeStryker SR-955 Power Cord Upgrade		 $59
RFX Fans FAN KIT Installed Install TWO- 40 x 40 x 20mm Black Fans with a switch for on/off combined with the amp on/off switch.I use also a relay isolated low noise power input system. $79
RK-56  Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)		 $46
636L Mic  Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)		 $29
RD104E  Astatic RD104-E Amplified microphone.
 (wired for this radio with a 4 pin plug and a battery installed)		 $46
 Install an Echo Board (Side)
(wired internal to the radio with dual controls on the left side to control speed and echo effects)		 $65
or
$75
 Install an Echo Board. (FRONT)
(wired internal to the radio with dual control pot that is Cobra part so fits in the front. Matching factory knobs also used.		 $85
or
$95
Sound Byte link
  Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 30 second sound byte you want)		 $65
Sound Byte link
  Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)		 $65
  Install a Roger Beep  Module (wired inside the radio using a switch in the back for on/off) $79
SOLD OUT
  Install a Record/Playback Module 120 seconds (wired inside the radio with  a switch on the side to record 120 seconds and to play it back) $77
small speaker  Add a Small External Speaker
 (plugs into back of the radio for improved sound)		 $12
Large Speaker  Add a Large External Speaker
 (plugs into back of the radio for improved sound)		 $25
Chrome covers  Exchange the top and bottom covers to Chrome Covers. $32
Diamond Plate Covers Exchange the top and bottom covers to Diamond Plate Covers. $22
Klink Bracket K-Link Radio Supports makes for a great Table top base station $25


Tuned up values on these watt meters
Dosy Bird RMS *Bird
Peak
AM 5w 5w 5w
Peak 8w 5.5w 19w
* Most informative and the one we use.
05/28/24






Selectable 4-Color LCD Display Choose from four easy-to-read display colors: red, blue, green and amber.
10 NOAA Weather Channels Instant access to 10 National Weather Channels, 24 hours a day, in all 50 states.
Emergency Weather Alert Alerts you if threatening weather is nearby with an alert tone even if CB is turned off.
Talk Back This control is used to adjust the desired amount of modulation talk back that is present at the speaker during transmit
Weather Alert Scan Automatically scans for the nearest weather alert signal.
Radio Check Diagnostic Allows testing of important radio functions such as RF power, antenna condition and battery voltage.
Memory Channel Scan Allows scanning of up to 10 channels stored in memory.
Memory Channels Stores up to 10 frequently used channels.
Selectable Key Tone Allows key tone to be turned on or off.
Day / Night Dimmer Control Adjusts brightness of the front panel for day and night driving.
SWR Calibration Allows calibration of antenna system for maximum performance.
Channel Scan Allows scanning of all 40 channels.
Auto Weather Scan Automatically scans for the weather band for the strongest signal.
Frequency Display Displays operating channel frequency of CB and weather band.
9 Foot Microphone Cord For easy reach within any area of the vehicle.
4-Pin Front Microphone Connector Allows convenient installation to be in dash or under dash.
Adjustable Dynamike Boost Dynamically boosts microphone for increased voice clarity.
Tactile Controls Allows you to actually feel where the dial is in it's rotation without taking your eyes off the road.
PA Capability Use CB radio as a Public Address System with PA speaker. Receive signals can also be monitored through PA.
RF Gain Adjusts receive gain in weak and strong signal areas.
Switchable Noise Blanker For increased noise reduction.
Dimmer Control Adjusts brightness of the front panel, channel display and signal strength meter.
4 Watts AM RF Power Output The maximum allowed by law.
Antenna Warning Indicator Illuminates when antenna needs checking.
Instant Channel 9 and 19 Instant access to emergency channel 9 and information channel 19.
Delta Tune Used to clarify incoming signals



Cobra 2 Year Warrantee

For Operational or Technical Assistance with a Cobra Product call Cobra at 1-773-889-3087. You'll find answers to many of your questions in our Their FAQ's section. Cobra's automated help desk is available 24 hours a day 7 days a week. Live operators are available Monday through Friday 8 AM to 8 PM CST
