Cobra 29 LTD CLASSIC

29 LX MAX

...Discontinued...

Download Manual

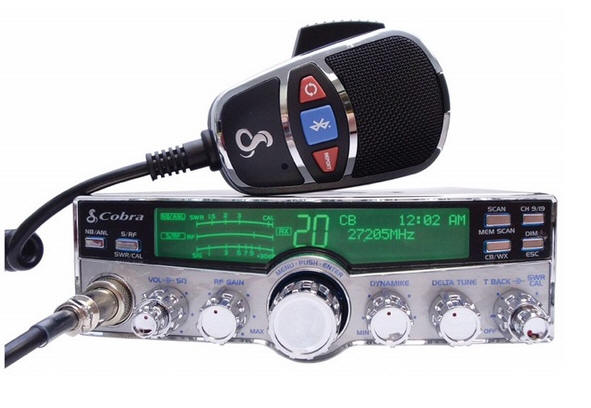

The Cobra 29LXMAX transceiver represents one of the most advanced AM two-way radios used as a Class D station in the Citizens Radio Service. This unit features advanced Phase Lock Loop (PLL) circuitry providing complete coverage of all 40 CB channels.

 Features

  • Selectable 4-Color LCD Displayy
  • Advanced Bluetooth ® Connectivity
  • Rewind-Say-Again®
  • Memo Record
  • iRadar App Integration
  • Report Feature
  • NightWatch® Illumination
  • 10 Weather Channels
  • Weather Scan
  • Emergency Weather Alert
  • 40 CB Radio Channels
  • 40 Channel Scan
  • Memory Channels
  • Channel Frequency Read-Out
  • Radio Check Diagnostic
  • Clock/Timer/Alarm
  • Multi-Function Heavy-Duty Electret Microphone with Phone, Rewind-Say-Again® & Report Functions
  • Full 4 Watts AM RF Power Output
  • SWR Calibration Meter
  • Instant Channel 19 and 9
  • Front Panel 6-Pin Microphone Connector
  • Switchable Automatic Noise Limiter & Noise Blanker
  • Adjustable Dynamike Boost
  • Tactile Controls
  • 9 Ft Mic Cord
  • Programmable Dimmer Control
  • RF Gain
  • External Push-To-Talk Jack
  • External Microphone Jack

Bluetooth® Features

  • Dual Point Bluetooth®
  • Caller I.D.
  • A2DP Audio Streaming
  • Phone Directory

























... Cobra 29 LX MAX...

...Discontinued...

 $199.95



Optional Accessories

Tune-up. Perform a tune-up to radio to increase power, audio and performance.  AM carrier 6 watts and 25-30 watts peak power. $29

 NEW MOSFET Final. (perform a tune-up to radio to increase power, audio and performance and replace the bipolar transistor final with a higher power MOSFET)AM carrier 6 watts and 38-45 watts peak power. $59
Switch Option
Dead Key
  Low Dead Key (carrier). (perform a tune-up to radio to increase peak power with loud audio a lower carrier (dead key). This is perfect to match many amplifier types. $49
or
 $59
 		 VARIABLE POWER Install a power regulator / super modulator circuit and a new variable rear control. Perform a tune-up to the radio. Increased peak power  and audio  performance. Smooth Variable AM carrier from 1/2w to 6 watts variable. $79

 Perform Receiver improvement mods.
(These mods replace key RX parts for better sensitivity and selectivity)		 $26

 Install a Lescomm 120 Channel Frequency Kit
(This mod adds a 3 position switch to the left side of the radio to access 120 channels) Tune-up Included.		 $129
 Install an Echo Board (Side)
 (wired internal to the radio with dual controls on the left side to control speed and echo effects)		 $65
or
$75
Sound Byte link
SOLD OUT
 Install a Noise toy
 (wired inside the radio with a switch or pushbutton to trigger any 30 second sound byte you want)		 $65
Sound Byte link

SOLD OUT
 Install a Noise toy as a background theme music
 (wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)		 $65
SOLD OUT
  Install a Record/Playback Module 120 seconds (wired inside the radio with  a switch on the side to record 120 seconds and to play it back) $77
 Add a Small External Speaker
 (plugs into back of the radio for improved sound)		 $12
 Add a Large External Speaker
 (plugs into back of the radio for improved sound)		 $25
 Install Star-Bryte Knobs 6 Knob set NO LED RINGS, these will get light and color from the radios lbackight. $54



Tuned up values on these watt meters
Dosy Bird RMS *Bird
Peak
AM 6w 6w 6w
Peak 12w 6.5w 25w
Peak w/
MOSFET		 22w 8w 38w
* Most informative and the one we use.






SPECIFICATIONS
Unit Dimensions: 7-1/4 x 2-1/4 x 8-5/8
Microphone Type: 4 Pin Screw-On Dynamike
Frequency Control: Phase Lock Loop Synthesizer
RF Output Power: 4 Watts (Maximum FCC allowed)
CB Channels: 40 Channels (26.965 to 27.405 MHz)
Individual Carton
Dimension: (in) 		11-7/8 x 13-1/8 x 2-3/4



Selectable 4-Color LCD Display Choose from four easy-to-read display colors: red, blue, green and amber.
10 NOAA Weather Channels Instant access to 10 National Weather Channels, 24 hours a day, in all 50 states.
Emergency Weather Alert Alerts you if threatening weather is nearby with an alert tone even if CB is turned off.
Talk Back This control is used to adjust the desired amount of modulation talk back that is present at the speaker during transmit
Weather Alert Scan Automatically scans for the nearest weather alert signal.
Radio Check Diagnostic Allows testing of important radio functions such as RF power, antenna condition and battery voltage.
Memory Channel Scan Allows scanning of up to 10 channels stored in memory.
Memory Channels Stores up to 10 frequently used channels.
Selectable Key Tone Allows key tone to be turned on or off.
Day / Night Dimmer Control Adjusts brightness of the front panel for day and night driving.
SWR Calibration Allows calibration of antenna system for maximum performance.
Channel Scan Allows scanning of all 40 channels.
Auto Weather Scan Automatically scans for the weather band for the strongest signal.
Frequency Display Displays operating channel frequency of CB and weather band.
9 Foot Microphone Cord For easy reach within any area of the vehicle.
4-Pin Front Microphone Connector Allows convenient installation to be in dash or under dash.
Adjustable Dynamike Boost Dynamically boosts microphone for increased voice clarity.
Tactile Controls Allows you to actually feel where the dial is in it's rotation without taking your eyes off the road.
PA Capability Use CB radio as a Public Address System with PA speaker. Receive signals can also be monitored through PA.
RF Gain Adjusts receive gain in weak and strong signal areas.
Switchable Noise Blanker For increased noise reduction.
Dimmer Control Adjusts brightness of the front panel, channel display and signal strength meter.
4 Watts AM RF Power Output The maximum allowed by law.
Antenna Warning Indicator Illuminates when antenna needs checking.
Instant Channel 9 and 19 Instant access to emergency channel 9 and information channel 19.
Delta Tune Used to clarify incoming signals









Cobra 2 Year Warrantee

For Operational or Technical Assistance with a Cobra Product call Cobra at 1-773-889-3087. You'll find answers to many of your questions in our Their FAQ's section. Cobra's automated help desk is available 24 hours a day 7 days a week. Live operators are available Monday through Friday 8 AM to 8 PM CST
