  Orders with radio work are delayed 3 - 10 days

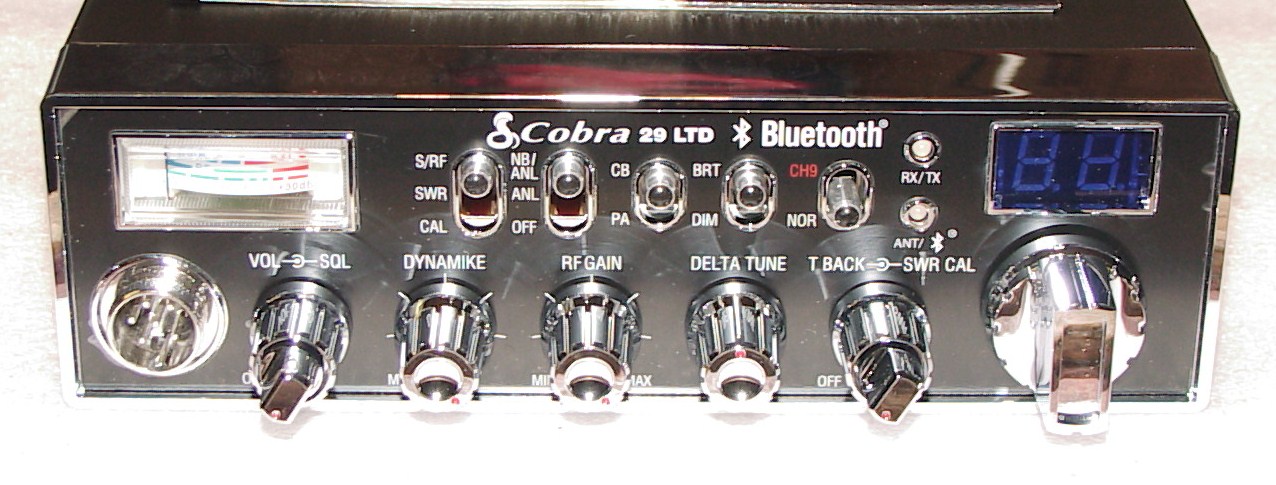

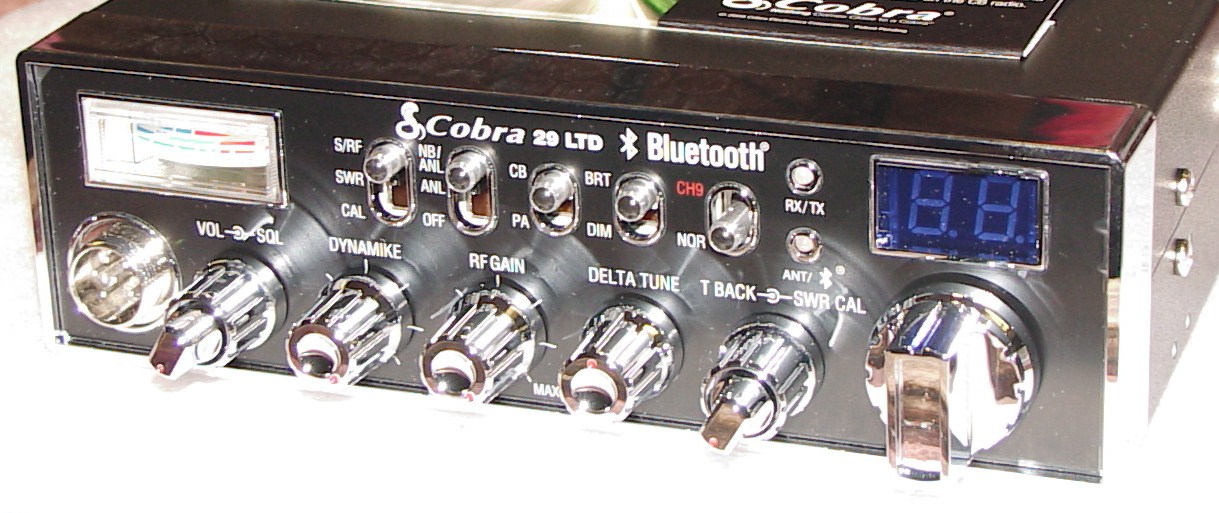

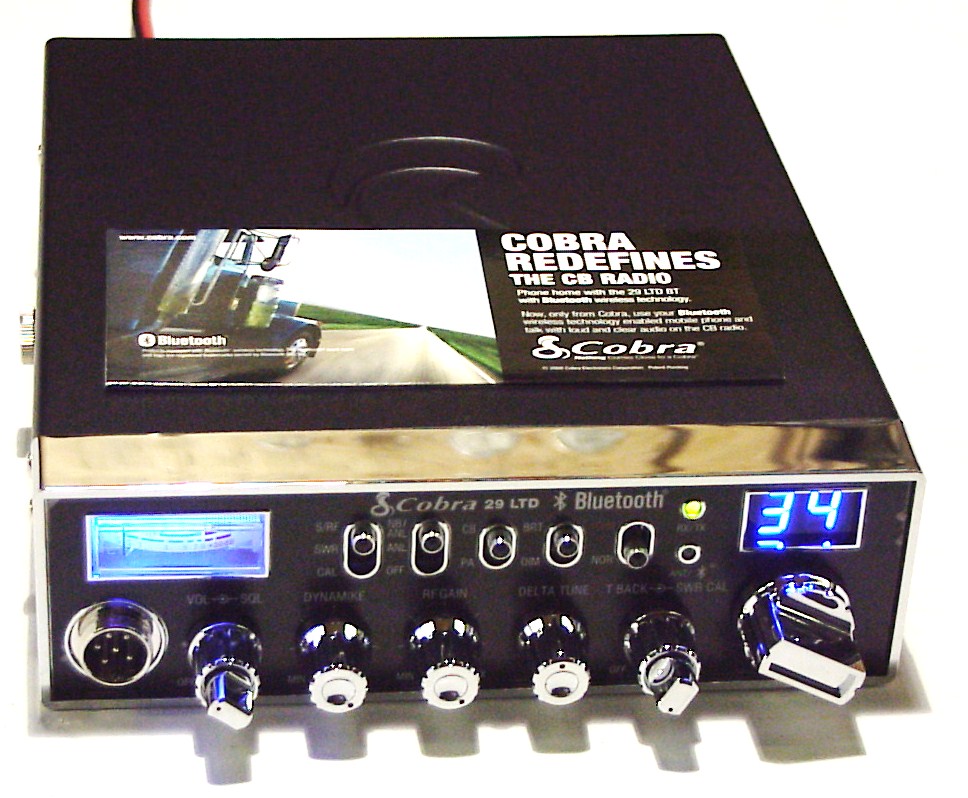

Cobra 29 LTD CLASSIC


29 LTD BT with Bluetooth® Wireless Technology

29 LTD BT

Bluetooth
Mobile CB Radio

... Discontinued...

Download Manual

 Features
Cobra is giving professional drivers one more way to communicate safely and easily with the first-ever CB radio with Bluetooth technology - the new 29 LTD BT. The Bluetooth feature allows drivers a better way to have phone conversations on the road because calls from a mobile phone are synched with the CB radio. A noise canceling microphone allows calls to be heard loud and clear, even over a noisy engine. Incoming audio is routed through the radio's 5-Watt CB speaker making it easy for the driver to hear the caller. The unit also provides one-touch Bluetooth operation, giving drivers the ability to stay focused on the road by answering and terminating calls with the push of one button. An auto-redial feature also allows for one-touch redialing of the last number called.

The new unit offers 4 Watts AM RF power output, the maximum amount of power allowed by law; Talk Back controls allowing drivers to adjust the desired amount of modulation talk back; a Blue Channel indicator displaying channel selection in cool blue illumination; and Delta Tune which is used to clarify incoming signals. The 29 LTD BT is redefining the CB radio!



  • SWR Calibration - Allows calibration of antenna system for maximum performance.
  • 9 Foot Microphone Cord - For easy reach within any area of the vehicle.
  • Front Microphone Connector - Allows convenient installation to be in dash or under dash.
  • Adjustable Dynamike Boost - Dynamically boosts microphone for increased voice clarity.
  • Tactile Controls - Allows you to actually feel where the dial is in it's rotation without taking your eyes off the road.
  • PA Capability - Use CB radio as a Public Address System with PA speaker. Receive signals can also be monitored through PA.
  • RF Gain - Adjusts receive gain in weak and strong signal areas.
  • Switchable Noise Blanker - For increased noise reduction.
  • Dimmer Control - Adjusts brightness of the front panel, channel display and signal strength meter.
  • 4 Watts AM RF Power Output - The maximum allowed by law.
  • Antenna Warning Indicator - Illuminates when antenna needs checking.
  • Instant Channel 9 - Instant access to emergency channel 9
  • Delta Tune - Used to clarify incoming signals.
  • Talk Back - This control is used to adjust the desired amount of modulation talk back that is present at the speaker during transmit.
  • Blue Channel Indicator - Displays channel selection in cool blue illumination.
  • Bluetooth® Wireless Technology  - Allows you to make and receive phone calls through the CB radio with most Bluetooth phones.
  • One-Touch Bluetooth Operation - Allows answering and terminating call with a push of a button.
  • Loud and Clear Incoming Audio - Phone calls are heard through the 5 watt CB speaker.
  • Noise Canceling Microphone - Allows crystal clear communication in a noisy environment.
  • Auto Redial - One-touch redial of last phone number dialed.

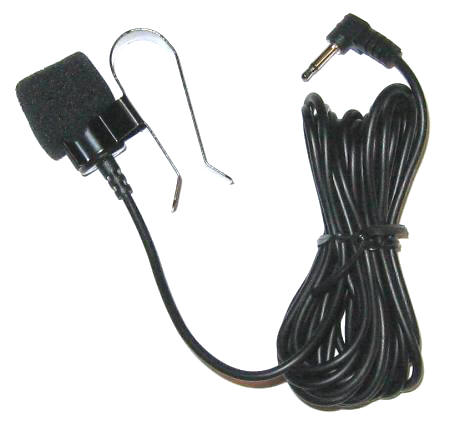

External Microphone
  • External microphone for Bluetooth operation.
  • Works with the following models:
    • 29 LTD BT
    • 29WXNWBT
  • Mounting clip
  • 10-foot cable.
  • Plugs directly into your Cobra unit.
External Microphone for Bluetooth Models

... EXT mic ...

$24.50

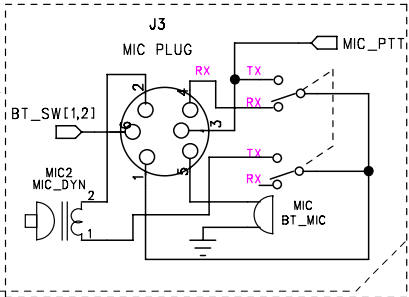

Cobra 29LTD BT Mic Wiring Diagram

... Discontinued...

$144.50


New! DM-1000 BT Echo Mic New!

Optional Accessories

 Tune-up. Perform a tune-up to radio to increase power, audio and performance.  AM carrier 5 watts and 23-25 watts peak power. $29

 NEW MOSFET Final. (perform a tune-up to radio to increase power, audio and performance and replace the bipolar transistor final with a higher power MOSFET) AM carrier 6 watts and 38-45 watts peak power. $59

VARIABLE POWER Install a power regulator / super modulator circuit and a new variable front panel control. Installed in the delta tune location. perform a tune-up to the radio. Increased peak power  and audio  performance. Smooth Variable AM carrier from 1/2w to 6 watts variable. $79
SOLD OUT
RFX-95 Final. Install a completely new final section consisting of a high power MOSFET and perform a tune-up to the entire radio to increase power, audio and performance with an AM carrier of 20 watts with 90+ watts peak power. $189

 Perform Receiver improvement mods.
(These mods replace key RX parts for better sensitivity and selectivity)
$26

 Install a Lescomm 120 Channel Frequency Kit
(This mod adds a 3 position switch or you can use the NB/ANL switch to access 120 channels) Tune-up included
$129
 Install an Echo Board.
(Front Delta Tune location)

(wired internal to the radio with dual controls in the front  to control speed and echo effects))
$65
or
$75
Switch location
 Install Talkback
(wired inside the radio so that when you talk you can hear yourself. If you chose an Echo or a Recorder mod, I highly suggest this as well)
$10
or
$15
or
$20
SOLD OUT
  Install a Record/Playback Module 120 seconds (wired inside the radio with  a three way switch on the side to record 120 seconds and to play it back) $77

Sound Byte link


SOLD OUT
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 30 second sound byte you want)
$79

Sound Byte link


SOLD OUT
 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
  Install a Roger Beep  Module (wired inside the radio using the CH9 switch for on/off) $79
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25
Colors

SOLD OUT
Install  Star Brite Knobs with dimmer control. Includes a 6 Knob set , parts and labor. $154



Tuned up values on these watt meters
Dosy Bird RMS *Bird
Peak
AM 6w 6w 6w
Peak 12w 6.5w 25w
Peak w/
MOSFET
22w 8w 38w
*
Most informative and the one we use.



SPECIFICATIONS
Unit Dimensions: 7-1/4 x 2-1/4 x 8-5/8
Microphone Type: 4 Pin Screw-On Dynamike
Frequency Control: Phase Lock Loop Synthesizer
RF Output Power: 4 Watts (Maximum FCC allowed)
CB Channels: 40 Channels (26.965 to 27.405 MHz)
Individual Carton
Dimension: (in)
11-7/8 x 13-1/8 x 2-3/4



Cobra 2 Year Warrantee

For Operational or Technical Assistance with a Cobra Product call Cobra at 1-773-889-3087. You'll find answers to many of your questions in our Their FAQ's section. Cobra's automated help desk is available 24 hours a day 7 days a week. Live operators are available Monday through Friday 8 AM to 8 PM CST
