Mobile CB Radio


MC KINLEY USA 12/24V (Orange)

Click for larger image

McKinley USA
AM/USB/LSB  CB Radio



  Download Manual

MC KINLEY USA - 12/24V




Features

- 40 channels AM / SSB
- 12 / 24 V
- Channel rotary switch
- Volume adjustment and ON/OFF
- Manual squelch and ASC
- Multi-functions LCD display
- S-meter
- ANL filter , NB and HI-CUT
- Channels and memories scan
- 3 Memories
- F function key
- Beep Function
- Dual watch
- Preset 9/19
- Talkback
- Tone
- Weather channel with Alert
- Front microphone plug
- External loudspeaker jack
- Front loudspeaker

Backlight color:

Orange Green Blue



Warranty Duration 2 + 3 years.




ASC2+3 years warrantyRoHS - Lead FreeMurata inside



Click for larger images

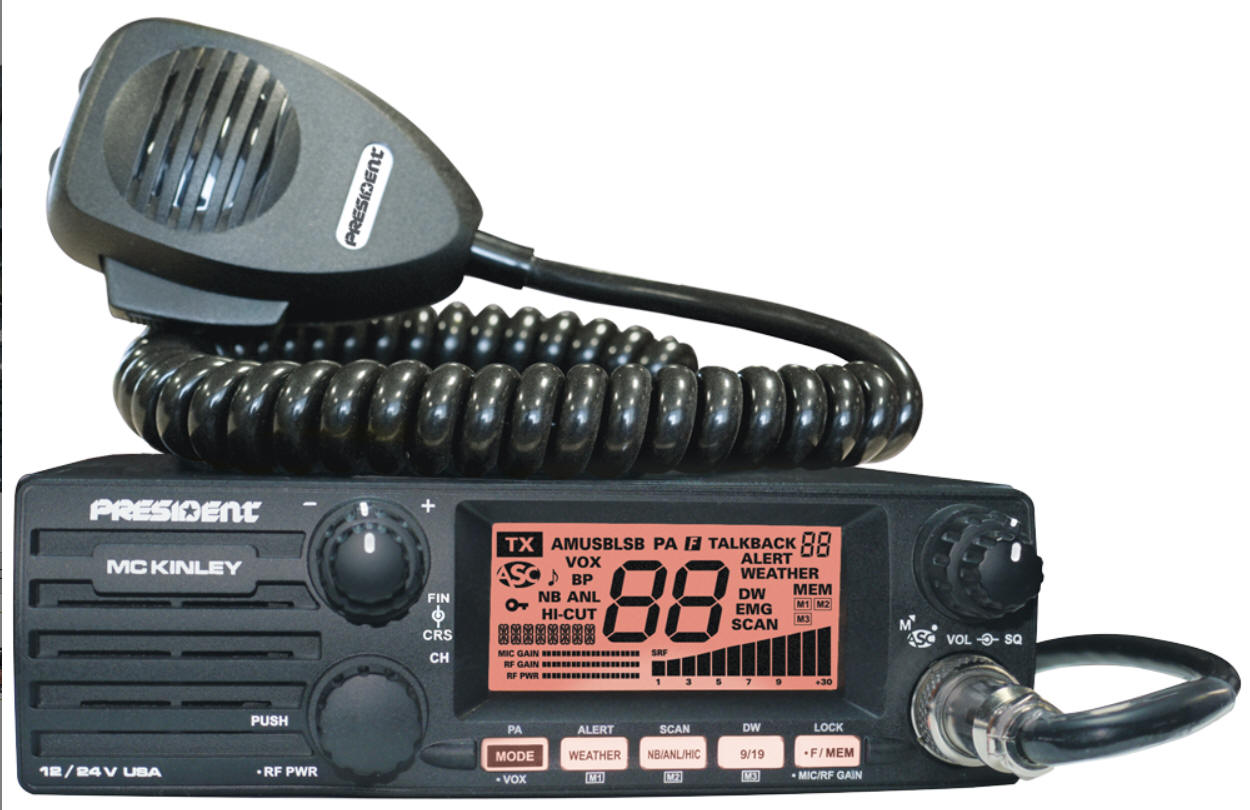

MC KINLEY USA 12/24V (Orange)

Click for larger images

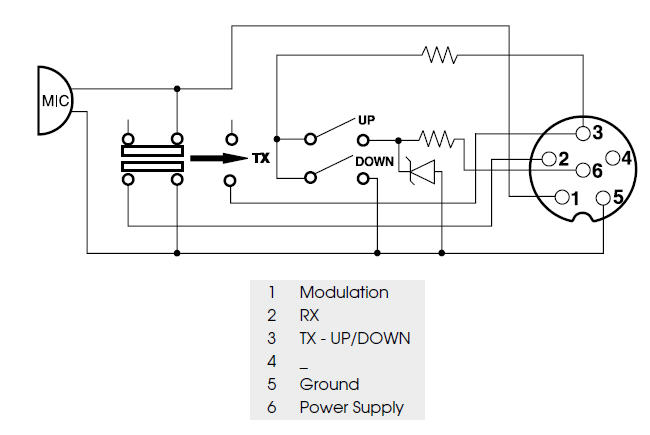

Mic wiring diagram:




SOLD OUT

... McKinley CB Radio...
$199.50





Optional Accessories

 Tune-up. Perform a tune-up to radio to increase power, audio and performance  (See Tune-up chart below) $29

With buttons?

 Astatic RD104-E Amplified microphone.
(wired with a 6 pin plug and a battery installed). Choose if you want Channel Up and Down buttons installed in the microphone.
$57
or
$99
SOLD OUT
EC2018XTR Xtreme Echo microphone.
(wired for this radio with a 6 pin plug and a battery installed)
$86
SOLD OUT
  Install a Record/Playback Module 18 seconds (wired inside the radio with  two pushbuttons on the side to record 18 seconds and to play it back) $77

Sound Byte link address


SOLD OUT
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger
 any 18 second sound byte you want)
$65

Sound Byte link address


SOLD OUT
 Install a Noise toy as a background theme music (wired inside the radio with a switch to play any background
 music at very low volume so you can talk over it.)
$65

 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12

 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25

Your Gmail

Tune-up VIDEO. Make a completion video to show tune-up levels and modifications. To be posted on YouTube, Subscribe to my YouTube Channel for notice. $19

Tuned up values on these watt meters
Dosy Bird RMS *Bird Peak
AM 1 ~ 5w 1 ~ 5w 1 ~ 5w
SSB 1.5 ~ 9w 6 ~ 30w 4 ~ 18w
PEAK AM 3.5 ~ 11w 2 ~ 6w 12 ~ 21w
* The most informative and the one we use.



Warranty Duration 2 + 3 years.


WARRANTY SERVICE IN USA FOR 1 to 5 YEARs:


KDC SALES
17294 FM 3083
CONROE TX. 77302
936-231-3753
