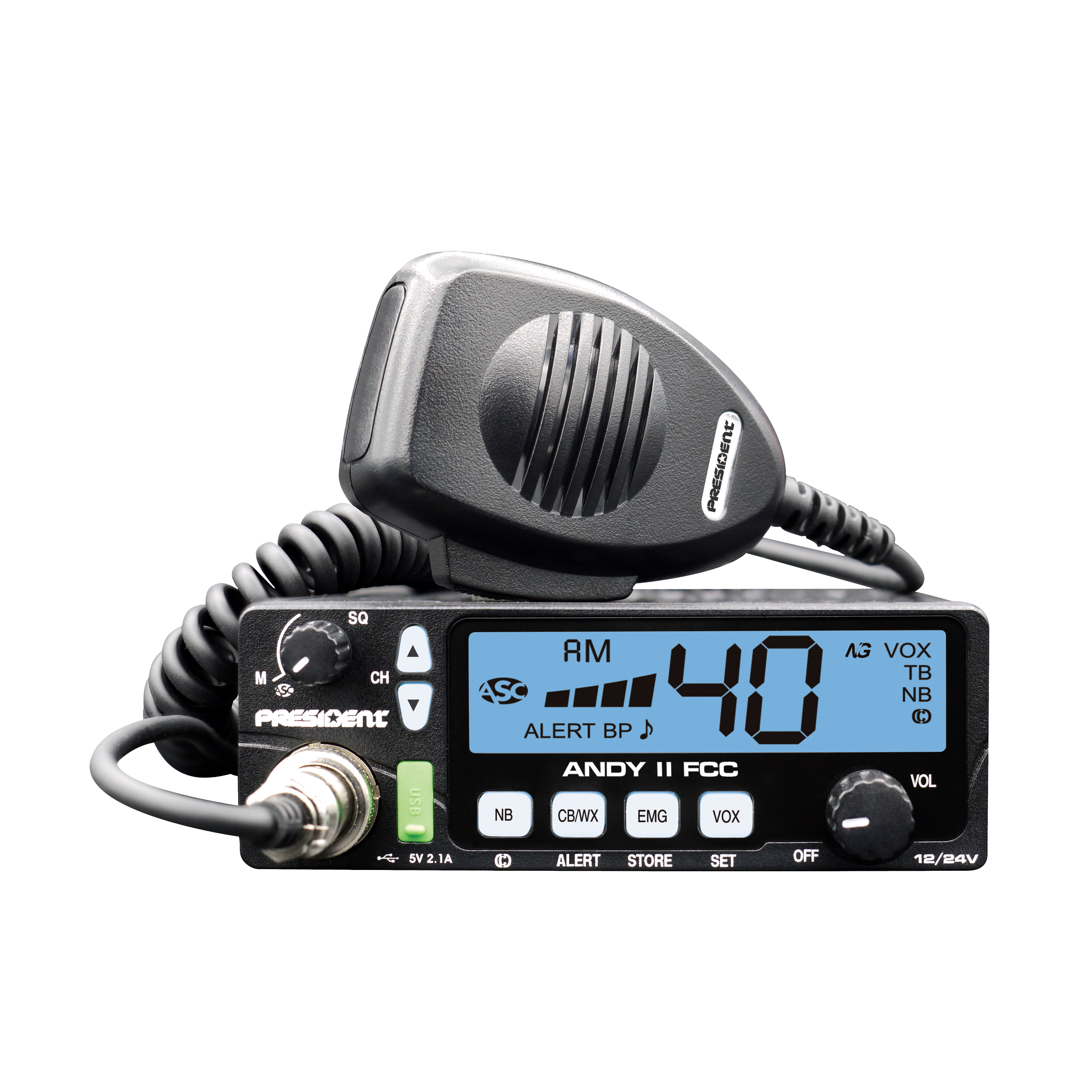

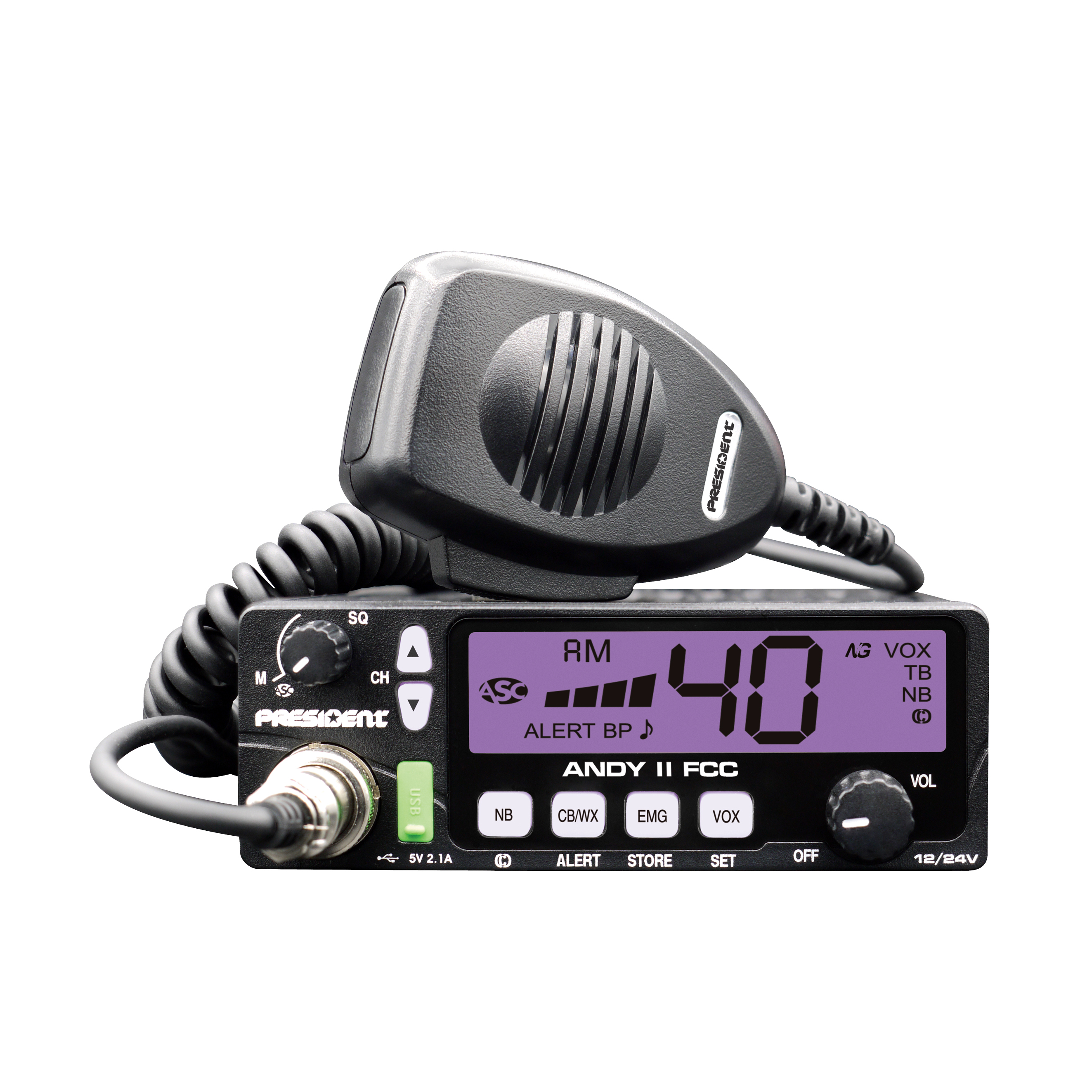

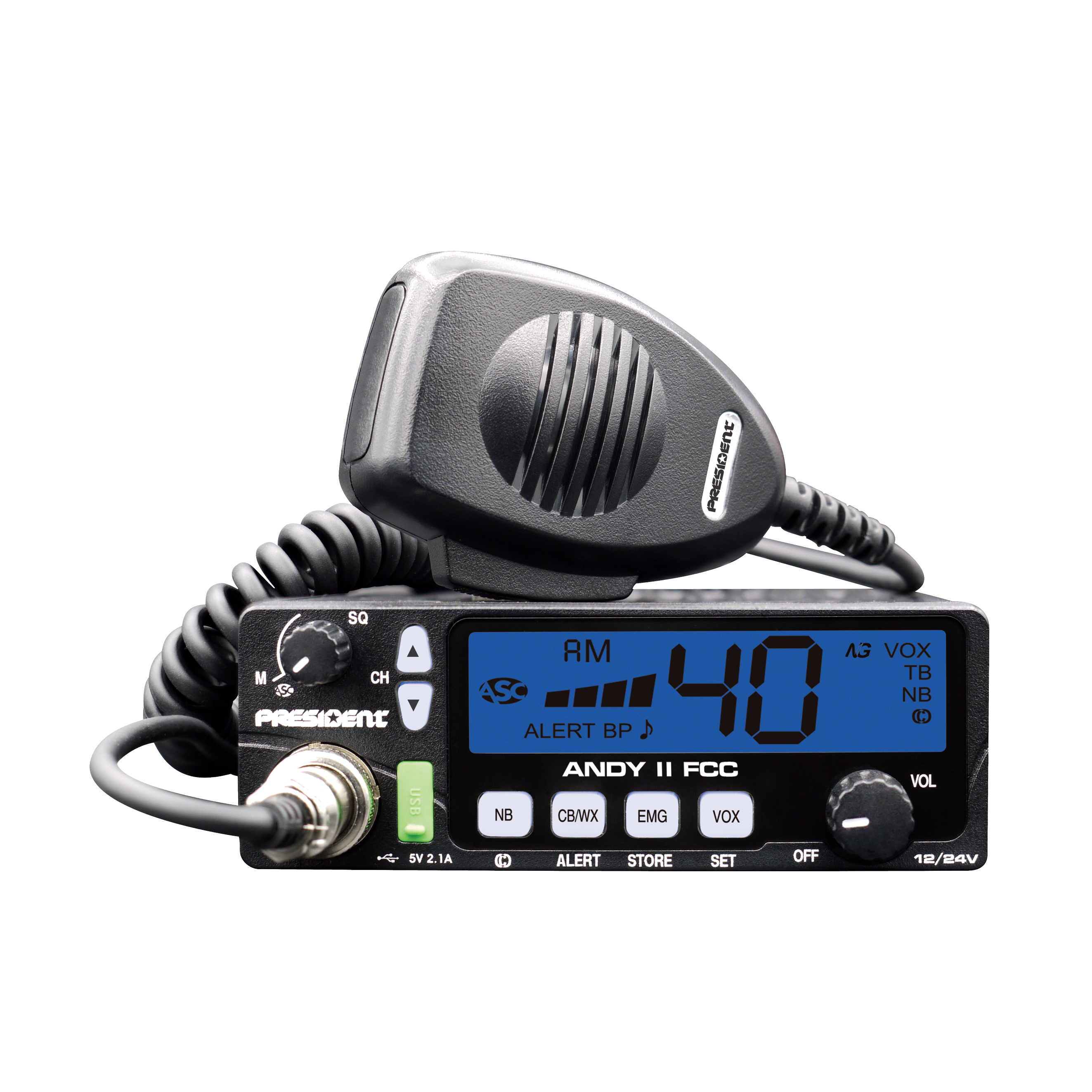

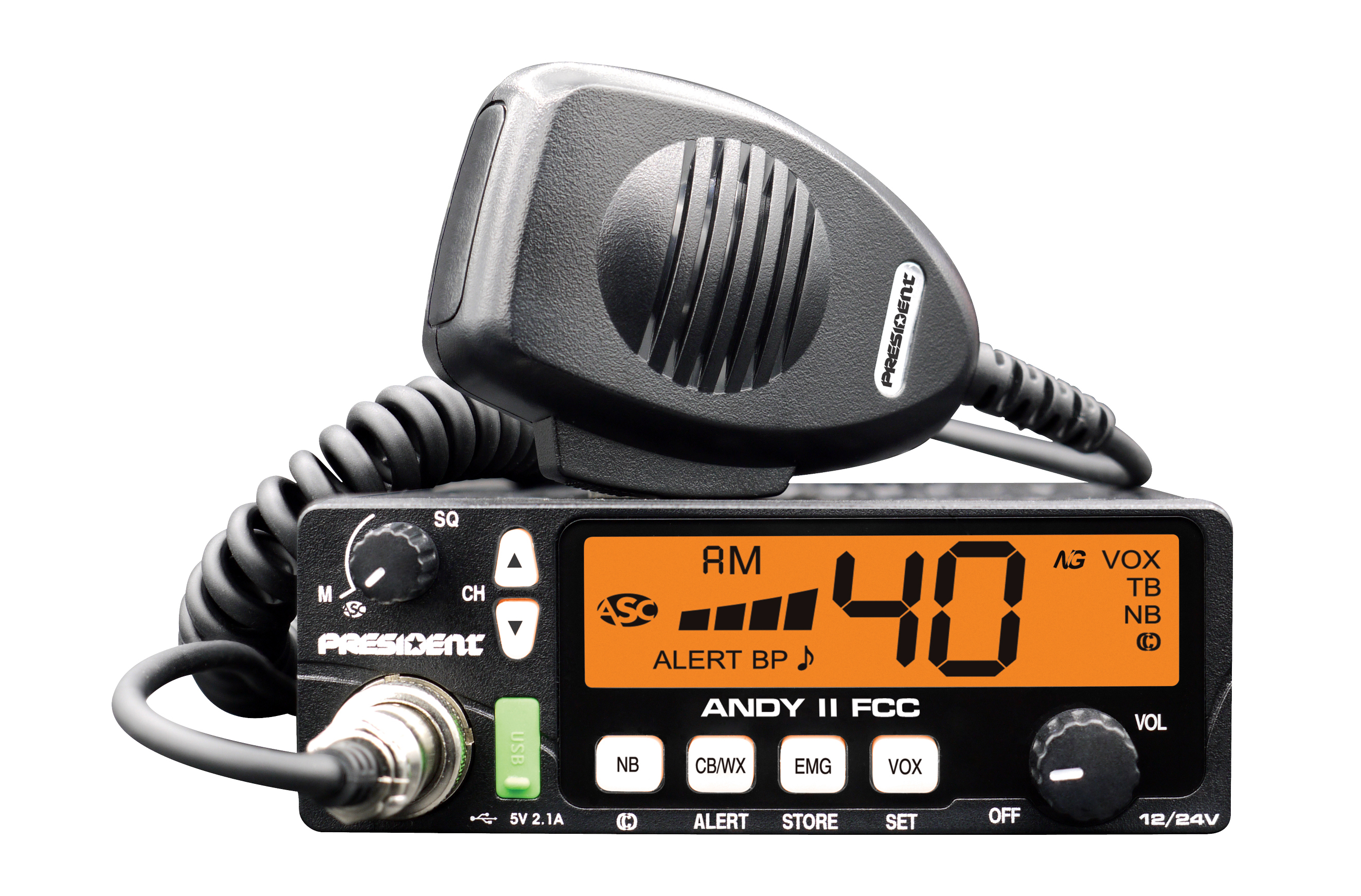

Mobile CB Radio

ANDY II FCC - Orange

Click for larger image

Andy II
AM  CB Radio

... On Sale Now !!! ...

  Download Manual


Features



- 40 channels AM
- 12 / 24 V
- Up/down channel selector
- Volume adjustment and ON/OFF
- Manual squelch and ASC
- Multi-functions LCD display
- S-meter
- ANL filter , NB
- Compander
- Noise Gate
- F function key
- Beep Function
- EMG programmable
- Talkback
- Public Address
- Weather channel with Alert
- Front microphone plug
- External loudspeaker jack

Back light color:













ASC2+3 years warrantyRoHS - Lead Free









President extends the warranty to 5 years, when a consumer buys a President radio and antenna together.

WARRANTY SERVICE IN USA FOR 1 to 5 YEARs from President

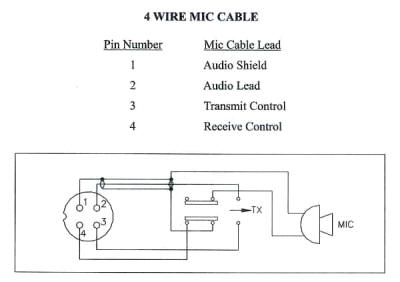

Mic wiring diagram:




SOLD OUT
... Andy II...
... On Sale Now !!! ...
Place in Cart to see sale price !!!
$89.50
Warranty Duration 2 + 3 years.

Optional Accessories

With buttons?

 Astatic RD104-E Amplified microphone.
(wired with a 6 pin plug and a battery installed). Choose if you want Channel Up and Down buttons installed in the microphone.
$57
or
$99
SOLD OUT
EC2018XTR Xtreme Echo microphone.
(wired for this radio with a 6 pin plug and a battery installed)
$86

SOLD OUT
  Install a Record/Playback Module 18 seconds (wired inside the radio with  two pushbuttons on the side to record 18 seconds and to play it back) $77

Sound Byte link address

SOLD OUT
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger
 any 18 second sound byte you want)
$65

Sound Byte link address

SOLD OUT
 Install a Noise toy as a background theme music (wired inside the radio with a switch to play any background
 music at very low volume so you can talk over it.)
$65

 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12

 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25

Your Gmail

Tune-up VIDEO. Make a completion video to show tune-up levels and modifications. To be posted on YouTube, Subscribe to my YouTube Channel for notice. $19



General
Number of channels : 40 AM CHANNELS
Number of weather channels : 7
Weather alert :  YES
Modulation modes : AM
Frequency ranges : from 26.965 MHz to 27.405 MHz
Weather channels : from 162.400 MHz to 162.550 MHz
Antenna impedance : 50 ohms
Power supply : 13.8 V / 27.6 V
Size (W x D x H) : 4.92 (W) x 6.89 (D) x 1.77 (H) inches / 125 (W) x 175 (D) x 45 (H) mm
Weight : ~ 1.98 lbs / 0.9 kg
Accessories supplied : Ultra light electret microphone with support, mounting cradle, screws
Filter : ANL (Automatic Noise Limiter) built-in
Transmission
Frequency allowance : +/- 200 Hz
Carrier power : 4 W RMS
Transmission interference : inferior to -60 dBc
Audio response : 300 Hz to 3 KHz
Emitted power in the adj. channel : inferior to 20 μW
Microphone sensitivity : 3 mV
Drain : 1.8 A at 13.8 V / 0.9 A at 27.6 V
Modulated signal distortion : 1.8 %
Reception
Maxi. sensitivity at 20 dB sinad : 0.6 μV - 111 dBm
Frequency response : 300 Hz to 3 kHz
Adjacent channel selectivity : > 60 dB
Maximum audio power : 2 W
Squelch sensitivity : minimum 0.2 ÁV - 120 dBm, maximum 1 mV - 47 dBm
Frequency image rejection rate : 60 dB
Intermediate frequency rej. rate : 70 dB
Drain : 160 ~ 500 mA (13.8 V) / 50 ~ 250 mA (27.6 V)

Warranty Duration 2 + 3 years.
