                              Mobile CB Radio

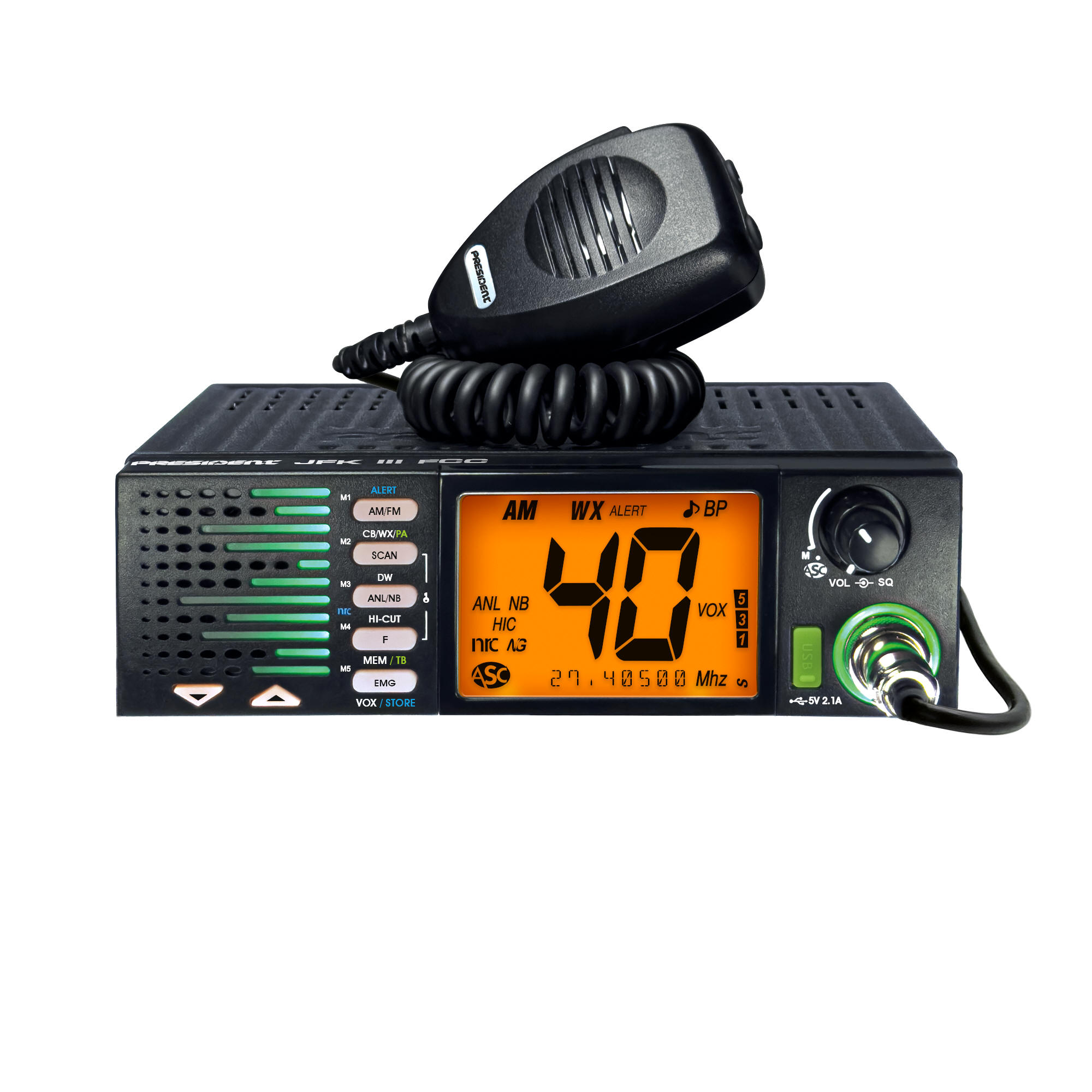

JFK III FCC ORANGE

Choice of 7 colors

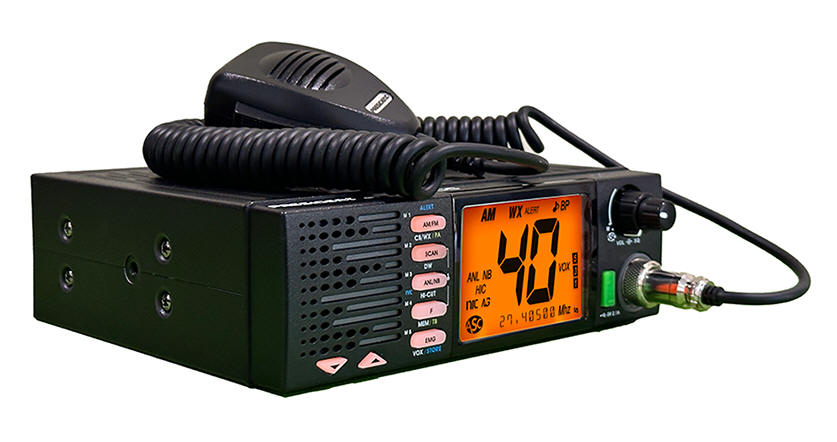

JFK III FCC
AM /FM CB Radio

  Download Manual

The JFK III FCC AM/FM CB radio has all the bells and whistles for the modern trucker!

Presidents first OEM Truck Size AM/FM CB radio is sure to please all CB users with its unique flashing front-firing speaker signaling RX /TX, a vibrant large 7-color LCD, and a new microphone featuring up/down activation and deactivation.

Aside from being the coolest looking radio on the market, President's ever-present functionality is clear with features like a Type A USB Port, Automatic SWR, Noise Reduction Circuit, two programmable Emergency Channels -- just to name a few.  Don't sleep on this one!

 Warranty: President radios are backed with a 2-year warranty. When purchased with an external President antenna, the radio warranty increases to 5 years under their 2+3 program.

   What’s in the box:

  • Transceiver,
  • UP/DOWN electret microphone,
  • microphone hanger clip,
  • fused power cord,
  • mounting bracket kit
  • user manual.




Features

  • Size   7.28" (W) x 6.89" (D) x 2.24" (H) :

  • OEM Truck Size   :

  • Weight   2.43 lbs :

  • Antenna socket   SO-239 :

  • Antenna impedance   50 ohms :

  • Frequency ranges   from 26.965 MHz to 27.405 MHz :

  • Power supply (Input Voltage)   13.2 V :

  • Microphone Up/Down   Activate / Deactivate :

  • Microphone plug   front (6 pins) :

  • Compatible microphone type   Electret , Dynamic :

  • External Vox microphone jack   :

  • Front loudspeaker   :External loudspeaker jack   :

  • Public address   :

  • External HP PA socket   :

  • USB socket (front)   5 V / 2,1 A :

  • Display   LCD multifunction :Dimmer   :

  • Channel display   :

  • Frequencies display   :

  • S-meter   Digital :

  • Modulation modes   AM / FM :

  • Volume adjustment and ON/OFF   :

  • Squelch   Manual squelch :

  • Automatic Squelch Control (ASC)   :

  • Channel selector   Up / down :Mode switch   :

  • F / Menu function key   :

  • Key Beep   , Switchable :

  • Roger beep   , Switchable , 6 tones , Customizable :

  • Key locking   :

  • Memory   5 :

  • Channel Shortcuts   emergency channel (EMG) programmable :

  • Dual watch   :

  • Channel Scan   :

  • Scan Skip   :

  • Talkback   :

  • Hands Free (Vox)   :

  • Automatic SWR meter   :

  • SWR Meter   :

  • TOT   :

  • Filter ANL   :

  • Filter NB   :

  • Filter HI-CUT   :

  • NRC   :

  • Noise Gate   :

  • Weather channels   from 162.400 MHz to 162.550 MHz :

  • Weather/Alert

  • :Frequency allowance  ± 200 Hz :

  • Carrier power  4W AM/FM :

  • Transmission interference  < 4 nW (-54 dBm) :

  • Audio response   300 Hz to 3 kHz :

  • Emitted power in the adj. channel  < 20 μW :

  • Microphone sensitivity  3 mV :

  • Drain  < than 2.5 Amp :

  • Modulated signal distortion  2%

  • Max. sensitivity at 20 dB sinad

    • AM: 0.5 μV - 113 dBm /

    • FM: 0.3 μV - 116 dBm :

  • Frequency response  300 Hz to 3 kHz :

  • Adjacent channel selectivity  60 dB :

  • Maximum audio power  3 W :

  • Squelch sensitivity  min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm :

  • Frequency image rejection rate  60 dB :

  • Intermediate frequency rej. rate  70 dB :Drain  300 ~ 600 mA max.

Back light color:







Warranty Duration 2 + 3 years.

ASC2+3 years warrantyRoHS - Lead FreeMurata inside


WARRANTY SERVICE IN USA FOR 1 to 5 YEARs:


KDC SALES
17294 FM 3083
CONROE TX. 77302
936-231-3753





... JFK III...
$159

Download Datasheet

Optional Accessories
DIGIMIKE Noise Cancelling Microphone Pre-wired with high quality 6 pin Plug. $47
BT-MIKE Noise Cancelling Microphone Pre-wired with high quality 6 pin Plug. $57
Astatic D104-M6B  Astatic D104M6B Amplified microphone.
(wired for this radio with a 6 pin plug and a battery installed)
$78
small speaker  Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
Large Speaker  Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25

Tuned up values on these watt meters
Dosy Bird RMS *Bird 43P
AM
PEAK AM
* The most informative meter and the one we use.









Warranty Duration 2 + 3 years.



Mic wiring diagram:
