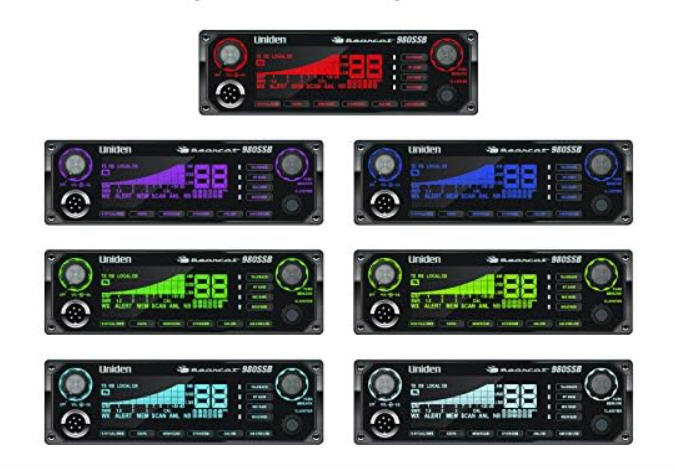

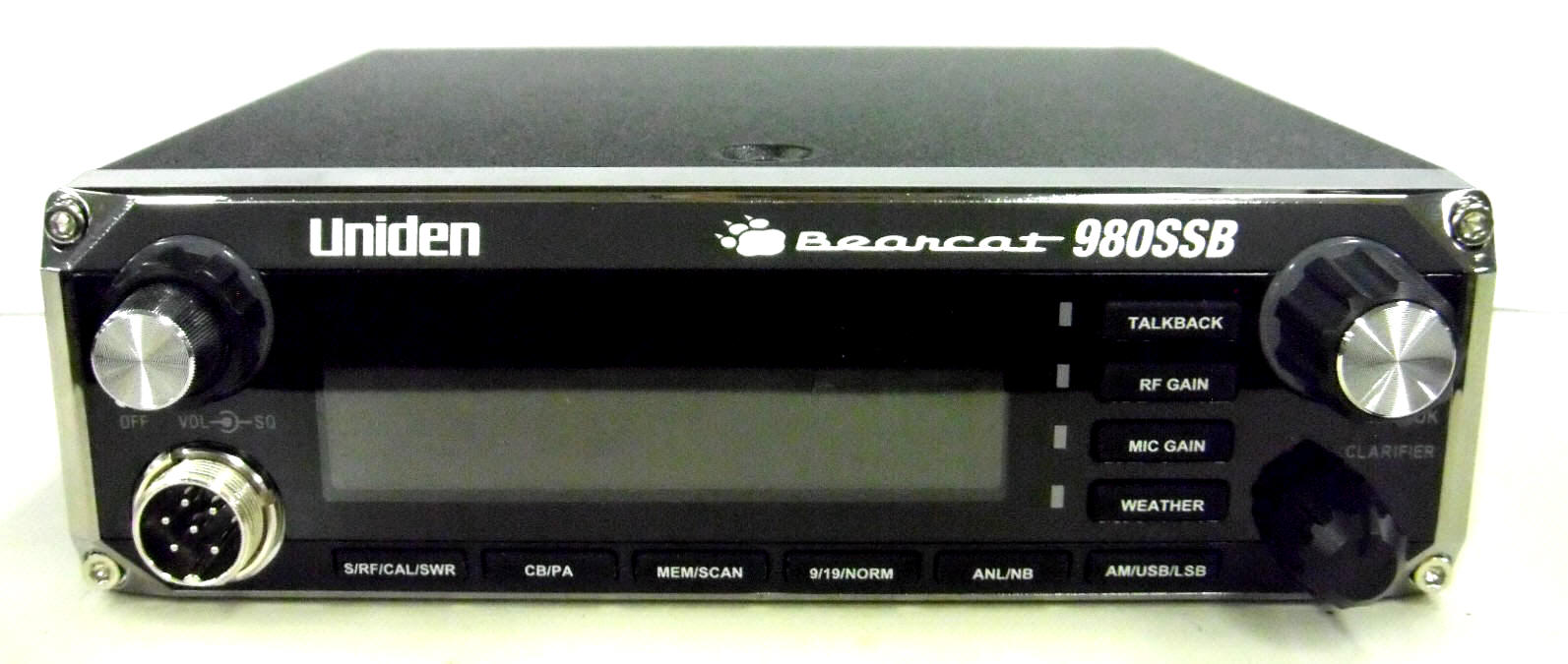

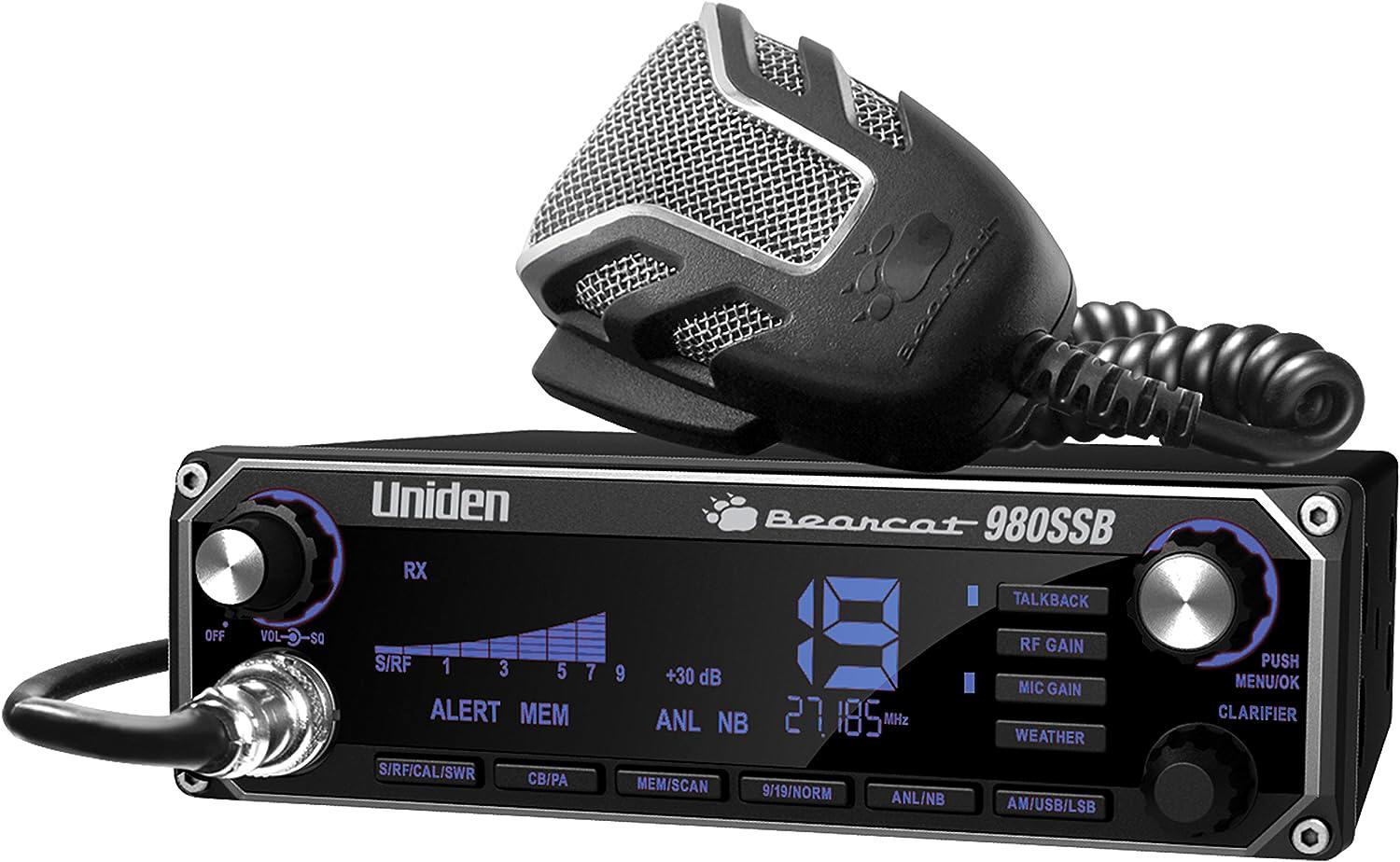

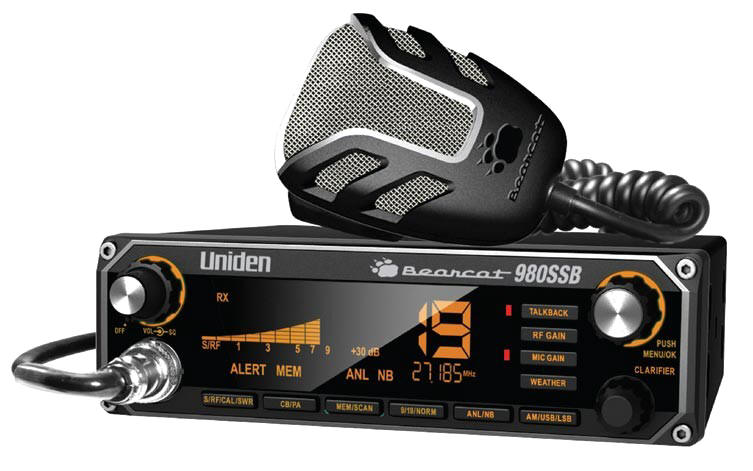

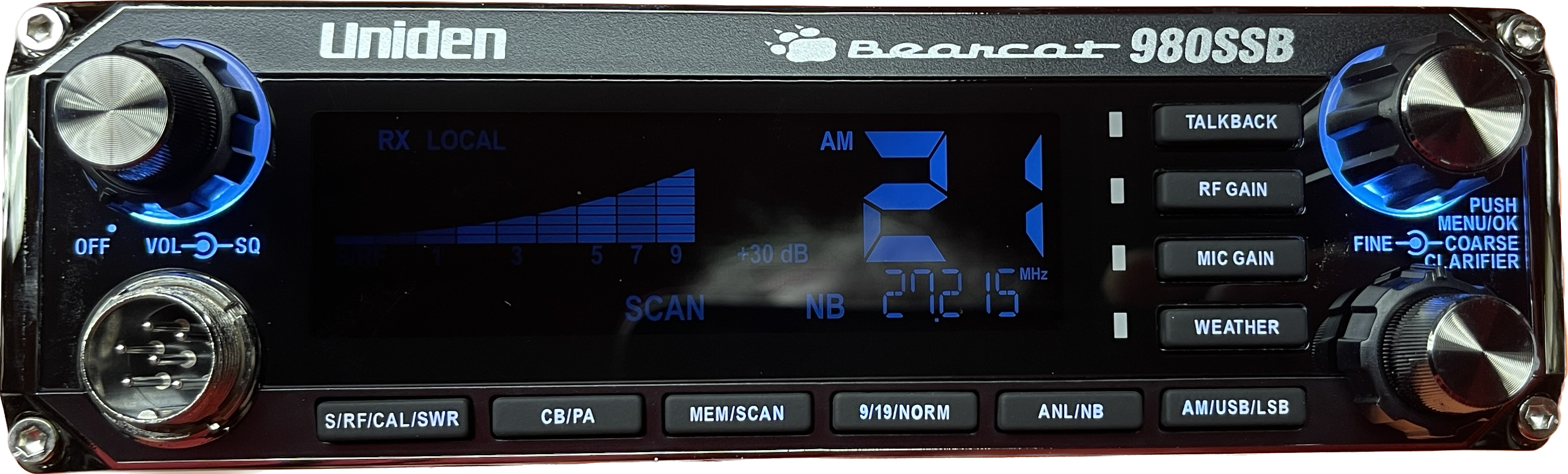

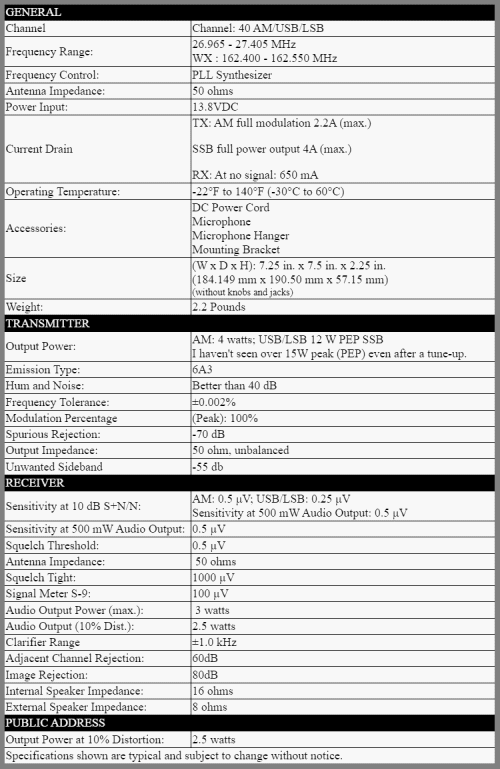

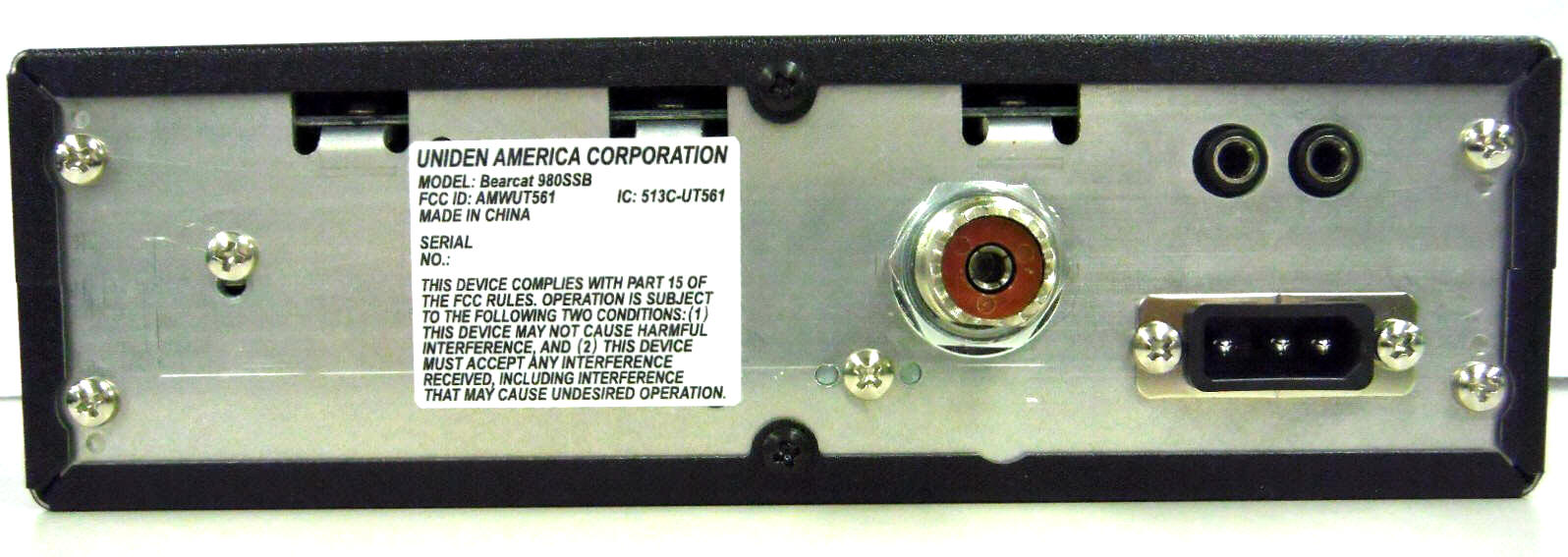

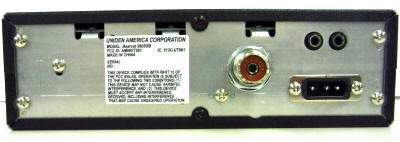

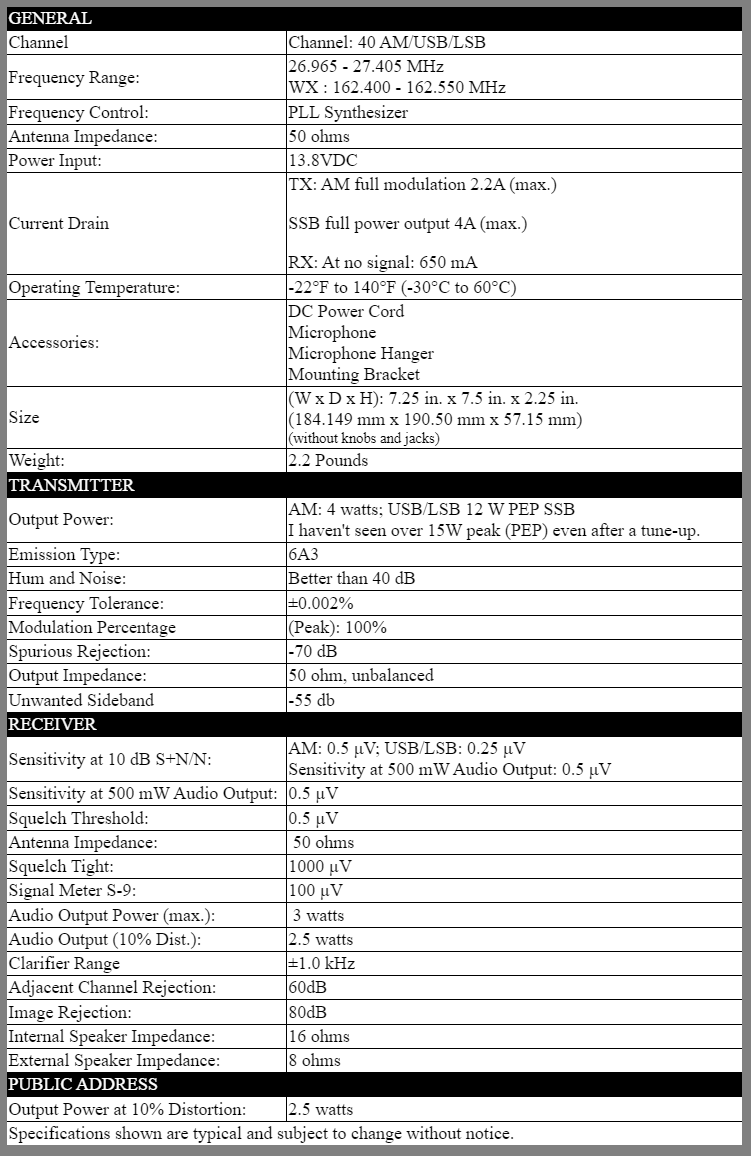

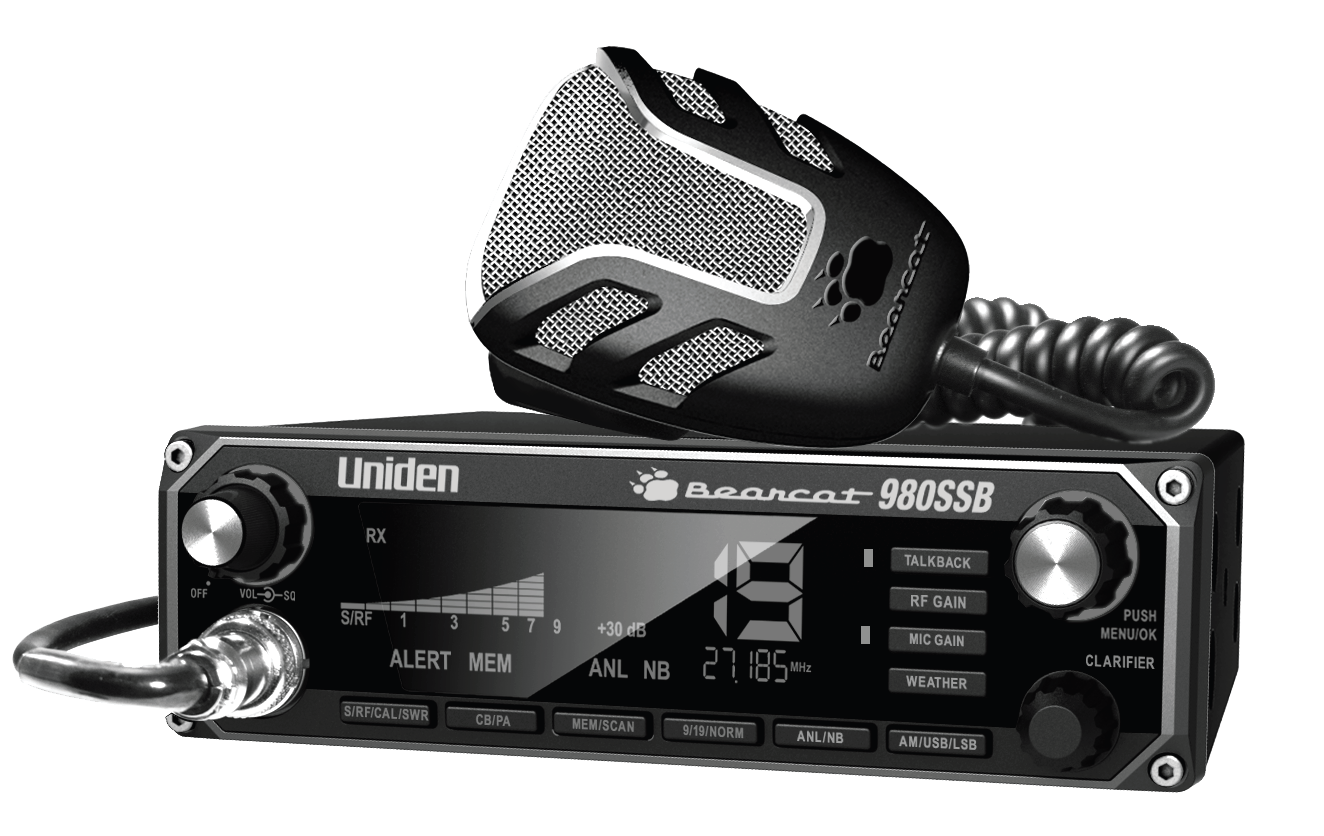

GENERAL |
|
Channel |
Channel: 40 AM/USB/LSB |
Frequency Range: |
26.965 - 27.405 MHz
WX : 162.400 -
162.550 MHz |
Frequency Control: |
PLL Synthesizer |
Antenna Impedance: |
50 ohms |
Power Input: |
13.8VDC |
Current Drain |
TX: AM full modulation 2.2A (max.)
SSB full power output 4A (max.)
RX: At no signal: 650 mA |
Operating Temperature: |
-22°F to 140°F (-30°C to 60°C) |

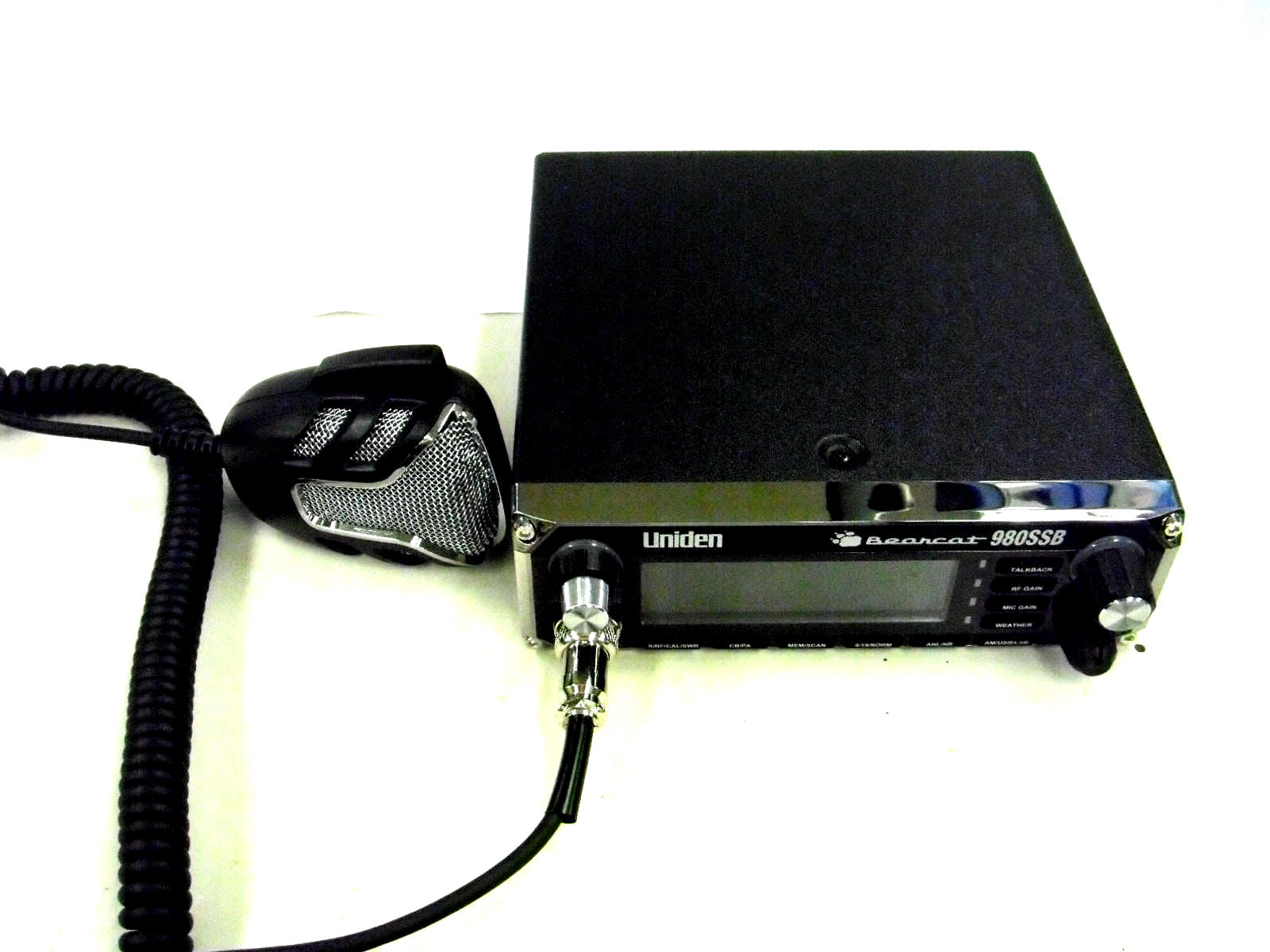

Accessories: |
DC Power Cord
Microphone
Microphone Hanger
Mounting Bracket |
Size |
(W x
D x H): 7.25 in. x 7.5 in. x 2.25 in.
(184.149 mm x 190.50 mm x 57.15 mm)
(without knobs and jacks) |
Weight: |
2.2 Pounds |
TRANSMITTER |
|
Output Power: |
AM: 4 watts; USB/LSB 12 W PEP SSB
I haven't seen over 15W peak (PEP) even after a
tune-up. |
Emission Type: |
6A3 |
Hum and Noise: |
Better than 40 dB |
Frequency Tolerance: |
±0.002% |
Modulation Percentage |
(Peak): 100% |
Spurious Rejection: |
-70 dB |
Output Impedance: |
50 ohm, unbalanced |
Unwanted Sideband |
-55 db |
RECEIVER |
|
Sensitivity at 10 dB S+N/N: |
AM: 0.5 μV; USB/LSB: 0.25 μV
Sensitivity at 500 mW Audio Output: 0.5 μV |
Sensitivity at 500 mW Audio Output:
|
0.5 µV |
Squelch Threshold: |
0.5 µV |
Antenna Impedance: |
50 ohms |
Squelch Tight: |
1000 µV |
Signal Meter S-9: |
100 µV |
Audio Output Power (max.): |
3 watts |
Audio Output (10% Dist.): |
2.5 watts |
Clarifier Range |
±1.0 kHz |
Adjacent Channel Rejection: |
60dB |
Image Rejection: |
80dB |
Internal Speaker Impedance: |
16 ohms |
External Speaker Impedance: |
8 ohms |
PUBLIC ADDRESS |
|
Output Power at 10% Distortion: |
2.5 watts |
Specifications shown are typical and
subject to change without notice. |
