                                                   10 Meter Mobile Radio



Click for larger image

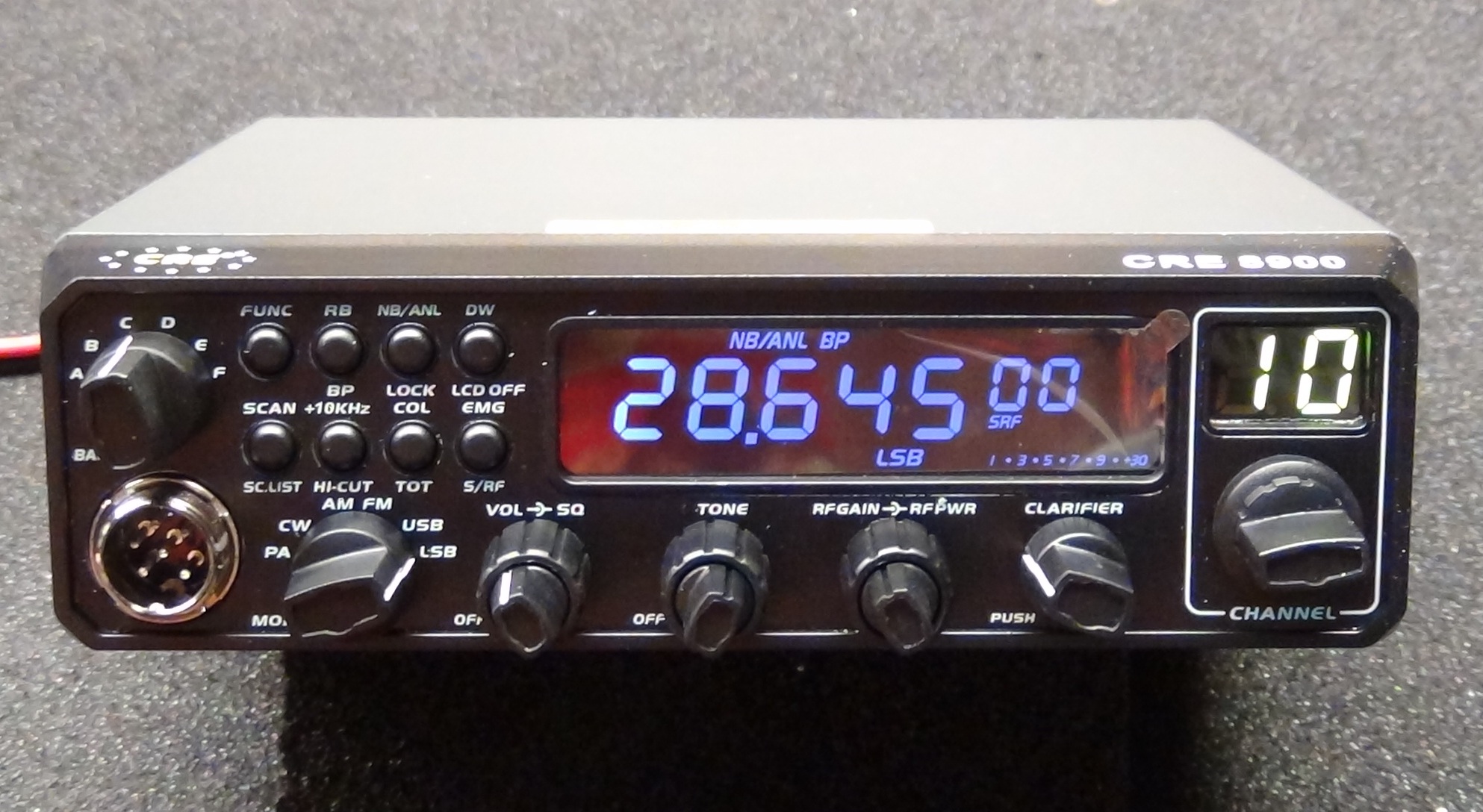

CRE 8900
AM/FM/SSB 10 Meter Radio

  Download Manual

   Download Software

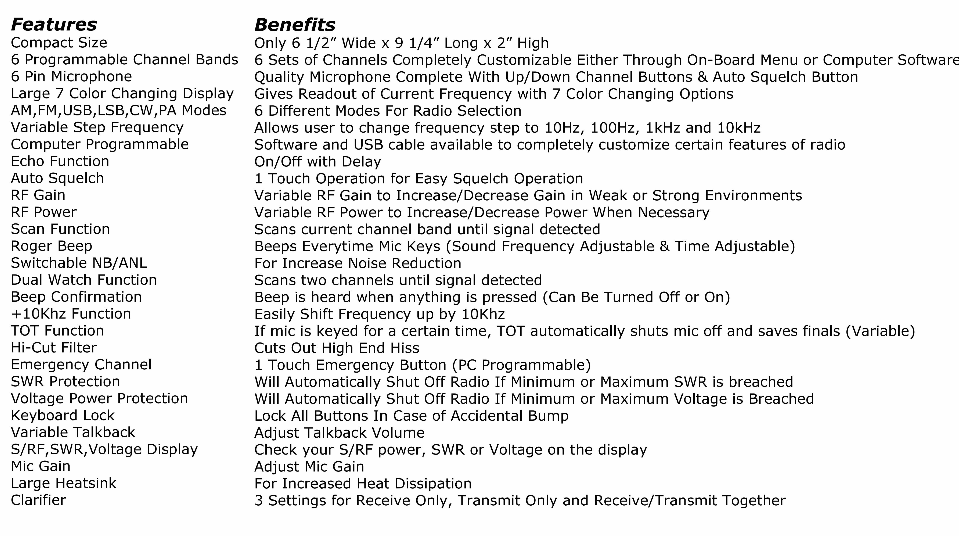

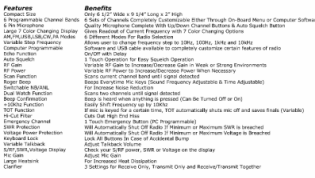

Features

PROGRAMMING CABLE NOT INCLUDED WITH RADIO.

• Dimensions in in: 6.5" (L) x 9.25" (D) x 2".(H)
• Dimensions in mm: 170 (L) x 215 (D) x 52 (H)
• Frequency range: 28-29.7 MHz
• Output power: 12 W AM/FM carrier 40+w peak power
   and 30+ W PEP on SSB.
• 6 pins microphone UP/DOWN with automatic squelch
• Front plug microphone
• Large LCD display 7 different colors with frequency
and other information
• LED display for channels
• Controls backlight
• AM, FM, USB, LSB, CW and PA modes
• 6 available bands A, B, C, D, E, F
• Adjustable step frequency 10Hz, 100Hz, 1Khz or 10Khz
• Computer programming for complete personalization
(optional)
• USB plug of programming on the back side
• Echo function• Automatic squelch (AM/FM only)
• RF gain adjustment
• Power control (AM/FM only)
• Scan function
• Roger beep
• Filters NB/ANL
• Dual watch function
• Beep confirmation/error
• Function + 10Khz
• SWR, S/RF display, voltage power supply
• TOT function (anti chatter)
• HI-CUT filter
• Emergency call
• SWR protection
• Voltage power supply protection
• Keyboard lock
• Noticed one quark...10Kc goes up 20KC sooo..
  You have to put it on 18 and push +10Kc to get to19A

PROGRAMMING CABLE NOT INCLUDED WITH RADIO.



Click for larger images

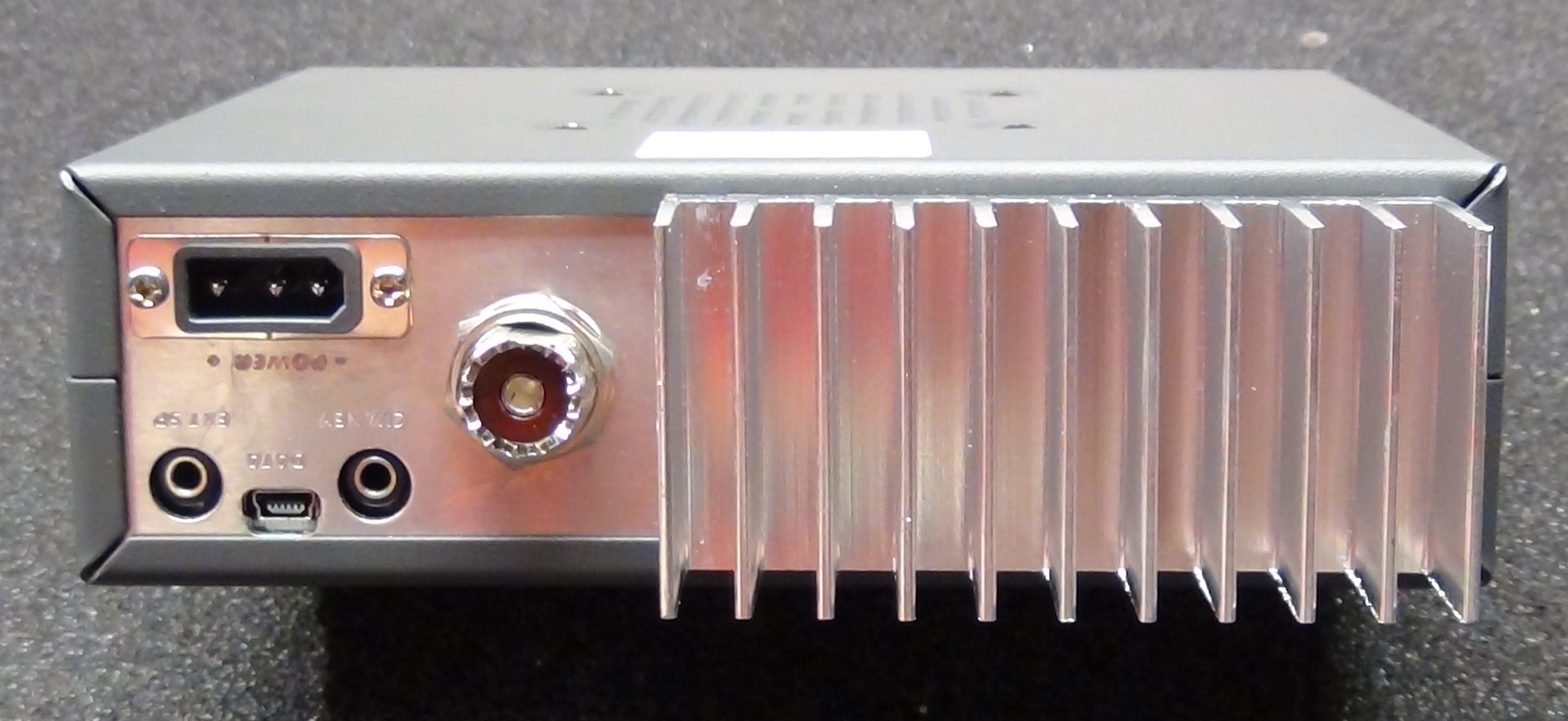

Rear View

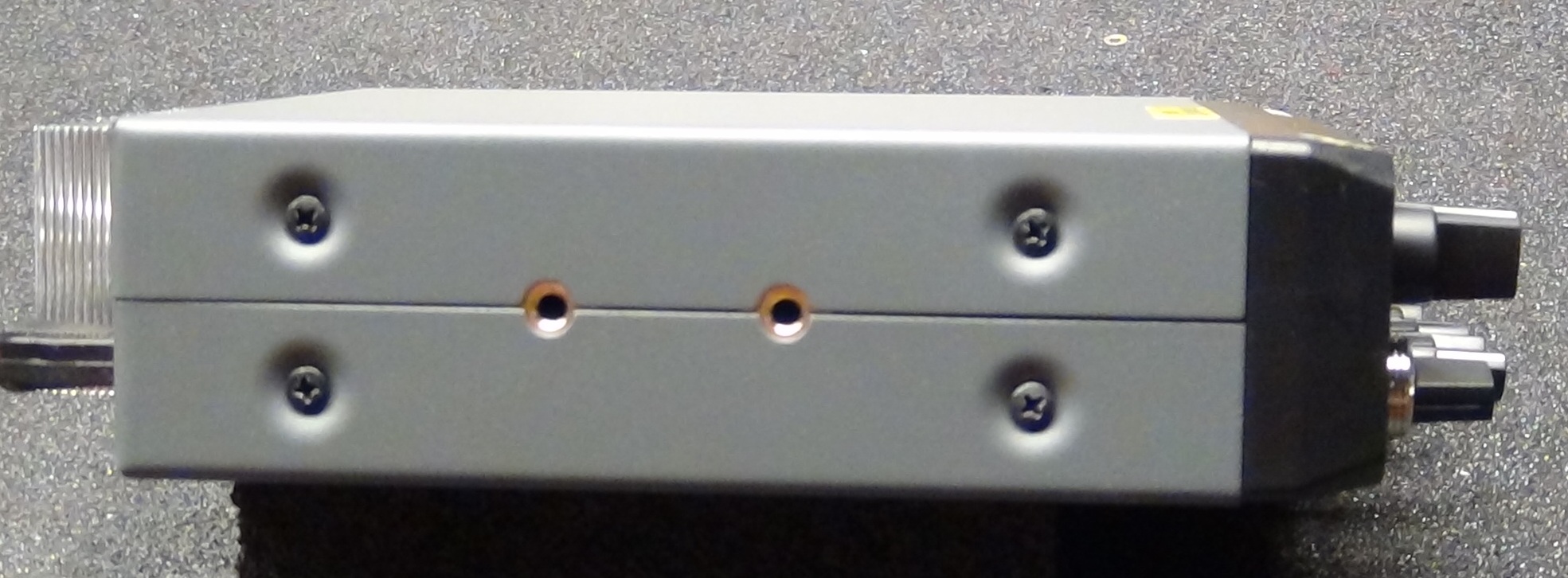

Side view

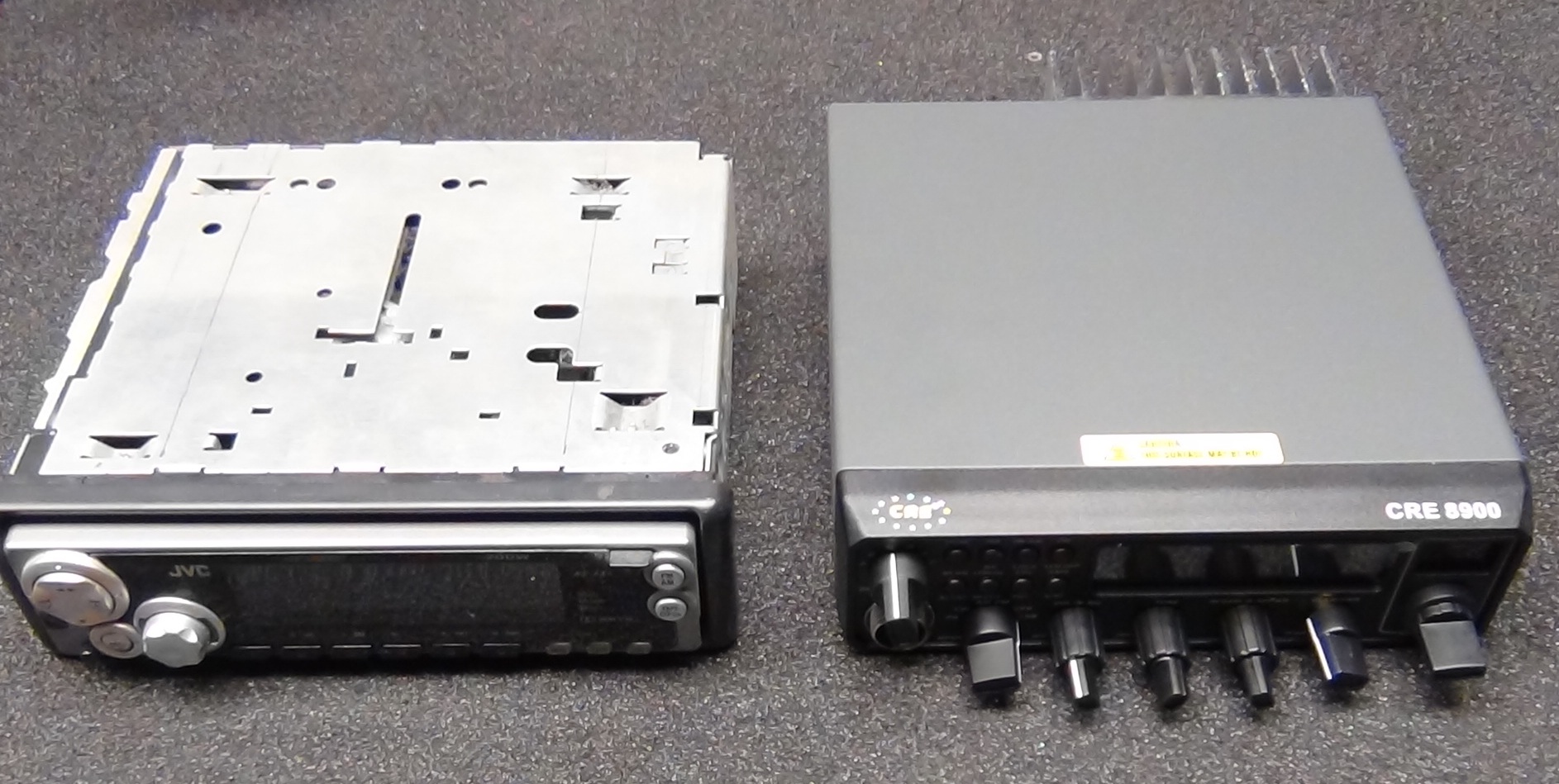

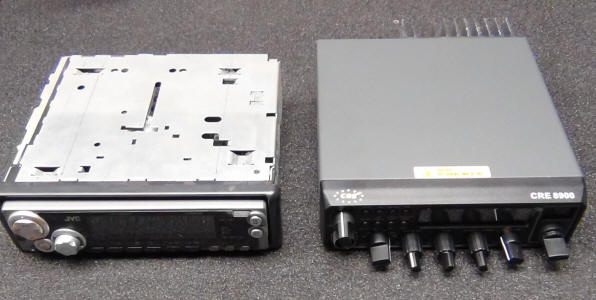

Shown next to a car stereo

Click for larger images












































WARRANTY INFORMATION:

Warranty conditions for the USA.
3 years warranty,

1 year provided through KEY CB.

Key CB
111 James Street
Dowagiac MI , 49047
phone :260 375 4410
email : keycbshop@yahoo.com


2 years remaining by Univercom (France).

UNIVERCOM
30 BOULEVARD DU THORE
81200  AUSSILLON
FRANCE
http://www.univercom-electronics.com/


Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca
Unavailable
in the USA
at this time.
... CRE 8900 AM/SSB ...
 		 $299.50

Optional Accessories
 Tune-up and frequency conversion. (Tune-up, Alignment and expanded frequency coverage) $29
 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 6 pin plug)		 $61
 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 6 pin plug)		 $44

With up/down buttons?

 Astatic RD104-E Amplified microphone.
 (wired for this radio with a 6 pin plug and a battery installed)

 $62
or
$89
  Install a Record/Playback Module 120 seconds (wired inside the radio with  two pushbuttons on the side to record 120 seconds and to play it back) $77

Sound Byte link address


  Install a Noise toy
 (wired inside the radio with a switch or pushbutton to trigger
 any 30 second sound byte you want)		 $65

Sound Byte link address


  Install a Noise toy as a background theme music (wired inside the radio with a switch to play any background
 music at very low volume so you can talk over it.)		 $65

 Add a Small External Speaker
 (plugs into back of the radio for improved sound)		 $12

 Add a Large External Speaker
 (plugs into back of the radio for improved sound)		 $25



PROGRAMMING CABLE NOT INCLUDED WITH RADIO.

SPECIFICATIONS

General


Frequency coverage 28.000MHz ~ 29.700MHz
Number of channels 60
Channel step 10Hz, 100Hz, 1KHz, 10KHz
Class of emission

AM(A3E)/FM(F3E)/USB LSB(J3E)
Frequency Control

Phase-Locked-Loop Synthesizer
Antenna Impedance 50Ω
Working temperature –30℃~+55℃
Frequency Tolerance

0.005%
Frequency Stability 0.001%
Power Supply 13.8V DC±15%
Grounding Method Negative ground
Current Drain Transmitter: 6A(max.)
Receiver: about 400mA(max.)
 800mA (noise reductions)
Dimensions (W x H x D ) 250 x 280 x 60 mm
Weight Approx. 2.8kg
Antenna Connector UHF,SO239
RECEIVER
Maximum sensitivity 1.0μV(-107dBm) FM Mode SINAD: 20dB
1.0μV(-107dBm) AM Mode SINAD: 10dB
0.25μV(-119dBm) SSB Mode SINAD: 10dB
Selectivity AM/FM:6dB@3KHz,50dB @9KHz
SSB: 6 dB@2.1KHz,60dB @3.3KHz
Image Rejection More than 65dB
IF Frequency AM/FM: 10.695 MHz 1st IF, 455 KHz 2nd IF
SSB: 10.695 MHz
Adjacent-Channel  AM/FM : 60dB & SSB: 70 dB
RF Gain Control 45 dB adjustable for optimum signal reception
Automatic Gain Control(AGC)

Less than 10 dB change in audio output for inputs from 10 to

100,000 microvolt.
Audio frequency response  From 300Hz to 2.8kHz
Audio Output Power  4 watts max @8Ω
TRANSMITTER
Output Power
@13.8V DC		 FM/AM/CW :HI: 12W LO: 1W
SSB:25W

AM peak power about 50W and SSB PEP about 35W.
Modulation AM: High and low level class B Amplitude Modulation
FM: Varied Capacitance Frequency Modulation
Audio frequency response From 450Hz to 2.5kHz FM/AM Mode
SSB Carrier Suppression 55dB
Unwanted Sideband 50dB
Inter-modulation Distortion SSB: 3rd order, more than -25dB; 5th order, more than -35dB
