    GENERAL                          10 Meter Radio


Click image for larger view

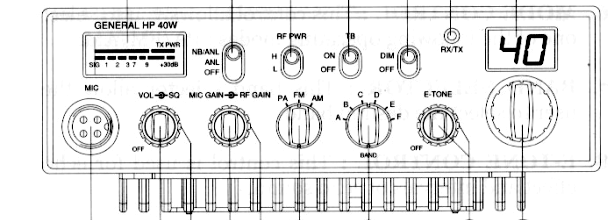

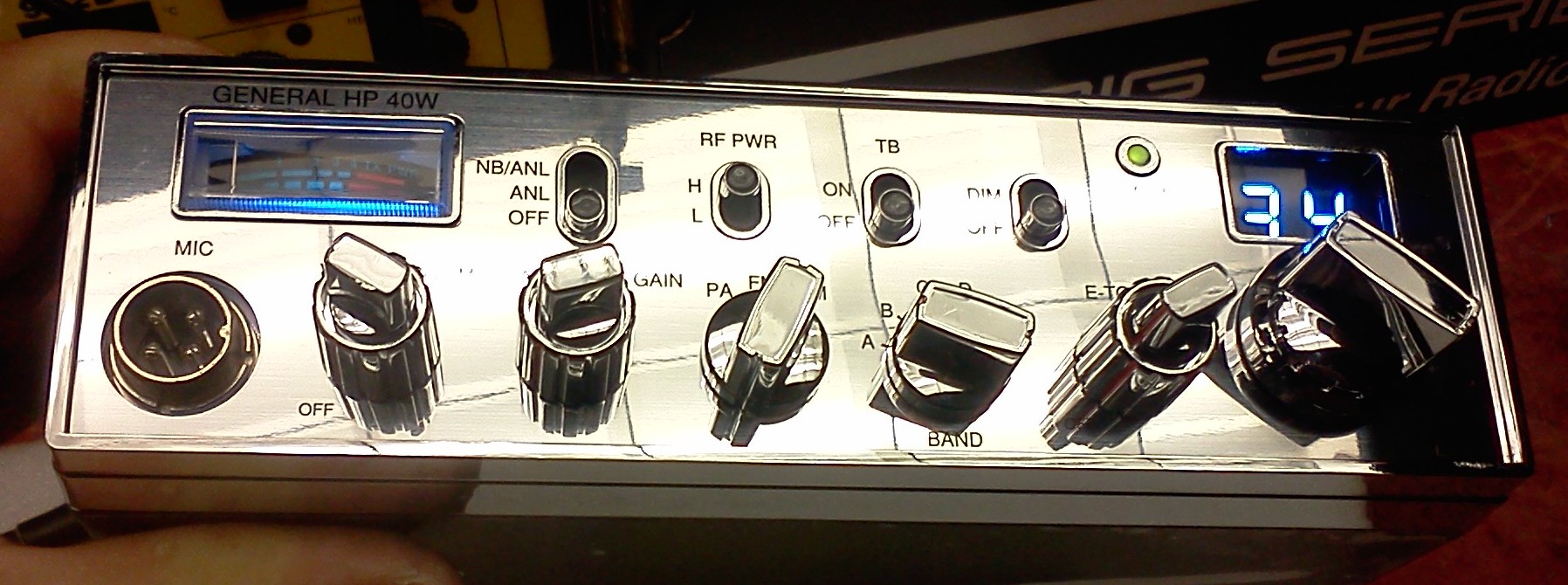

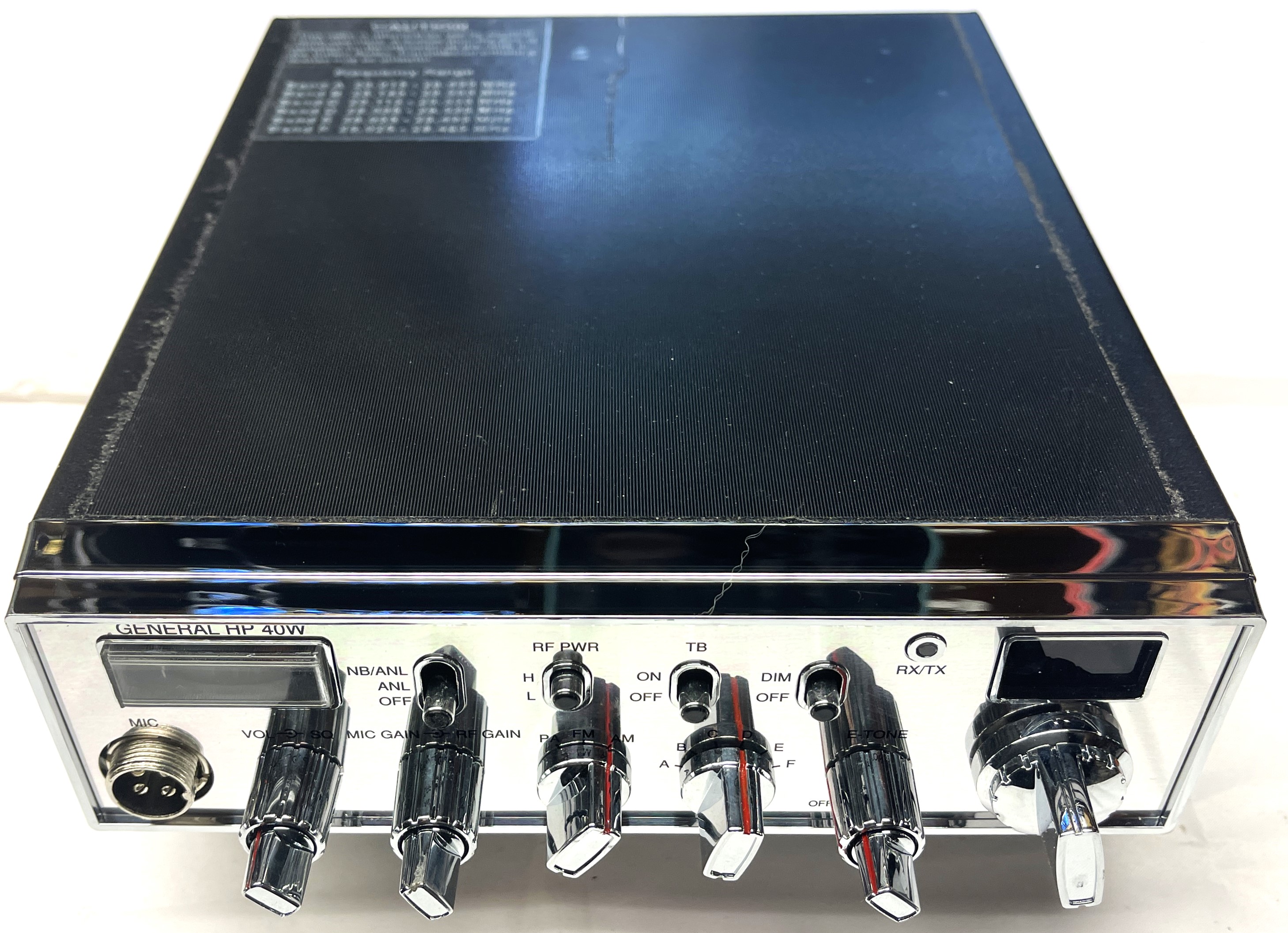

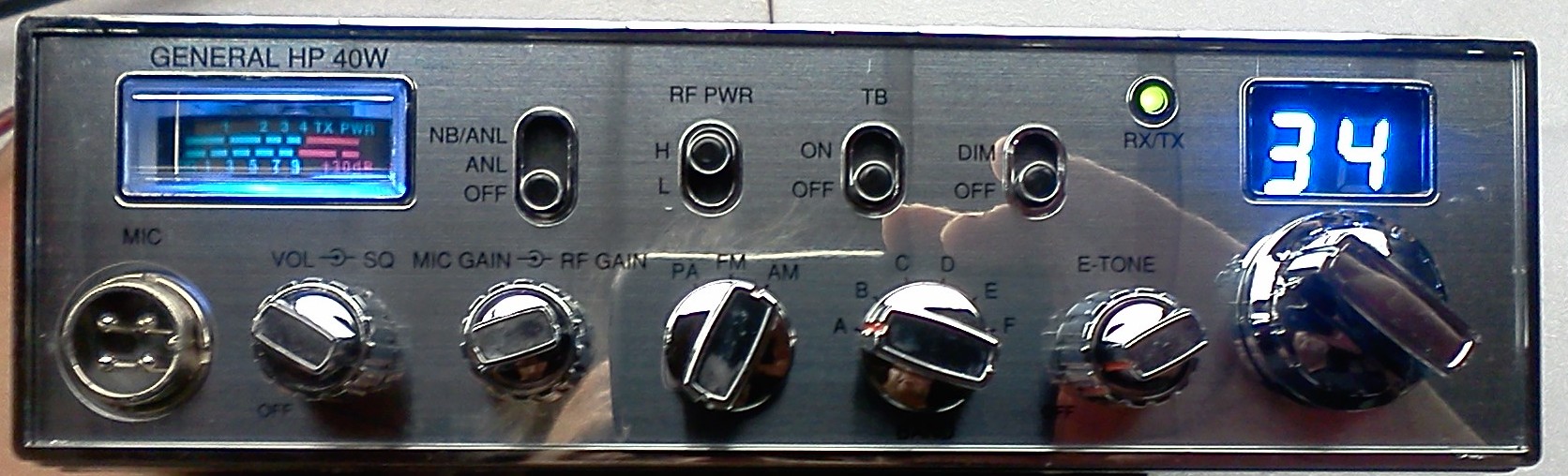

General HP40W
AM/FM 10 Meter Mobile Radio



  Download Manual

Features

  • (4) IRF-520 MOSFET final section.
  • Dual Stage Echo Control
  • 6-Band Frequency

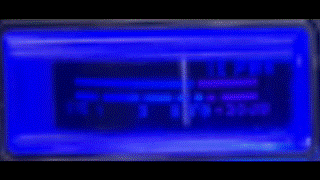

  • Meter Scales for Signal, Power Output
  • Red/Green - Transmit/Receive LED
  • Blue Channel LED's and Meter Light
  • Dimmer switch for high and low LED channel
    and meter light brightness.
  • Talk Back switch for separately controlled TB
    on and off.
  • Three position switch for Noise Blanker (NB)/
    Automatic Noise Limiter
    (ANL)
  • Mic Gain
  • RF Gain (receive gain)
  • AM/FM/PA
    • PA includes Echo
  • 40 watts - AM carrier (30W after a tune up)
  • 100W watts PEAK POWER (AM) (120+  watts
    after a tune up)
  • H/L Output Power switch (low power usually set
    to 3W)
  • Dimensions:
  • Shipping weight -- 13 pounds
  • Shipped UPS with $300 insurance and Signature
     required. (The shipping cost to most locations is
    between $18 and $29)



Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca

General radios sometimes have a small scratch or ding that the factory covers with black touch up.  We cannot effect this and do not guarantee your radio to be cosmetically perfect.  Bells CB will make no marks or scratches on your radio ourselves.  General radio might though and I cannot control it.





CB Microphone Wiring (Galaxy)

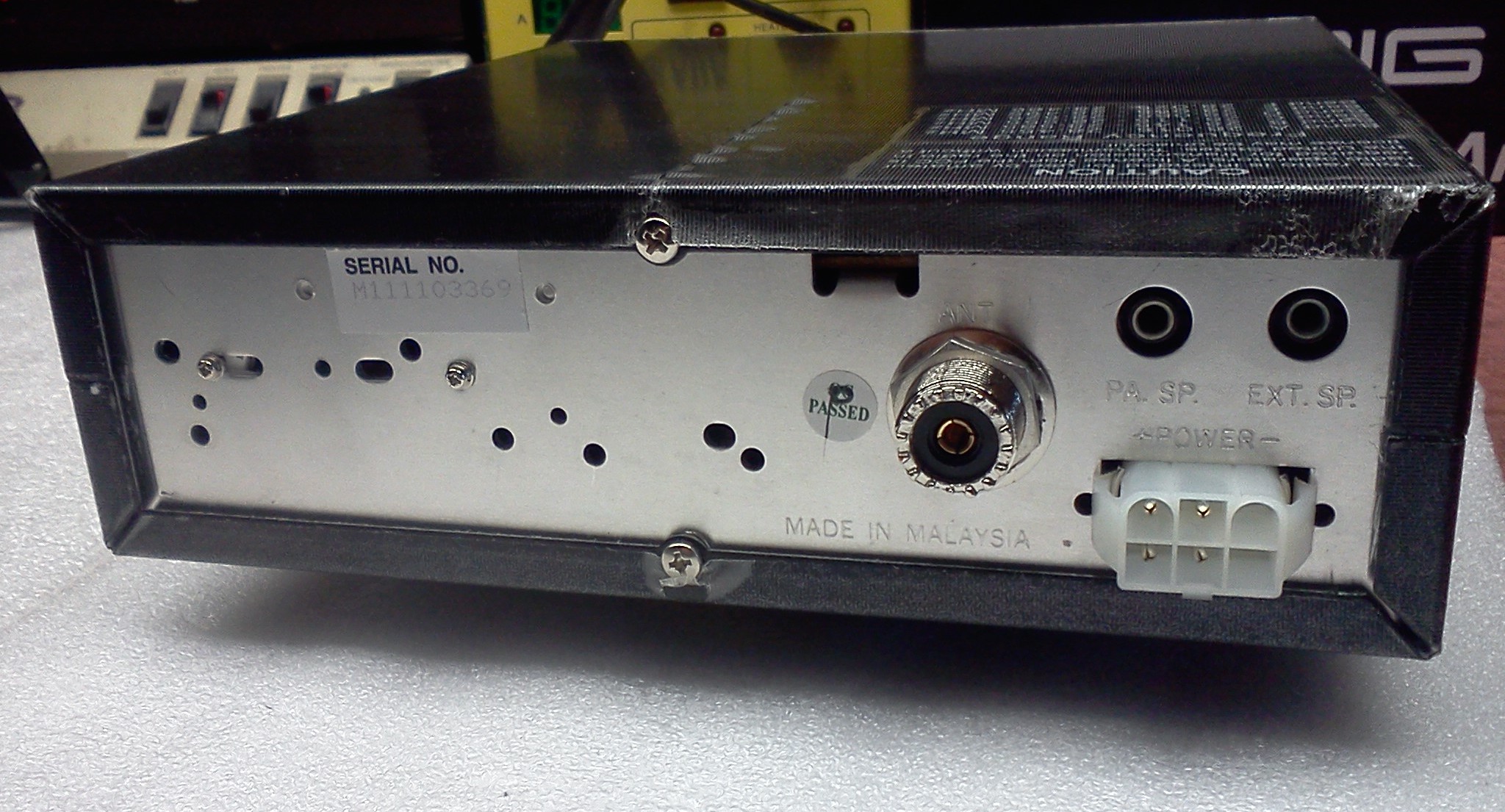

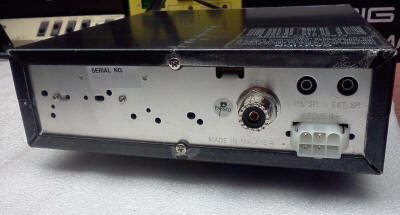

SO-239As many of you may know;  Ranger, Galaxy and General radios have all had some poor tolerance coax connectors this last year (SO-239 on the back of the radio) . You have to wiggle the coax just right to get a good grab on the threads of the connector. They are too far “out of tolerance” and we can no longer accept it.       So we have started changing the coax connectors ourselves to a much higher quality SO-239 that will fit your coax nice and tight.  This has affected our selling price ($10) but we think you will agree that it is worth it.



The item most overlooked when ordering a custom radio is the microphone.  Your new radio will NOT sound great with a stock mic on it even if you have it tuned.  If your CB is more than a tool for work, you NEED to upgrade your microphone.
My personal favorites are the
Astatic 636L and RD104E.



...AM/FM 10 Meter Radio... $359.50



Colors Install Nitro Knobs with dimmer control integration circuit built so it dims with the factory adjustment. 8 Knob set parts and labor. $144
Optional Accessories
Low power
 Tune-up and frequency conversion. (Tune-up, Alignment and expanded frequency coverage) High Power carrier is 25w, select low power carrier desired. $39
Perform Receiver improvement mods.
(These mods replace key RX parts for better sensitivity and selectivity)
$26
Amp Switch in front Install a switch to turn off the 100w amp. Wired to a switch in the front, side or backof radio. (Photo shows front)` $15
or
$20
Install a variable power knob in the back of the radio. . Wired to make HIGH or LOW power variable (NOT BOTH) This is for people running larger amplifiers and are not sure exactly what amount of drive is perfect. $49
 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46
 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29
 Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$39
SOLD OUT
  Install a Record/Playback Module
18 seconds
(wired inside the radio with a switch on the side to record 18 seconds and to play it back)
$77

Sound Byte link


SOLD OUT
 Install a Noise toy
(wired inside the radio with a switch on the side to trigger any 18 second sound byte you key)
$65

Sound Byte link


SOLD OUT
 Install a Noise toy as a background theme music. (wired inside the radio with a switch to play any background music at very low volume so you can talk over it.) $65
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25
Colors

Install Star-Bryte Knobs with dimmer control integration circuit built so it dims with the factory adjustment. 8 Knob set parts and labor.

$199

Tuned up values on these watt meters
Dosy Bird RMS * Bird 43P
AM / FM 2w , 25w 2w , 25w 2w , 25w
PEAK AM 18w, 65w 4w,  25w 30w , 120w

 At 13.56 VDC measured at internal  jack
Tuned up values on these watt meters
With optional  AMP switch OFF
Dosy Bird RMS * Bird 43P
AM / FM .1w, 1.5w .1w, 1.5w .1w, 1.5w
PEAK AM .5w, 4w .3w, 2w 3w, 15w
*  The most informative and the one we use.
