  Orders with radio work are delayed 7 - 14 days

    GENERAL                         10 Meter Radio


Click image for larger view

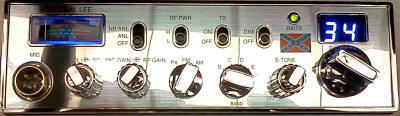

General Lee
AM/FM 10 Meter Mobile Radio



  Download Manual

Features

  • Red/Green Transmit LED Indicates when radio is in receive or transmit mode.
  • Noise Blanker/ Automatic Noise Limiter Reduces extra static and receive noise.
  • 6 Bands 40 channels per band, 240 channels total.
  • Jack for Accessory Frequency Counter Allows for easy installation of an external frequency counter.
  • Echo Board with Two Controls Lets you control the volume and amount of delay.
  • Switched Talk Back circuit Allows you to turn on and off Talk Back function.
  • 10 watts carrier power output AM - 40+ Peak Power.
  • Blue meter and channel LEDs.
  • Size : 9-1/4" X 7-7/8" X 2-3/8"
  • Included:
    • 4-Pin Dynamic Microphone
    • 3-pin two-wire power cord
    • Mounting Bracket
    • Mounting Knobs
    • Microphone Holder
    • Operation/Owner’s Manual
  • Shipping Weight 11 Lbs, ships UPS Ground with insurance and signature required.








Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca

General radios sometimes have a small scratch or ding that the factory covers with black touch up.  We cannot effect this and do not guarantee your radio to be cosmetically perfect.  Bells CB will make no marks or scratches on your radio ourselves.  General radio might though and I cannot control it.





CB Microphone Wiring (Galaxy)

The item most overlooked when ordering a custom radio is the microphone.  Your new radio will NOT sound great with a stock mic on it even if you have it tuned.  If your CB is more than a tool for work, you NEED to upgrade your microphone.
My personal favorites are the
Astatic 636L and RD104E.

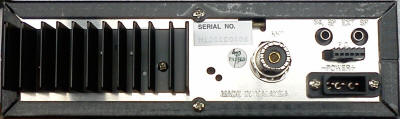

SO-239As many of you may know;  Ranger, Galaxy and General radios have all had some poor tolerance coax connectors this last year (SO-239 on the back of the radio) . You have to wiggle the coax just right to get a good grab on the threads of the connector. They are too far “out of tolerance” and we can no longer accept it.       So we have started changing the coax connectors ourselves to a much higher quality SO-239 that will fit your coax nice and tight.  This has affected our selling price ($10) but we think you will agree that it is worth it.



SOLD OUT

Free Shipping
...AM/FM 10 Meter Radio... $309.50



Optional Accessories
Low power
 Tune-up and frequency conversion. (Tune-up, Alignment and expanded frequency coverage) High Power carrier is 8w, select low power carrier desired. $39
Switch location
Low power setting
 (Amp on)
Custom message to tech:

RFX-95HD Final. Final. Install a completely new final section consisting of a high power MOSFET and perform a tune-up to the entire radio to increase power, audio and performance with an AM carrier of 20 watts with 80+ watts peak power.
 Amp on/off switch in installed in place of the NB switch. (Switch can also be in the back if requested.)
$189
 Change factory power cord to a 10 Gauge Power Cord (14 foot) and modify the DC Jack for high amperage 2 Pin Quick connector. This is only helpful when you have the RFX-95HD2 and is NOT required for a stock radio
10G power cordStryker SR-955 Power Cord UpgradeStryker SR-955 Power Cord UpgradeStryker SR-955 Power Cord Upgrade
$59
RFX Fans FAN KIT Installed Install TWO- 40 x 40 x 20mm Black Fans with a switch for on/off combined with the amp on/off switch.I use also a relay isolated low noise power input system. $79
Perform Receiver improvement mod.
(These mods replace key RX parts for better sensitivity and selectivity)
$26
 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46
 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29
 Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$46
SOLD OUT
 Install a Record/Playback Module 120 seconds (wired inside the radio with a switch on the side to record 120 seconds and to play it back over the air) $77
  Install a Roger Beep  Module (wired inside the radio using the DIM switch for on/off) $79

Sound Byte link


SOLD OUT
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 30 second sound byte you want)
$65

Sound Byte link


 SOLD OUT
 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25
Install Star-Bryte Knobs with dimmer control. Includes a 6 Knob set , parts and labor. $172
Chrome covers Exchange the top and bottom covers to Chrome Covers. $32
Diomand plate covers Exchange the top and bottom covers to Diamond Plate Covers. $22

Tuned up values on these watt meters
Tuned up values on these watt meters
Dosy Bird RMS *Bird 43P
AM / FM 2w , 8w 2w , 8w 2w , 8w
PEAK AM 6w , 20w 3w , 9w 20w , 47w
*The most informative and the one we use.  5/15/23
