  Orders with radio work are delayed 3 - 10 days


Aytone 5555nII



Download Manual

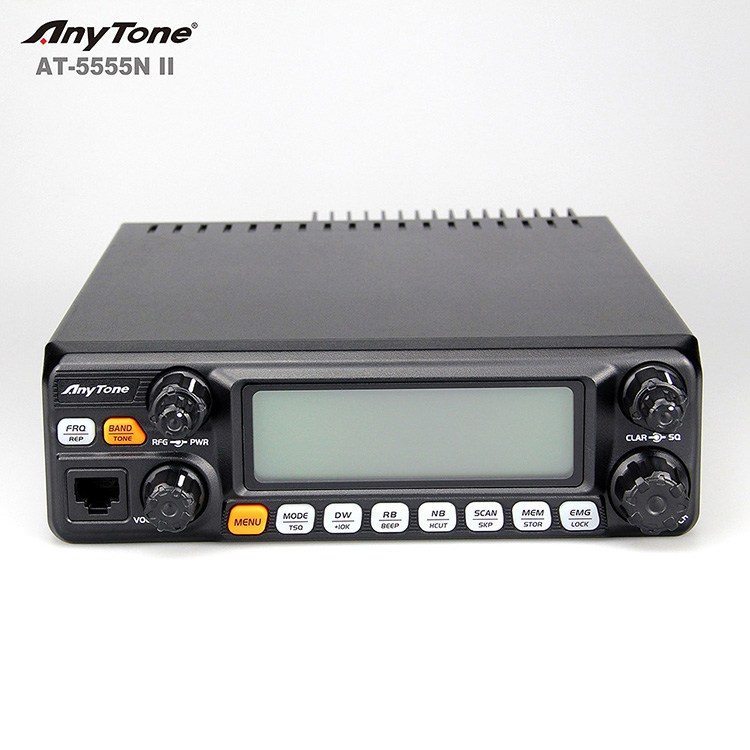

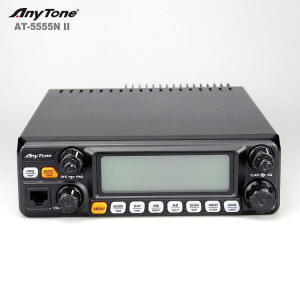

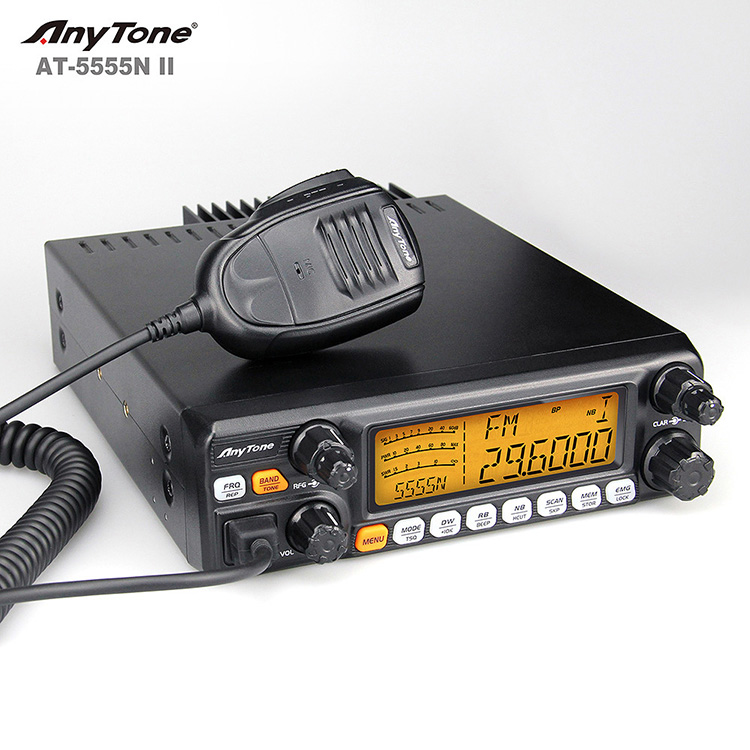

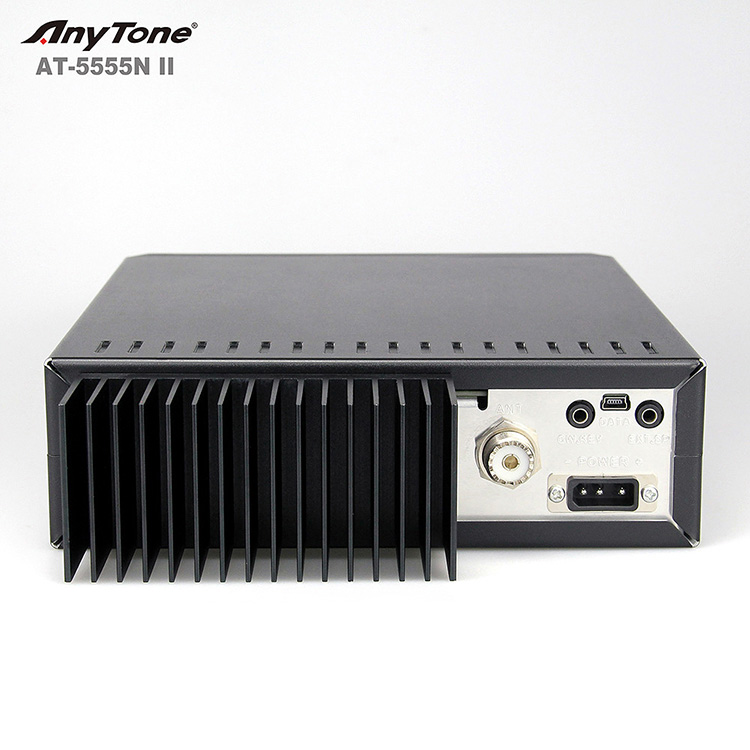

ANYTONE AT-5555N II


Features

  • Big LCD displays frequency and all kinds of information

  •  Multi-mode AM, FM, USB, LSB, PA

  • Frequency Tuning Step 100Hz、1KHz、10KHz、100KHz、1MHz

  • ±1.5KHz CLARLFILER Adjustment

  • Flexible Menu Function and PC Program Software

  • ECHO Function

  • SQ, ASQ Function (FM and AM mode only)

  •  RF GAIN Adjustment

  • RF PWR Adjustment

  • SCAN Function

  • Programmable RB Function

  • NB/ANL Function

  • DW DUAL-WATCH Function

  • Offset Frequency Function

  • BEEP Voice Prompt

  • +10KHZ Function

  • SIG、PWR、SWR Function

  • TOT function

  • HI-CUT Function

  • EMG Channel Function

  • SWR Protection

  •  Power Supply Voltage Protection

  • Key-Lock Function

  • Six(6) Groups Memory Channel

  • Model Name Customized Function (below is new function add which different from AT-5555N)

  •  CTCSS/DCS Code

  • VOX Function

  • TX and RX Noise Reduction

  • Compatible with electronic and dynamic MIC type

  • WX weather channel

  • Weather Alert

  • Place of Origin: Fujian, China

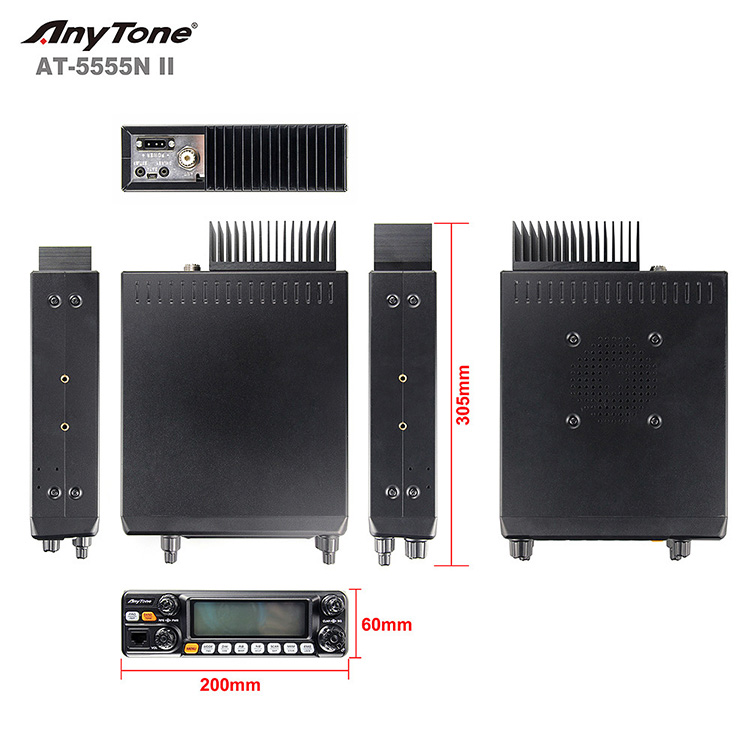

  • Dimensions: 305(L)x200(W)x60(H)
                          12"   x  7.87"   x  2.36"

  • Frequency Range: 24.715~30.105MHz

  • Storage Channel: 200

  • Color: Black

  • Radio Type: 10 Meter Radio

  • Warranty: 18 Months

  • Output Power: AM PEP: 60W / FM: 50W / SSB: 60W(PEP)

  • Weight: 1.75kgs

  • Operating Voltage: 13.8 DC

  • Weather channels


Anytone At-5555N II

Anytone At-5555N II












Tune and Convert?
Anytone 5555NII
10-Meter Radio
 $239

  Download Software

Optional Accessories
Select Above  Tune-up and frequency conversion.
(Tune-up, Alignment and expanded frequency)		 $40
Switch Location
 		  Install an EXTERNAL PTT keying port. We use an RCA jack for a TX output PORT to your external device. Every time you key it provides a connection between the +/- of the RCA connector.
    1) Output RCA completely isolated  from the radio. Both +/-  connect to a relay that isolates it from the radios circuits.
   2) Optional BYPASS switch in case your external device does not have a standby (turns port off (stays open))
     4) Heavy duty relay can handle any keying circuit voltage, even the SB-220's - 120VDC circuit.		 $49
/
$59
/
$69
 Change factory power cord to a 10 Gauge Power Cord (14 foot) and modify the DC Jack for high amperage 2 Pin Quick connector. A 3300uF Capacitor is also added for additional DC filtering.
Power cordStryker SR-955 Power Cord UpgradeStryker SR-955 Power Cord UpgradeStryker SR-955 Power Cord Upgrade		 $59
Programming Cable Programming Cable
For Software programming via computer. We don't know anything about programming these units and we can provide no assistance with it. 		$18
 Install a Record/Playback Module 120 seconds (wired inside the radio with a switch on the side to record 120 seconds and to play it back over the air) $77

Sound Byte link


SOLD OUT
  Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 30 second sound byte you want)		 $65

Sound Byte link


SOLD OUT
  Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)		 $65
small speaker  Add a Small External Speaker
 (plugs into back of the radio for improved sound)		 $12
Large Speaker  Add a Large External Speaker
 (plugs into back of the radio for improved sound)		 $25

Tuned up values on these watt meters
Dosy Bird RMS *Bird 43P
AM
FM
SSB
PEAK AM
*Most informative and the one we use
x/xx/xx

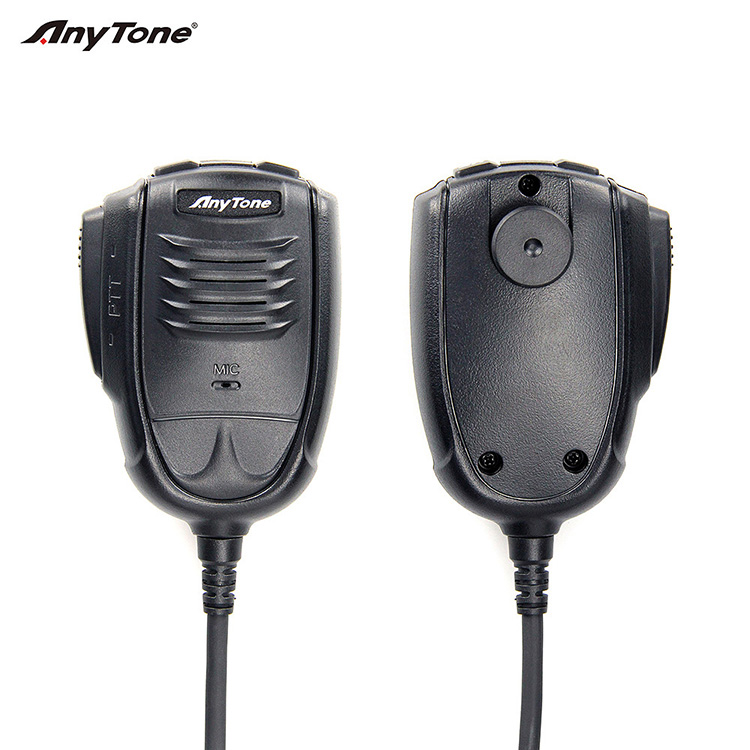

MICROPHONE
DIAGRAM









Anytone At-5555N IIAnytone At-5555NII

Anytone AT-5555NII
