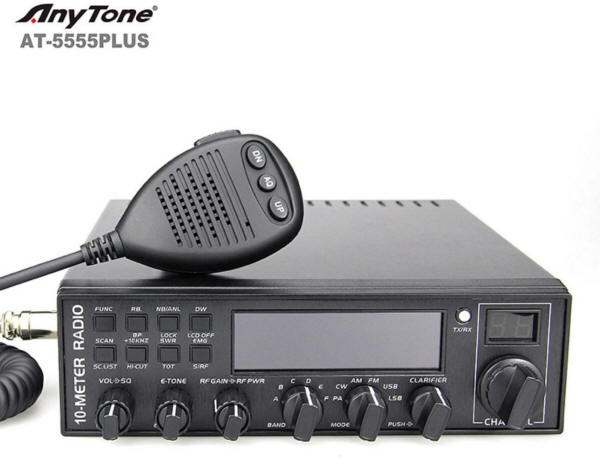

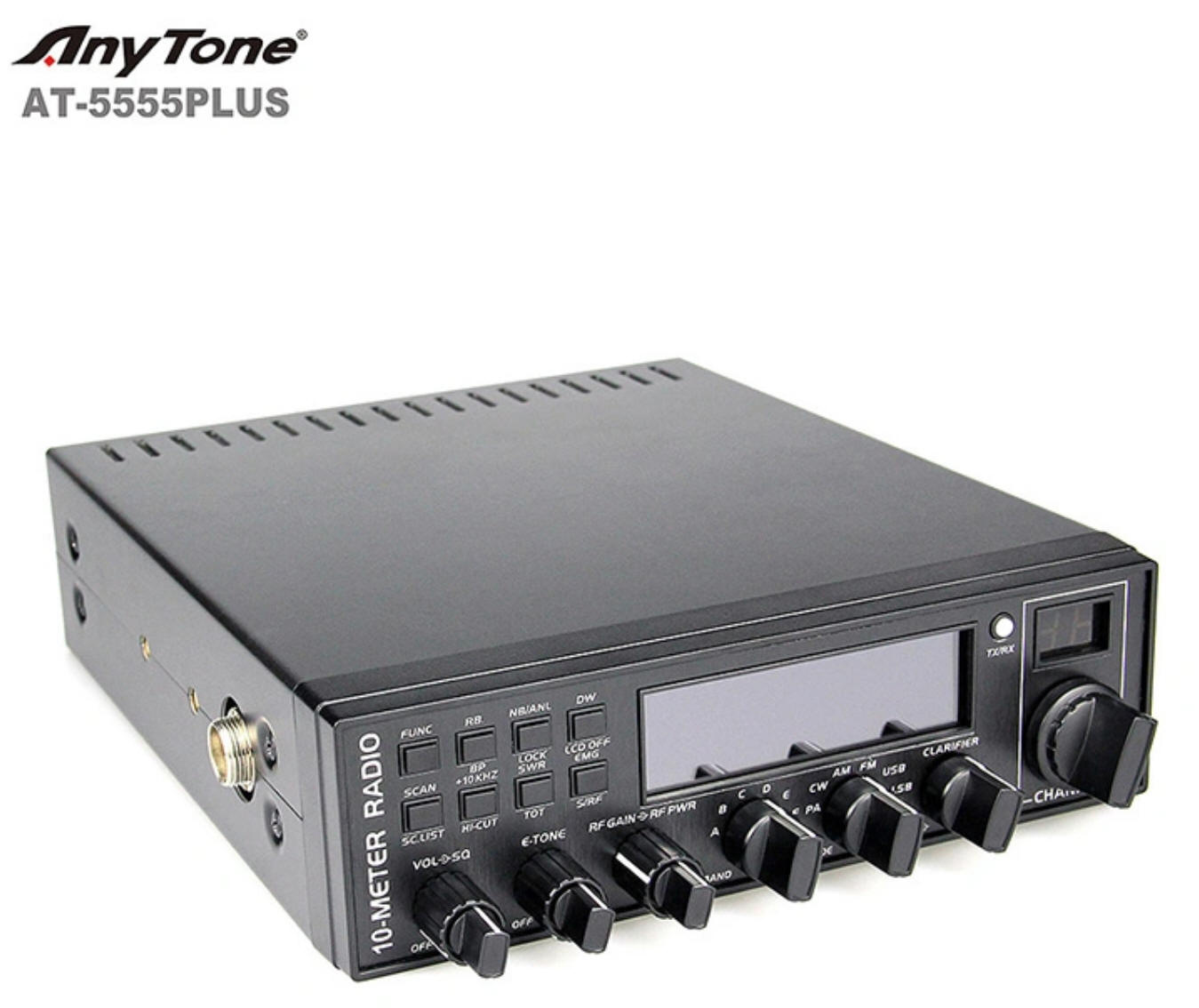

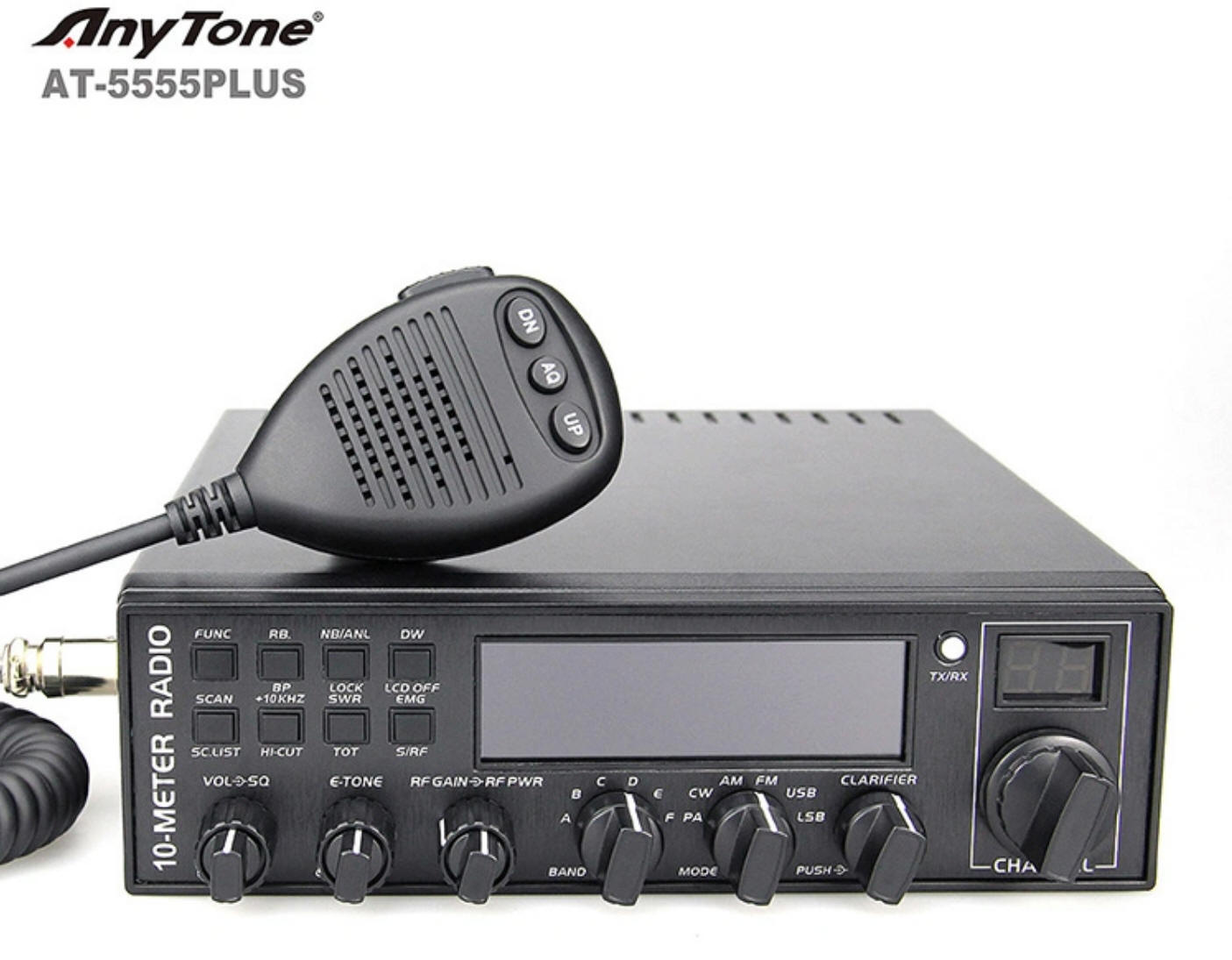

ANYTONE AT-5555 PLUS AM FM SSB

This High quality mobile radio is created with a fashionable design idea. Well-integrated use of technologies contributes to the high-efficiency manufacturing process.

Features

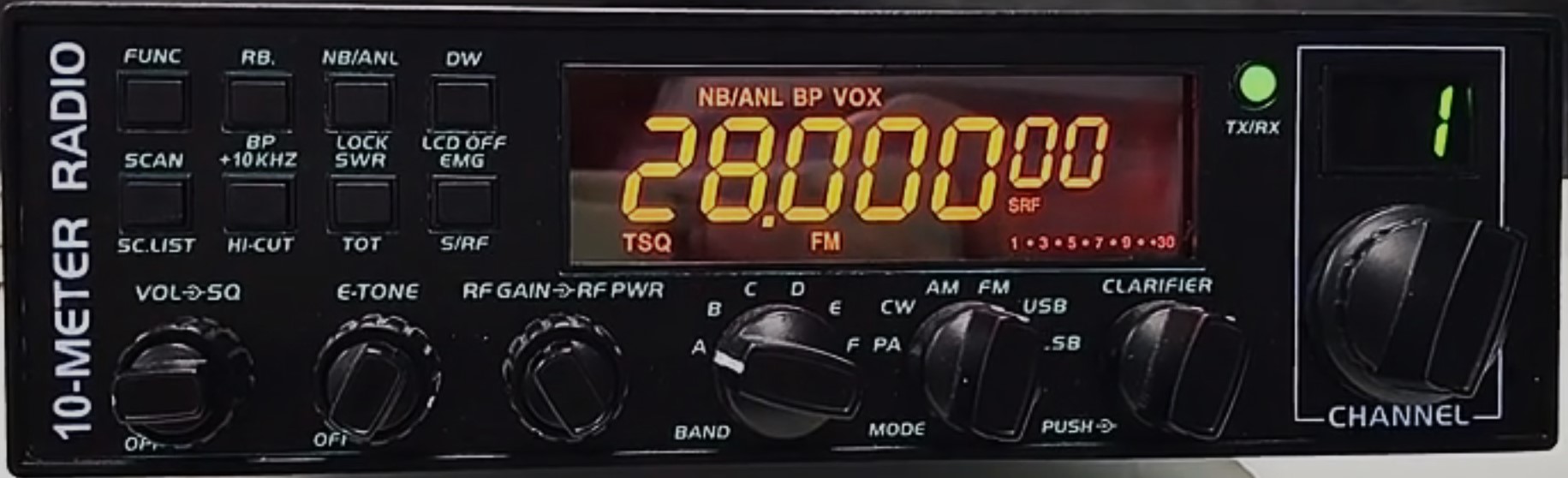

1. Large LCD panel which displays frequency and all kinds of information

2. DUAL-DIGITAL TUBE FOR CHANNEL DISPLAY

3. USE EL technology for backlight

4. PA、CW、AM、FM、USB、LSB mode

5. A、B、C、D、E、F ,

6 banks in total, where 60 channels at least can be individually programmed. 6. Frequency Tuning Step can be 10HZ, 100HZ, 1KHZ or 10KHZ.

7. Multiple CLARIFIER Operating Modes

8. Flexible menu functions and PC programming software to meet varied customer demands

9. ECHO Function

10. SQ, ASQ Function (FM and AM mode only) 11. RF GAIN ADJUSTMENT

12. RF PWR ADJUSTMENT

13. SCAN FUNCTION

14. RB FUNCTION

15. NB/ANL FUNCTION

16. DW DUAL-WATCH FUNCTION

17. BEEP VOICE PROMPT

18. +10KHZ Function

19. SWR、S/RF、DC Voltage display function

20. TOT function

21. HI-CUT FUNCTION

22. EMG CALL

23. SWR PROTECTION

24. POWER SUPPLIED VOLTAGE PROTACTION

25. Key-Lock Function

26. VOX function

27. CTCSS/DCS code

28. RX compander: noise blanker

29. Noise gate setting: mic noise adjustable

30. RX Noise Reduction (only AT-5555PLUS/N)

31. Compatible with �electronic� and �dynamic� MIC type

Tune and Convert?

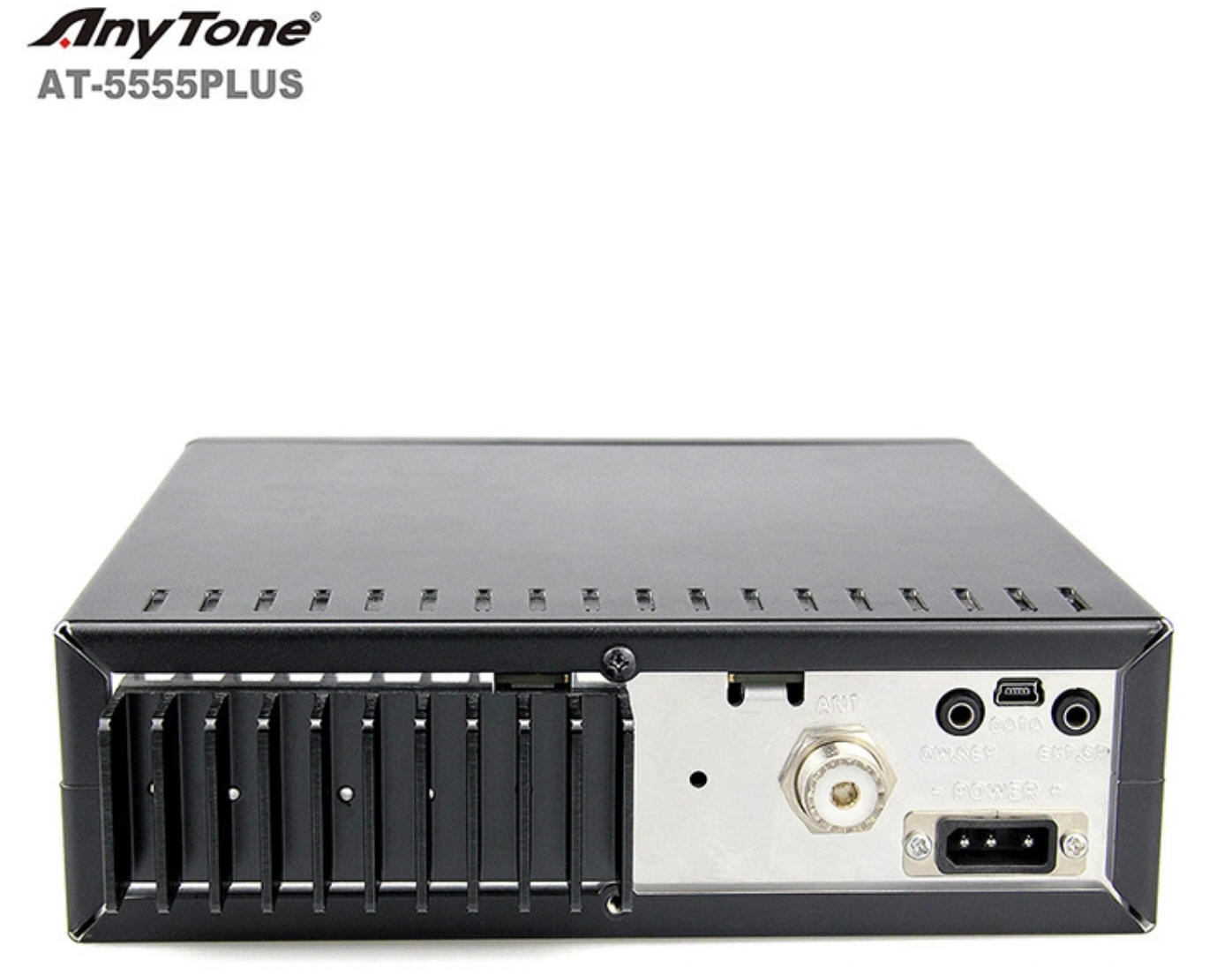

Anytone 5555 Plus 10-Meter Radio

$219

Download Software

Optional Accessories

Select Above Tune-up and frequency conversion.
(Tune-up, Alignment and expanded frequency) $40

Switch Location

Install an EXTERNAL PTT keying port. We use an RCA jack for a TX output PORT to your external device. Every time you key it provides a connection between the +/- of the RCA connector.
   1) Output RCA completely isolated from the radio. Both +/- connect to a relay that isolates it from the radios circuits.
   2) Optional BYPASS switch in case your external device does not have a standby (turns port off (stays open))
     4) Heavy duty relay can handle any keying circuit voltage, even the SB-220's - 120VDC circuit. $49
/
$59
/
$69

Change factory power cord to a 10 Gauge Power Cord (14 foot) and modify the DC Jack for high amperage 2 Pin Quick connector. A 3300uF Capacitor is also added for additional DC filtering.
$59

Programming Cable
For Software programming via computer. We don't know anything about programming these units and we can provide no assistance with it. $18

Install a Record/Playback Module 120 seconds (wired inside the radio with a switch on the side to record 120 seconds and to play it back over the air) $77

Sound Byte link

SOLD OUT
Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 30 second sound byte you want) $65

Sound Byte link

SOLD OUT
Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.) $65

small speaker Add a Small External Speaker
(plugs into back of the radio for improved sound) $12

Large Speaker Add a Large External Speaker
(plugs into back of the radio for improved sound) $25

Tuned up values on these watt meters

	Dosy	Bird RMS	*Bird 43P
AM
FM
SSB
PEAK AM

*Most informative and the one we use
x/xx/xx

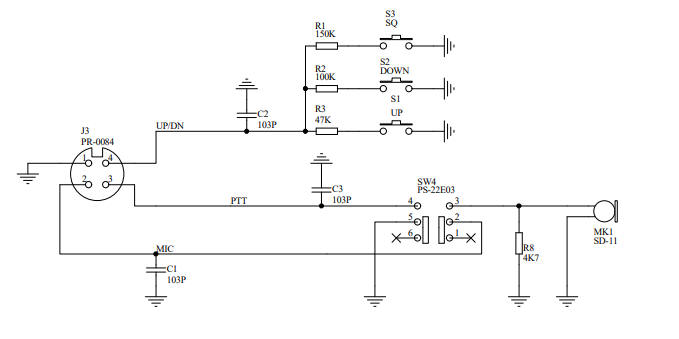

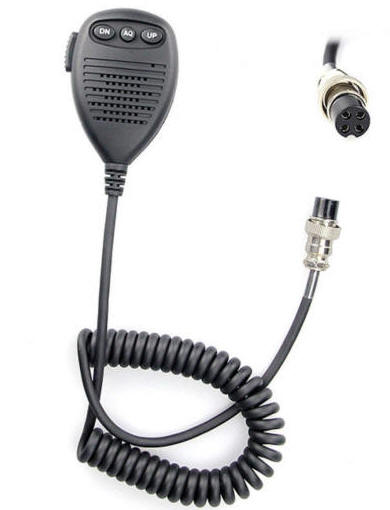

MICROPHONE
