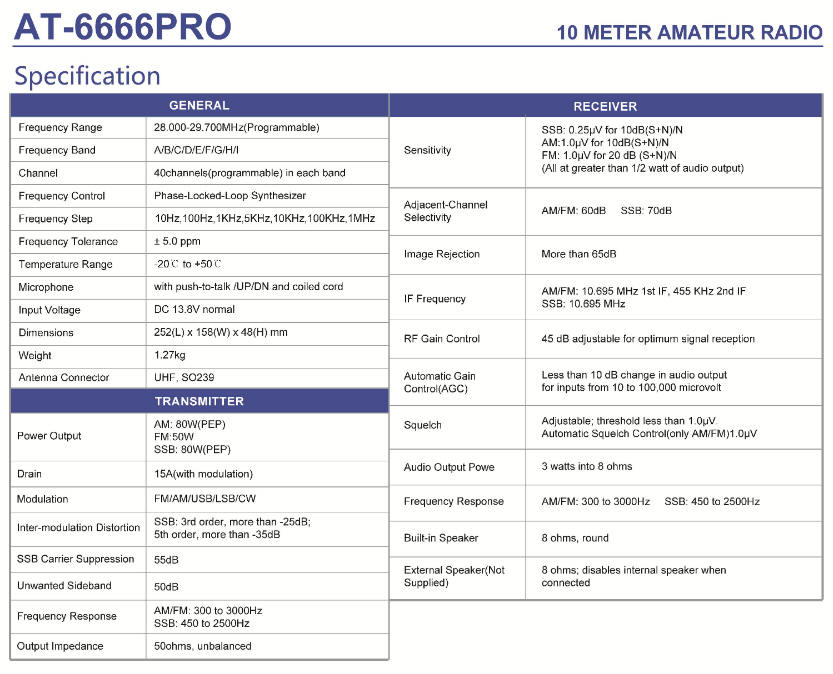

Frequency: 28.000-29.700MHz (25.615~30.105MHz)
-
Power: AM PEP Max:
80W FM Max: 50W SSB Max: 80W
-
Big LCD displays frequency and all kinds of information
-
FM/AM/USB/LSB/CW/PA mode
-
Frequency Tuning Step 10Hz, 100Hz, 1KHz, 5KHz, 10KHz, 100KHz, 1MHz
-
Flexiable menu function and PC programming software
-
ECHO Function
-
SQ, ASQ Function (FM and AM mode only)
-
RF GAIN Adjustment
-
RF PWR Adjustment
-
SCAN Function
-
Programmable RB Function
-
NB/ANL Function
-
DW DUAL-WATCH Function
-
BEEP Voice Prompt
-
+10KHZ Function
-
SWR、S/RF function
-
TOT function
-
HI-CUT Function
-
EMG CALL
-
SWR PROTECTION
-
Power Supply Voltage Protection
-
Key-Lock Function
-
Seven (7) Color LCD Display
-
Six(6) Groups Memory Channel
-
CTCSS/DCS Code(Optional)
-
DTMF Function
-

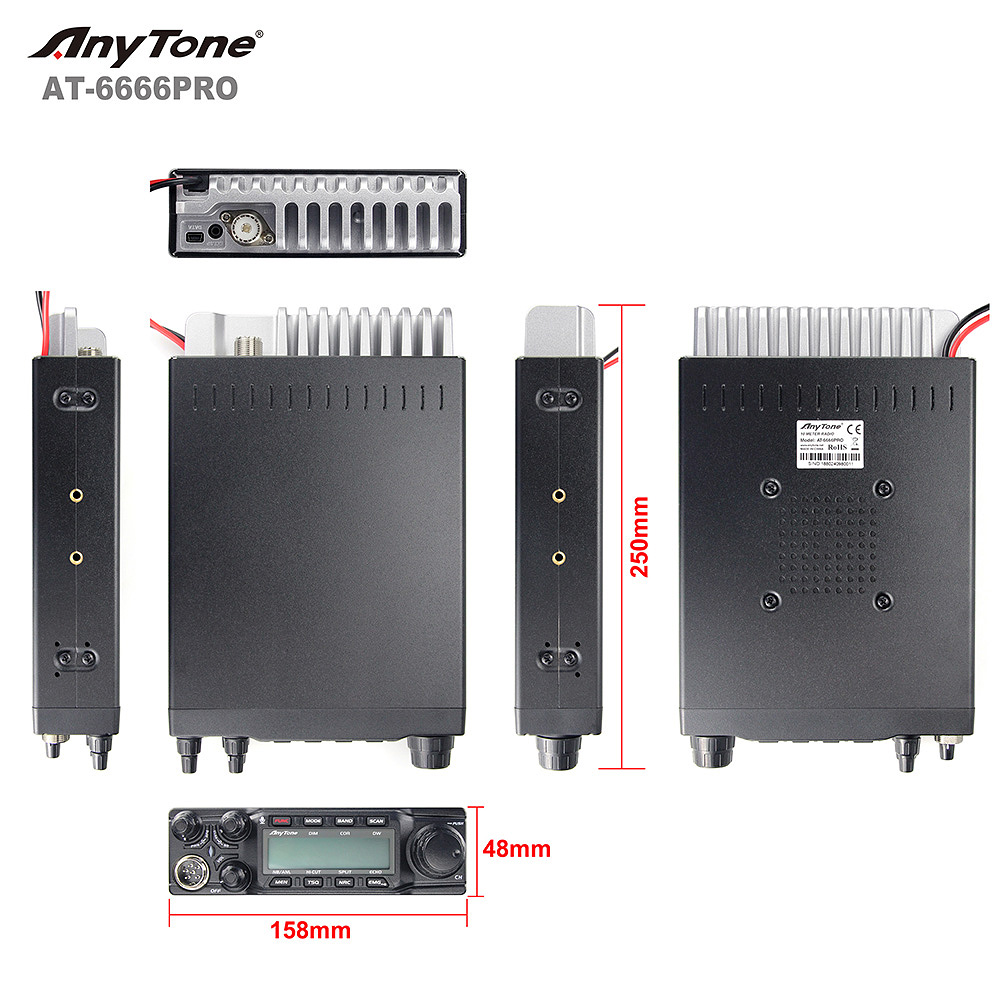

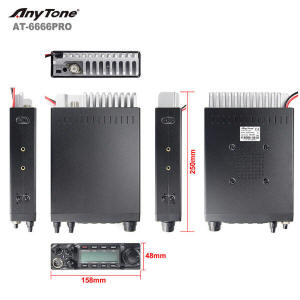

Dimensions: 245(L) x 158(W) x 48(H)
9.64" x 6.22 " x 1.89"
|
|
|
|

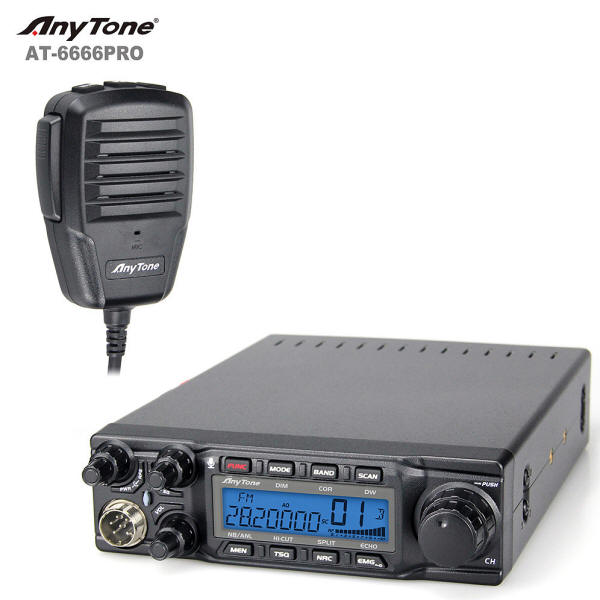

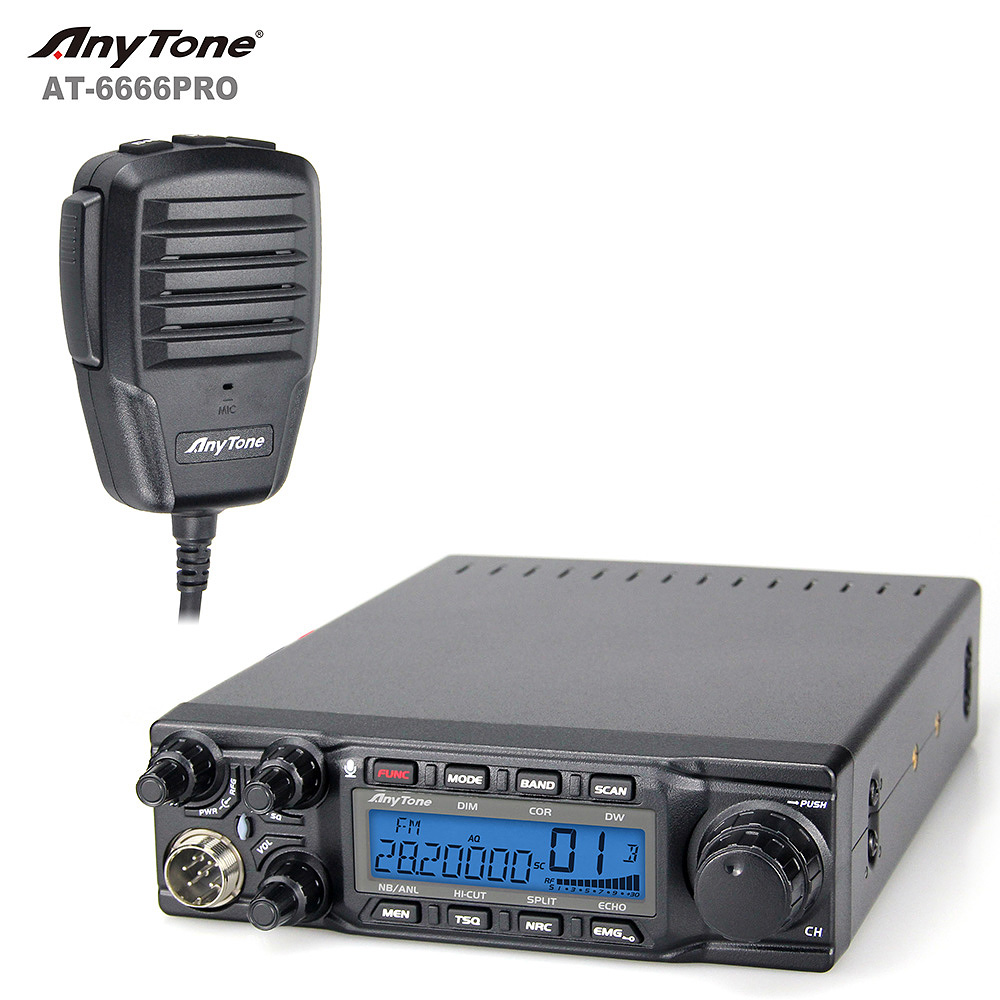

Anytone AT-6666 PRO 10-Meter Radio
|
$280 |
|
Download
Software
Optional
Accessories |
Select Above |
Tune-up
and frequency conversion.
(Tune-up,
Alignment and
expanded frequency) |
$40 |
|
Install a
Record/Playback Module 120 seconds
(wired inside the radio with a
switch on the side to record 120 seconds and to play it back
over the air) |
$77 |
|
Install
a
Noise toy
(wired inside the radio with
a switch or pushbutton to trigger any 30 second sound byte
you want) |
$65 |
 |
Add
a
Small External Speaker
(plugs into back of the
radio for improved sound) |
$12 |
 |
Add a
Large External Speaker
(plugs into back of the radio
for improved sound) |
$25 |
 |

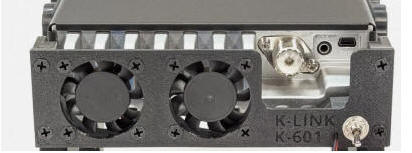

Add a small fan kit in the back to
keep the radio cool *
Customer is CA recommends this kist for everyone over 80
degrees, or it gets hot. |
$49 |
 |
Add
a power Supply and speaker and fan
to run this as a Base Station in the house. |
$159 |
Tuned up values on these watt meters
|
Dosy |
Bird RMS |
*Bird 43P |
AM |
1~20 |
1~20 |
1~20 |
FM |
1~18 |
1~180 |
1~18 |
SSB |
1~62 |
1~40 |
4~101 |
PEAK AM |
2~54 |
2~23 |
6~100 |
*Most
informative and the one we use
03/20/25 |

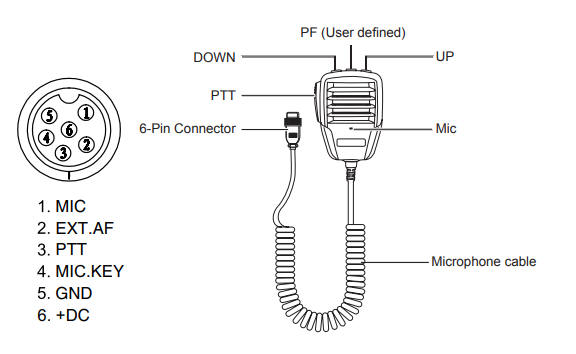

MICROPHONE
DIAGRAM
|
|
