 10 Meter
Mobile Radio |
|
 |
RCI-2950DX
...Discontinued...
New Model 2950CD HERE!!!
|
|
Download Manual
Addendum
Service
Manual
Download
Schematic drawings
|
Ranger Communications
once again sets the performance and reliability standard for entry
level amateur mobile transceivers with the latest generation of
our popular RCI-2950/70 series of cost effective, multi mode, high
performance transceivers.
Introducing the new RCI-2950DX & RCI-2970DX. These new
DX models feature microprocessor control of not one but two
amateur bands. The new RCI-2950DX, rated at 25W PEP and the
RCI-2970DX, rated at 150W PEP are perfect for the recent band
openings on 10 and 12 meters. Now you can upgrade your mobile Ham
capabilities with a radio that is rich in features and reasonable
in cost.
The new DX models have retained the operating features
of its popular predecessors, including programmable repeater
offset and capabilities for a CTCSS tone option — great for
increasing repeater activity on 10 meters — and receiver scanning
for quick search of active frequencies. The units offer three
methods of frequency selection, non-volatile memory to store and
scan up to ten favorite frequencies, and front panel frequency
selector lockout.
In addition, the DX Series offers an impressive array
of design and performance improvements.
-
An improved
receiver: designed for increased sensitivity and image
rejections.
-
A double FET
balanced mixer: for improved receiver inter-modulation rejection.
-
New power supply
protection: and temperature compensation for improved stability
and reliability over wide temperature ranges.
-
Surface mount
components: for increased resistance to shock and vibration.
-
Improved display
lighting: for easy reading in a wide range of light conditions.
-
Variable Power
Output from 150 watts to 2 watts - great for PSK-31 operation.
More features:
- 10
& 12 Meter Bands
-
Large Frequency Display with Dimmer
-
Improved Receiver Design
-
New Black with green Back-light Display
-
Variable Output Power Control
-
Active Frequency Scanner
-
Receiver Clarifier (±0.5kHz)
-
Ten Programmable Frequencies
-
Noise Blanker/ANL Circuitry
-
Frequency Selector Lockout
-
Programmable Repeater Offset
-
Public Address Feature
What's different in the 2950DX from older 2950?
- An improved receiver: designed for increased sensitivity and
image rejections.
- A double FET balanced mixer: for improved receiver
inter-modulation rejection.
- New power supply protection: and temperature compensation for
improved stability and reliability over wide temperature ranges.
- Surface mount components: for increased resistance to shock and
vibration.
- Improved display lighting: for easy reading in a wide range of
light conditions.
- Green backlit display (Now Black)
- Frequency range now 12-10 meters.
Ranger radios sometimes have a small
scratch or ding that the factory covers with black touch up.
We cannot effect this and do not guarantee your radio to be
cosmetically perfect. Bells CB will make no marks or
scratches on your radio ourselves. Ranger might though and
I cannot control it.
Comply with part 15 of the FCC Rules. Operation is subject to
the condition that this device does not cause harmful
interference. Further information can be found at the FCC
website http://fcc.gov or
the ARRL website http://arrl.org.
Transmitting using this radio requires an Amateur Radio License.
Licensing information can be obtained by visiting
www.fcc.gov or
http://arrl.org. In Canada, visit
http://strategis.ic.gc.ca
or http://www.rac.ca
|

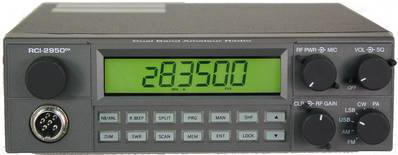

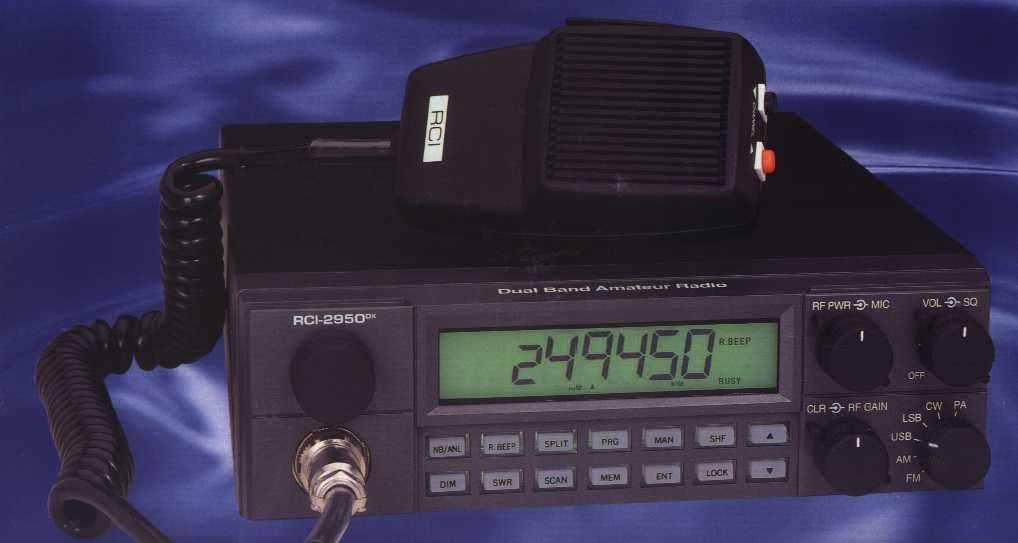

Click images for larger view
|
...RCI-2950DX-3...
...Discontinued..
Replaced with the RCI-2950CD!
***
This Item has been Discontinued
by the
manufacturer and remains
here for reference and
support
information only. *** |
$299.50 |
|
|
We ask that if
you may need
Warranty service on this radio to please send directly to Ranger.
You can find all the information you need
Here<---
|
Tuned up values on these watt meters |
|
Dosy |
Bird RMS |
*
Bird 43P |
| AM / FM |
1 ~
10w |
1 ~
10w |
1 ~
10w |
| Peak AM |
4 ~ 27w |
2 ~ 12w |
20 ~ 45w |
|
SSB |
7 ~ 21w |
5 ~ 19w |
14 ~ 38w |
* The most informative meter and the one we use.
01/10/24 |
|
|
Specifications
|
General |
RCI-2950DX |
|
Frequency Range |
10
Mtr: 28.000 - 29.6999 MHz
12 Mtr: 24.8900 - 24.9900 MHz |
|
Tuning Steps |
1
MHz, 100 KHz, 10 KHz, 1 KHz, 100 Hz |
|
Emission |
USB, LSB, CW, AM, FM |
|
Frequency Tolerance |
0.005% |
|
Frequency Control |
Microprocessor / Phase-Locked-Loop Synthesizer |
|
Frequency Stability |
0.001% |
|
Operating Temperature Range |
-10
ºC to + 50 ºC |
|
Meter Function |
RF
Output, RX Signal Strength, Modulation, SWR
(LCD Display Indicates Relative Values) |
|
Antenna Impedance |
50
W |
|
Input Voltage |
13.8 Vdc |
|
Microphone |
400
W
Dynamic PTT - 6 Pin |
|
Size (W x D x H) |
7-7/8" x 11" x 2-3/8" |
|
Weight |
4 lb 3 oz |
|
Shipping Weight
|
10
lb.
Average shipping costs for UPS 10 lb box
(well padded) with $300 insurance and signature is $20-$25
depending on your location. |
|
Transmitter |
|
|
RF
Power Output (Factory OEM) |
CW / AM / FM:
variable 2-10 Watts RMS
Peak AM: 25-28 Watts Peak power
SSB:
25 Watts (PEP) |
|
RF
Power Output (Tuned-Up) |
CW / AM / FM:
variable 1-10 Watts RMS
Peak AM: 36-40 Watts Peak power
SSB:
35 Watts (PEP) |
|
Current Draw @ Full Power |
4.8 Amps |
|
Modes |
USB, LSB, CW, AM, FM, PA |
|
CW
Keying |
Semi break-in |
|
Carrier Suppression |
-
50 dB |
|
Spurious Emission |
-
50 dB |
|
Antenna Connector |
UHF
Type, 50
W |
|
Receiver |
|
|
Sensitivity |
AM
/ CW: 0.5 µV for 10 db SINAD
FM: 0.25 µV for 12 db SINAD
SSB: 0.15 µV for 10 db SINAD |
|
Selectivity |
-
55db |
|
Image Rejection Ratio |
-
65 db |
|
Audio Output Power |
2.5
Watts @ 10% THD into 8
W |
|
|
|
Chat
Change out the 8 green LED's and install 8 Blue so keyboard is
a nice blue color.
