Ranger Logo 10 Meter Mobile Radio



SS-36HP3

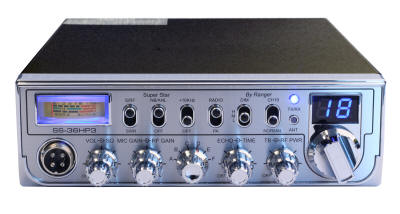

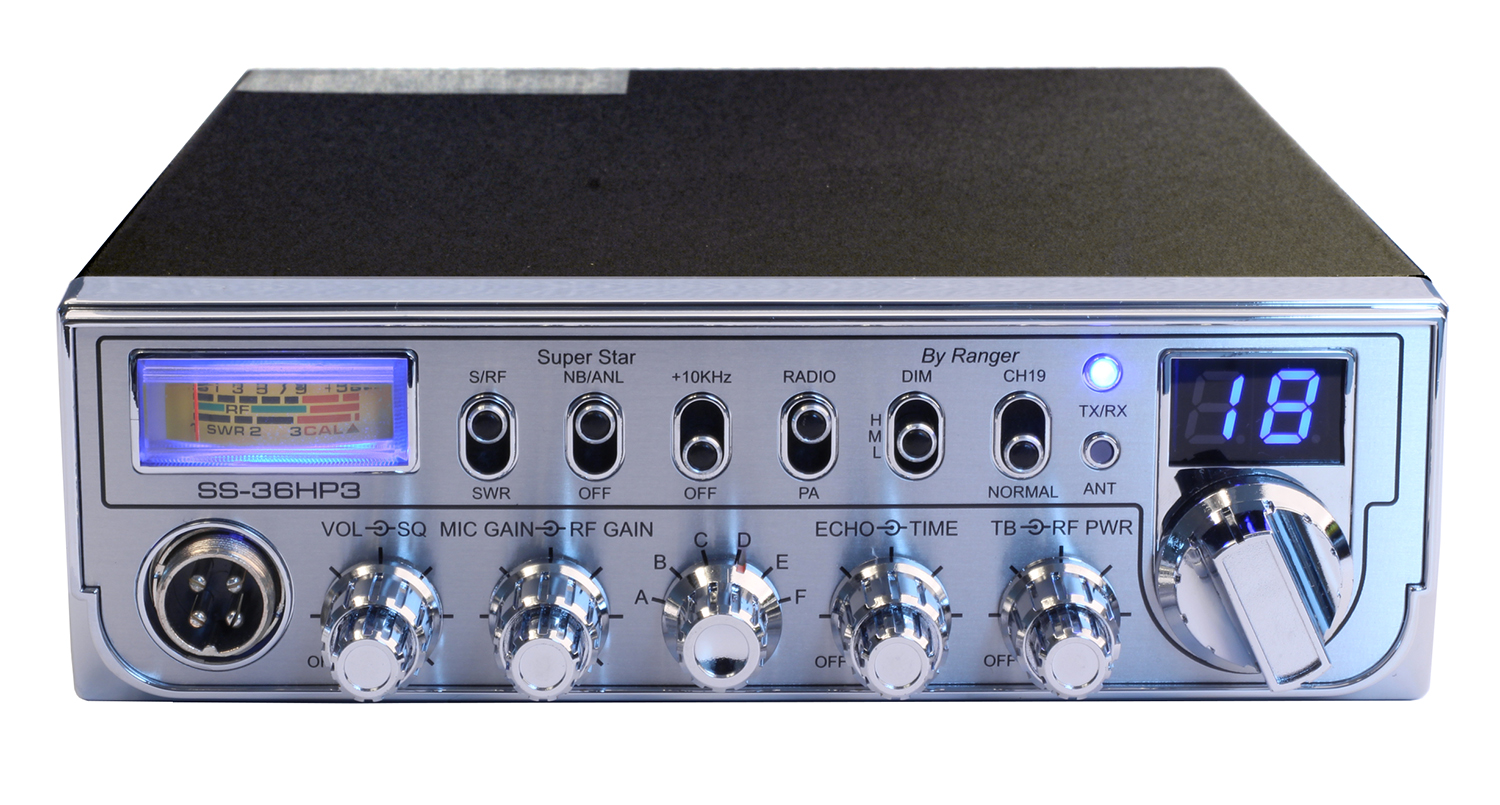

Click image for larger view

SuperStar
SS-36HP3
AM 10M Mobile Radio




Another new radio from the folks at Ranger Communications.  This is very close to the MX-36HP3 but with higher powered Mosfets and a SuperStar name.  It too is a DX radio that will fit in the Cobra 29LTD size holes. Very nice for those with a spot just right for a 29LTD (many standard holes in tractors are made for  the Cobra 29 size).

• Classic Chrome Design
• 7 ŧ” Size Chassis (29 Size Chassis)
• 60 Watts PEAK Output Power
• Variable RF Power Control
• S/RF/SWR Front Panel Meter
• 4pin Front Panel Mic Jack
• Original Mirage Receive Circuit (famous)
• Real Channel Selector Control
• SRA-198 Noise Cancelling Mic Included
• Variable Echo and Talk Back Controls
• 3 Position Dimmer Switch
• Cool Blue LED Channel Display

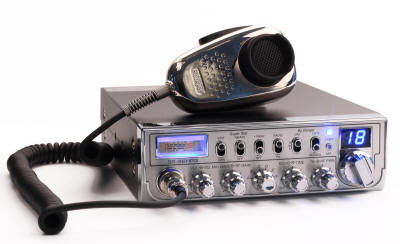

SS-36HP3 and Mic

Ranger radios sometimes have a small scratch or ding that the factory covers with black touch up.  We cannot effect this and do not guarantee your radio to be cosmetically perfect.  Bells CB will make no marks or scratches on your radio ourselves.  Ranger might though and I cannot control it.










CB Microphone Wiring (Galaxy)







The item most overlooked when ordering a custom radio is the microphone.  Your new radio will NOT sound great with a stock mic on it even if you have it tuned.  If your CB is more than a tool for work, you NEED to upgrade your microphone.
My personal favorites are the
Astatic 636L and RD104E.

Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca

Get Notified Via E-Mail when we are taking orders again
Free Shipping
... AM 10 Meter Mobile ... $279.99
SuperStar SS-36HP3 Sell Sheet
Optional Accessories
 Tune-up and frequency conversion. (Tune-up, Alignment and expanded frequency coverage) AM Carrier: 1~15w,  Peak AM:15~60w) $39
Perform Receiver improvement mods.
(These mods replace key RX parts for better sensitivity and selectivity)
$26
 Install an CP-1 Top Gun Audio Compressor. (on - all the time) This amplifies your lower level audio on transmit.
NOTE: It becomes difficult to use the Talkback even at low volume with this mod.
$25

 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29
 Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$46

Sound Byte link


SOLD OUT
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 30 second sound byte you want)
$65

Sound Byte link


SOLD OUT
 Install a Noise toy as a background theme
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
Colors
Install Star-Bryte Knobs with dimmer control. Includes a 6 Knob set , parts and labor. $172
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25
Chrome covers Exchange the top and bottom covers to Chrome Covers. $32
 Exchange the top and bottom covers to Diamond Plate Covers. $22



 General
 Frequency Range

28.145 - 29.655 MHz

 Modes

AM

 Frequency Control

PLL Synthesizer

 Frequency Stability

0.001%

 Operating Temp. Range

- 30 ēC to + 50 ēC

 Input Voltage

13.8 Vdc

 Antenna Impedance

50 Ohms

 Size (W x D x H)

7-3/8(W) x 8-3/4(D)x 2-1/4 (H)

 Weight

3.5 Lbs.

 Shipping Weight

6 Lbs.

 Transmitter



 RF Power Output

AM: 10W
25W PEAK

 Spurious Emission

Better than -50 dB

 Audio Distortion

10 %

 Frequency Response

300 to 2500 Hz

 Microphone

Dynamic


 Receiver



 AM Sensitivity for 10 dB SINAD

0.5 ĩV

 Squelch Sensitivity

0.5 ĩV

 Image Rejection

- 50 dB

 Audio Response

300 to 2500 Hz
