SX-175©Magnum
150 – 200 Watt OEM Final Amplifier Section
with High Performance Low Pass Filter
Discontinued
|
|
 Schematic
Diagrams and
installation instructions
|
|
MAGNUM SX-175 POWERCABINET
Replacement Final Amplifier and Low Pass Filter Section
for Magnum S Series 175 Watt Amateur Radios (and more)
SX-175©
Upgrade your 50 Watt S-3, S-6, or S-9
(and many many more radios) to a 175 Watt Radio
with the SX-175 PowerCabinet!

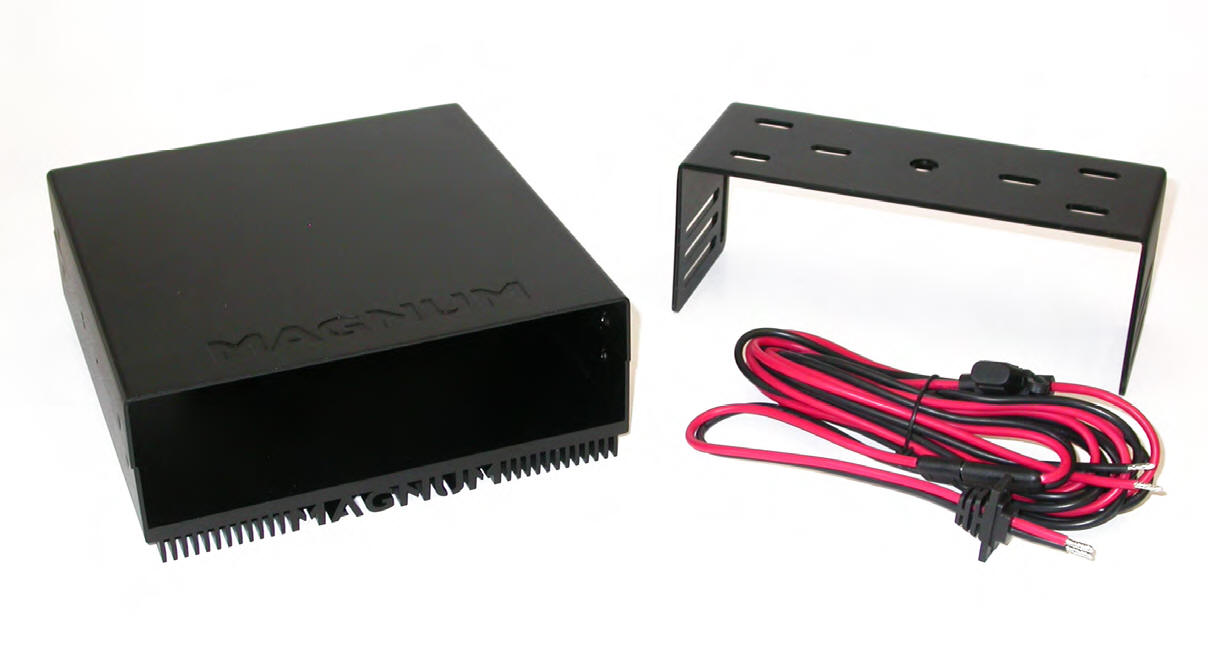

Included
Parts:
-
Aluminum Top Cabinet and Bottom
Cabinet/Heatsink
-
175+ Watt Final Amplifier - Low Pass
Filter - Directional Coupler Circuit Board Assembly
-
Heavy-Duty Aluminum Mounting Bracket
- Heavy-Duty, 12 Gauge, 10 Foot Power Cord Assembly
with 30A Inline Fuse
- Fits many radio types as long as the amplifier
fit's without obstruction.
This is a complicated modification and should not be done by an amateur. You
should probably
leave the installation and alignment to
a
proven technician.
|
| Comply with part 15 of the FCC Rules. Operation is subject to
the condition that this device does not cause harmful
interference. Further information can be found at the FCC
website http://fcc.gov or
the ARRL website http://arrl.org.
Transmitting using this radio requires an Amateur Radio License.
Licensing information can be obtained by visiting
www.fcc.gov or
http://arrl.org. In Canada, visit
http://strategis.ic.gc.ca
or http://www.rac.ca
|
|
|
|
...SX-175 Final Upgrade (KIT alone)...
Magnum reports the SX175 power cabinets
are discontinued. A replacement model will not be available
until early 2016.
Last info rcvd. 6-9-15 |
$159.50 |
|
|
See
Also:
RFX-150
RFX-85
|
Click for larger images.. |
 |
 |
|
The RFX-150
and the SX-175 both contain the same amplifiers inside. The only difference
is the size of the heatsink (fins) on each one of them. I don't know why
they decided to call one the 175 and the other a 150. Both have the same
electronics inside.
Think of the RFX-150 as light duty and the SX-
175 as heavy duty as far as talk time before overheating. If you talk a lot
and use SSB a lot, then the SX-175 is best. If you listen a lot and use
mostly AM, then the RFX-150 will do fine.
|
|
|
