PNI

PNI Escort HP62

PNI HP62 Title

Download Manual

Portable CB Radio PNI Escort HP 62, Multi Standard, 4W, 12V, AM-FM, Adjustable 5-Level ASQ, 9-Level RF Gain, Dual Watch, Scan, Lock



Multifunctional illuminated display

The illuminated display shows the current work mode of the station: the active functions (EMG, LOCK, SC, DW), the frequency band and the selected channel number, as well as the signal strength received and the transmitted signal.

Portable, small size
Like a walkie-talkie, CB PNI Escort HP 62 is extremely affordable and convenient to use because of its small size, only 73 x 35 x 92 mm - without the power adapter. Thus, you can place the station in the armrest or in the restricted spaces on board any car.

Multiple functions
Despite its small size, the PN 62 HP Escort is equipped with most of the functions required by a CB station, thus satisfying the needs of any user. Functions such as RF Gain, Scan, Squelch Automat, Dual Watch or Last channel recall make the station easy to adapt to different communication needs.

Connectivity: BNC connector, 2 pin connector and PL259 socket
CB PNI Escort Station HP 62 has a dual use: in the car as a mobile station along with the body mounted antenna and outside as a portable station by installing a BNC antenna and batteries (optional accessories). The microphone and loudspeaker connections allow you to connect a 2-pin headset with which we can communicate in handsfree mode.
 Multifunctional backlit LCD display Mobile or portable Connectivity: BNC connector, 2 pin connector and PL259 socket
Multifunctional backlit LCD display
The illuminated display shows the current working mode of the radio, the active functions (EMG, LOCK, SC, DW), the frequency band and the number of the selected channel, as well as the level of the received and transmitted signal.

The screen light can be turned on or off by pressing the dedicated key on the left side of the front panel.
Mobile or portable
Similar to a walkie-talkie, the CB radio PNI Escort HP 62 is extremely accessible and convenient in use due to its small size, only 73 x 35 x 92 mm - without the power adapter. Thus, you can place it in the armrest or in any other narrow space in your vehicle.

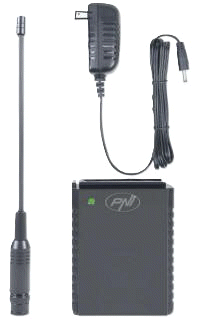

This radio can be used in two ways: inside the car as a mobile radio connected to a CB antenna and out of the car as a portable radio by installing a BNC antenna and batteries (optional accessories).

The adapter cable has a length of 30 cm.
Functions and connectors
Although small in size, PNI Escort HP 62 is equipped with most of the functions required for a CB transceiver. Functions such as RF Gain, Scan, Automatic Squelch, Dual Watch or Last channel recall make this radio easy to adapt to different communication needs.

The 2-pin connector (for microphone ans speaker) allows you to use the radio hands-free.

  • Working frequency 26 - 28 MHz
  •   73 x 35 x 92 mm - without the power adapter
  • Operating temperature -26 C ~ + 60 C
  • Warranty : 24 Months (Manufacturer)
...Escort HP62 Radio... $119.50



General characteristics
Frequency 26.965-27.405 MHz
Broadcasting type AM-FM
feeding 12 V
Dimensions (L x H x D / Weight) 73 x 35 x 92 mm (without power adapter) / 332 g (included adapter)
Sensitivity (10dB) 0.5uV (AM) 0.25uV (FM)
Audio speaker power 0.5W
Audio signal distortion less than 3% @ 1KHz
Emission power 4W
Modulation 90% +/- 5%
Current absorbed 900mA
Model portable
Special features
Dual Watch Yes
Scanning channels Yes
RF Gain Yes, 9 levels
ASQ - Squelch automaton Yes, 5 levels
Keyboard lock Yes
Operating temperature -26 ~ + 55 C
The package contains
Radio station Yes
Lighter jack Yes
12 V antenna and power adapter Yes
Manual in Romanian Yes


PNI Escort HP-62PNI Escort HP62 Side shotPNI Escort HP62 Top knobs shot

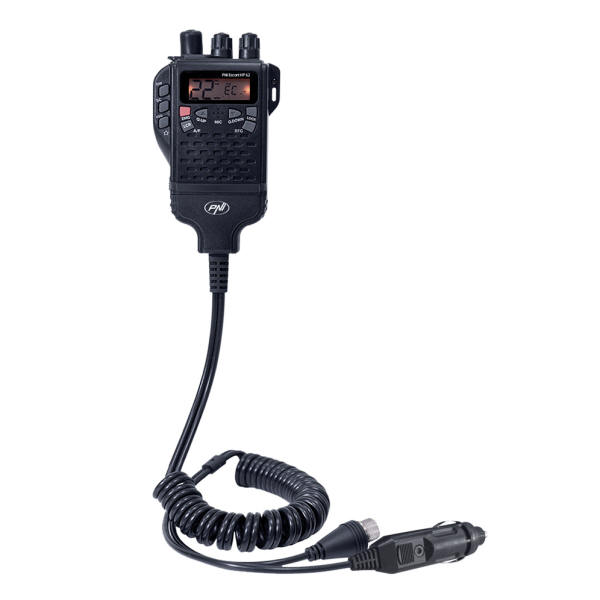

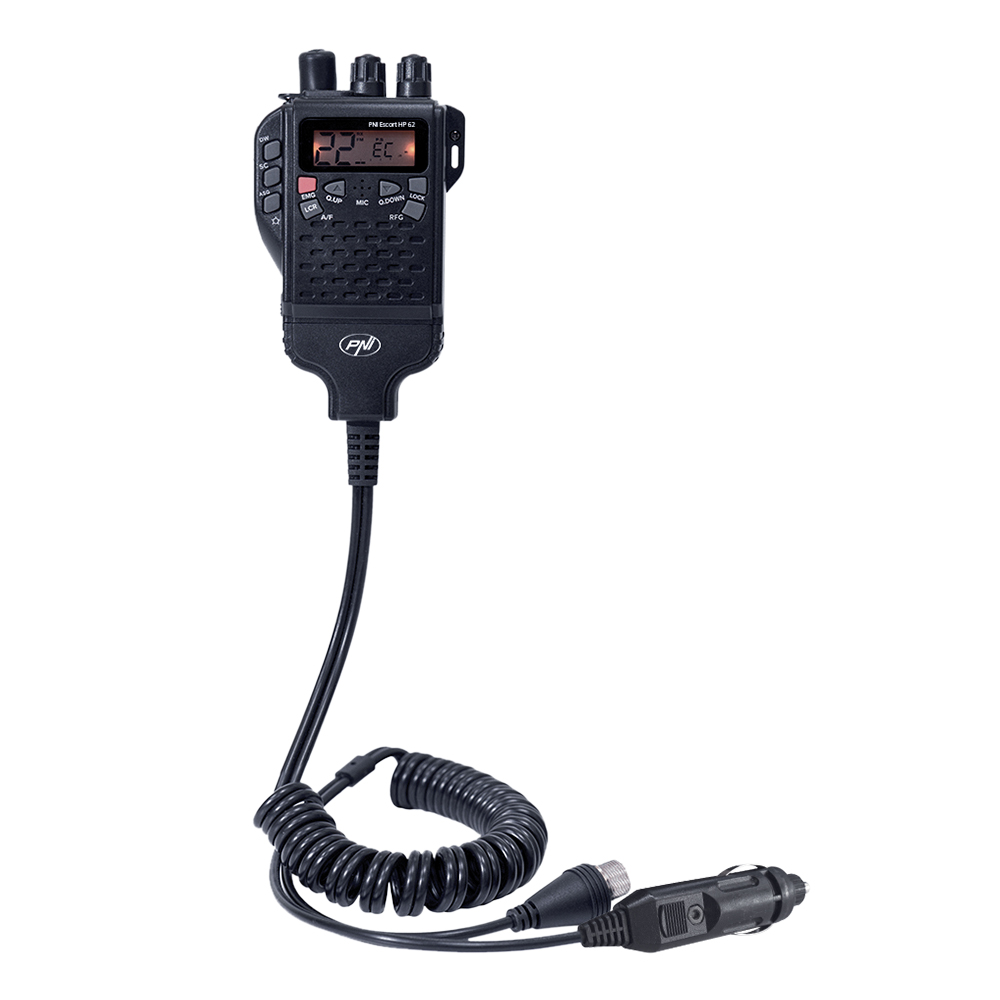

PNI Escort HP62 Cord and coax assemblyPNI escort HP62 In HandPNI Escort HP62

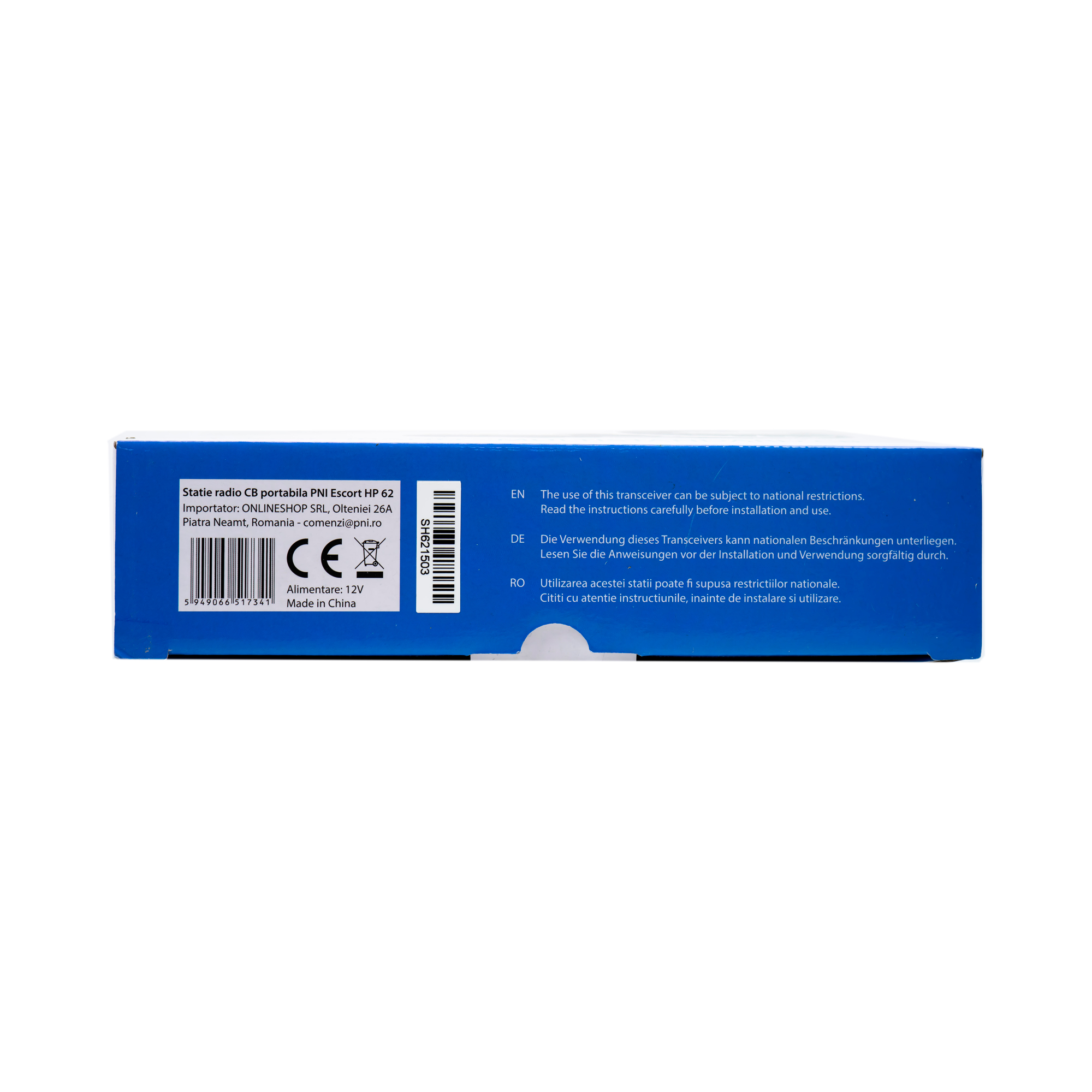

PNI Escort HP-62 back of BoxPNI Escort HP62 Side of Box

The HP 55 PNI Escort The HP 62 PNI Escort multi-norm station brings a novelty in the field of CB. Depending on the country you are traveling to, first select the frequency table and then the country-specific rule . Carefully consult the local legislation and set the station (maximum allowable emission power) accordingly.
